Toyota COROLLA 地板垫和地毯 — Figure 5804

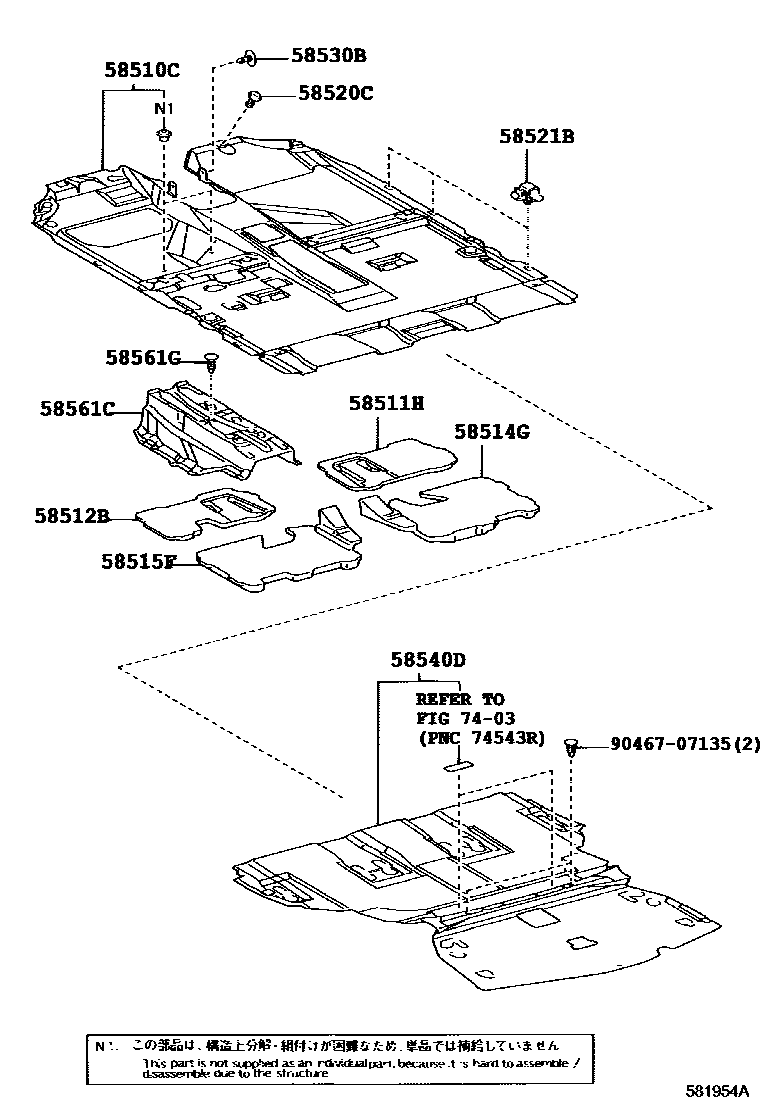

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58511H | Front floor right mat | 58511-0F010 |
| 58512B | Front floor left mat | 58512-0F010 |
| 58514G | Rear floor right mat | 58514-0F010 · 58514-0F020 |
| 58515F | Rear floor left mat | 58515-0F010 · 58515-0F020 |
| 58521B | carpet hook | 58521-0F010 |
| 58561C | Front floor silencer No. 1 | 58561-0F010 |
