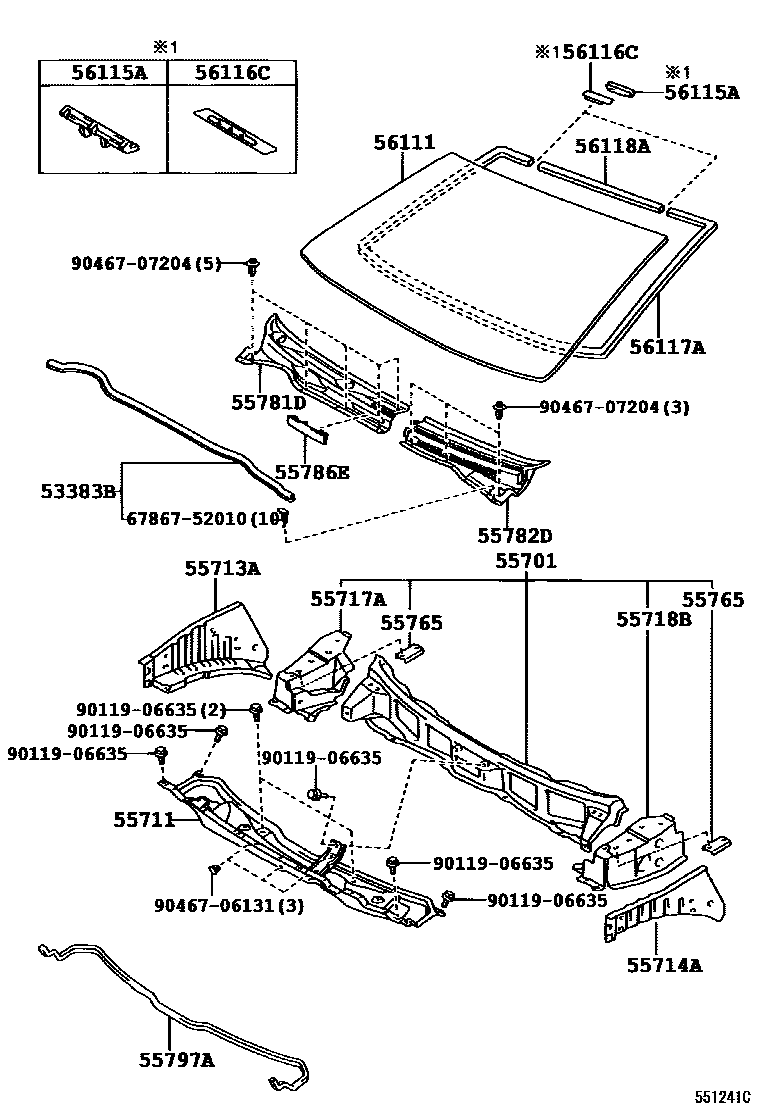

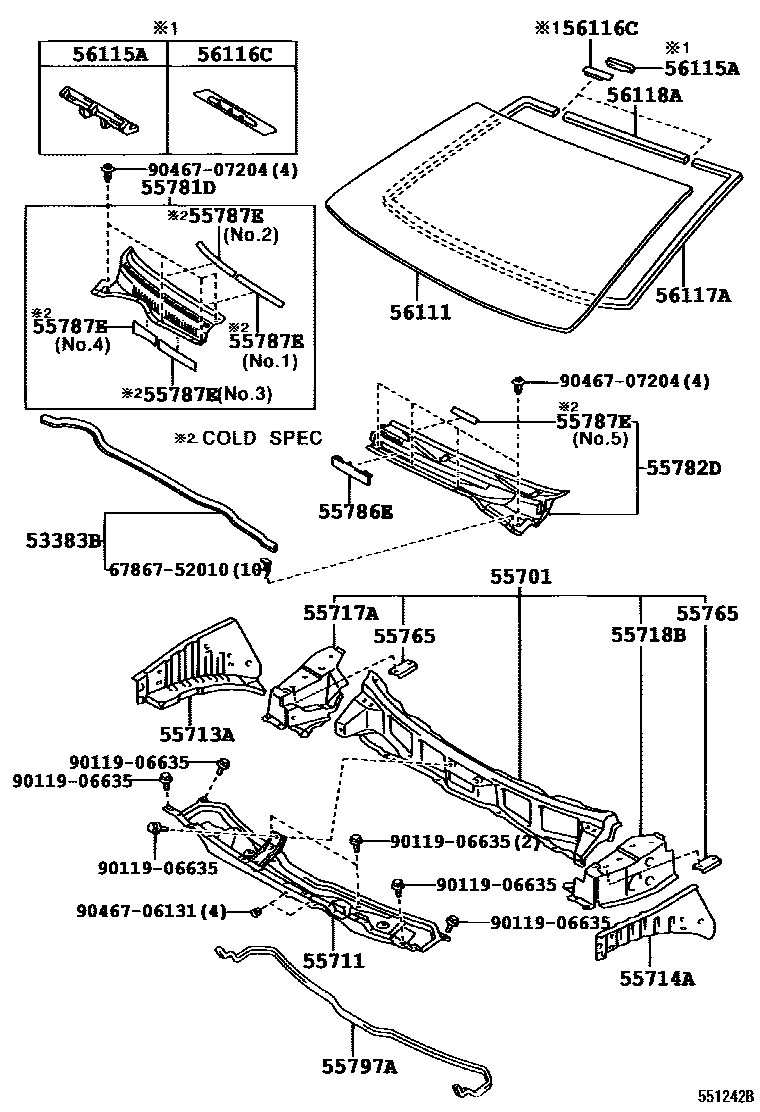

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-0F010 |
| 55701 | Front apron sub-assembly | 55700-0F010 · 55700-0F020 |
| 55711 | Front outer panel | 55701-0F010 · 55701-0F011 · 55701-0F020 · 55701-0F021 |
| 55713A | Right front wall upper side panel | 55713-0F010 |
| 55714A | Left front wall upper side panel | 55714-0F010 |
| 55717A | Upper right inner panel of cowl | 55717-0F010 |
| 55718B | Upper left inner panel of front wall | 55718-0F010 |
| 55765 | Engine cover bumper mounting bracket | 55765-44010 |
| 55781D | Ventilation grille on right front apron | 55708-0F010 · 55708-0F020 · 55708-0F030 |
| 55782D | Ventilation grille on left front apron | 55709-0F010 · 55709-0F020 · 55709-0F030 |
| 55786E | Ventilation grille connection plate on front apron | 55786-0F010 |
| 55787E | Ventilation grid on center cowl No. 1 | 55787-0F010 · 55787-0F020 · 55787-0F030 · 55787-0F040 · 55787-0F050 |
| 55797A | Front wall pumping device seal | 55797-0F010 |
| 56111 | windshield | 56101-0F030 · 56101-0F040 |
| 56115A | Windshield block No. 1 | 56115-22010 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-64010 |
| 56118A | Window Glass No. 2 Adhesive Sealing Strip | 56118-64010 |
