Toyota COROLLA 仪表板和手套箱 — Figure 5501

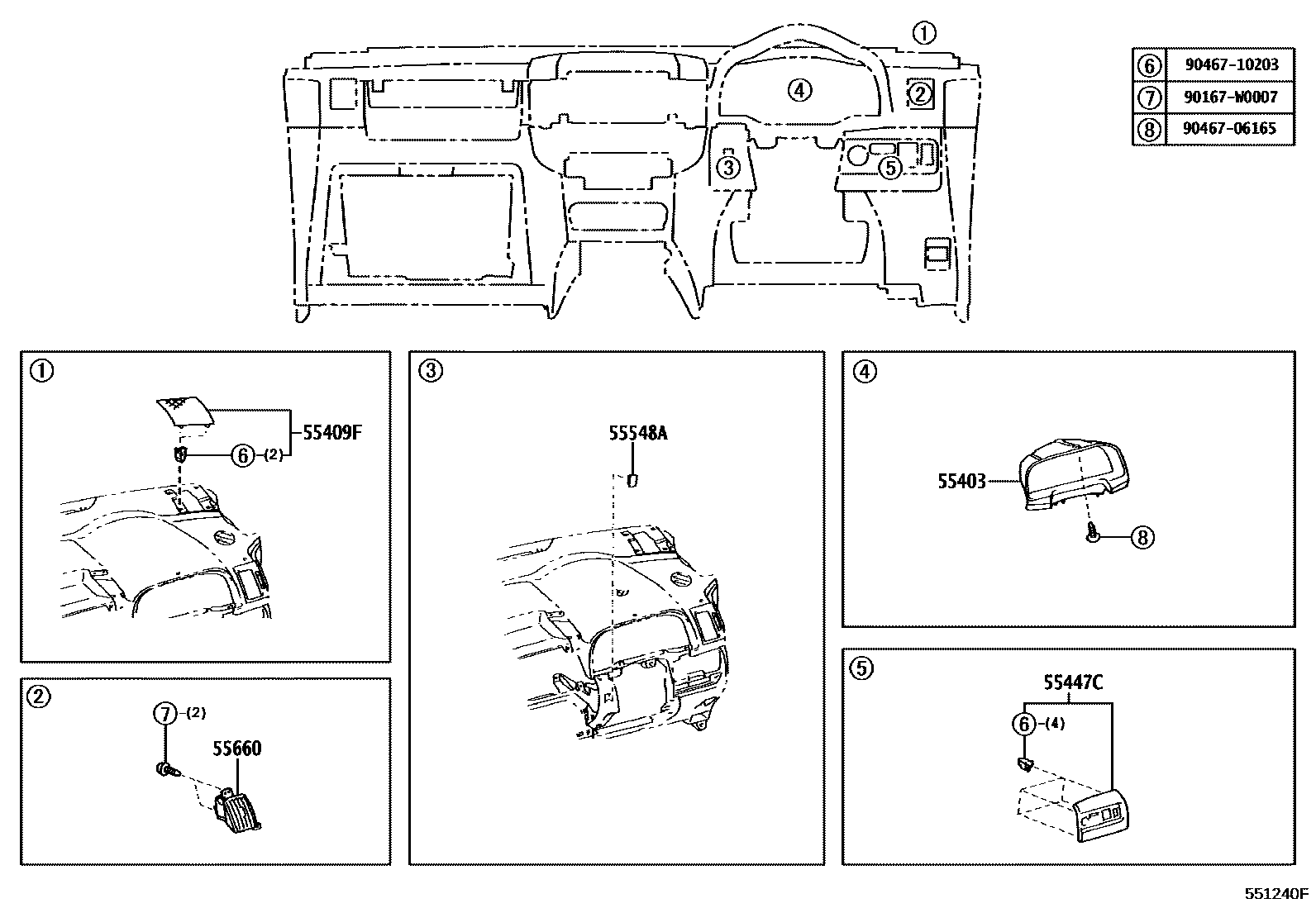

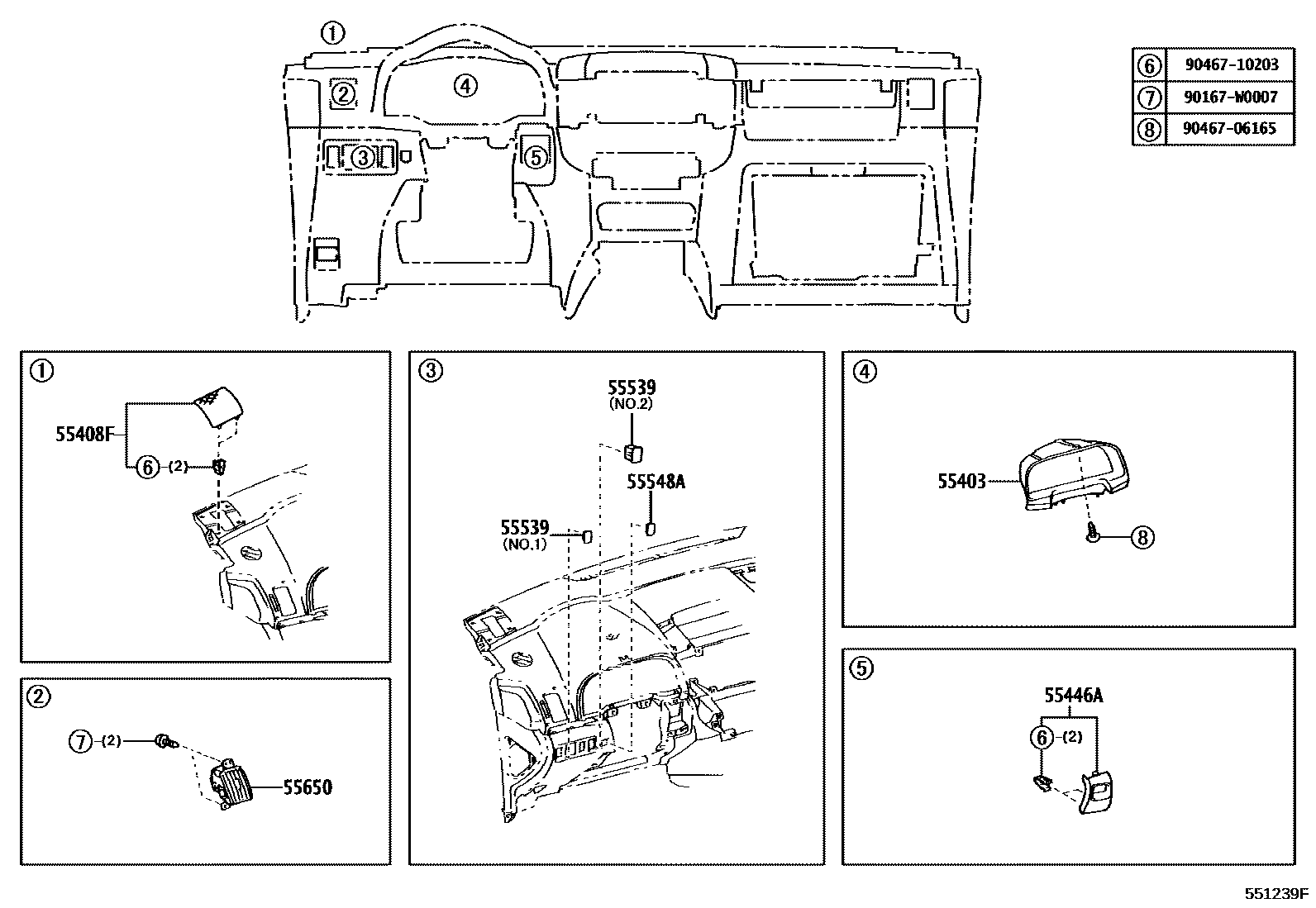

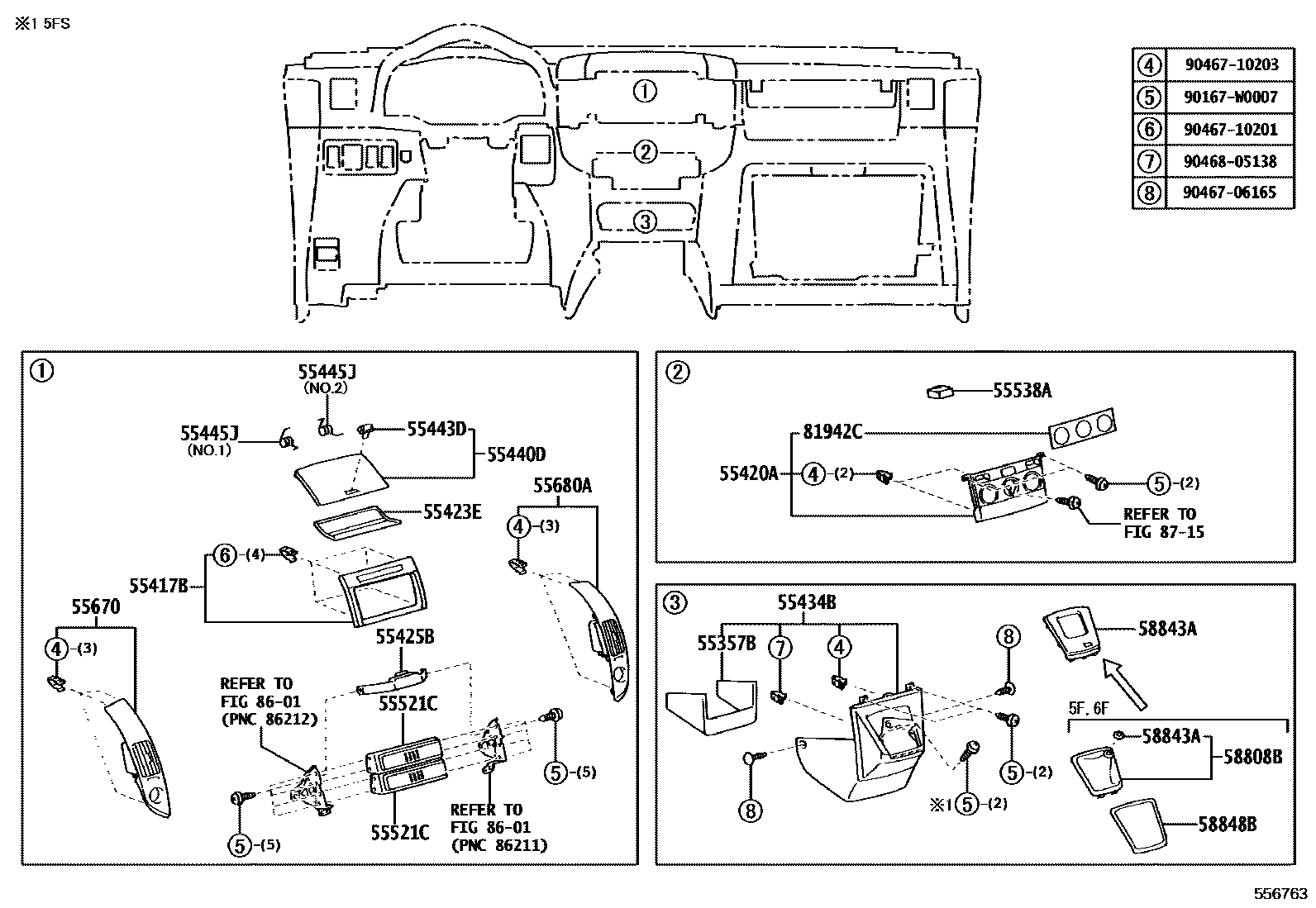

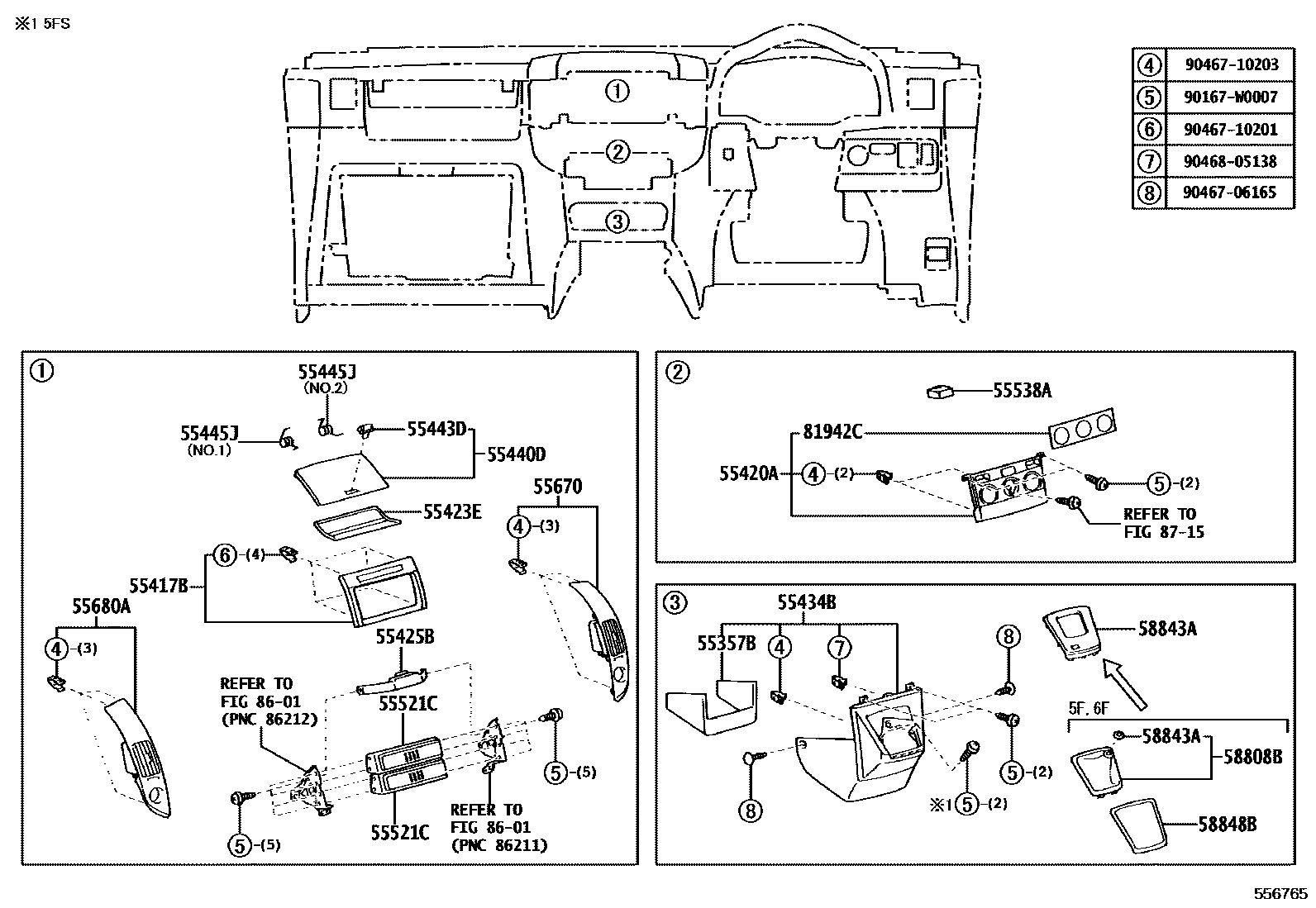

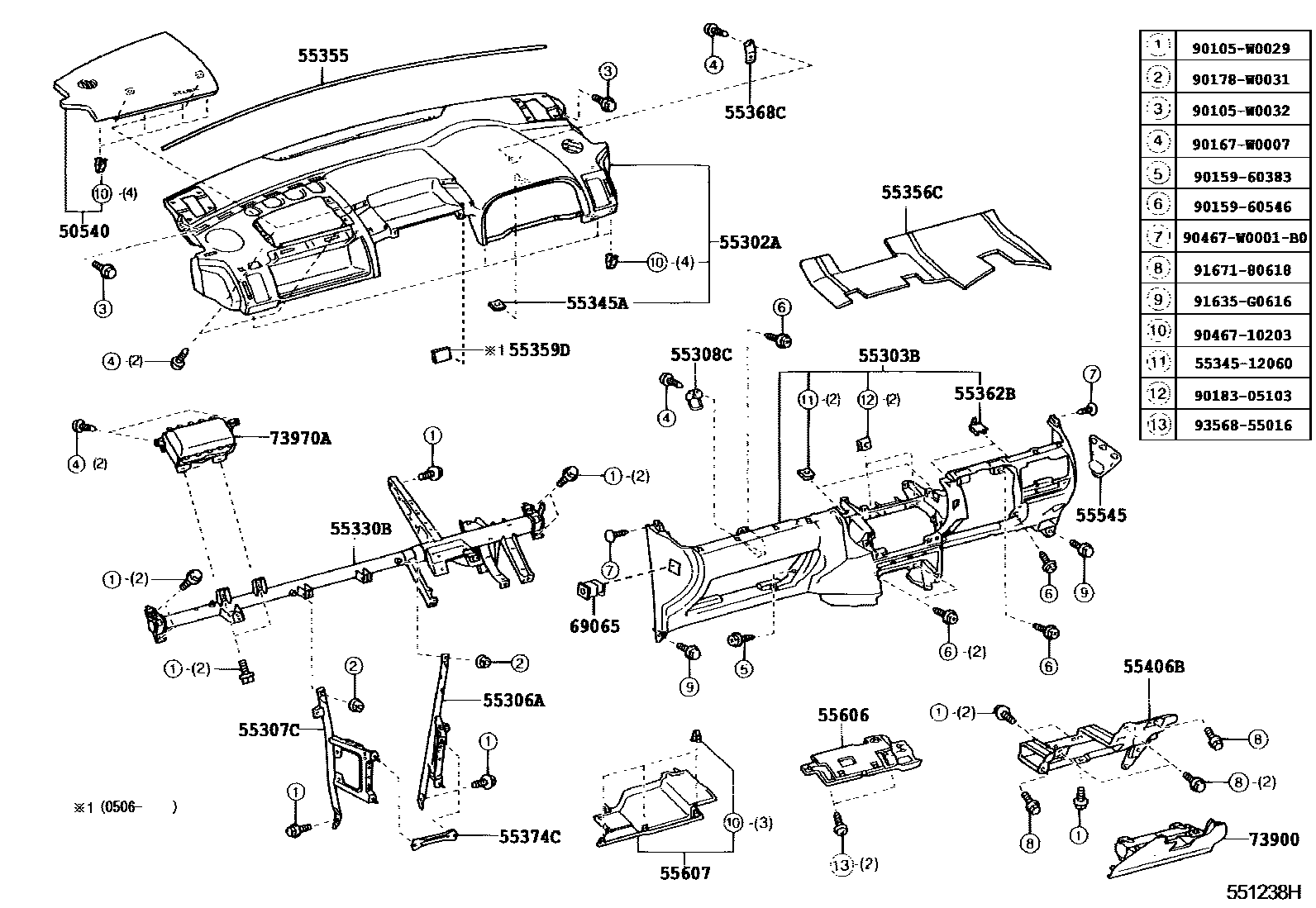

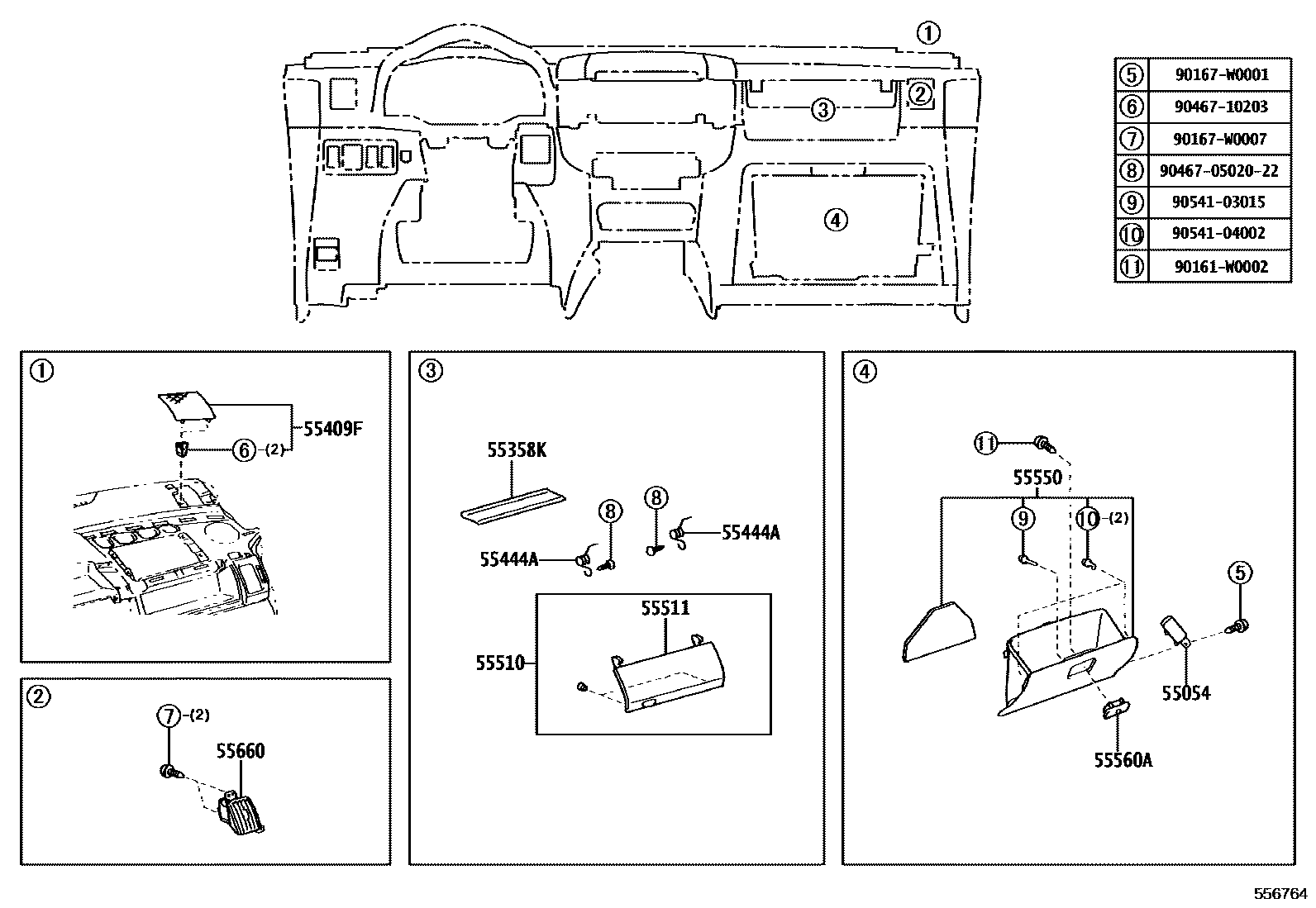

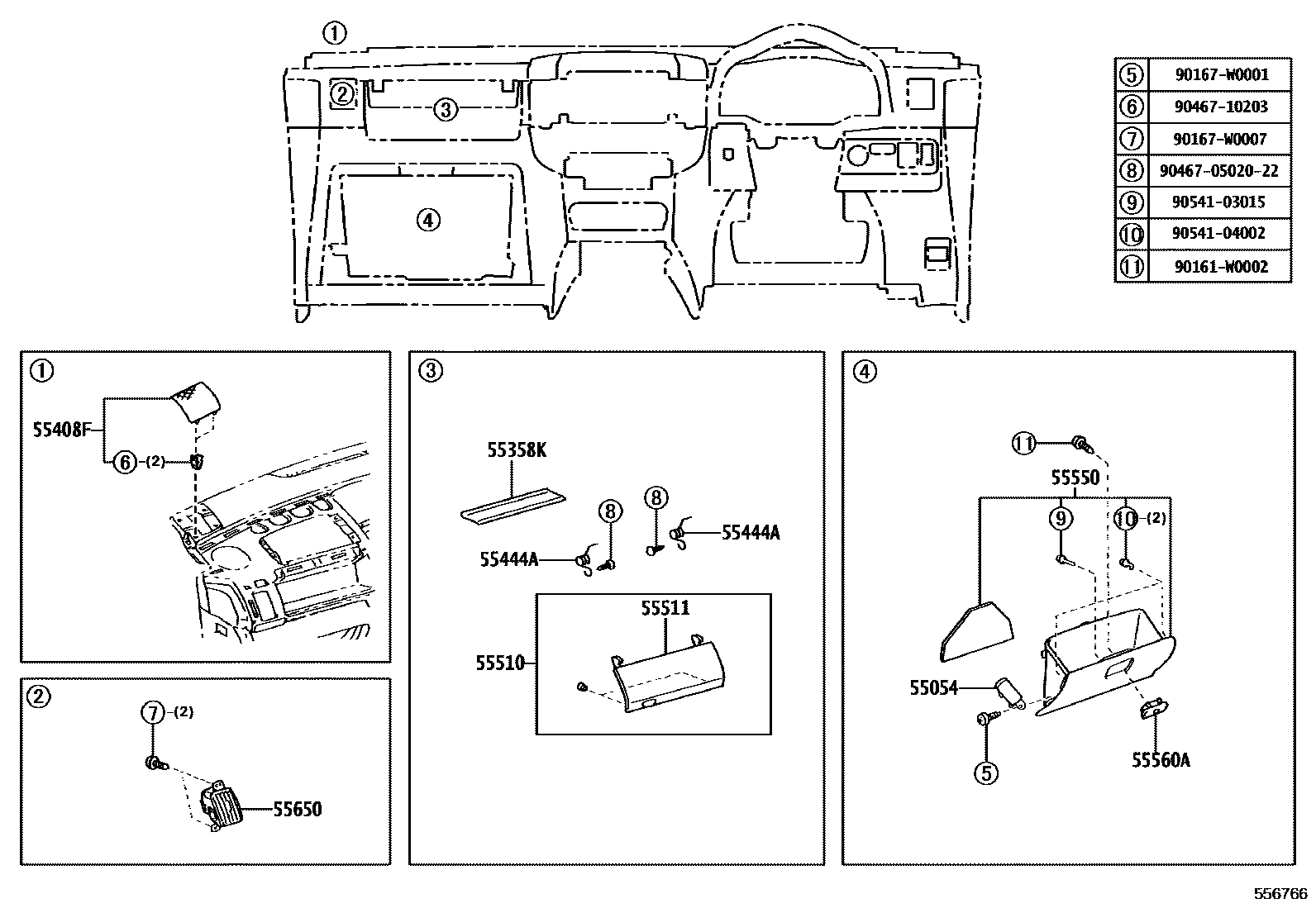

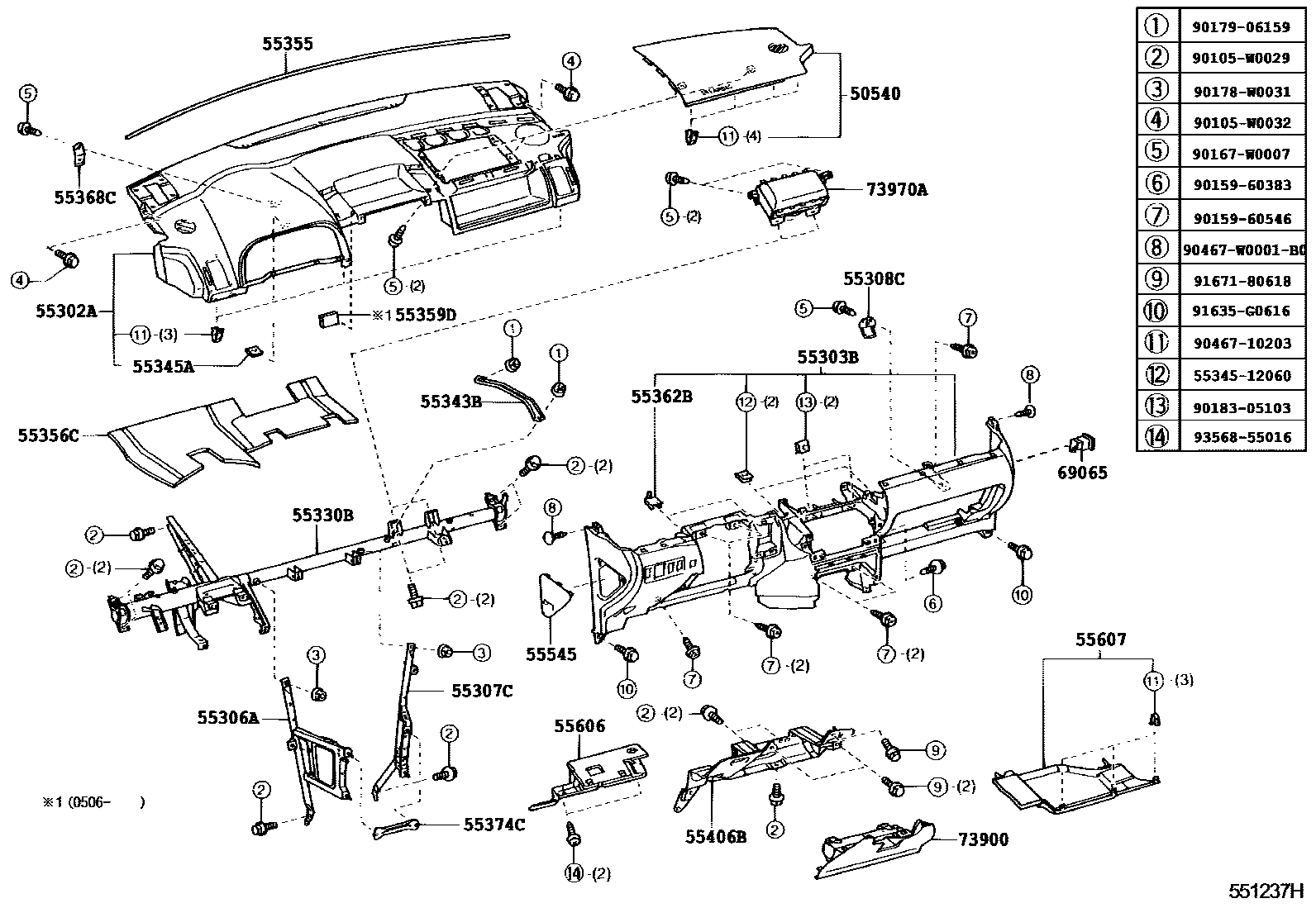

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-33060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0F010 · 55306-0F020 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0F010 · 55307-0F020 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-0F010 |
| 55330B | Instrument panel reinforcement assembly | 55330-0F010 · 55330-0F020 |
| 55343B | Center bracket (dashboard to cowl) | 55343-0F010 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-0F010 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-0F010 · 55356-0F020 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-0F030 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-0F010 |
| 55359D | Dashboard No. 5 Cushion Pad | 55357-0F060 · 55357-64020 |
| 55362B | Lower instrument bracket | 55362-12050 |
| 55368C | Instrument mounting bracket | 55368-02050 |
| 55374C | Instrument panel No. 1 lower mounting bracket | 55349-0F010 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-0F010 · 55406-0F020 |
| 55417B | Radio tuner trim panel fixing | 55417-0F010 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-0F010 |
| 55423E | Center instrument cluster No. 1 cushion | 55423-0F010 |
| 55425B | Instrument cluster decorative panel reinforcement | 55425-0F010 |
| 55444A | Dashboard storage box spring | 55444-0F010 |
| 55445J | Dashboard storage box spring | 55445-0F010 · 55445-0F020 |
| 55521C | stereo system hole cover | 55521-05030 |
| 55538A | Cooler switch hole cover | 55538-02030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02010 · 55607-02030 |
| 58843A | shift hole frame | 58843-0F010 · 58843-0F020 · 58843-0F030 |
| 58848B | Shift lever hole cover | 58848-64010 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-64020 |
| 73970A | Dashboard passenger air bag assembly | 73970-0F010 |
| 81942C | Heater control nameplate | 81942-0F010 |
