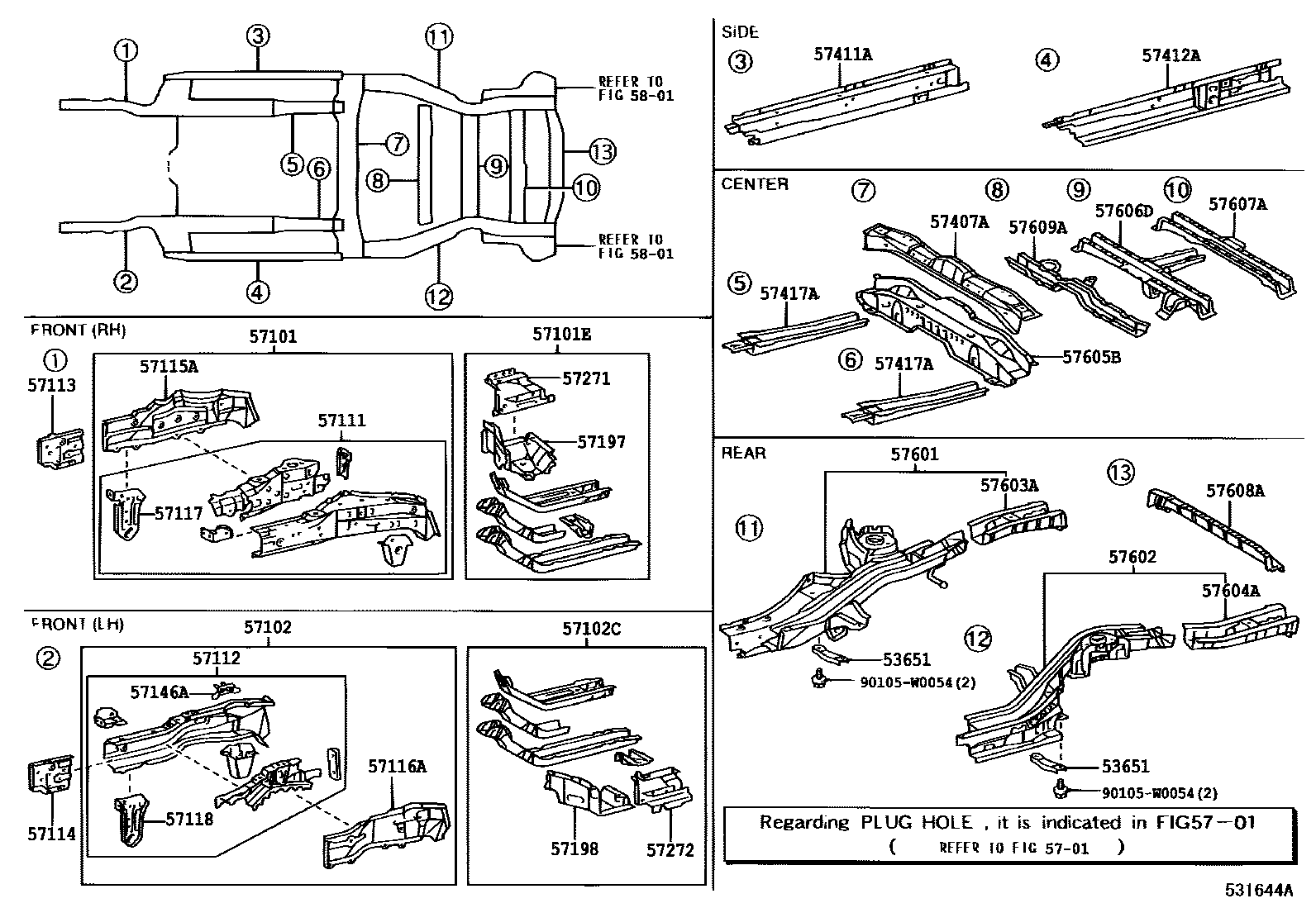

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53651 | Rear floor longitudinal beam bracket | 53651-32010 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-0F900 · 57101-0F901 |
| 57101E | Right front inner longitudinal beam sub-assembly | 57027-0F010 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-0F900 · 57102-0F902 |
| 57102C | Left front inner longitudinal beam sub-assembly | 57028-0F010 |
| 57111 | Right front longitudinal beam | 57111-0F900 · 57111-0F901 · 57111-0F902 · 57111-0F903 |
| 57112 | Left front longitudinal beam | 57112-02903 · 57112-0F900 |
| 57113 | Right front longitudinal beam extension | 57113-02060 |
| 57114 | Left front longitudinal beam extension | 57114-02050 |
| 57115A | Right front longitudinal beam outer panel | 57025-0F010 |
| 57116A | Left front longitudinal beam outer panel | 57026-0F010 |
| 57117 | Right front longitudinal beam front plate sub-assembly | 57117-02020 |
| 57118 | Left front longitudinal beam front plate sub-assembly | 57118-02020 |
| 57146A | Left front longitudinal beam rear reinforcement | 57146-12020 |
| 57197 | Right front torsion box section piece | 57197-02020 |
| 57198 | Left front anti-torsion box section piece | 57198-02040 |
| 57271 | Steering housing support beam right extension | 57271-0F010 |
| 57272 | Steering casing support beam left extension | 57272-0F010 |
| 57407A | Center floor beam sub-assembly | 57407-0F010 |
| 57411A | Floor right inner longitudinal beam | 57401-0F010 |
| 57412A | Floor left inner longitudinal beam | 57402-0F010 |
| 57417A | Front underfloor reinforcement | 57505-0F010 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-0F010 · 57601-0F020 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-0F010 · 57602-0F020 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0F010 · 57603-0F020 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0F010 · 57604-0F020 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-0F010 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-0F010 · 57606-0F020 |
| 57607A | Rear floor No. 3 cross member sub-assembly | 57607-0F010 · 57607-0F020 |
| 57608A | Rear floor No. 4 cross member sub-assembly | 57608-0F010 |
| 57609A | Rear floor No. 5 cross member sub-assembly | 57609-0F010 |
