Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

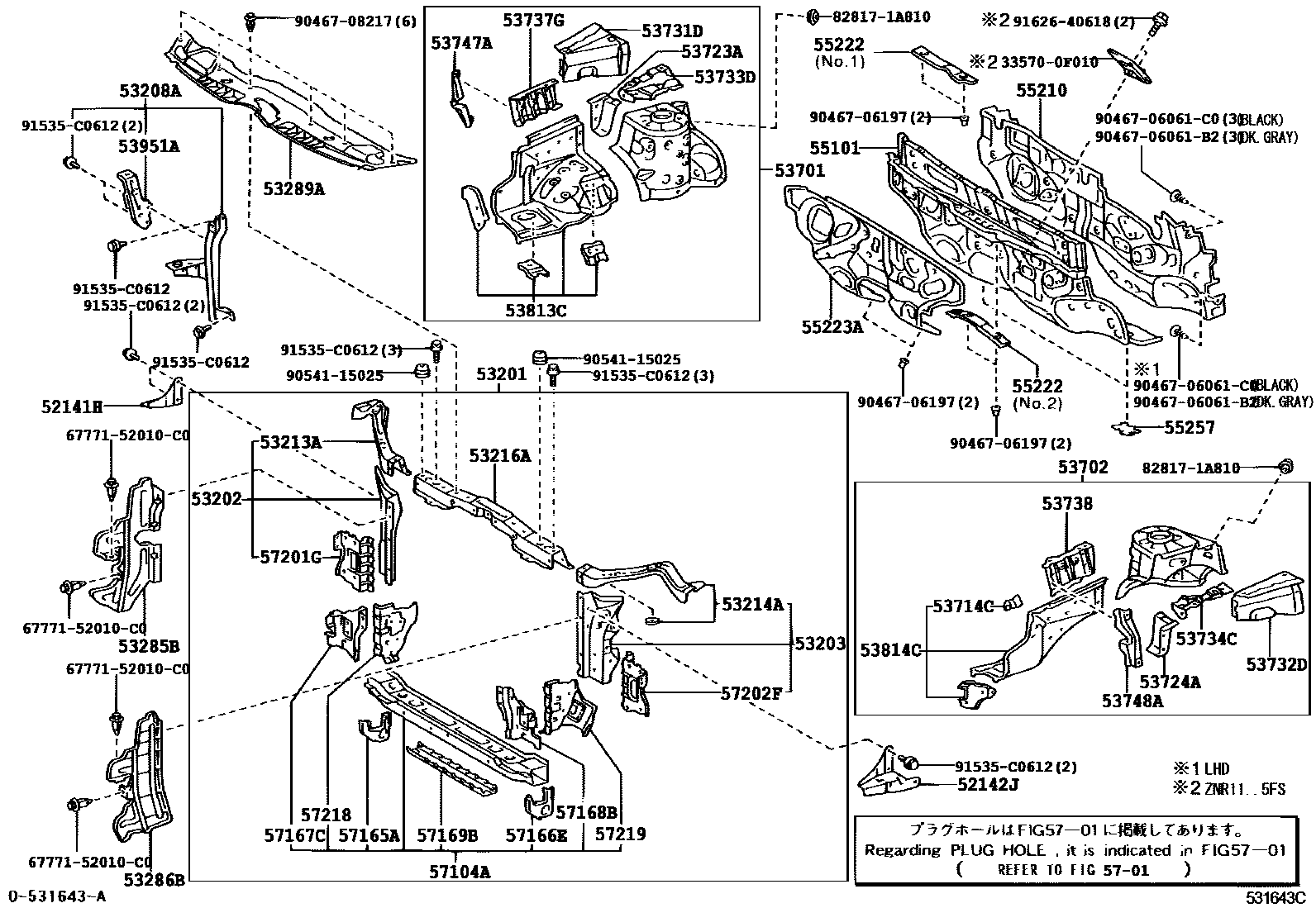

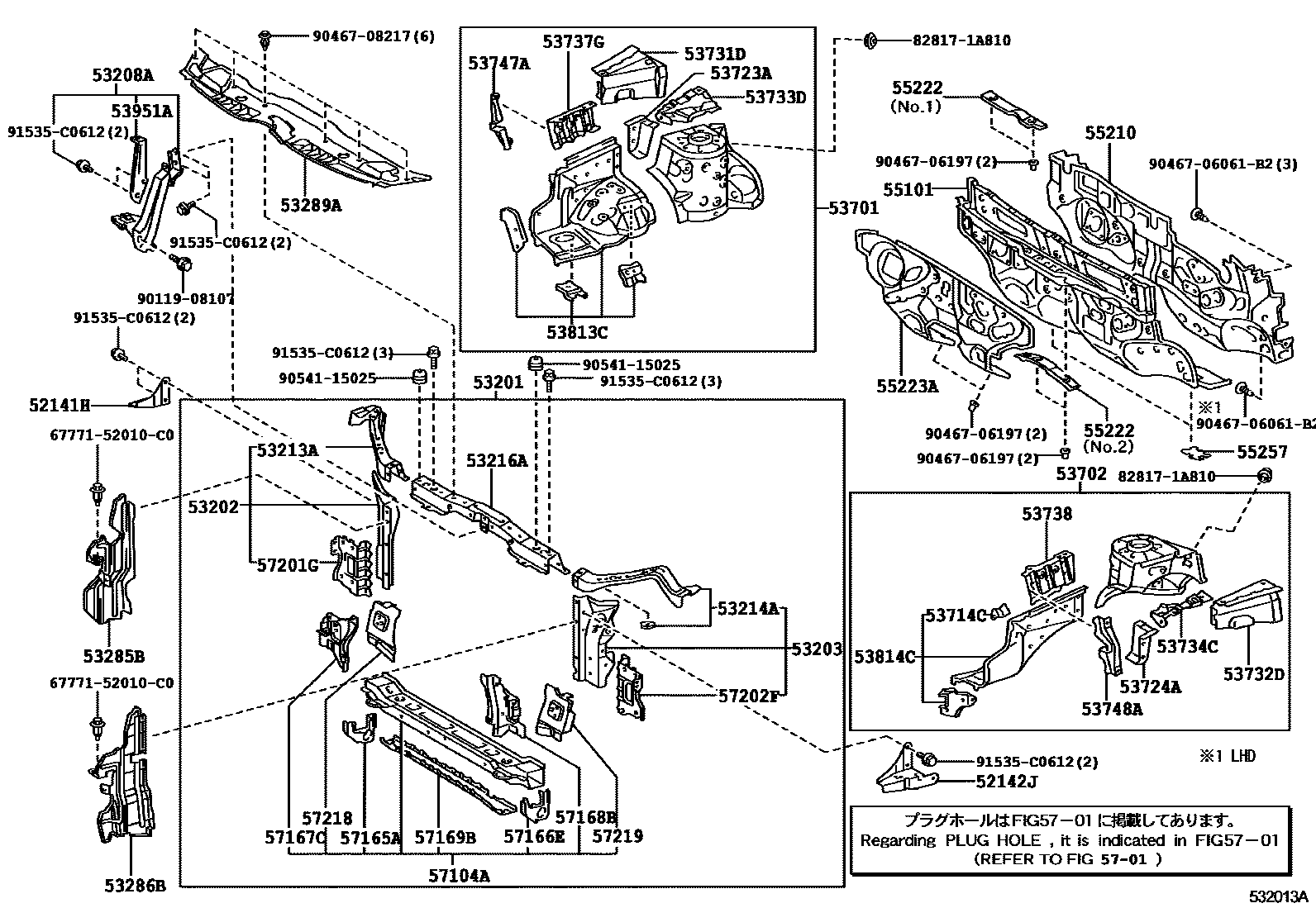

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141H | Front bumper right upper arm | 52141-0F020 |
| 52142J | Front bumper left upper arm | 52142-0F020 |
| 53201 | Radiator bracket sub-assembly | 53201-0F900 · 53201-0F901 · 53201-0F908 · 53201-0F909 · 53201-0F910 · 53201-0F911 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0F010 · 53202-0F020 |
| 53203 | Radiator left bracket sub-assembly | 53203-0F010 · 53203-0F011 · 53203-0F020 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0F010 · 53208-0F020 · 53208-0F021 |
| 53213A | Radiator upper right bracket | 53213-0F010 · 53213-0F011 |
| 53214A | Radiator upper left bracket | 53214-0F900 |
| 53216A | Radiator upper bracket | 53205-0F010 · 53205-0F020 · 53205-0F031 |
| 53285B | Radiator side 1 air seal | 53285-0F010 · 53285-0F020 · 53285-0F030 · 53285-0F040 |
| 53286B | Radiator No. 2 side air seal | 53286-0F010 · 53286-0F020 · 53286-0F030 · 53286-0F040 |
| 53289A | Radiator bracket opening cover | 53289-0F010 · 53289-0F011 · 53289-0F020 |
| 53701 | Right front fender fender sub-assembly | 53701-0F010 |
| 53702 | Left front fender fender sub-assembly | 53702-0F010 |
| 53714C | Left front fender fender front extension | 53714-02040 · 53714-13020 |
| 53723A | Front spring bracket right side reinforcement | 53723-02010 |
| 53724A | Front spring bracket left reinforcement | 53724-02010 |
| 53731D | Right front fender to cowl side upper beam | 53705-0F010 |
| 53732D | Left front fender to cowl side upper beam | 53706-0F010 |
| 53733D | Right front fender to cowl side front lower beam | 53733-0F010 |
| 53734C | Left front fender to cowl side front lower beam | 53734-0F010 |
| 53737G | Right front fender to front wall side sill | 53737-0F010 |
| 53738 | Left front fender to front wall side sill | 53738-0F010 |
| 53747A | Fender fender right extension | 53747-0F010 |
| 53748A | Fender fender left extension | 53748-0F010 |
| 53813C | Right front fender extension | 53707-0F900 |
| 53814C | Left front fender extension | 53708-0F900 |
| 53951A | Front panel bracket | 53951-0F010 · 53951-0F020 · 53951-0F021 |
| 55101 | Front apron sub-assembly | 55101-0F010 · 55101-0F020 · 55101-0F030 · 55101-0F040 · 55101-0F050 |
| 55210 | Front wall insulation pad assembly | 55210-0F010 · 55210-0F020 |
| 55222 | Center heat insulation pad on outer side of front cowl | 55222-0F010 · 55222-0F011 · 55224-0F010 |
| 55223A | Front wall outer heat insulation pad | 55223-02081 · 55223-02082 · 55223-02090 · 55223-02091 |
| 55257 | cowl opening cover | 55257-02030 · 55257-13010 |
| 57104A | Front cross member sub-assembly | 57104-0F010 · 57104-0F020 · 57104-0F030 · 57104-0F040 |
| 57165A | No. 2 front cross member reinforcement | 57165-02050 |
| 57166E | No. 2 front cross member left reinforcement | 57166-02040 |
| 57167C | Front cross member right corner panel | 57167-0F010 · 57167-0F020 |
| 57168B | Front cross member left corner panel | 57168-0F010 · 57168-0F020 |
| 57169B | No. 4 front cross member reinforcement | 57169-02040 · 57169-0F010 |
| 57201G | Right front longitudinal beam extension sub-assembly | 57201-02010 · 57201-02011 |
| 57202F | Left front longitudinal beam extension sub-assembly | 57202-02010 · 57202-02011 |
| 57218 | No. 1 front longitudinal beam corner plate | 57218-02041 · 57218-0F010 · 57218-0F020 |
| 57219 | No. 2 front longitudinal beam corner plate | 57219-02041 · 57219-0F010 · 57219-0F020 |
