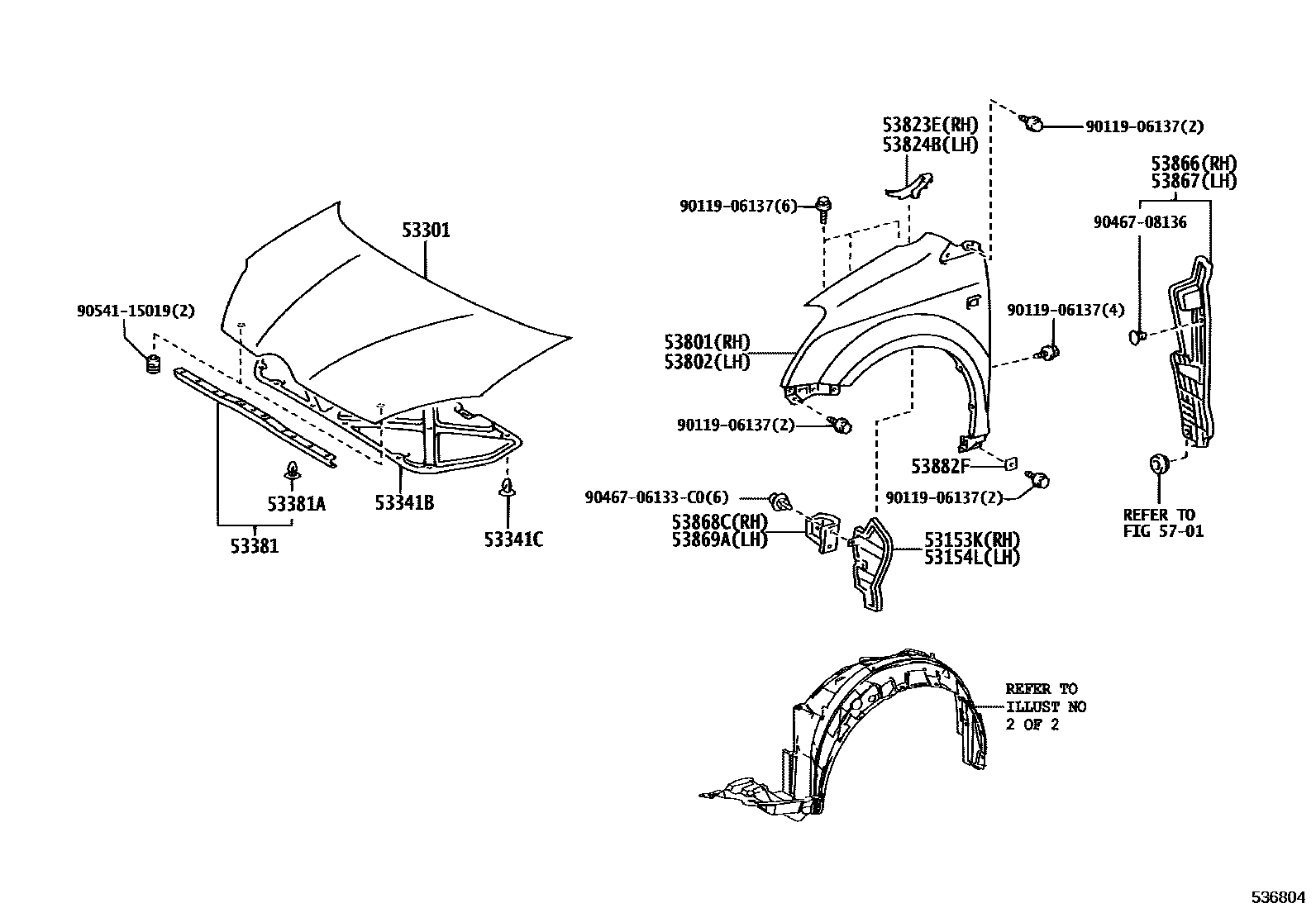

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153K | Radiator grille right deflector | 53153-0F010 |
| 53154L | Radiator grille left deflector | 53154-0F010 |
| 53301 | Engine cover sub-assembly | 53301-0F010 · 53301-0F011 |
| 53341B | engine cover gasket | 53341-0F010 |
| 53341C | Clip (for engine cover gasket) | 90467-W0003 |
| 53381 | Engine cover to radiator bracket seal | 53381-0F010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53801 | Right front fender sub-assembly | 53811-0F010 |
| 53802 | Left front fender sub-assembly | 53812-0F010 |
| 53823E | No. 2 right front side panel protector | 53823-0F010 |
| 53824B | No. 2 left front side panel protector | 53824-0F010 |
| 53866 | Right front fender to cowl side seal | 53866-0F010 |
| 53867 | Left front fender to cowl side seal | 53867-0F010 |
| 53868C | No. 2 seal from right front fender to cowl side | 53868-0F010 |
| 53869A | No. 2 seal from left front fender to cowl side | 53869-0F010 |

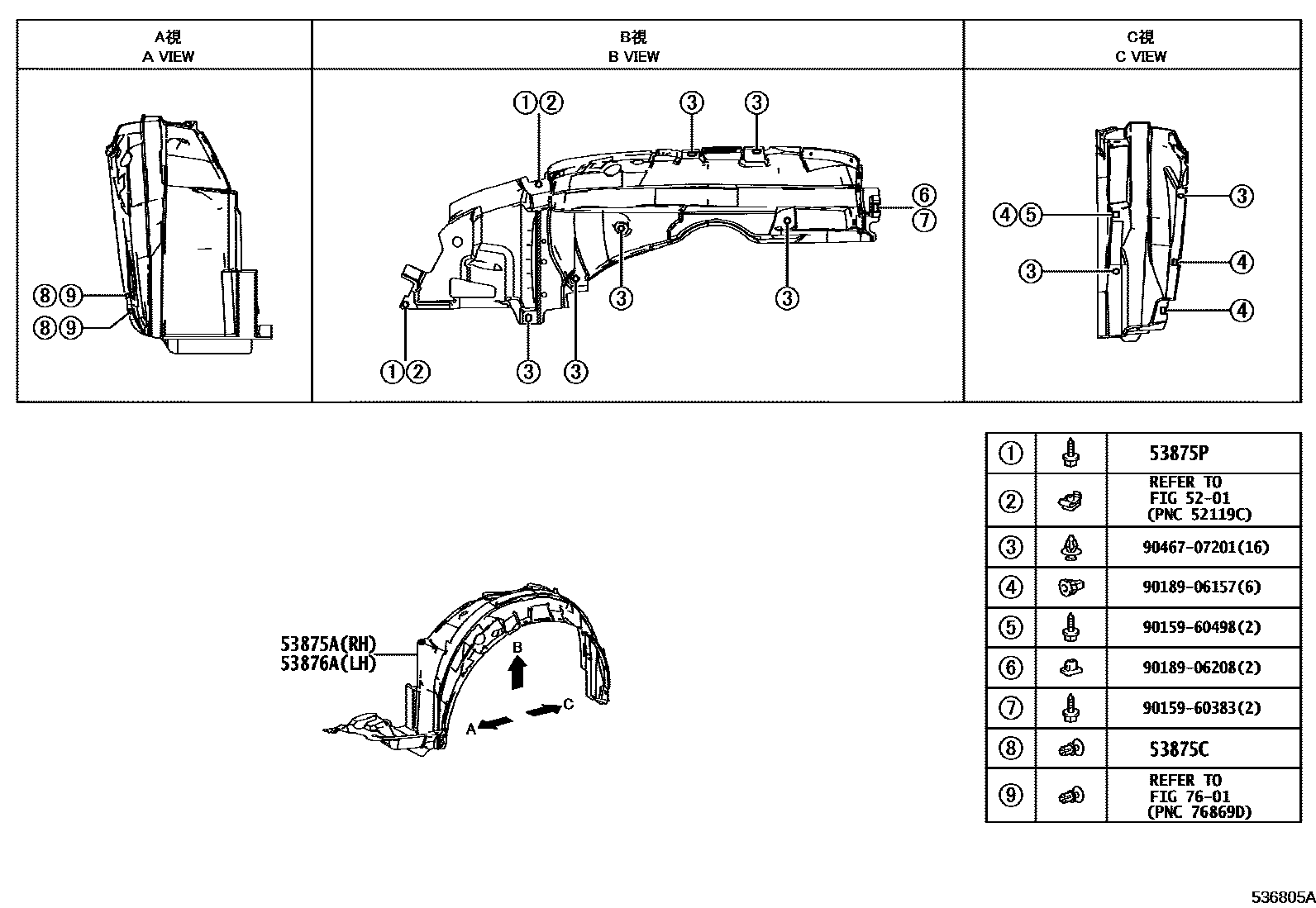

| 53875A | Right front fender lining | 53875-0F010 · 53875-0F011 |
| 53875P | VIS, NO.1 | 90159-60488 |
| 53876A | Left front fender lining | 53876-0F010 · 53876-0F011 · 53876-0F012 |
| 53882F | front fender seal | 53882-16030 |
