Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 2 PNC and OE references.

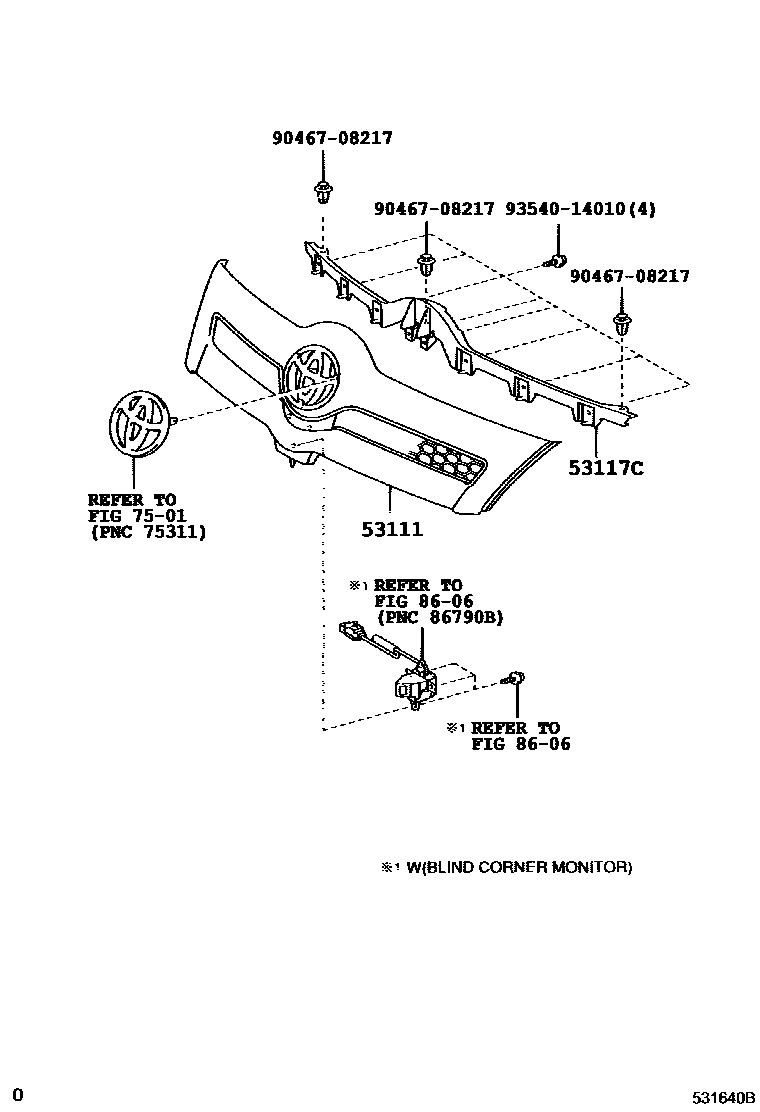

Toyota COROLLA radiator grille EPC diagram — 531640B
radiator grille — 531640B (200402 – 200705)

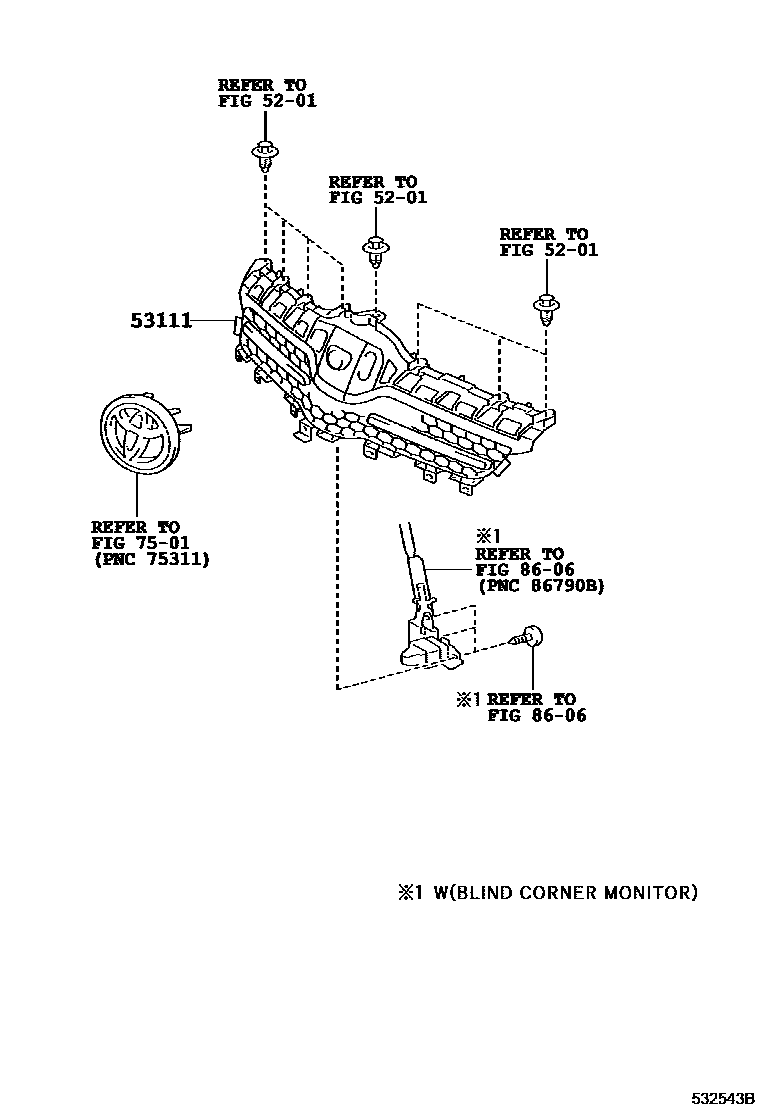

Toyota COROLLA radiator grille EPC diagram — 532543B
radiator grille — 532543B (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-0F030 · 53111-0F040 · 53111-0F901 · 53111-0F902
53117CRadiator grille fixing No. 153117-0F010
