Toyota COROLLA 后保险杠及附件 — Figure 5202

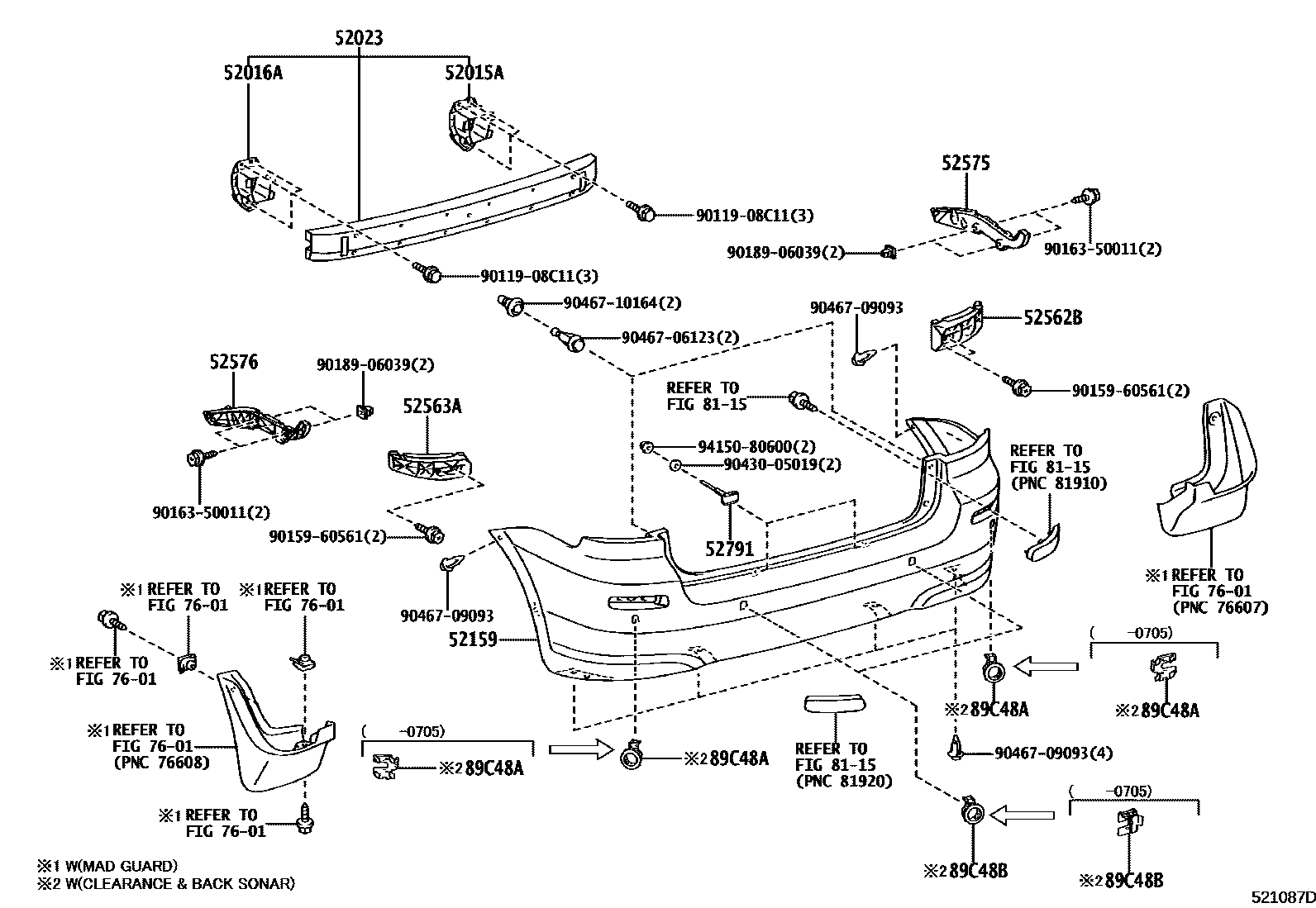

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-0F010 |
| 52016A | Rear bumper left arm sub-assembly | 52016-0F010 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0F010 |
| 52159 | rear bumper cover | 52159-0F900 · 52159-0F905 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0F010 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0F010 |
| 52575 | Rear bumper right side fixing bracket | 52575-0F010 |
| 52576 | Rear bumper left side fixing bracket | 52576-0F010 |
| 52791 | Bumper protection strip No. 1 fixing bolt | 52791-12040 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-45010 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-45010 |
