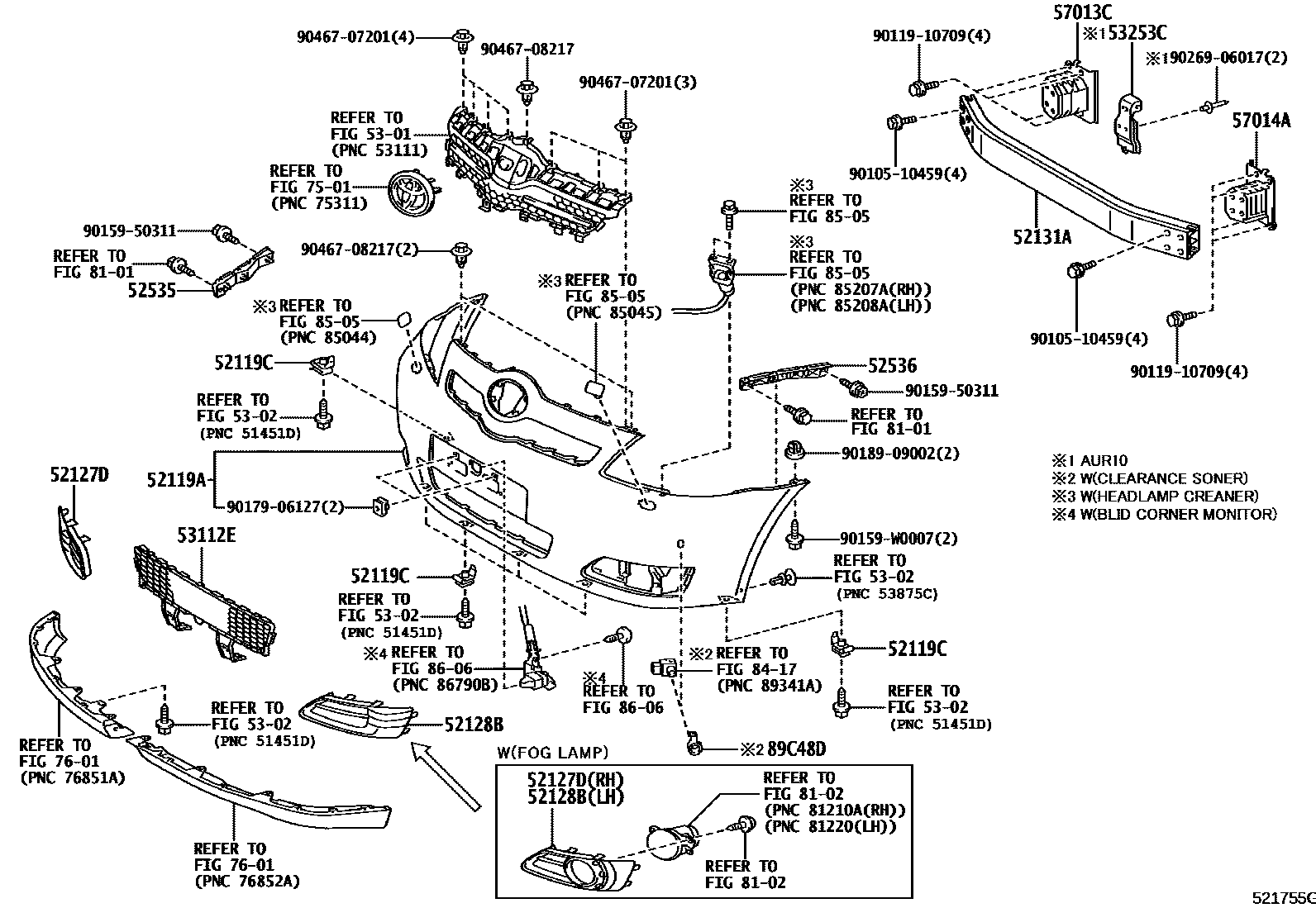

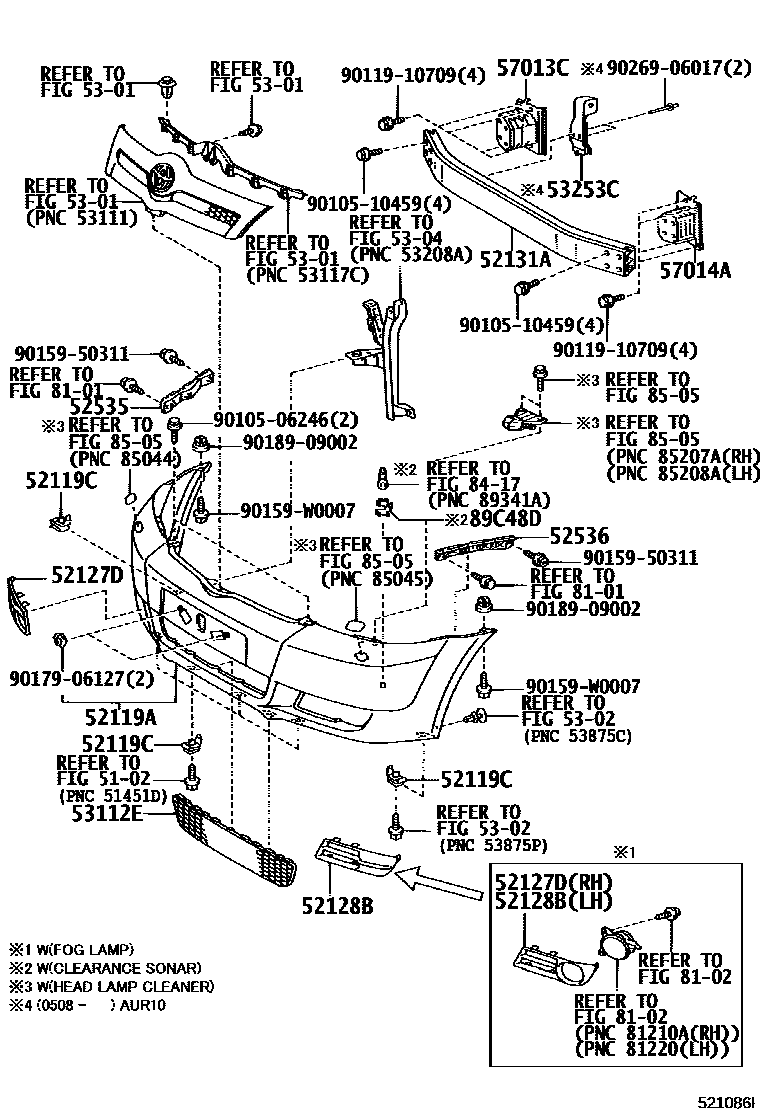

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52119A | front bumper cover | 52119-0F900 · 52119-0F912 · 52119-0F913 · 52119-0F914 · 52119-0F915 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05138 |
| 52127D | Front bumper right hole cover | 52127-0F010 · 52127-0F020 · 52127-0F030 · 52127-0F040 |
| 52128B | Front bumper left hole cover | 52128-0F010 · 52128-0F020 · 52128-0F030 · 52128-0F040 · 52128-0F050 · 52128-0F060 |
| 52131A | Front bumper reinforcement | 52131-0F010 · 52131-0F011 |
| 52535 | Front bumper right side fixing bracket | 52535-0F010 |
| 52536 | Front bumper left fixed bracket | 52536-0F010 |
| 53112E | No. 1 radiator lower grille | 53112-0F010 · 53112-0F020 · 53112-0F030 |
| 53253C | Radiator mounting bracket | 53253-0F020 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-0F010 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-0F010 |
| 89C48D | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE AVANT | 89348-45010 |
