Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

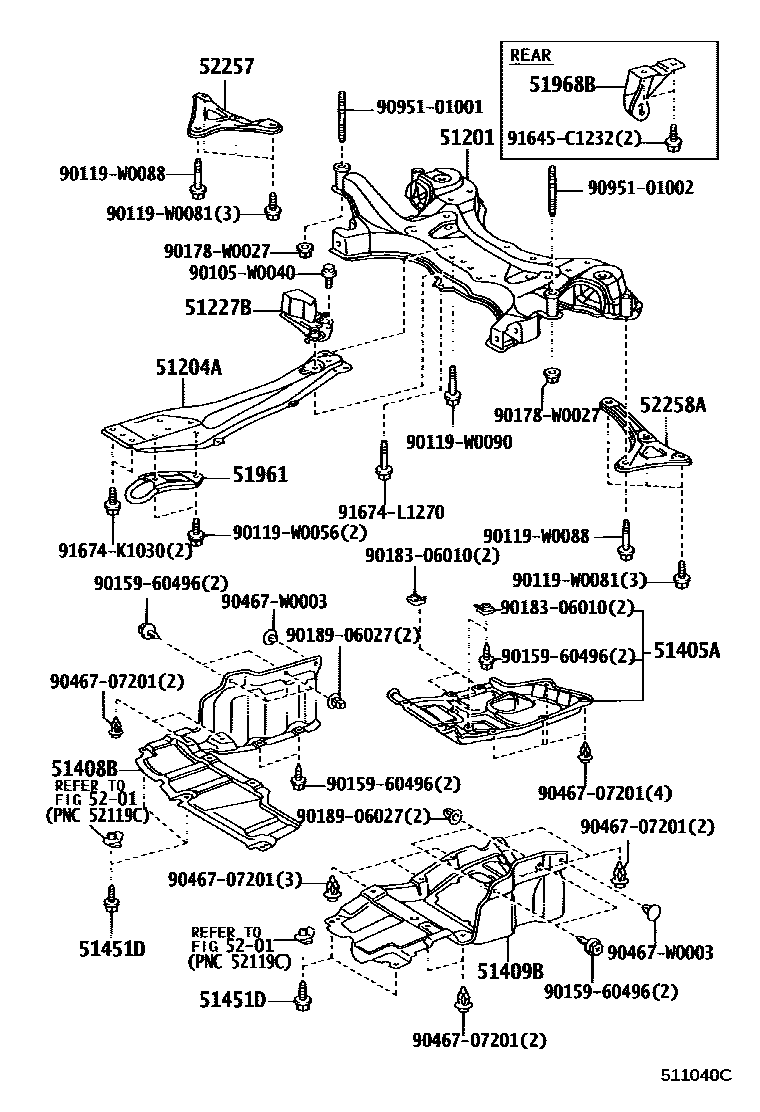

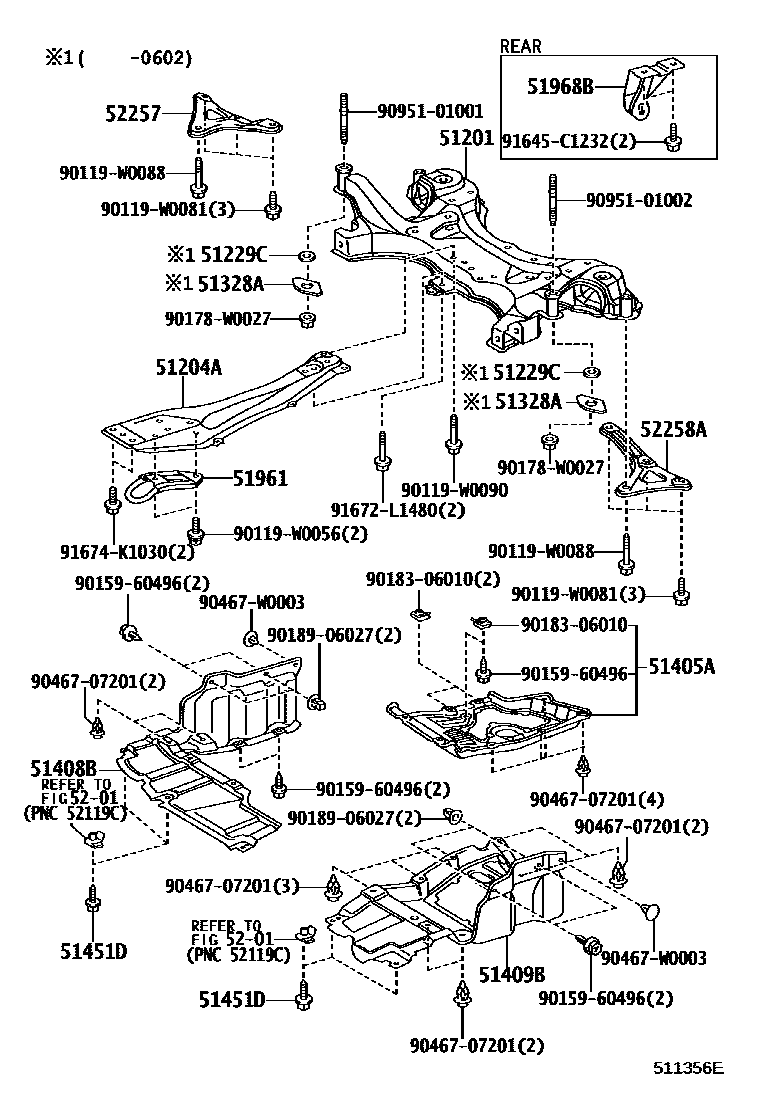

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-0F010 · 51201-0F011 · 51201-0F020 · 51201-0F021 |
| 51204A | Engine center mount beam sub-assembly | 51204-05022 · 51204-0F010 |
| 51227B | Front suspension beam dynamic damper | 51227-64010 |
| 51229C | Suspension cross member fixing plate | 51229-64020 |
| 51328A | Front suspension cross member front bracket | 51328-64010 |
| 51405A | No. 1 engine bottom cover sub-assembly | 51405-0F010 · 51405-0F020 |
| 51408B | Engine right bottom cover sub-assembly | 51408-0F010 · 51408-0F011 · 51408-0F012 · 51408-0F013 |
| 51409B | Engine left bottom cover sub-assembly | 51409-0F010 · 51409-0F012 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51961 | No. 1 hook | 51960-0F010 |
| 51968B | Left rear transport hook | 51968-02020 |
| 52257 | Right front suspension cross member rear bracket | 52257-02020 |
| 52258A | Left front suspension cross member rear bracket | 52258-0F010 |
