Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

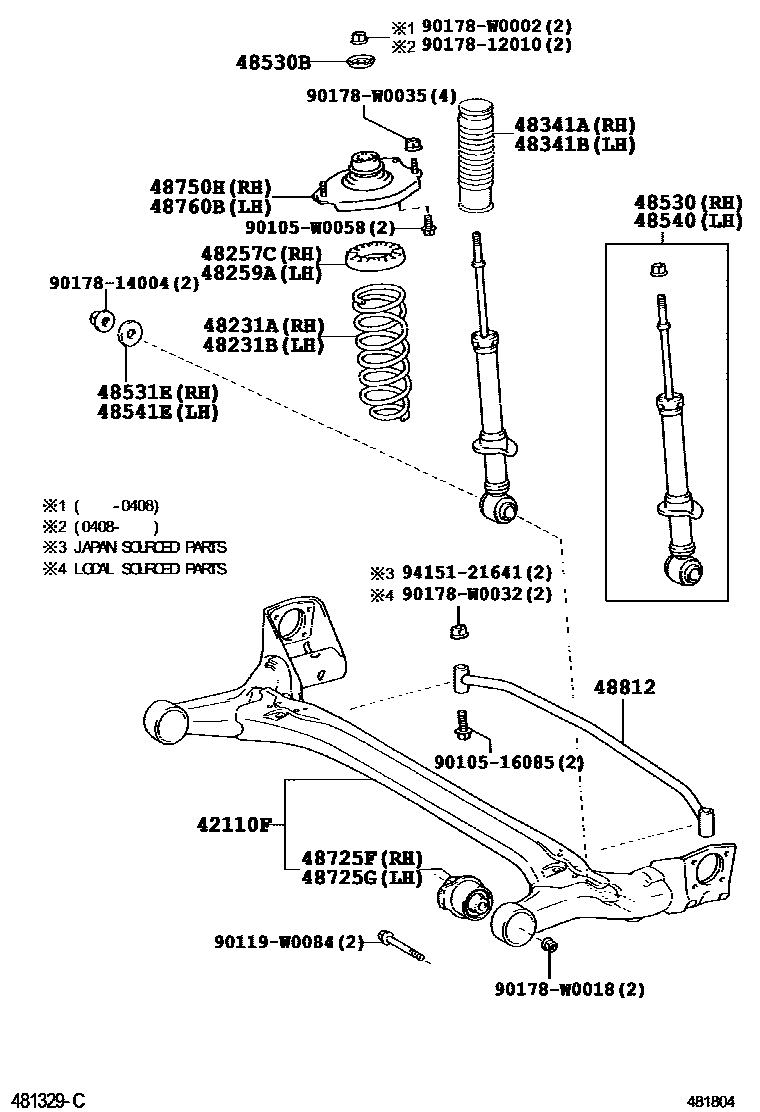

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-0F010 |
| 48231A | Right rear coil spring | 48231-0F010 · 48231-0F020 |
| 48231B | Left rear coil spring | 48231-0F010 · 48231-0F020 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02030 |
| 48341A | No. 1 right rear spring buffer block | 48341-0F010 |
| 48341B | No. 1 left rear spring buffer block | 48341-0F010 |
| 48530 | Right rear shock absorber assembly | 48530-09870 · 48530-09880 · 48530-09K50 · 48530-09K60 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90560-14028 |
| 48540 | Left rear shock absorber assembly | 48530-09870 · 48530-09880 · 48530-09K50 · 48530-09K60 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90560-14028 |
| 48725F | Right rear axle bracket bushing | 48725-0F010 |
| 48725G | Left rear axle bracket bushing | 48725-0F010 |
| 48750H | Right rear suspension support assembly | 48750-0F010 |
| 48760B | Left rear suspension support assembly | 48760-0F010 |
| 48812 | rear stabilizer bar | 48812-0F010 · 48812-0F020 |
