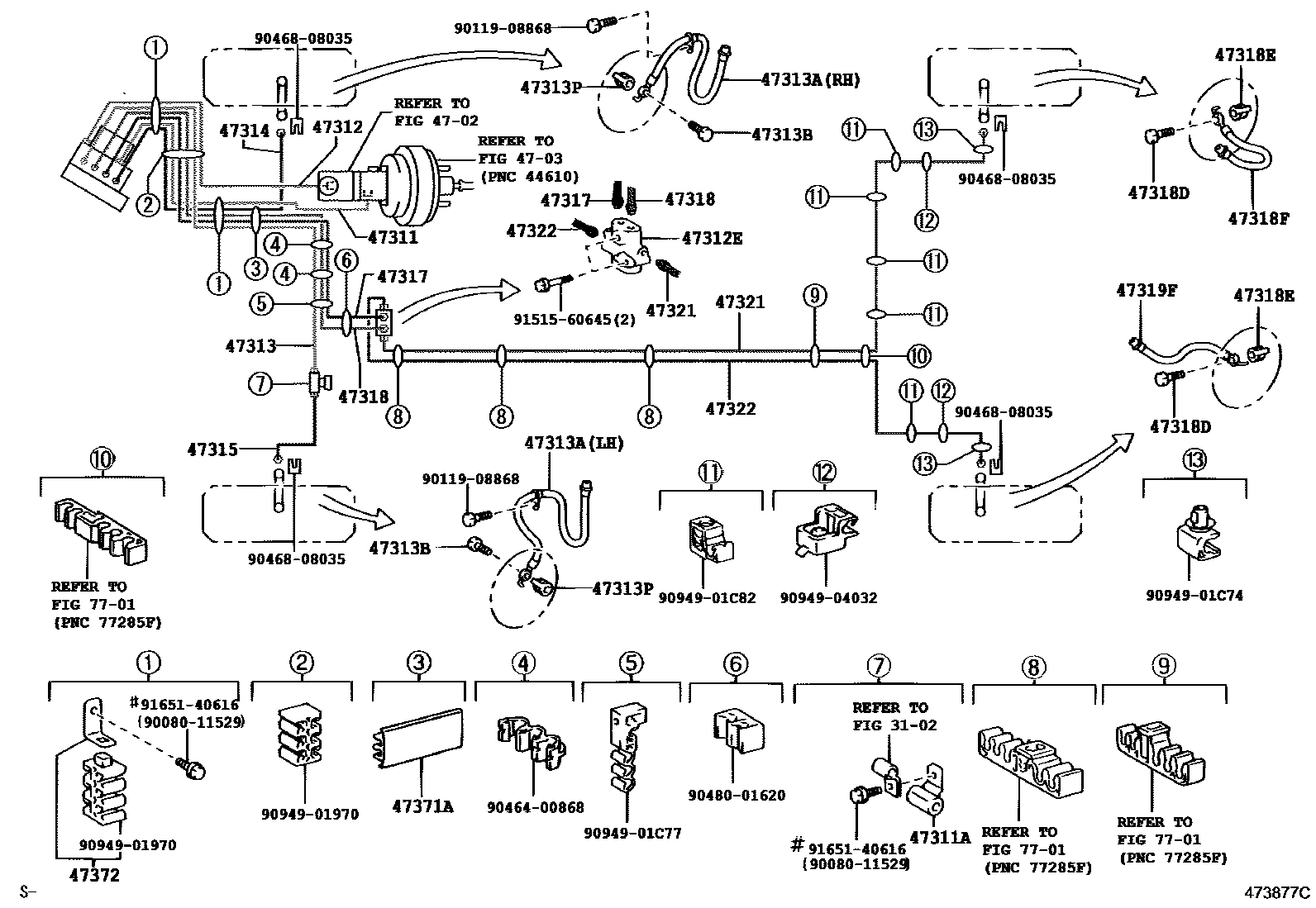

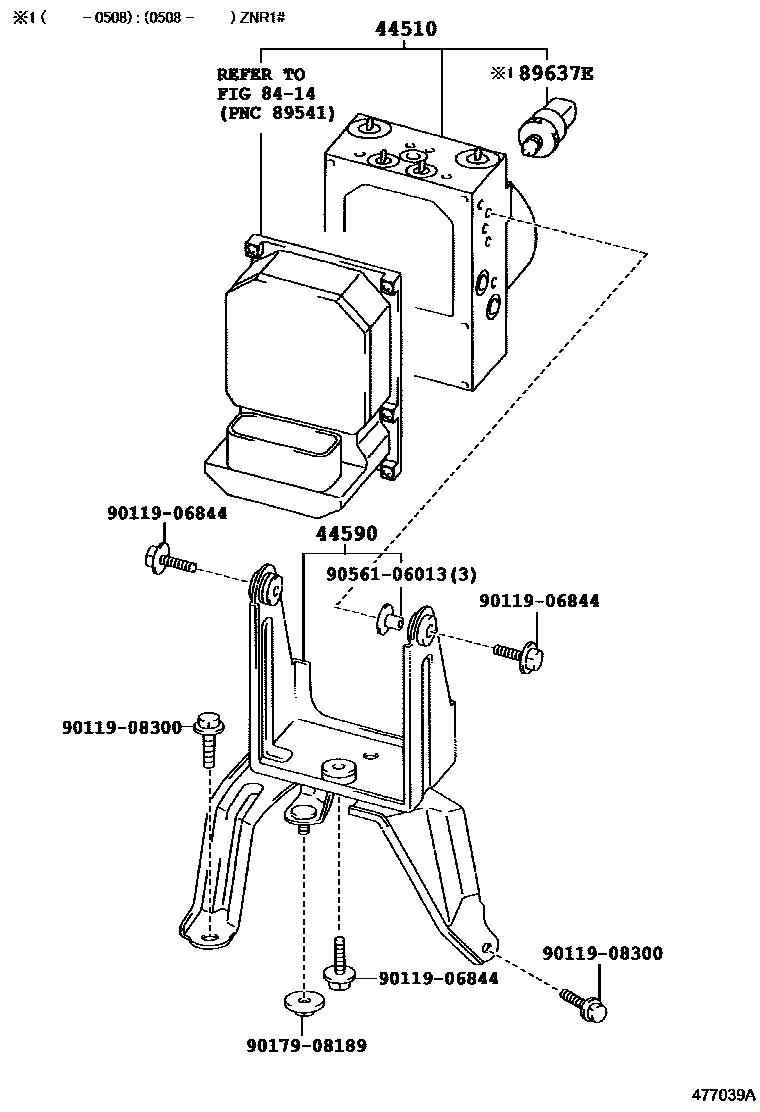

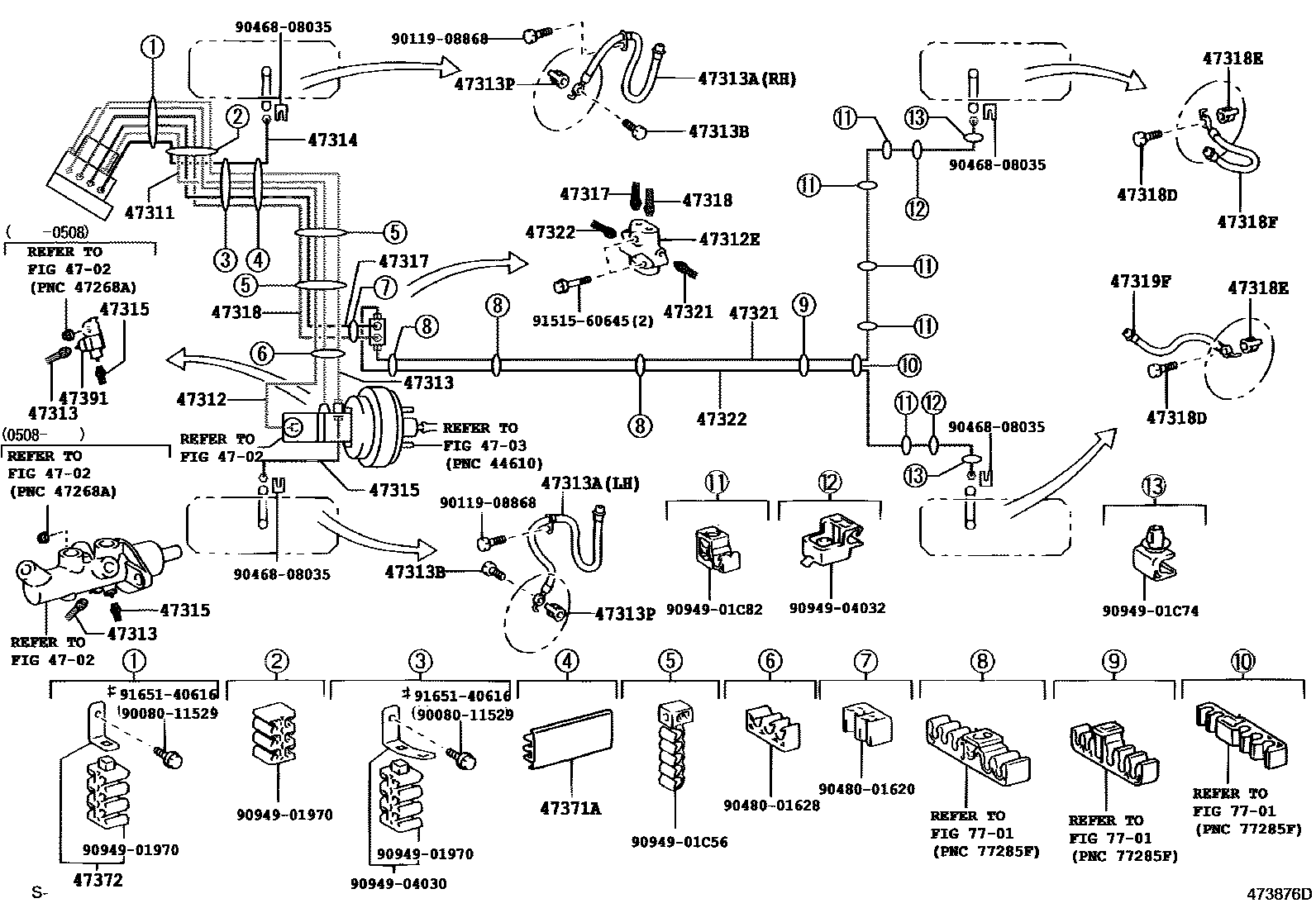

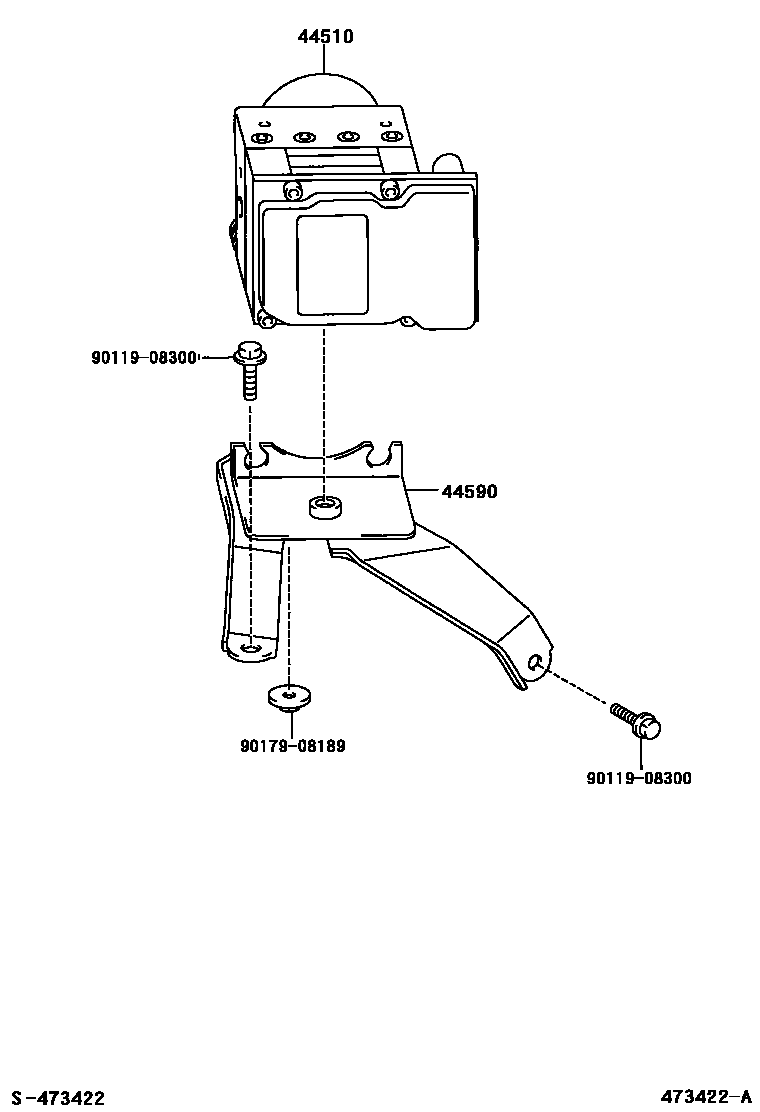

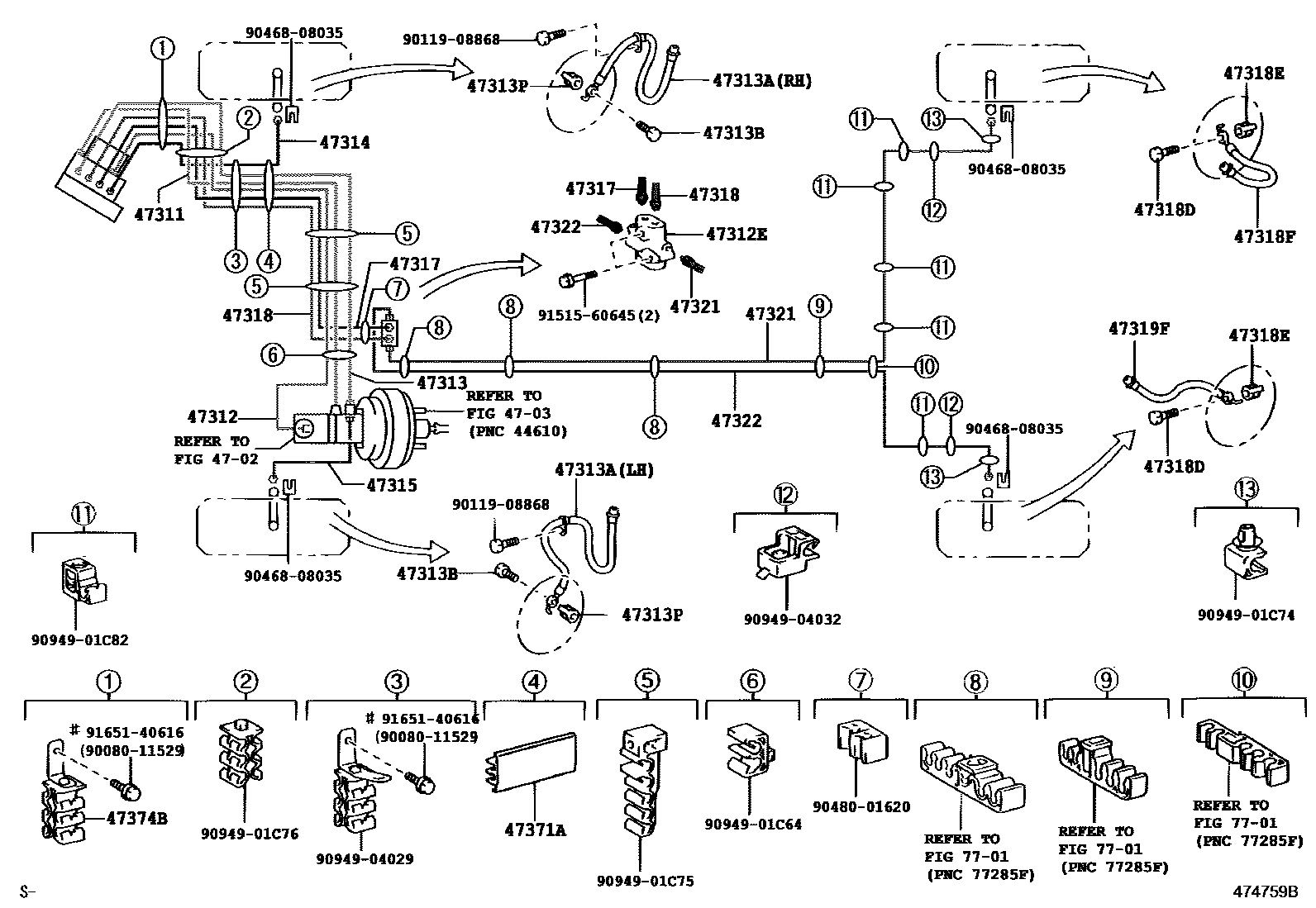

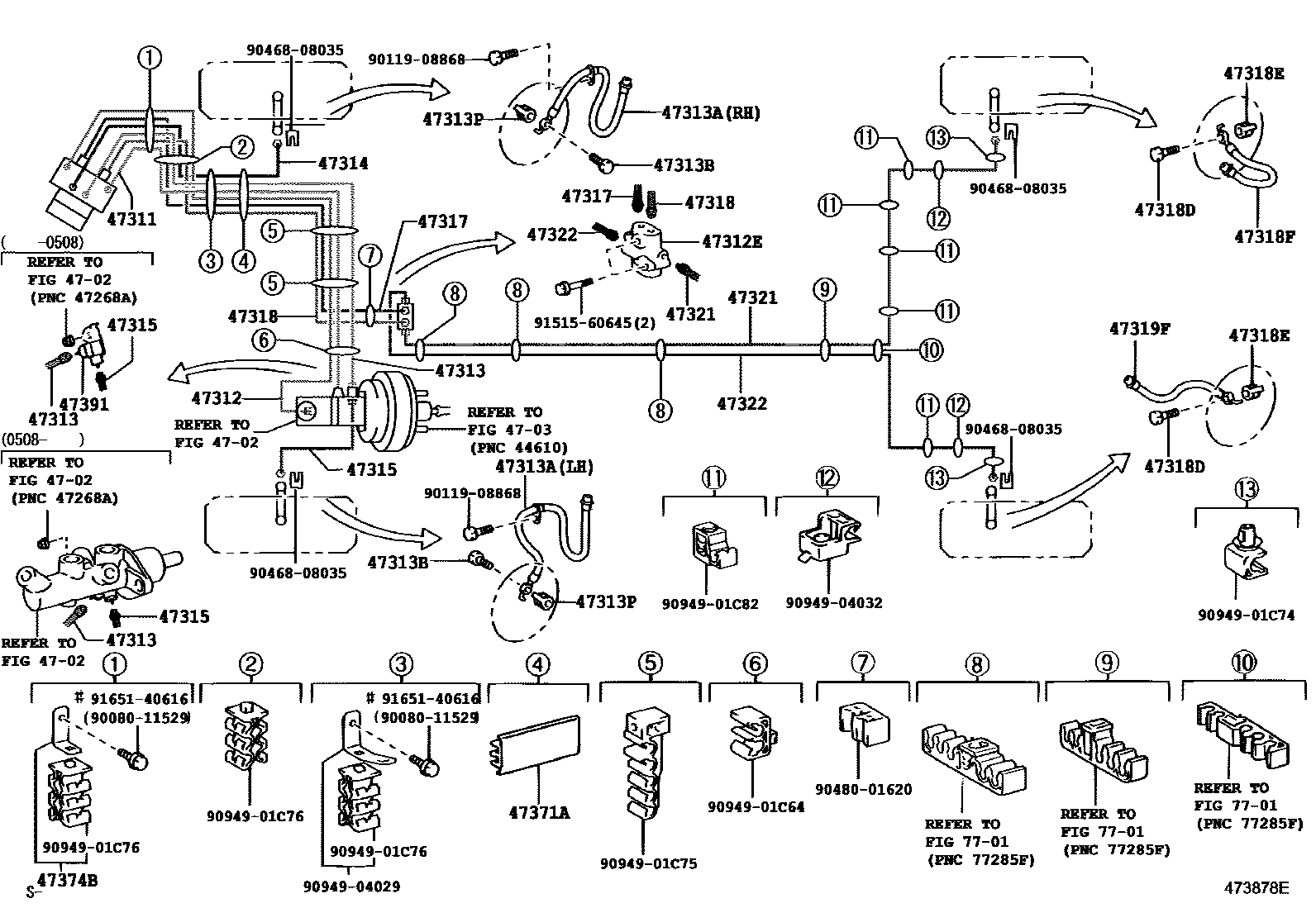

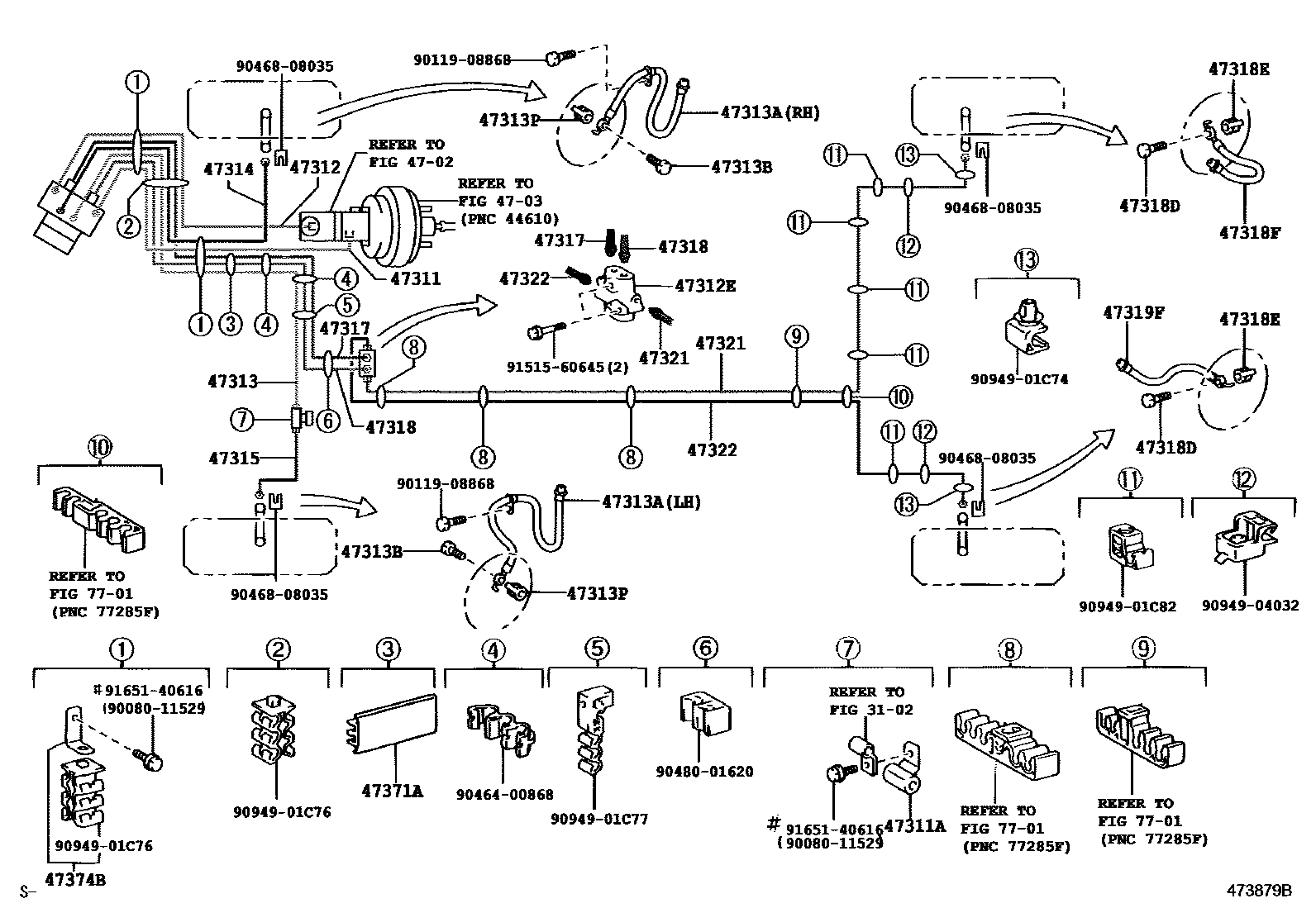

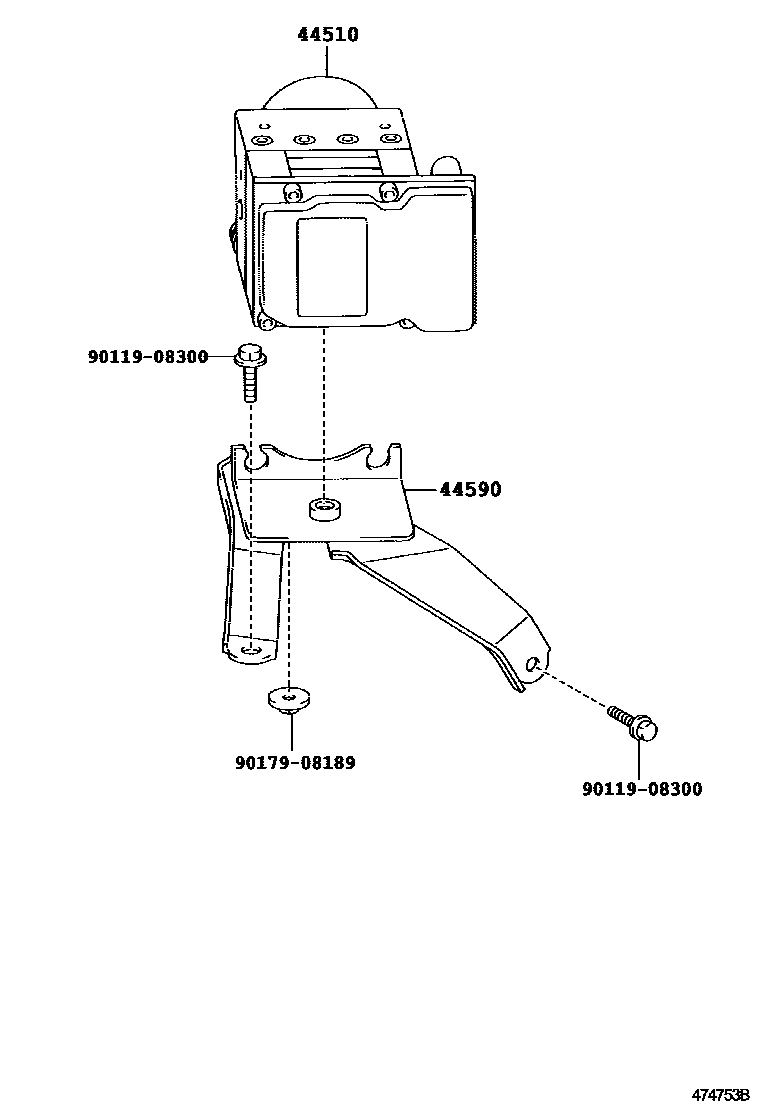

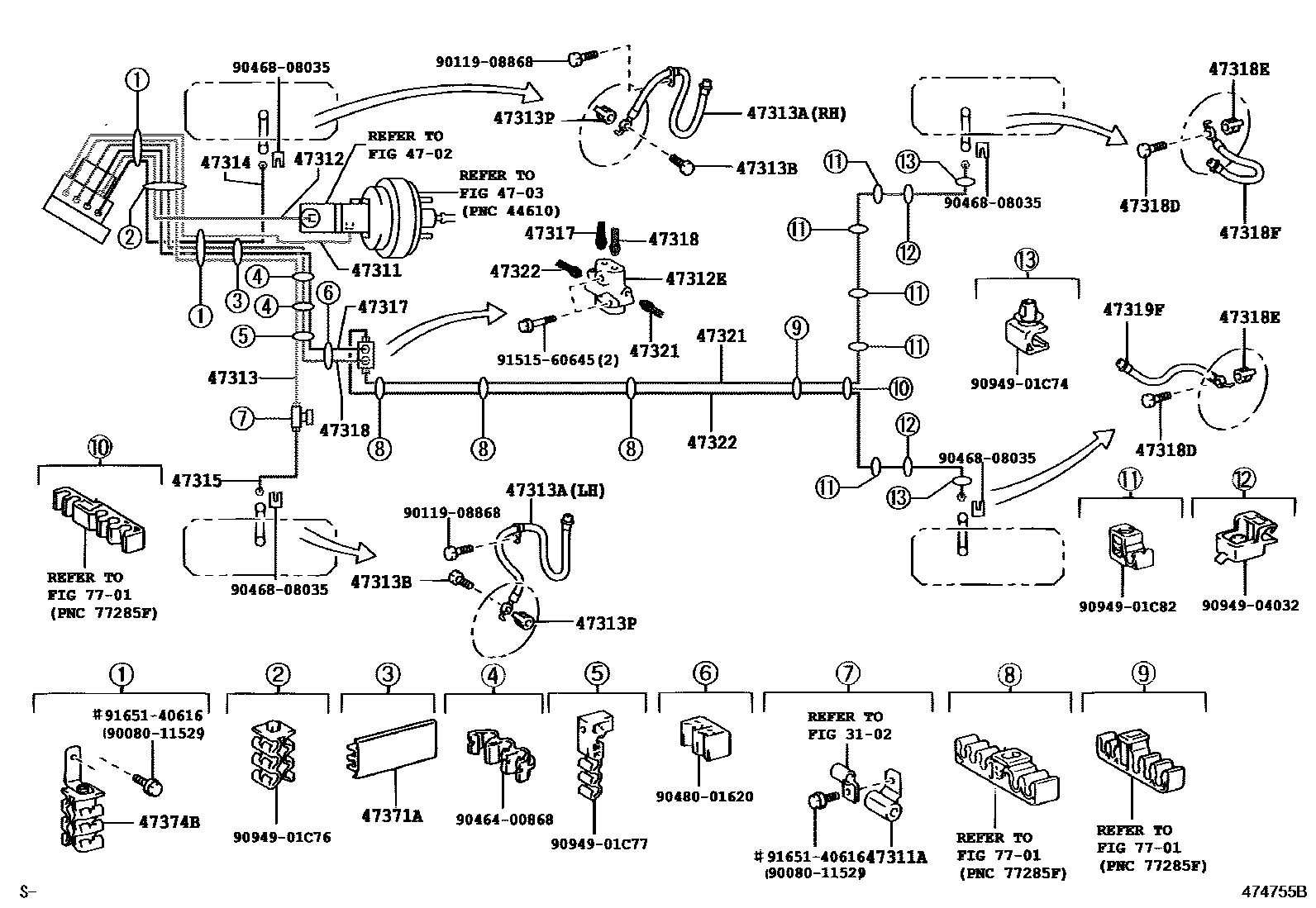

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 9 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-0F010 · 44050-0F020 · 44050-0F021 · 44050-0F030 |
| 44590 | Brake actuator bracket assembly | 44590-05020 · 44590-05030 · 44590-0F010 |
| 47311 | No. 1 front brake pipe | 47311-0F010 · 47311-0F020 · 47311-0F030 · 47311-0F040 · 47311-0F050 · 47311-0F060 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10227 · 90412-10667 |
| 47312 | No. 2 front brake pipe | 47312-0F010 · 47312-0F020 · 47312-0F030 · 47312-0F040 · 47312-0F051 · 47312-0F061 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12082 |
| 47313 | No. 3 front brake pipe | 47313-0F010 · 47313-0F020 · 47313-0F030 · 47313-0F040 · 47313-0F050 · 47313-0F060 |
| 47313A | No. 1 front flexible hose | 90080-94199 · 90080-94200 · 90947-02D22 · 90947-02D23 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-0F010 · 47314-0F020 · 47314-0F030 · 47314-0F040 · 47314-0F050 · 47314-0F060 |
| 47315 | No. 5 front brake pipe | 47315-02160 · 47315-05150 |
| 47317 | No. 7 front brake pipe | 47317-0F010 · 47317-0F020 · 47317-0F030 · 47317-0F040 · 47317-0F050 · 47317-0F060 |
| 47318 | No. 8 front brake pipe | 47318-0F010 · 47318-0F020 · 47318-0F030 · 47318-0F040 · 47318-0F050 · 47318-0F060 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E84 |
| 47319F | Left rear flexible hose | 90947-02E84 |
| 47321 | No. 1 rear brake pipe | 47321-0F010 |
| 47322 | No. 2 rear brake pipe | 47322-0F010 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47374B | No. 4 brake pipe clamp | 47374-13020 |
| 47391 | Brake pipe joint | 47391-05140 |
| 89637E | oil pressure sensor | 89637-07010 |
