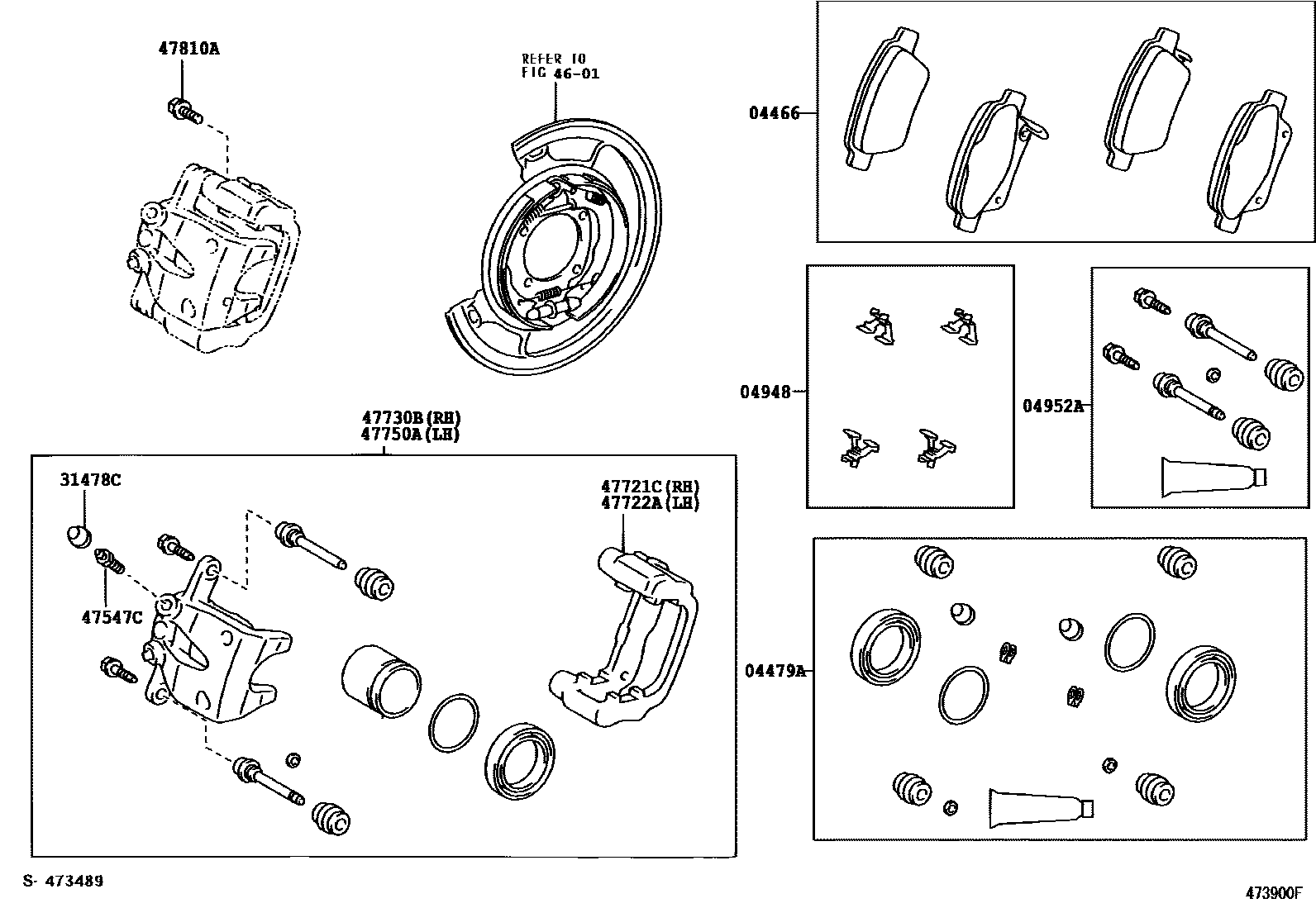

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-05010 |
| 04479A | Rear disc brake cylinder assembly | 04479-05080 |
| 04948 | Rear disc brake mounting assembly | 04948-05010 |
| 04952A | Rear disc brake cylinder sliding pin assembly | 04956-05010 · 04956-05020 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-05030 |
| 47547C | Bleed plug (for rear disc brake) | 47547-05020 |
| 47721C | Right rear disc brake cylinder retainer | 47721-05070 |
| 47722A | Left rear disc brake cylinder retainer | 47722-05040 |
| 47730B | Right rear disc brake cylinder assembly | 47730-05070 · 47730-05071 |
| 47750A | Left rear disc brake cylinder assembly | 47750-05070 · 47750-05071 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-10263 |
