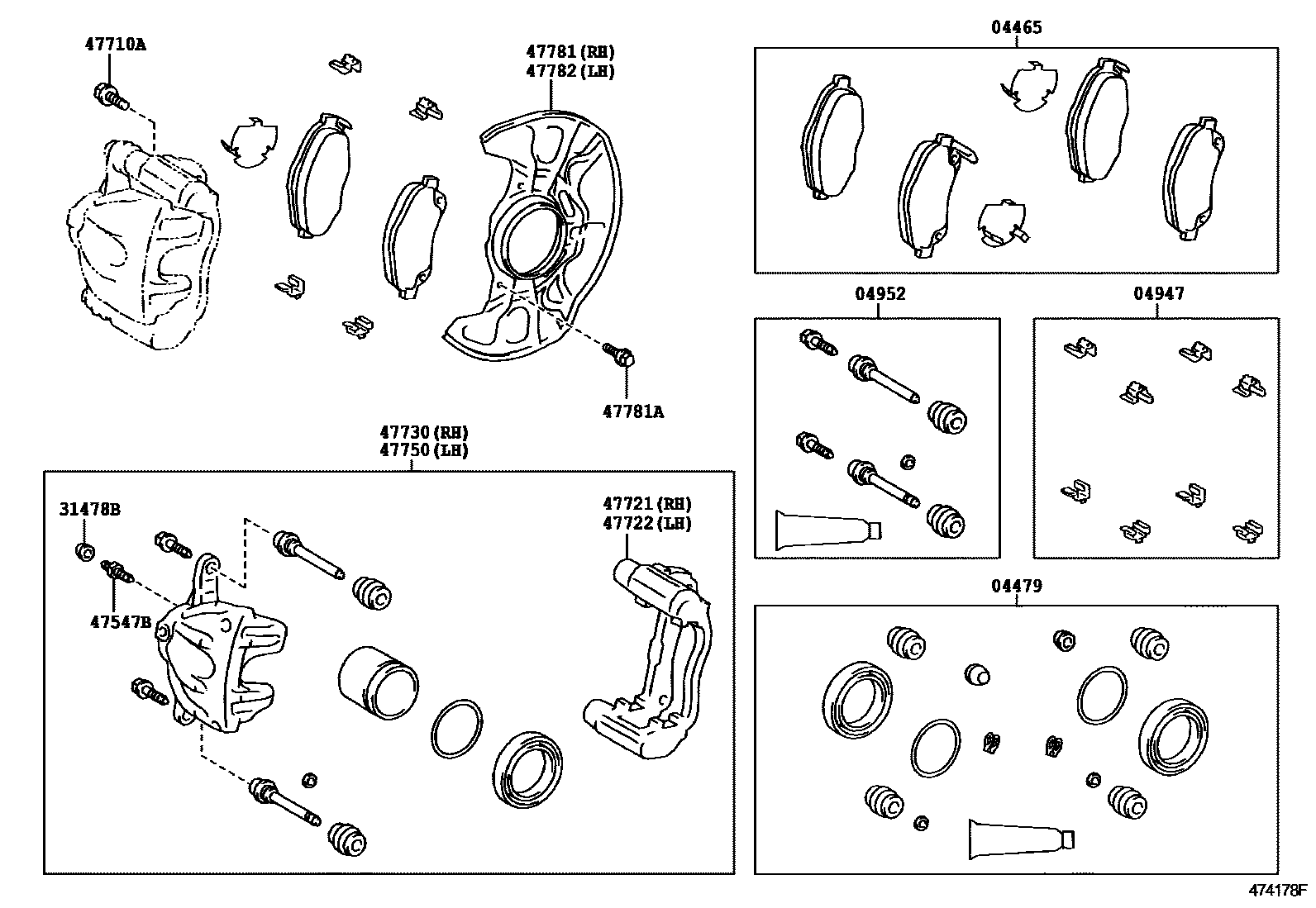

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-05170 · 04465-05220 · 04465-05221 · 04465-05280 |
| 04479 | Front disc brake cylinder assembly | 04478-05050 · 04478-05090 |
| 04947 | Front disc brake mounting kit | 04947-05040 · 04947-05050 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-09020 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-05030 |
| 47547B | Bleed plug (for front disc brake) | 47547-05020 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47721 | Right front disc brake cylinder retainer | 47721-05060 |
| 47722 | Left front disc brake cylinder retainer | 47722-05030 |
| 47730 | Right front disc brake cylinder assembly | 47730-05060 |
| 47750 | Left disc brake cylinder assembly | 47750-05060 |
| 47781 | Right front disc brake dust cover | 47781-0F010 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90080-11525 · 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-0F010 |
