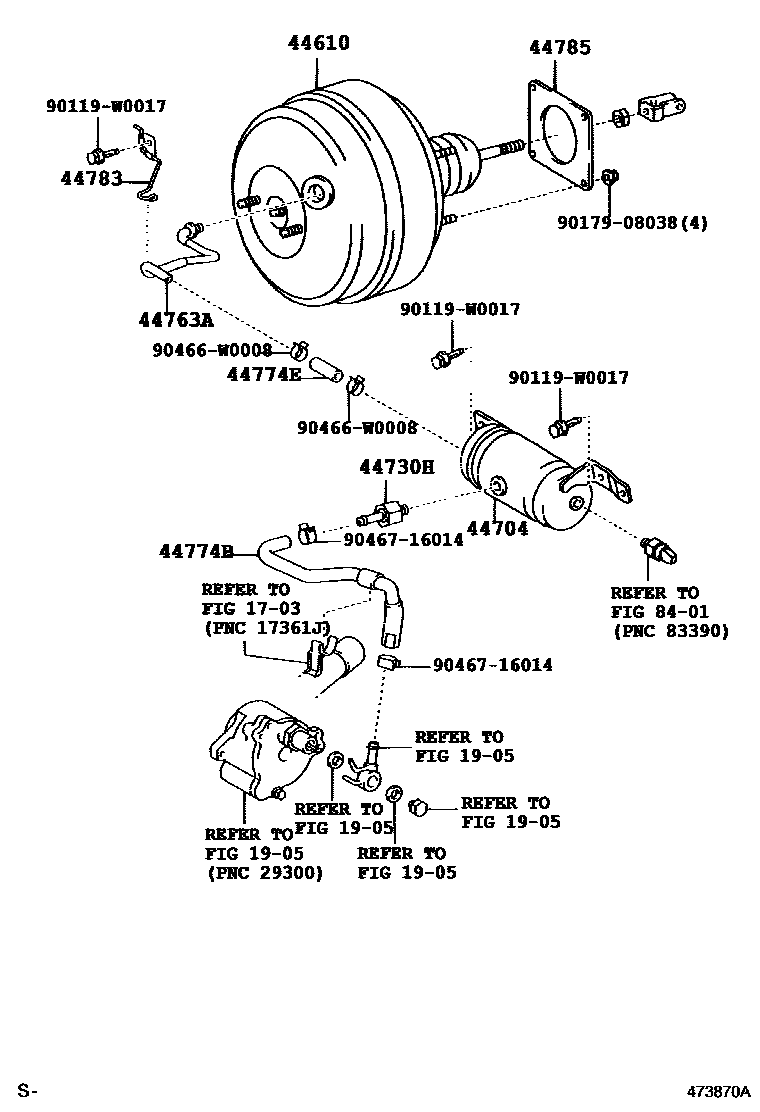

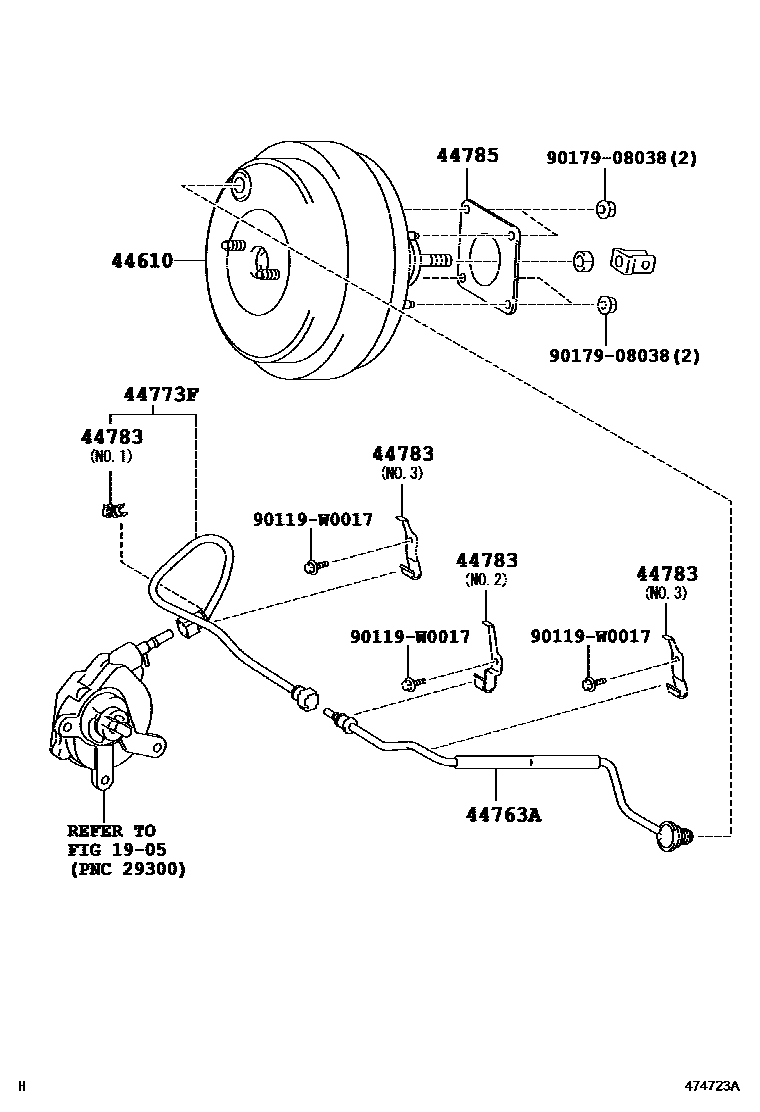

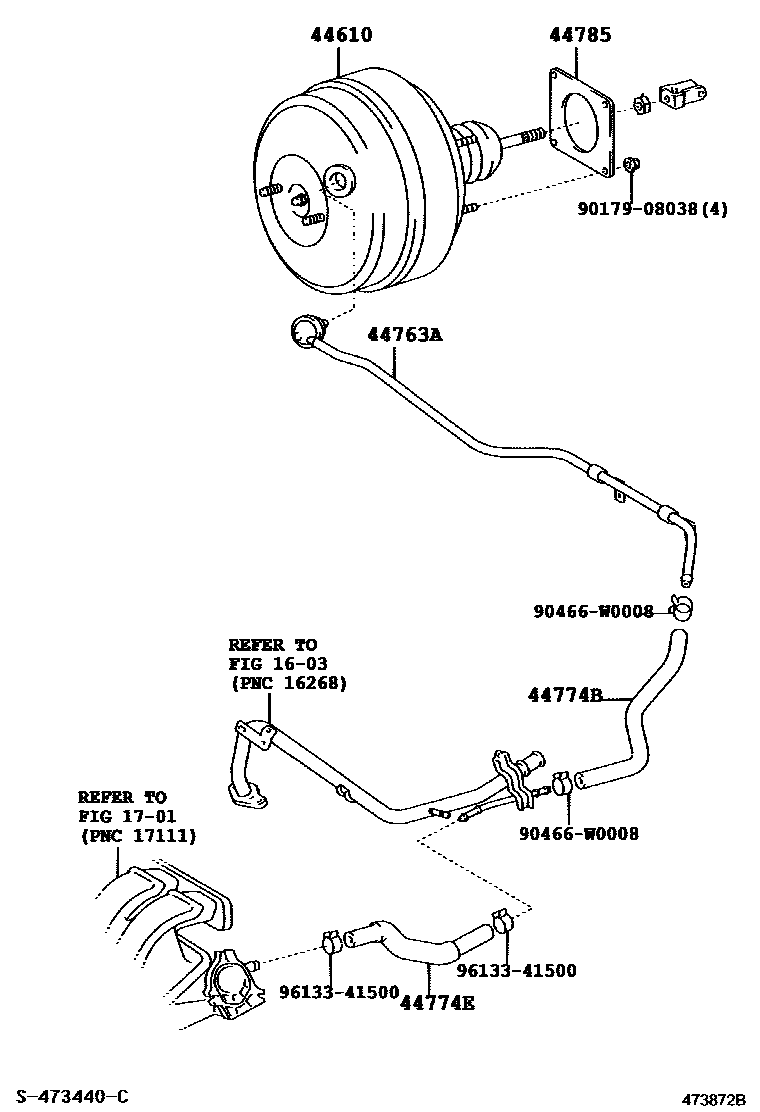

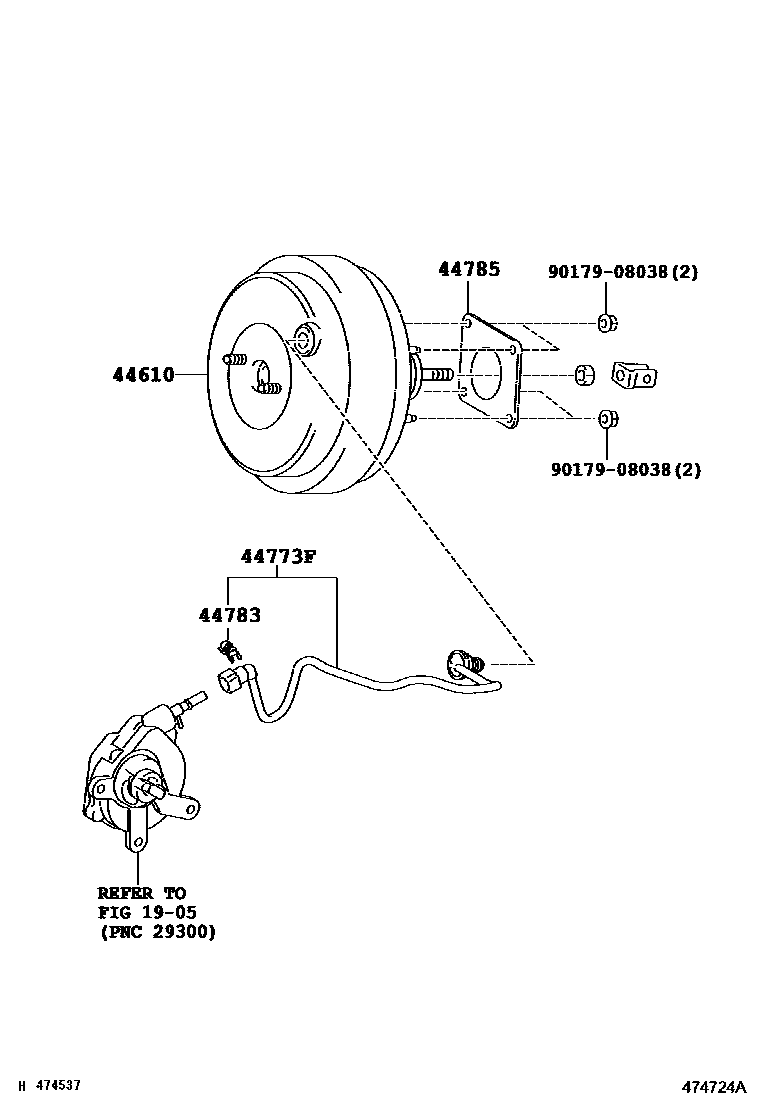

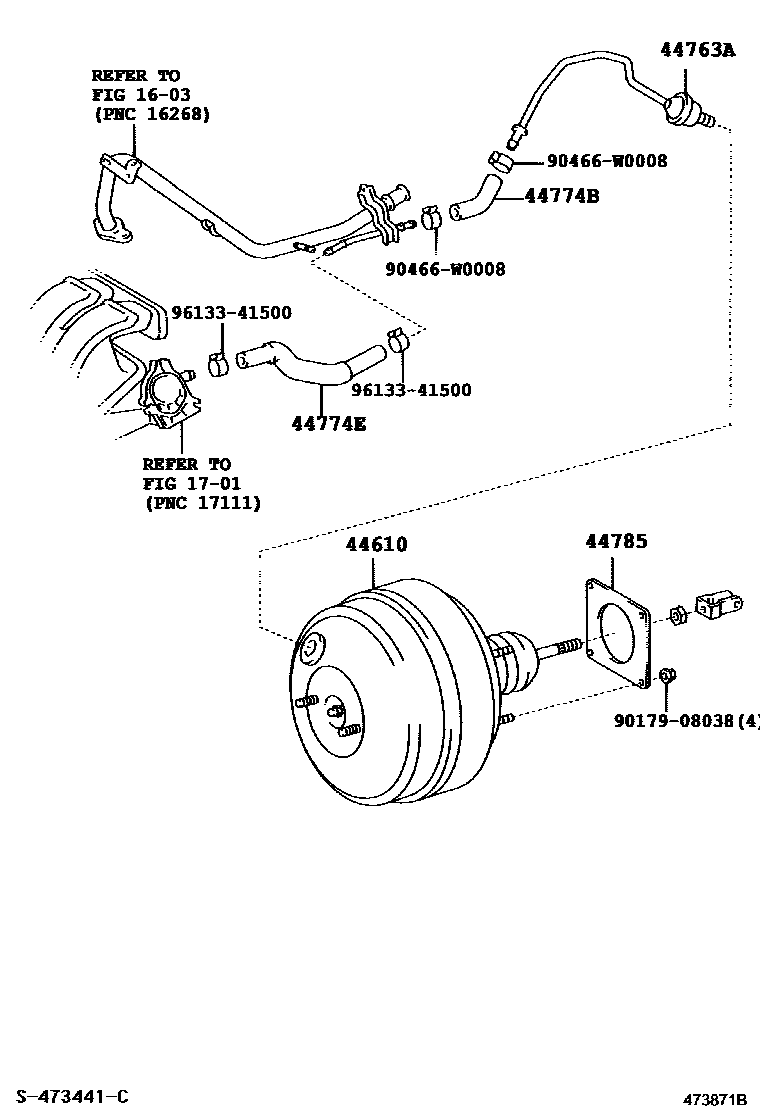

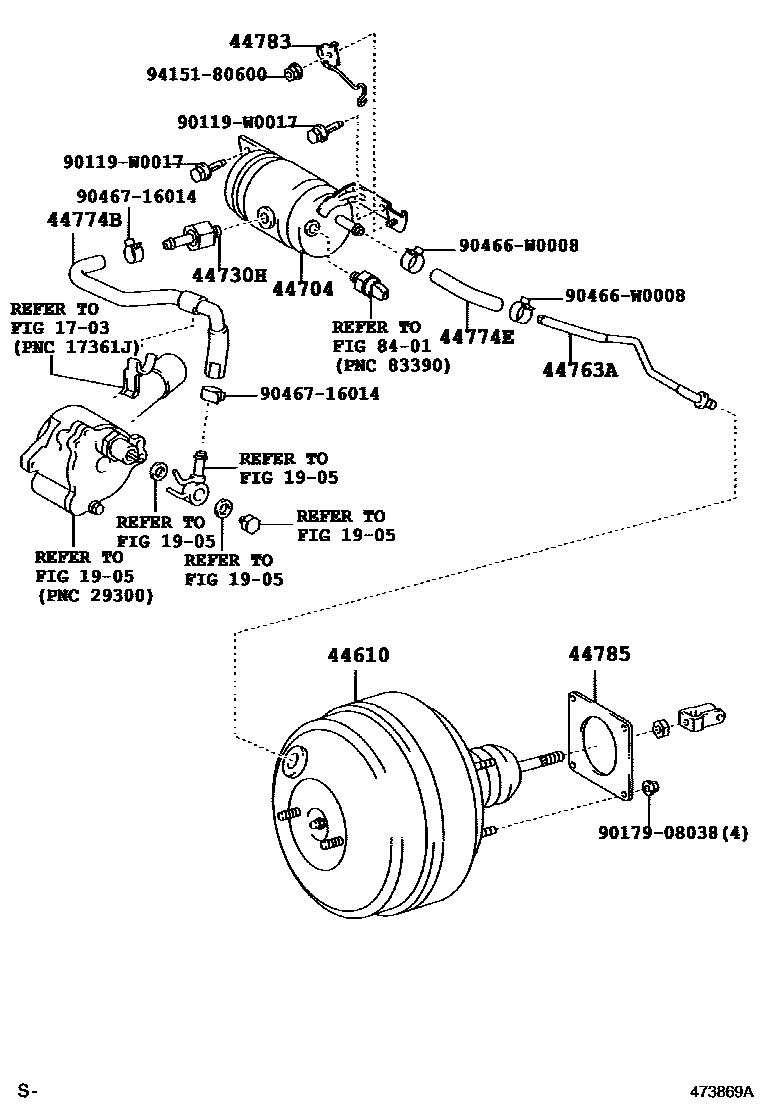

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-05090 · 44610-05100 |
| 44704 | Vacuum liquid tank sub-assembly | 44704-64010 · 44704-64020 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-05010 · 44763-05020 · 44763-0F010 · 44763-0F020 · 44763-0F030 |
| 44773F | Hoses (connector to check valve) | 44750-05130 · 44750-0F030 |
| 44774B | Hoses (joints to connector tubes) | 44774-02040 · 44774-12420 · 44774-64010 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-20310 · 44774-20390 · 44774-64020 |
| 44783 | Vacuum hose clamp | 44783-0F010 · 44783-0F020 · 44783-20130 · 44783-64010 · 44783-64020 |
| 44785 | brake booster pad | 44785-20020 |
