Toyota COROLLA Brake Pedal & Bracket — Figure 4701

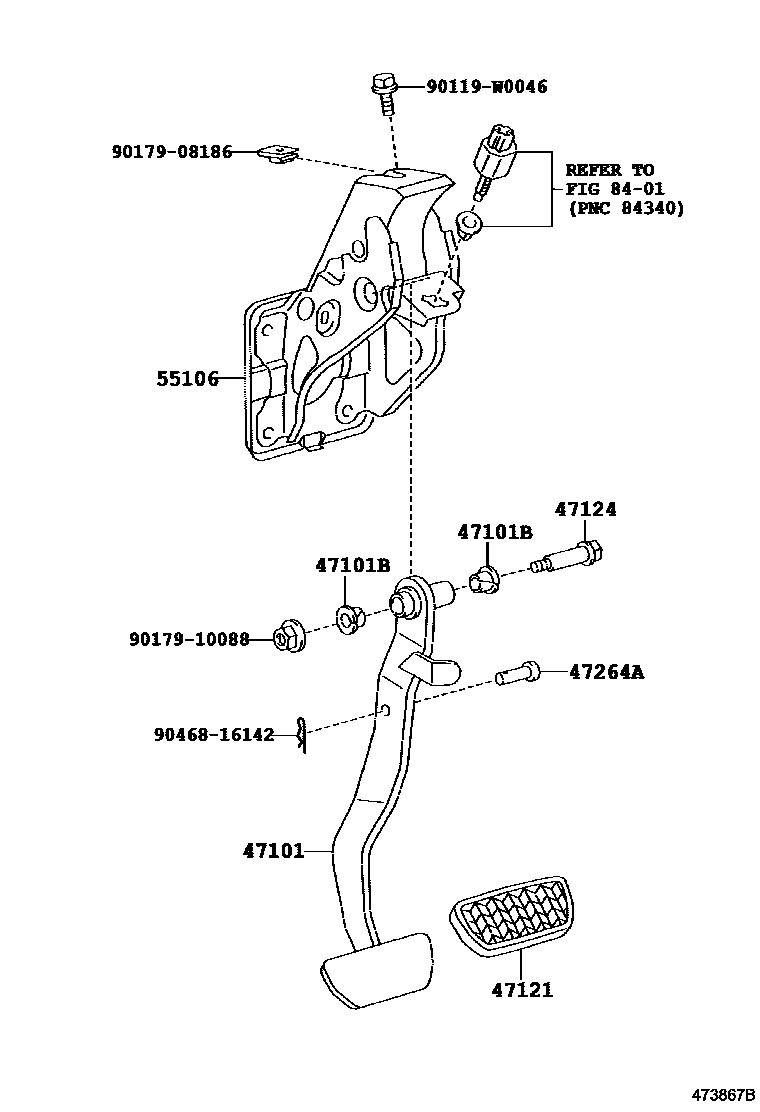

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-0F010 · 47101-0F020 · 47101-0F030 · 47101-0F040 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47121 | brake pedal pad | 31321-52010 · 47121-52010 |
| 47124 | brake pedal shaft | 90109-10174 |
| 47264A | Pin (for push rod) | 47148-20030 |
| 55106 | Brake pedal bracket sub-assembly | 55106-0F010 · 55106-0F020 |
