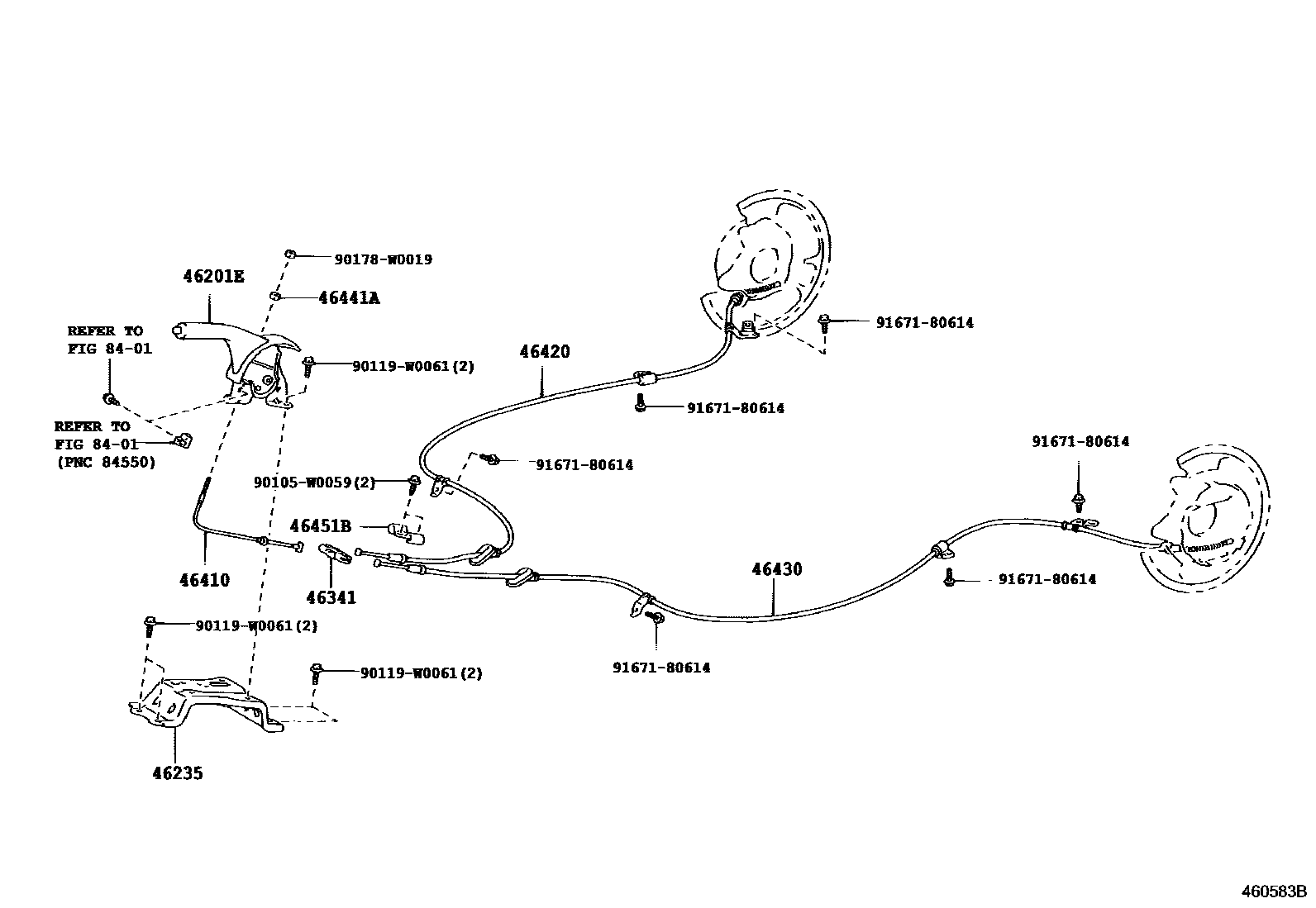

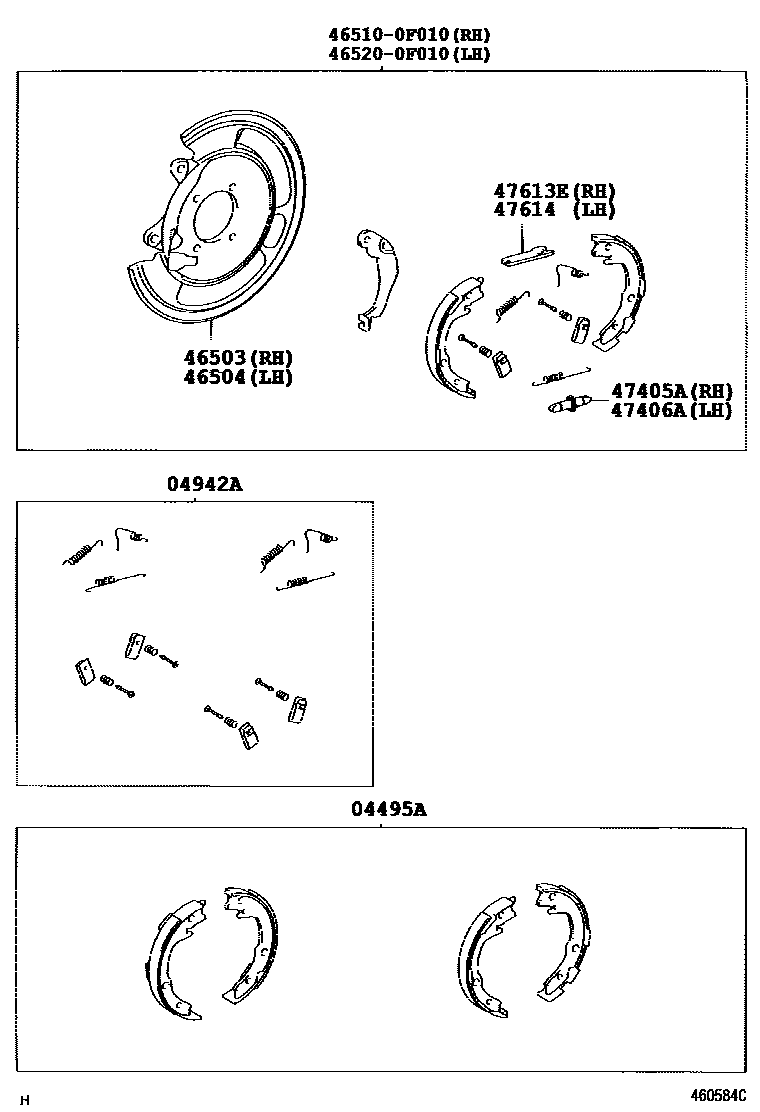

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495A | Parking brake shoe assembly | 04495-0F010 |
| 04942A | Parking brake spring assembly | 04942-0F010 |
| 46235 | Parking brake lever bracket | 46235-0F010 |
| 46341 | Parking brake balancer | 46341-02040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0F010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0F010 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0F010 |
| 46441A | No. 2 cable adjustment nut | 90179-06171 |
| 46451B | Parking brake cable bracket | 46451-0F010 |
| 46503 | Right parking brake pad sub-assembly | 46503-0F010 |
| 46504 | Left parking brake pad sub-assembly | 46504-0F010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-0F010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-0F010 |
| 47613E | Right parking brake shoe push rod | 47613-0F010 |
| 47614 | Left parking brake shoe push rod | 47613-0F010 |
