Toyota COROLLA 前转向齿轮和连杆 — Figure 4505

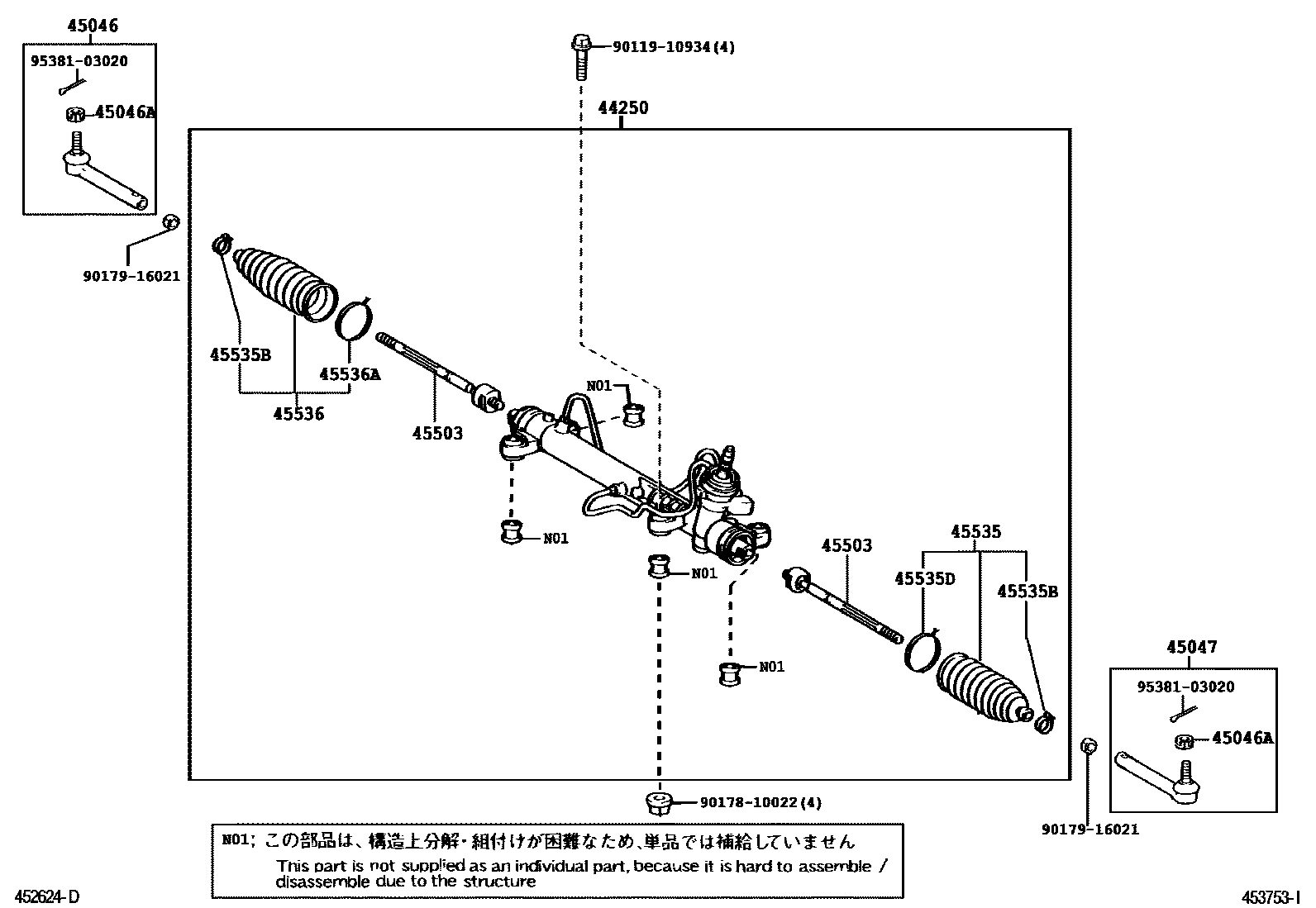

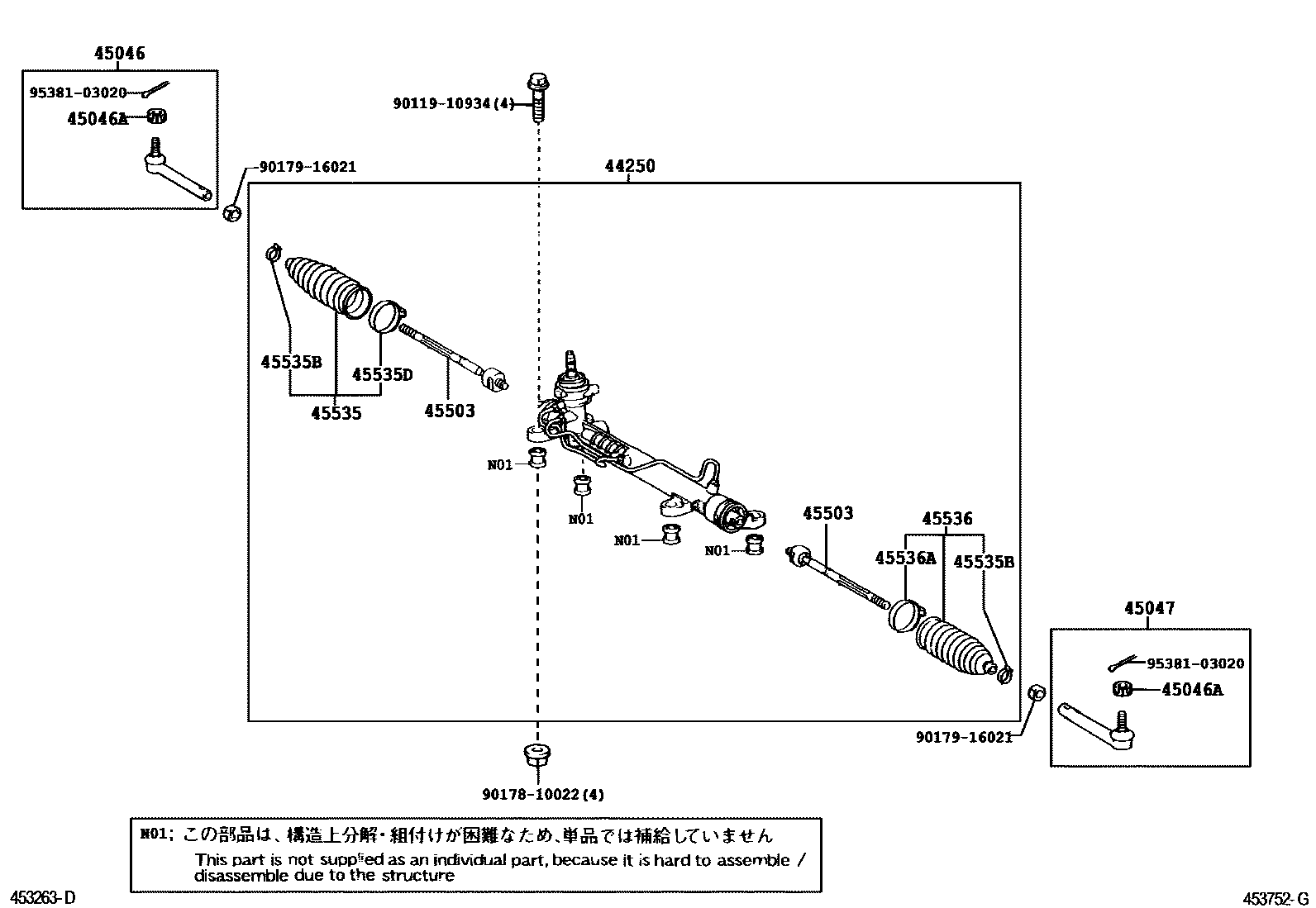

Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-0F010 · 44250-0F011 · 44250-0F020 · 44250-0F021 |
| 45046 | Right tie rod end sub-assembly | 45046-09430 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45047 | Left tie rod end sub-assembly | 45046-09430 |
| 45503 | Steering rack end sub-assembly | 45503-0F010 |
| 45535 | No. 1 steering rack dust cover | 45535-09020 |
| 45535B | Clamp (for steering rack dust boot) | 90069-49001 |
| 45535D | Clamp (for No. 1 steering rack dust boot) | 90069-48001 |
| 45536 | No. 2 steering rack dust cover | 45535-09020 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90069-48001 |
