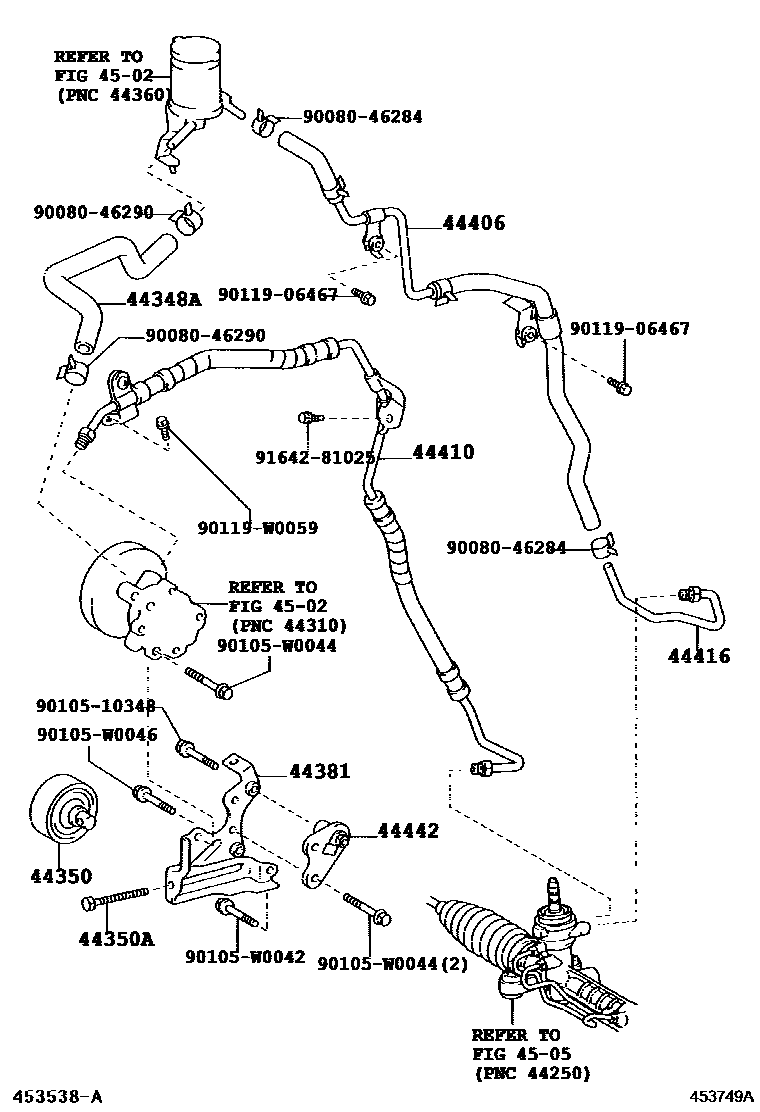

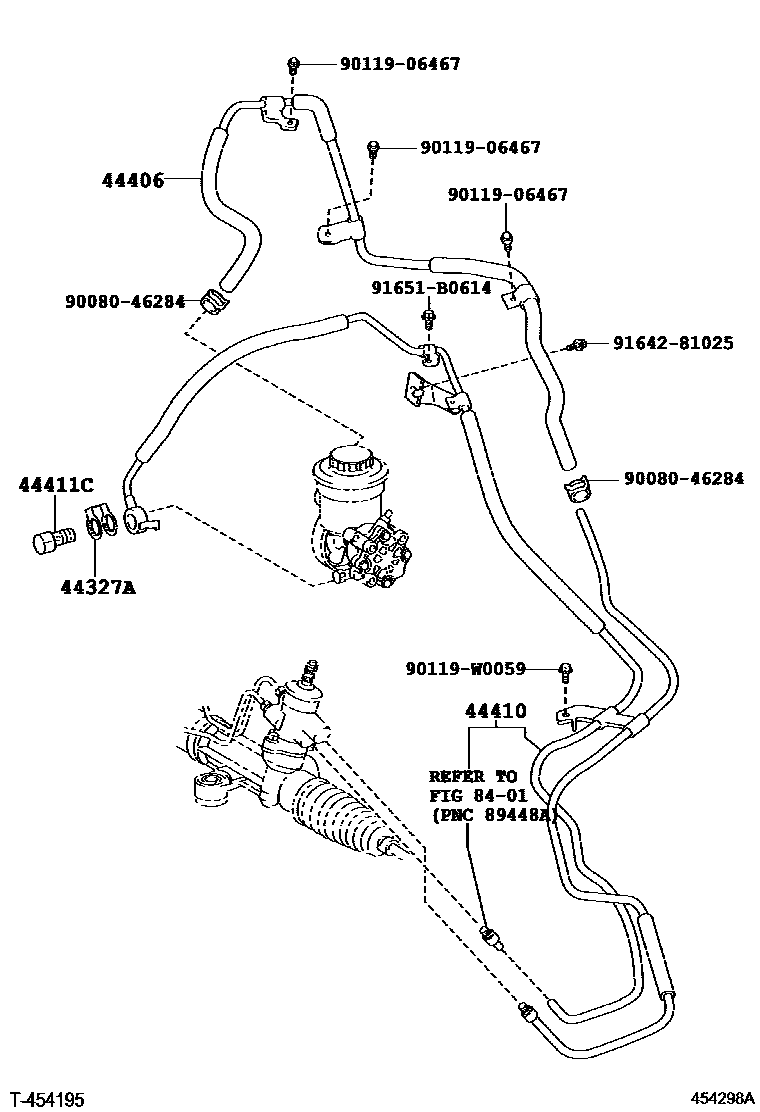

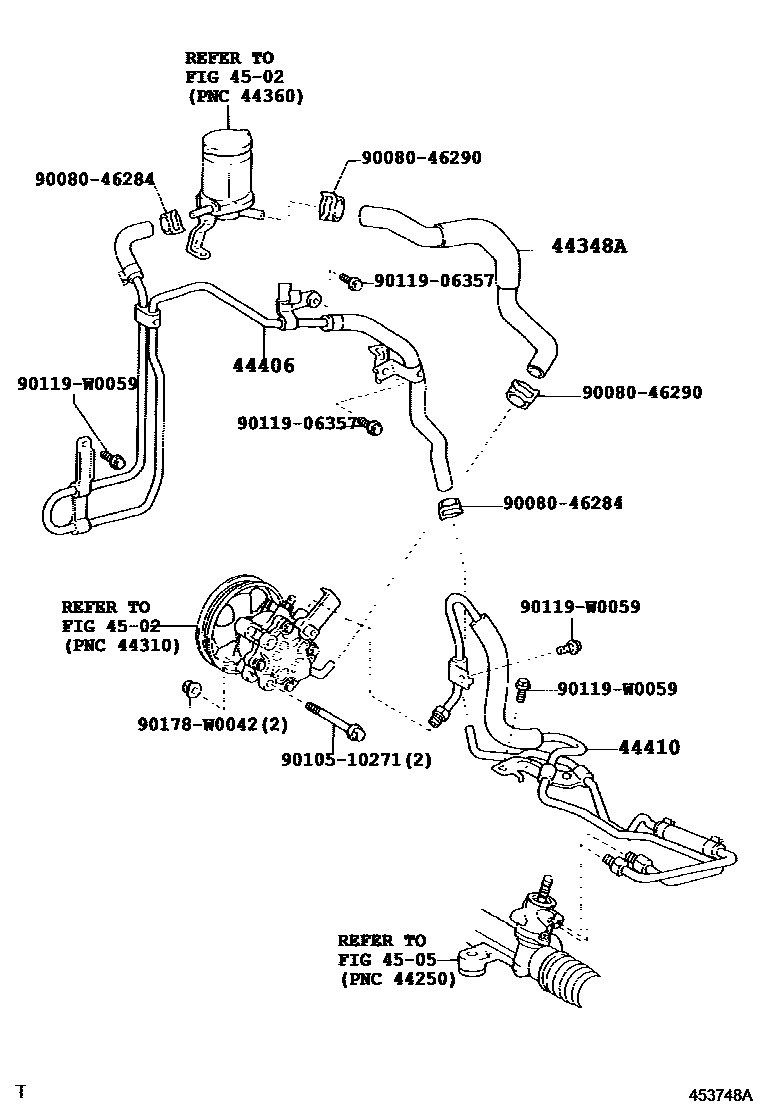

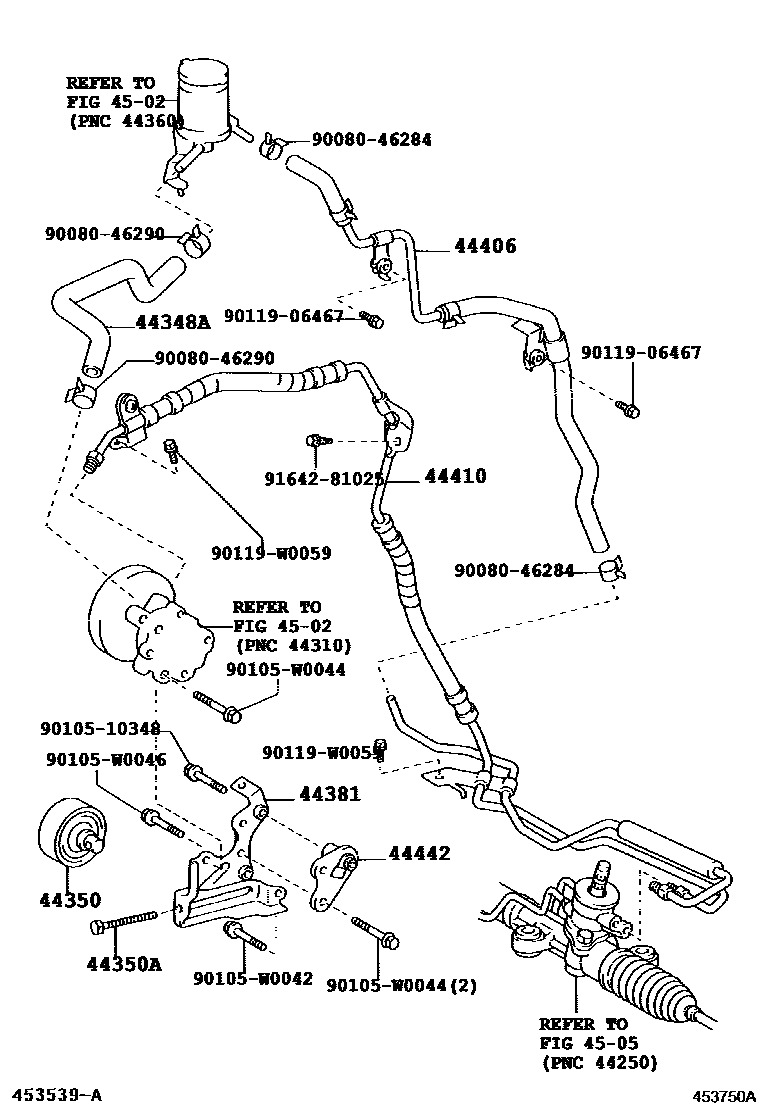

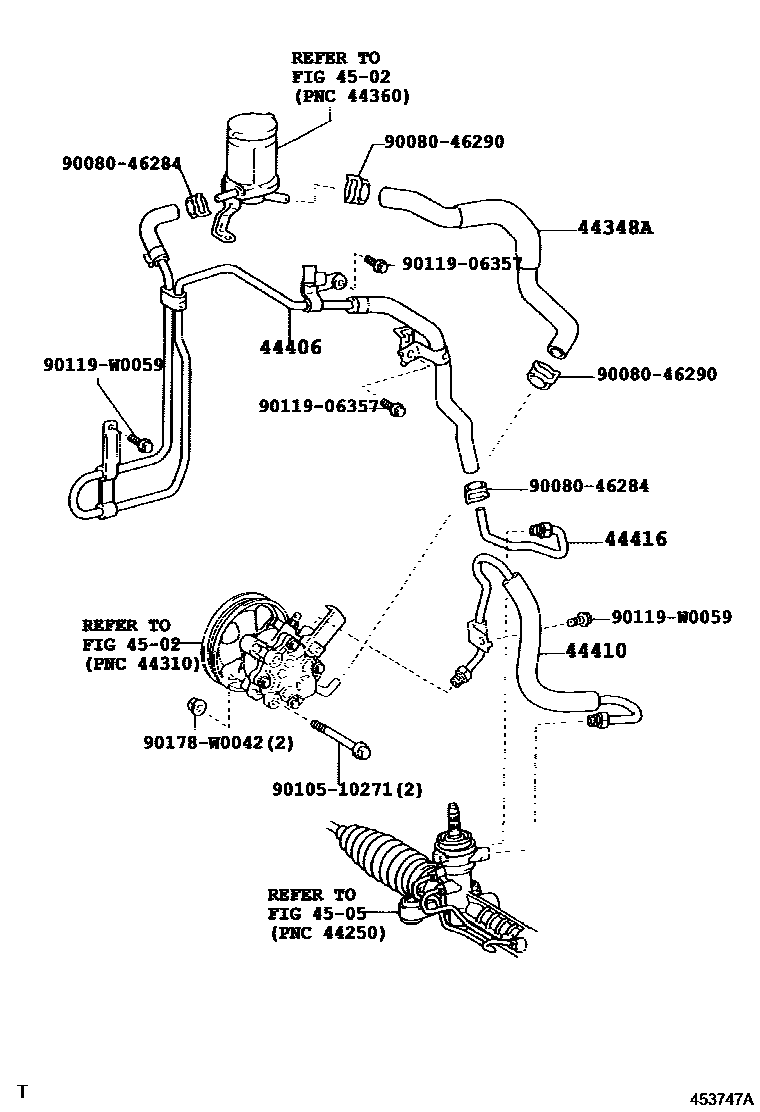

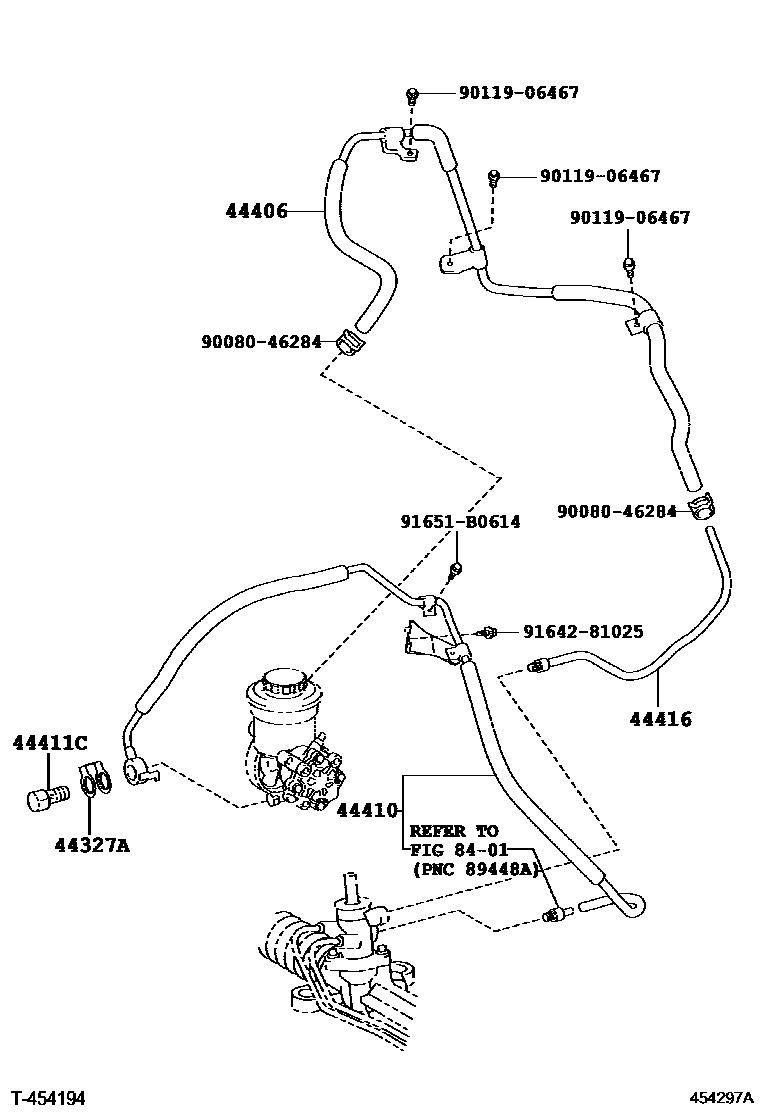

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 6 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-26030 |
| 44348A | No. 1 hose (tank to pump) | 44348-05090 · 44348-0F010 |
| 44350 | Power steering idler assembly | 44350-12070 |
| 44350A | Bolt (for power steering idler pulley) | 90109-08106 |
| 44381 | Power steering idler bracket | 44381-13010 |
| 44406 | Oil return pipe sub-assembly | 44406-0F010 · 44406-0F020 · 44406-0F030 |
| 44410 | Pressure supply pipe assembly | 44410-05270 · 44410-05310 · 44410-05311 · 44410-0F010 · 44410-0F020 · 44410-0F030 · 44410-0F040 · 44410-0F041 |
| 44411C | Connector bolt (for pressure supply hose) | 96341-41603 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-05020 |
| 44442 | Pump rear bracket | 44442-05020 |
