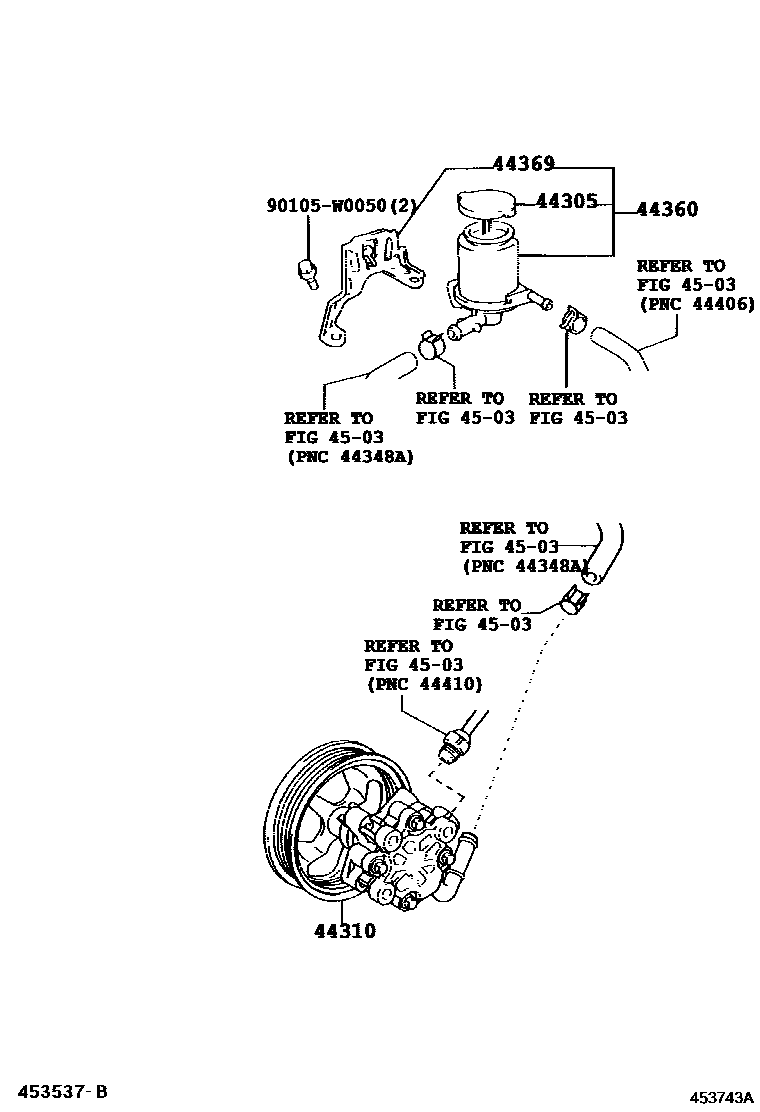

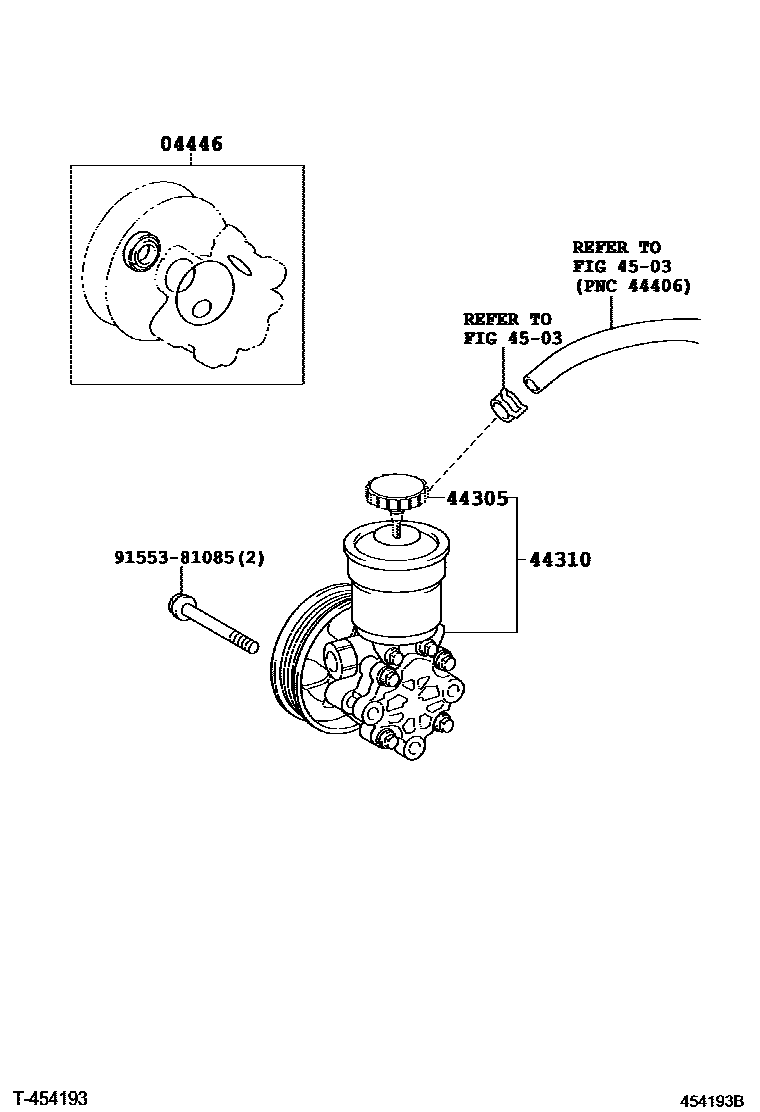

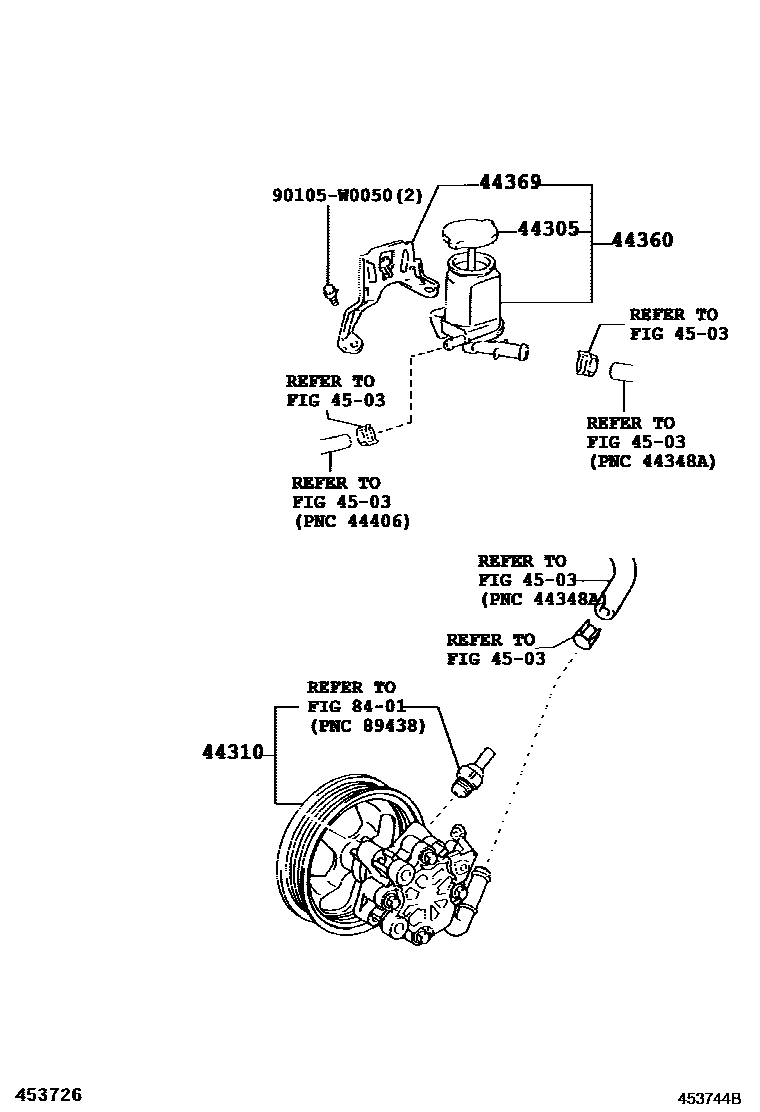

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02050 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-22060 · 44305-28030 · 44305-28060 |
| 44310 | Vane pump assembly | 44310-05100 · 44310-05120 · 44310-0F010 |
| 44360 | Vane pump oil storage tank assembly | 44360-64010 · 44360-64020 |
| 44369 | No. 1 oil storage tank bracket | 44369-64010 |
