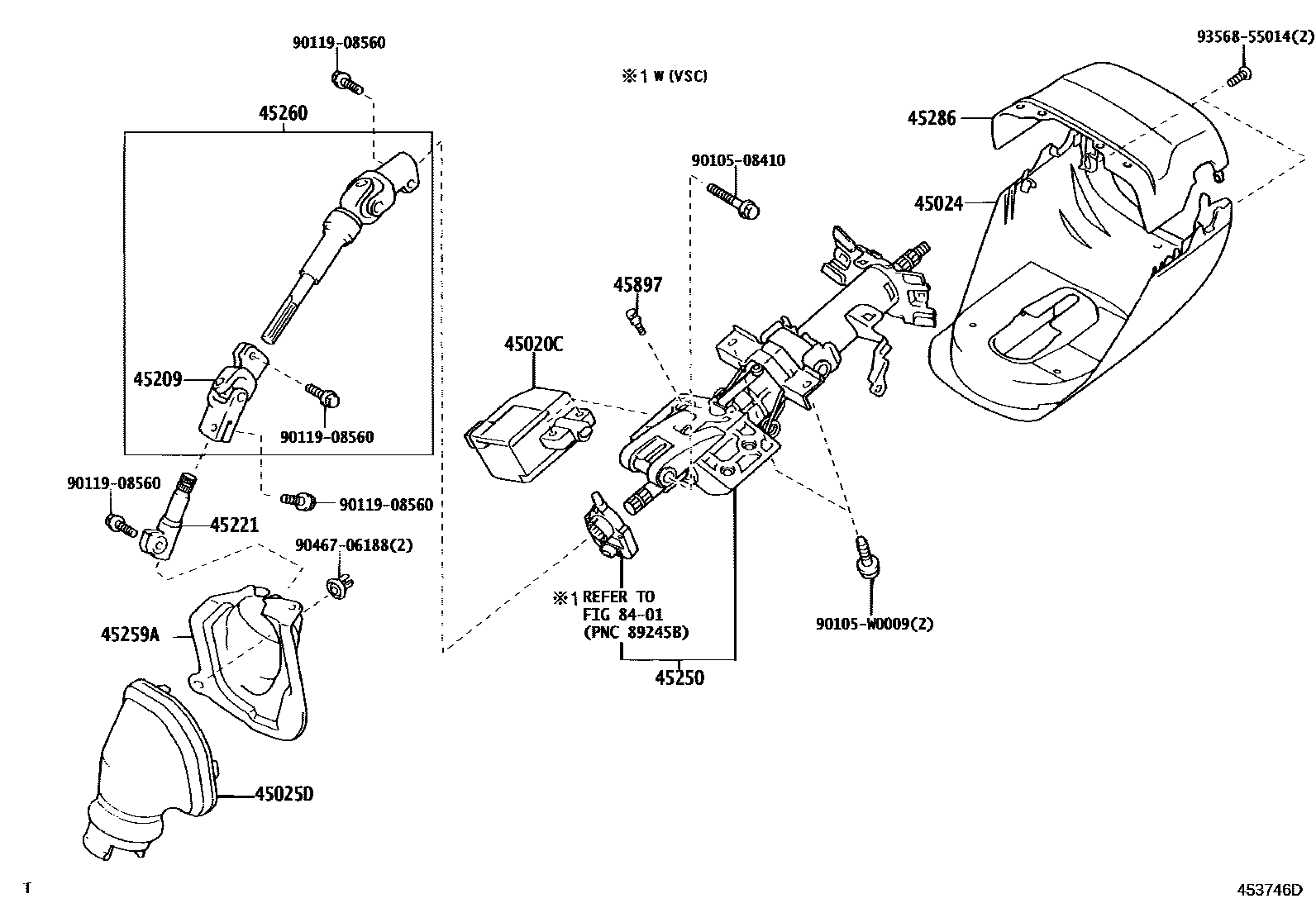

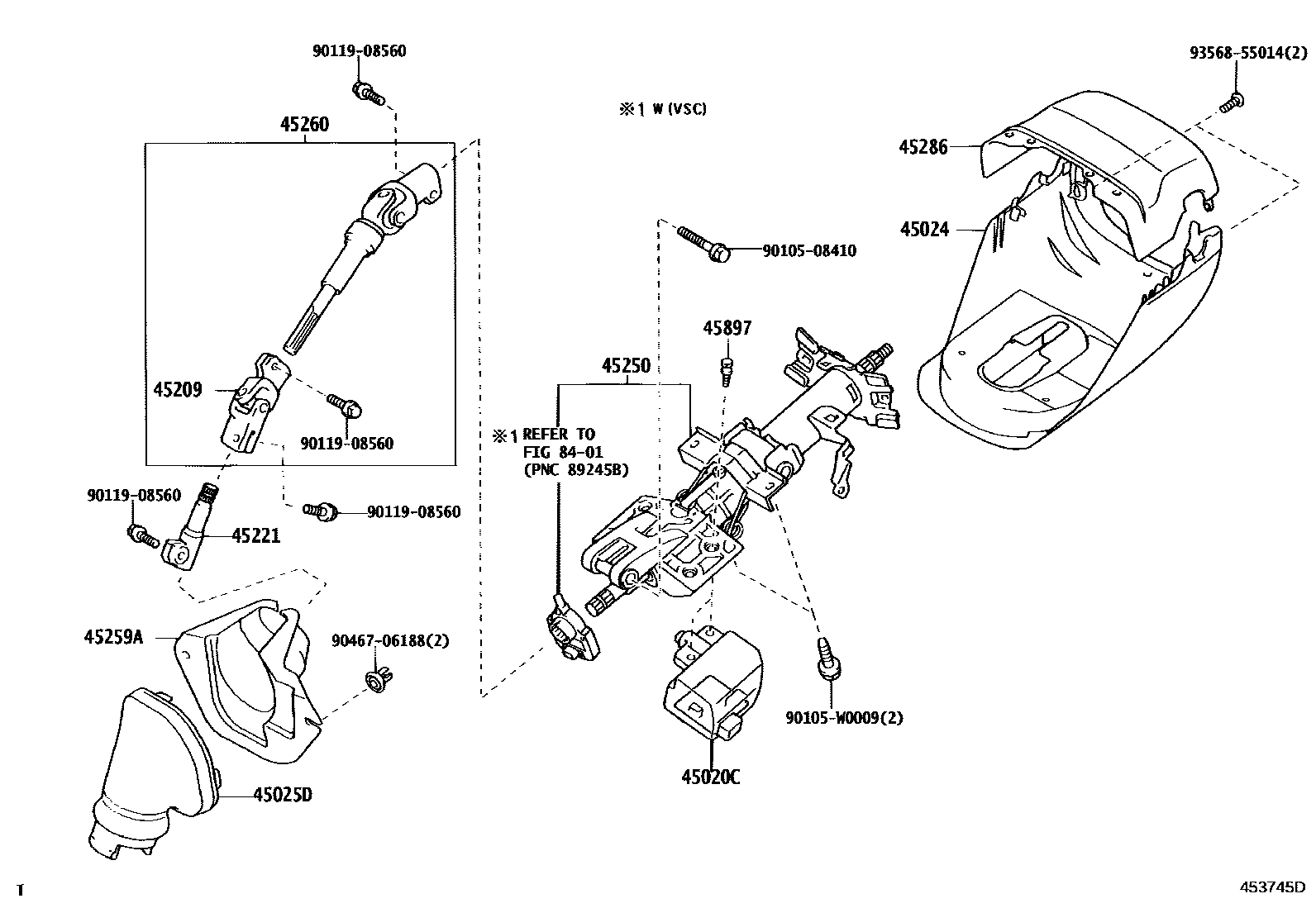

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-0F010 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-0F010 · 45025-0F020 |
| 45209 | Steering slip fork sub-assembly | 45209-05020 · 45209-05021 · 45209-0F010 · 45209-0F011 |
| 45221 | steering intermediate shaft | 45221-05010 · 45221-05011 |
| 45250 | Steering column assembly | 45250-0F010 · 45250-0F020 · 45250-0F030 · 45250-0F040 · 45250-0F050 · 45250-0F060 |
| 45259A | Steering column hole cover silencer plate | 45259-0F010 · 45259-0F020 · 45259-0F030 · 45259-0F040 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-0F010 · 45260-0F011 · 45260-0F020 · 45260-0F021 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
