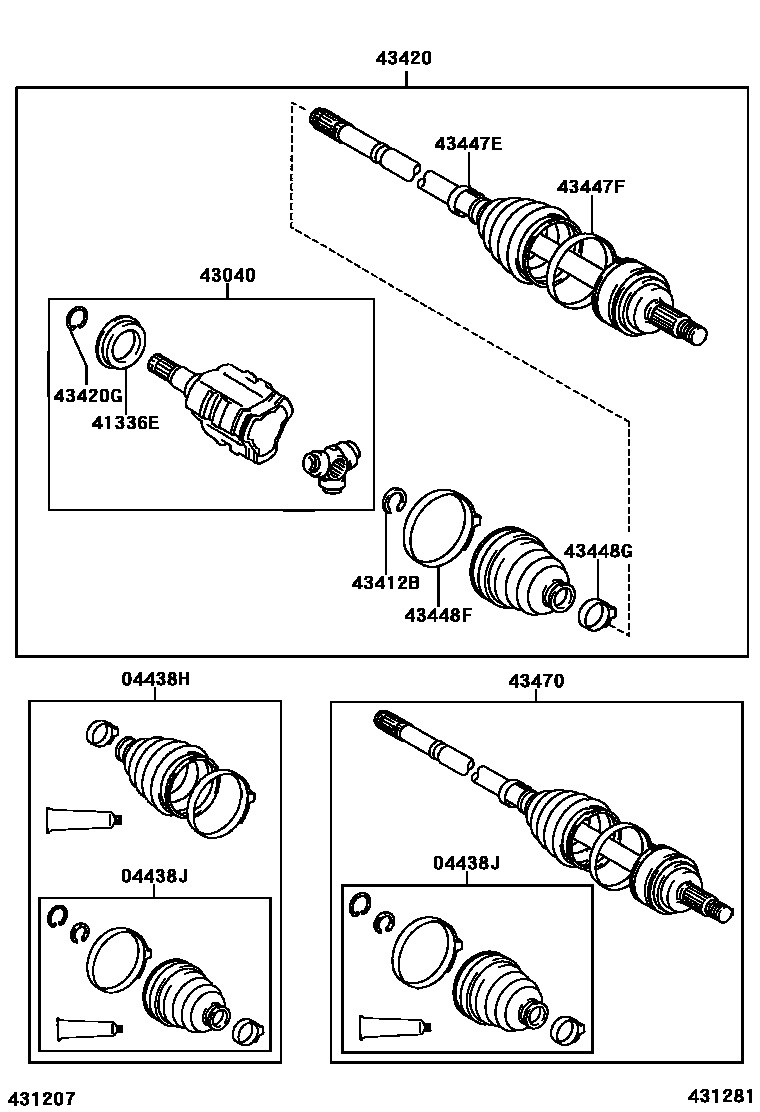

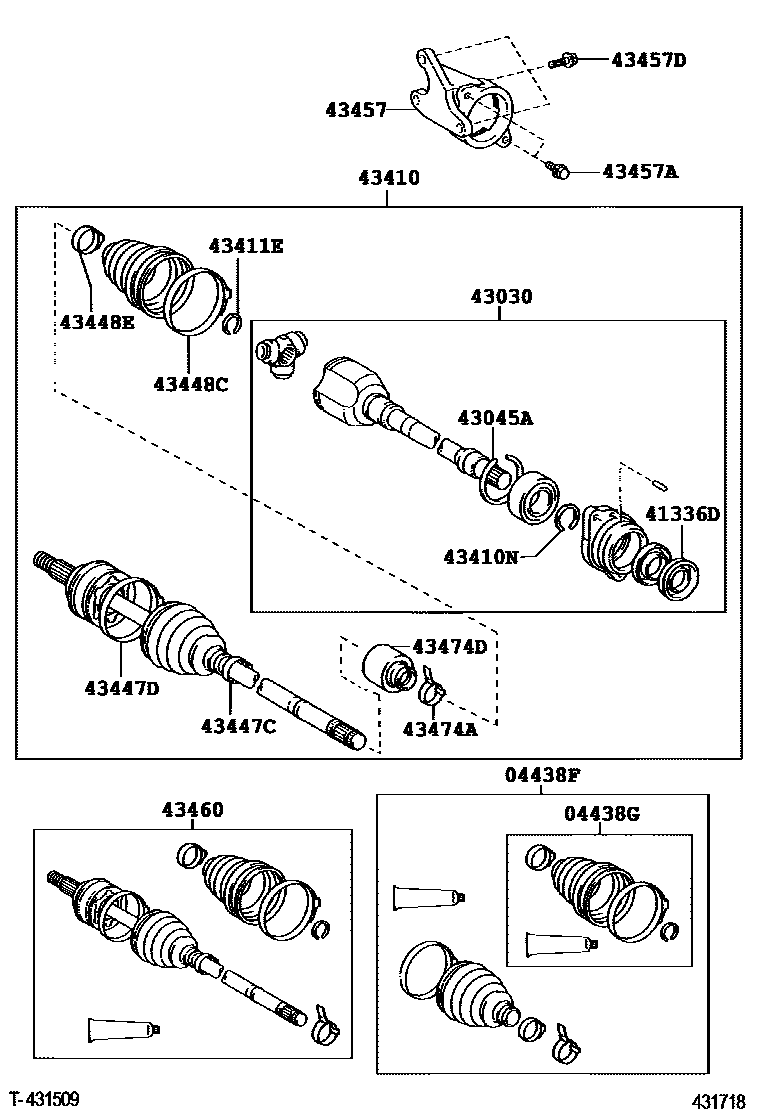

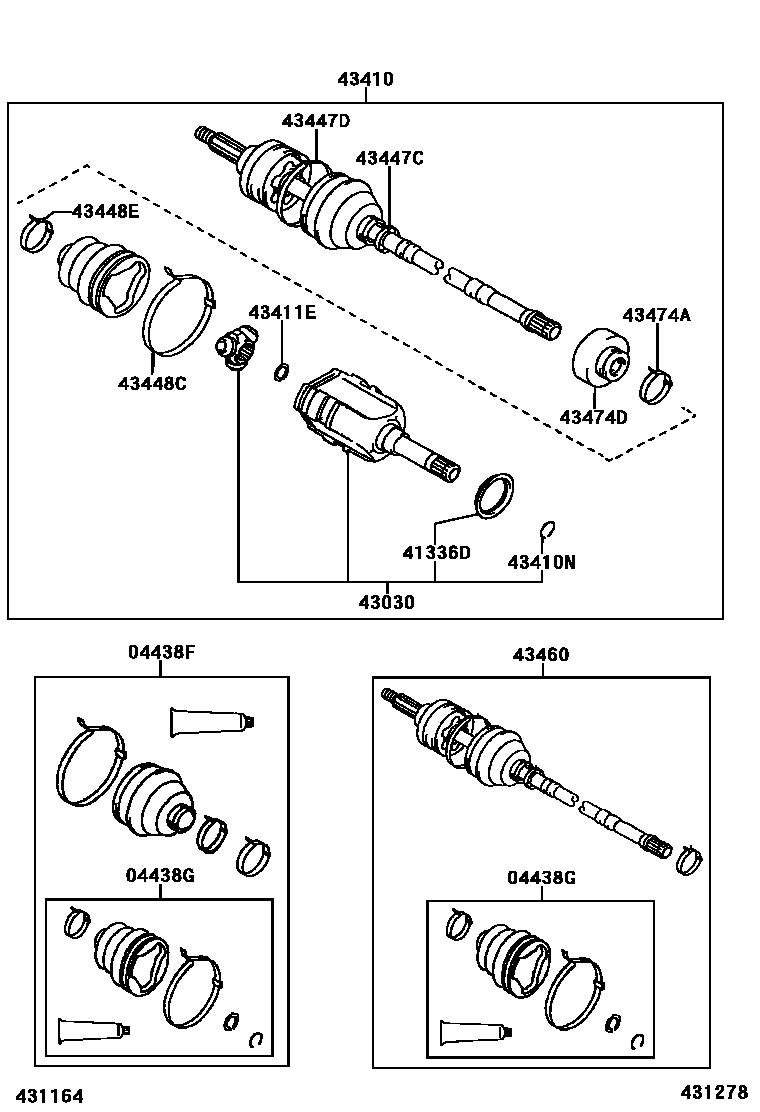

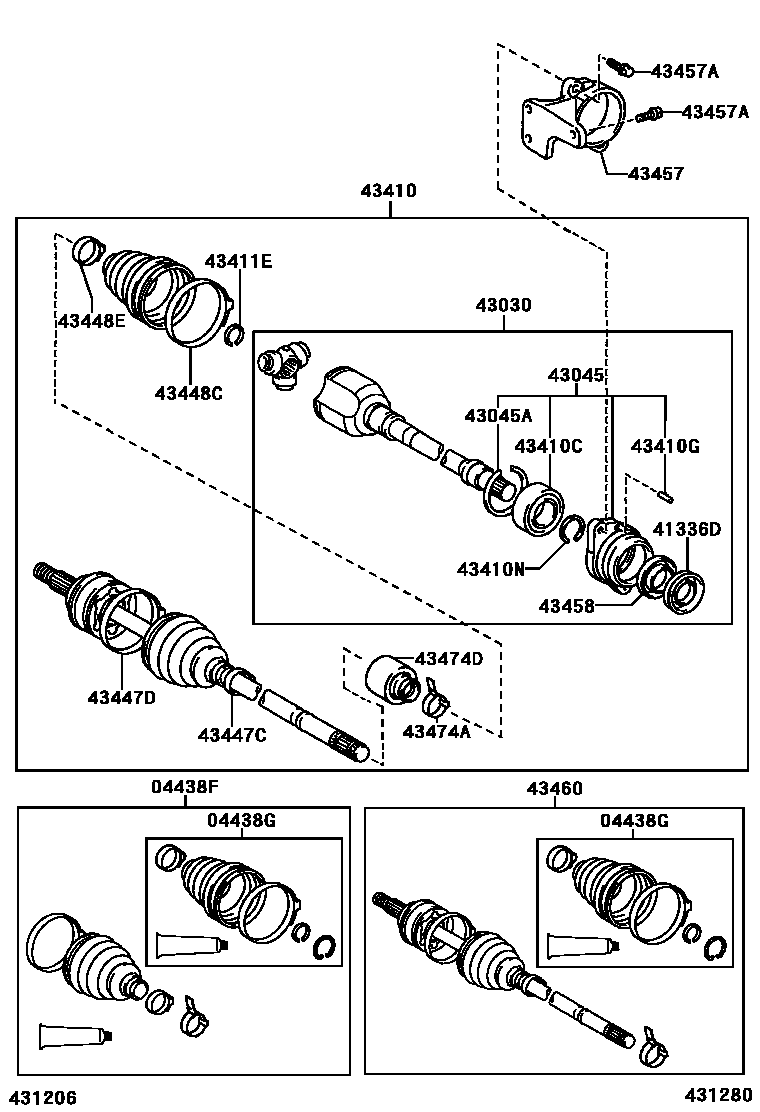

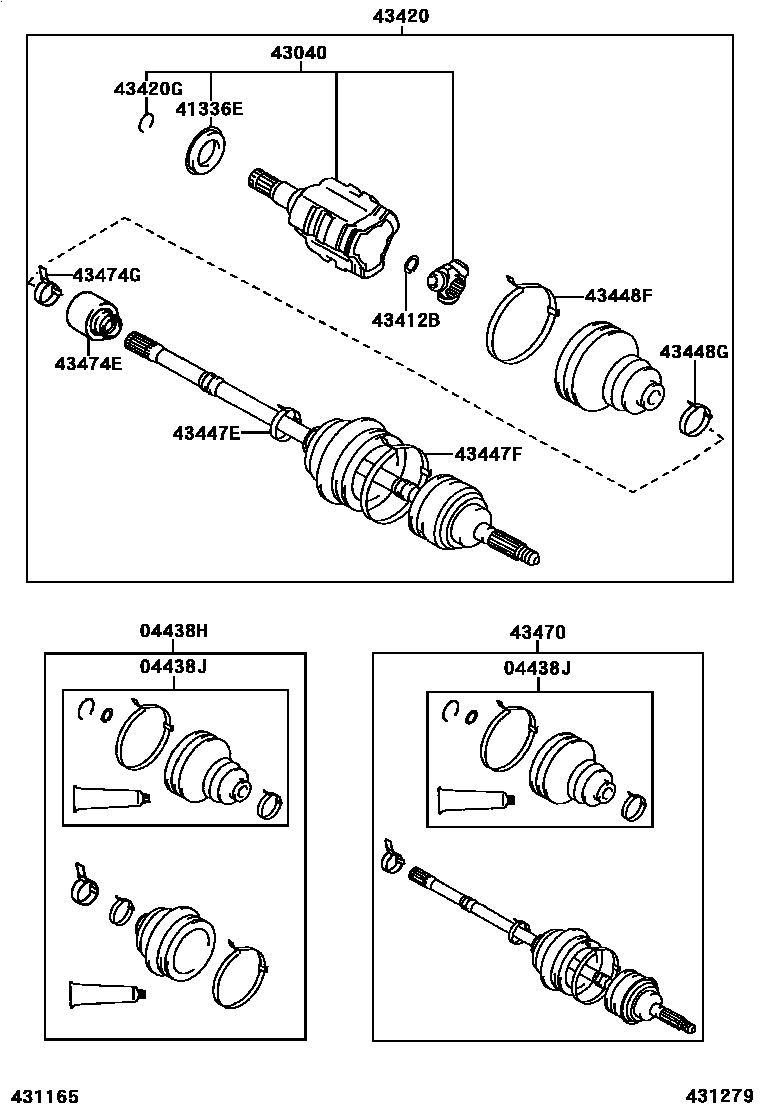

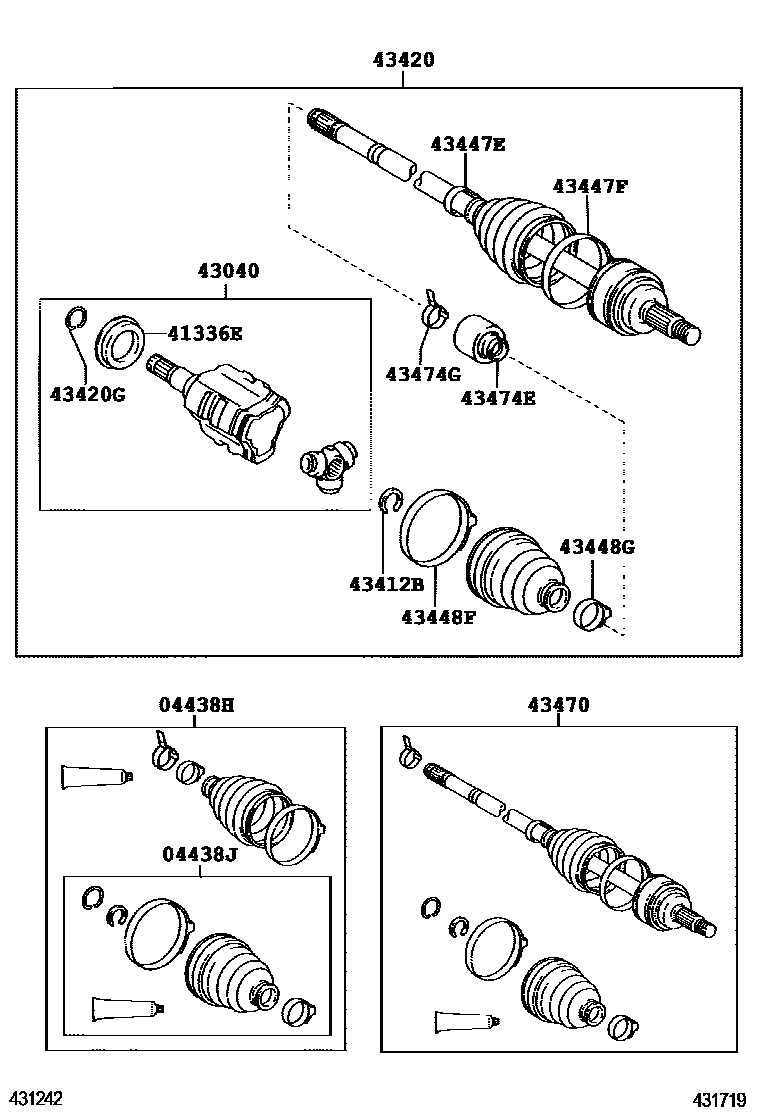

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 6 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02340 · 04427-05180 · 04438-0F040 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02260 · 04437-05070 · 04438-05250 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02310 · 04428-05130 · 04438-0F030 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-02121 · 04438-02131 · 04438-05320 |
| 41336D | Right front driveshaft dust cover | 41336-05030 · 41336-05080 · 41336-05100 · 41336-05140 |
| 41336E | Left front driveshaft dust cover | 41336-05030 · 41336-05090 · 41336-05130 · 41336-05140 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-05200 · 43030-0F010 · 43040-0F010 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02040 · 43040-02050 · 43040-05141 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-64020 |
| 43045A | Snap ring (for drive shaft bearing housing sub-assembly) | 90520-69002 |
| 43410 | Right front driveshaft assembly | 43410-05320 · 43410-0F010 · 43410-0F021 |
| 43410C | Bearings (for front driveshaft) | 90363-41003 |
| 43410G | Direct sales (for front driveshaft) | 90250-06003 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-05050 · 90080-52055 · 90080-52106 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02020 · 43425-05040 · 90080-52052 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02010 · 43425-02020 · 43425-05040 |
| 43420 | Left front drive shaft assembly | 43420-05371 · 43420-0F010 · 43420-0F020 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-05070 · 90080-52017 · 90080-52055 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02110 · 42345-05280 · 42345-0F020 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02100 · 42345-05240 · 42345-05270 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02110 · 42345-05230 · 42345-05280 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02100 · 42345-05240 · 42345-05270 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02080 · 42345-05090 · 42345-05210 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02090 · 42345-05100 · 42345-05250 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02040 · 42345-02080 · 42345-05210 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02090 · 42345-05100 · 42345-05250 |
| 43457 | drive shaft bearing bracket | 43457-05030 · 43457-05050 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-10361 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-05020 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09K90 · 43470-09B50 · 43470-09M10 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09B40 · 43470-09B60 · 43470-09M20 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-05220 · 42345-05260 · 42345-0F040 |
| 43474D | Right front driveshaft shock absorber | 43474-02080 · 43474-05140 · 43474-0F010 |
| 43474E | Left front driveshaft shock absorber | 43474-02130 · 43474-05150 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02150 · 42345-05290 |
