Toyota COROLLA 前桥壳和差速器 — Figure 4301

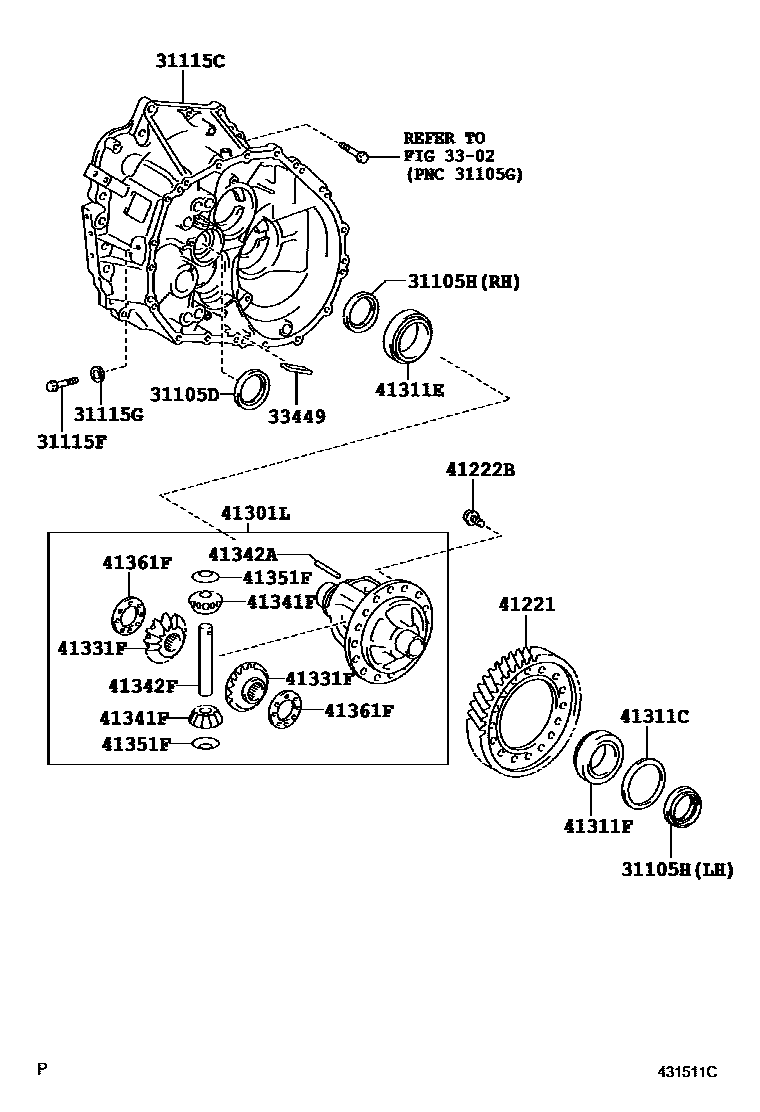

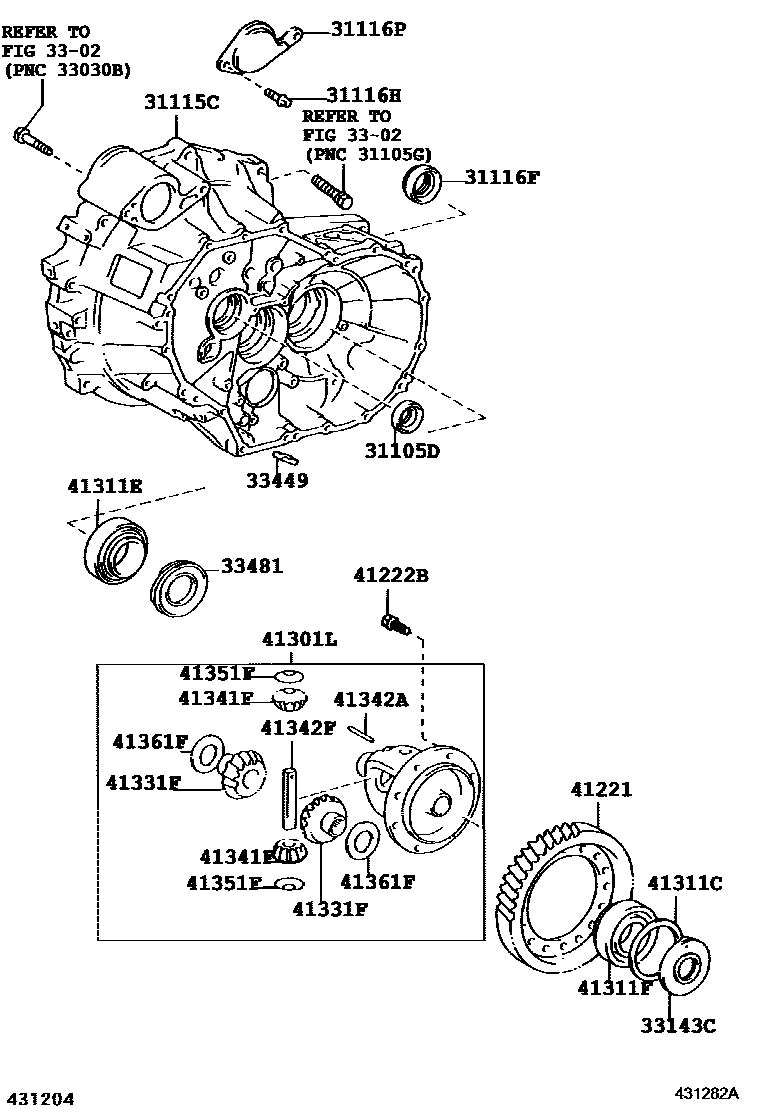

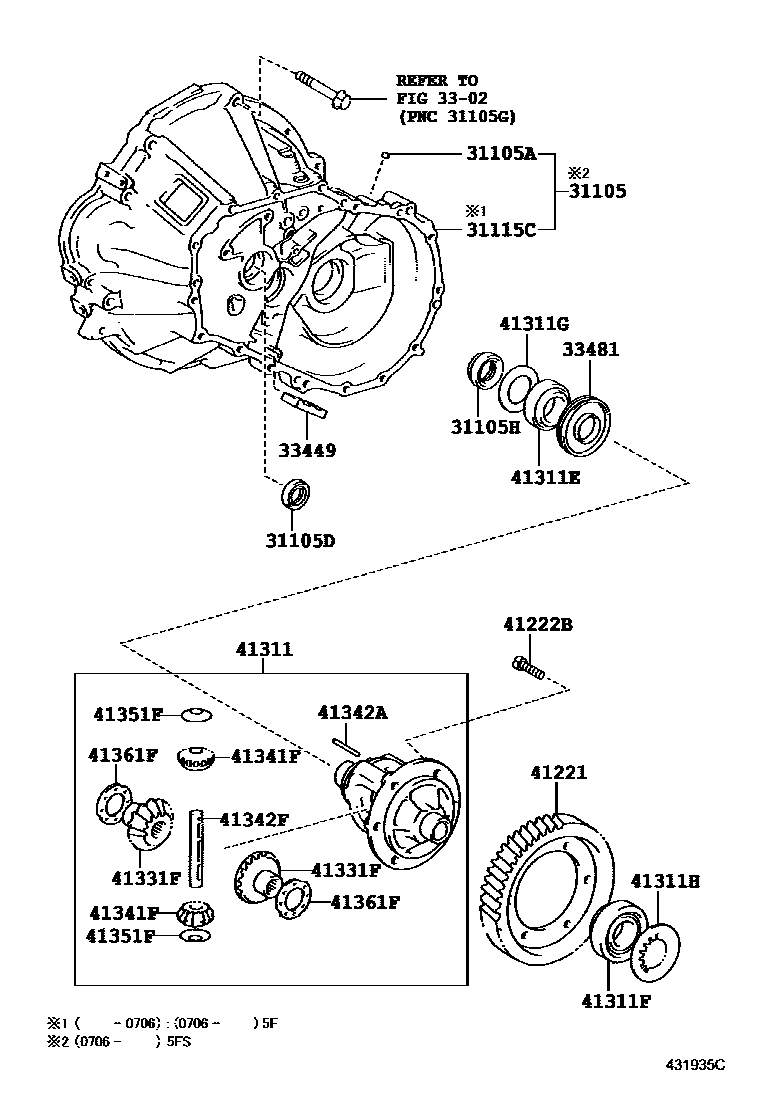

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-12240 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25011 · 90311-25016 · 90311-25028 · 90311-30006 · 90311-30017 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-35051 · 90311-35057 · 90311-40030 · 90311-50032 |
| 31115C | Front transmission axle housing (MTM) | 31115-02030 · 31115-05010 · 31115-12110 · 31115-12111 · 31115-20061 · 31115-20080 · 31115-28011 |
| 31115F | Bolt (for front transaxle housing) | 90105-12354 |
| 31115G | Gasket (for front transaxle housing) | 90430-13004 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40025 |
| 31116H | Bolts (for front transaxle housing cover) | 91622-B1025 |
| 31116P | Transmission axle housing cover | 31116-20010 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 · 33449-60010 |
| 33481 | Speedometer driving gear (MTM) | 33481-20160 · 33481-28050 |
| 41221 | Front differential ring gear | 41221-0F010 · 41221-12480 · 41221-20350 · 41221-20390 · 41221-28080 · 41221-64010 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-11040 · 90105-12319 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-20240 · 41301-20250 · 41301-28070 |
| 41311 | front differential case | 41301-05020 · 41301-32061 |
| 41311C | Rear gasket (for front differential case) | 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-56073 · 90564-56074 · 90564-56075 · 90564-56076 · 90564-56077 · 90564-56078 · 90564-56079 · 90564-56080 · 90564-56081 · 90564-56082 · 90564-56083 · 90564-56084 · 90564-56085 · 90564-56086 · 90564-56087 · 90564-56088 · 90564-56089 · 90564-56090 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90080-36143 · 90366-40097 · 90366-50100 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90080-36146 · 90366-40094 · 90366-50072 · 90366-50103 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-28020 · 41331-32010 · 41331-42040 |
| 41341F | Front differential planetary gear | 41341-28010 · 41341-30011 · 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20070 · 41342-28010 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-20050 · 41351-30060 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-20240 · 41361-20310 · 41361-20320 · 41361-20330 · 41361-20340 · 41361-20350 · 41361-20360 · 41361-20370 · 41361-20380 · 41361-20390 · 41361-20400 · 41361-20410 · 41361-20420 · 41361-20430 · 41361-20440 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
