Toyota COROLLA 车轮和车轮盖 — Figure 4103

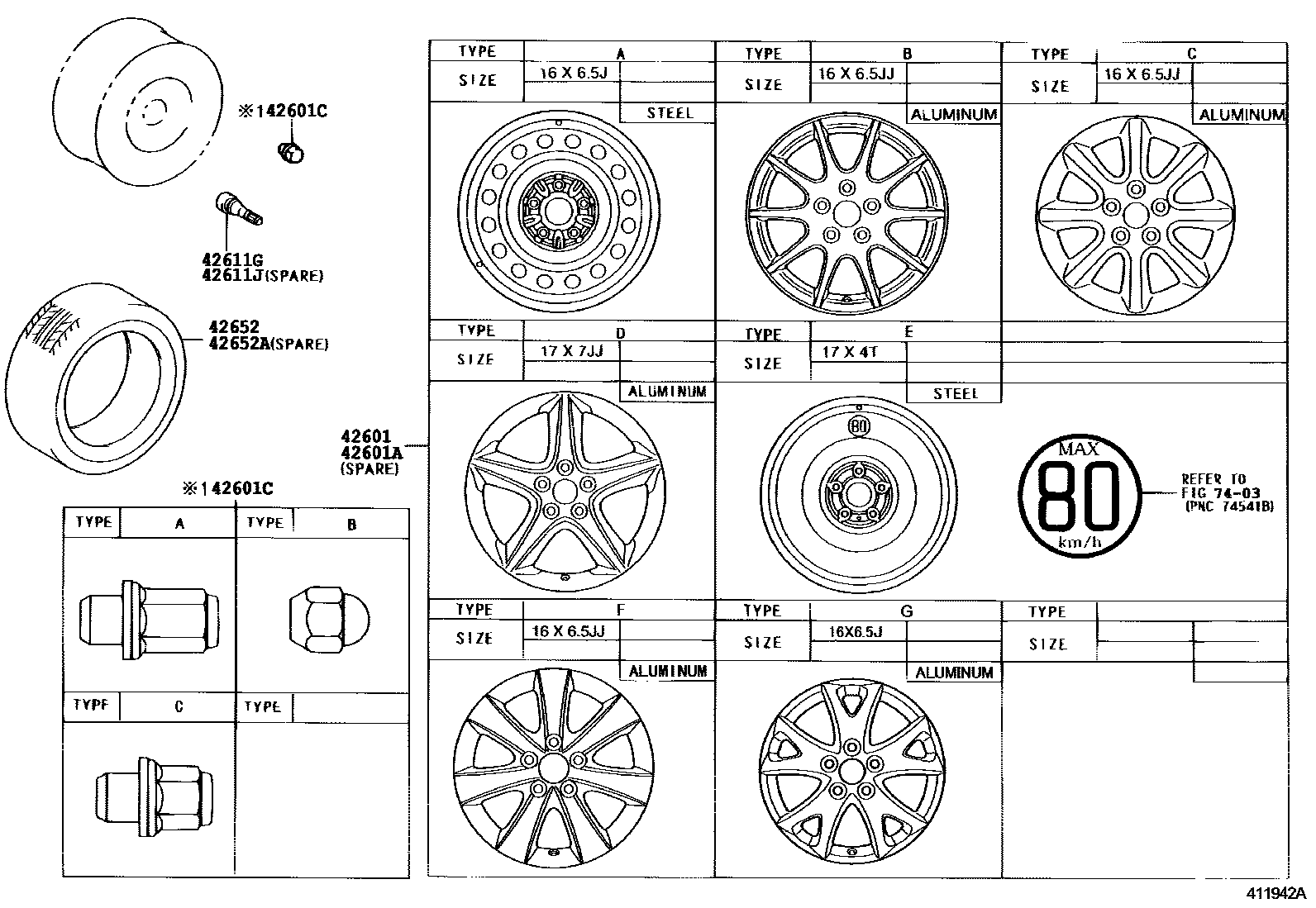

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-05290 · 42611-0F050 · 42611-0F060 · 42611-0F070 · 42611-0F080 · 42611-0F100 · 42611-YY260 |
| 42601A | Spoke wheel (for spare tire) | 42611-0F090 |
| 42601C | Hub nut (for axle) | 90942-01033 · 90942-01058 · 90942-01082 |

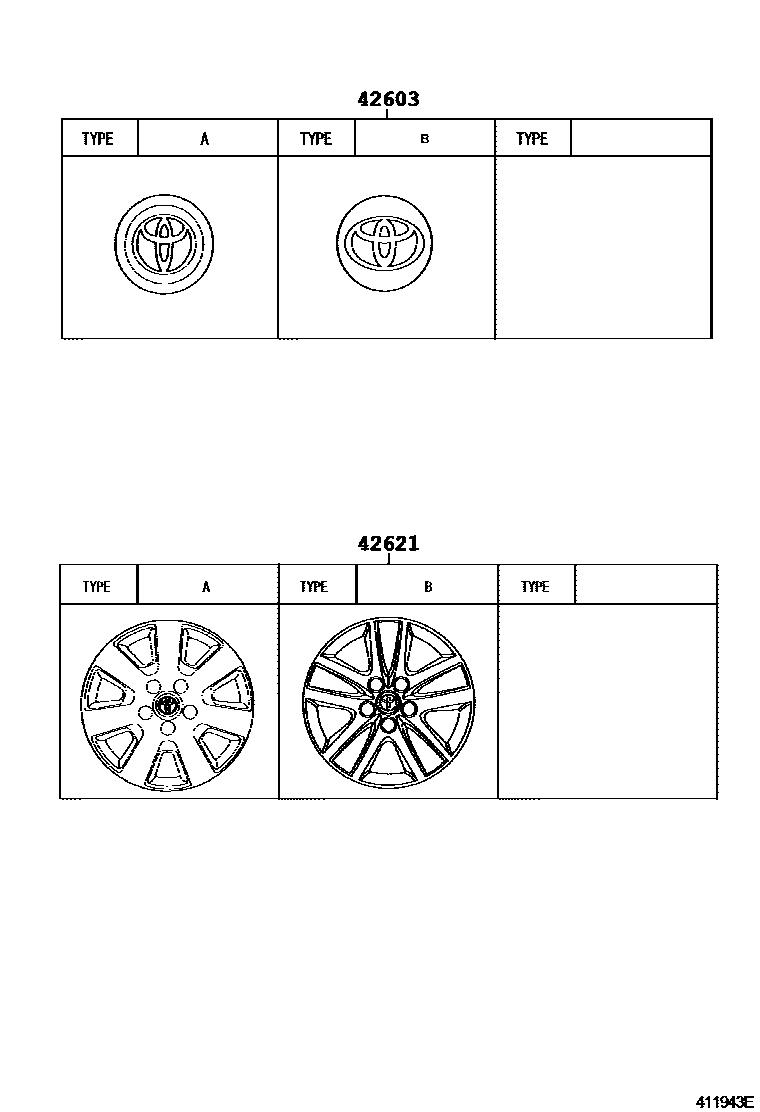

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0F010 · 42603-YY080 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-0F010 · 42602-64010 |
| 42652 | tires | 42652-0F040 · 42652-0F060 · 42652-0F070 · 42652-CA071 · 42652-CA091 · 42652-CA111 |
| 42652A | Tire (for Spare Wheel) | 42652-05250 |
