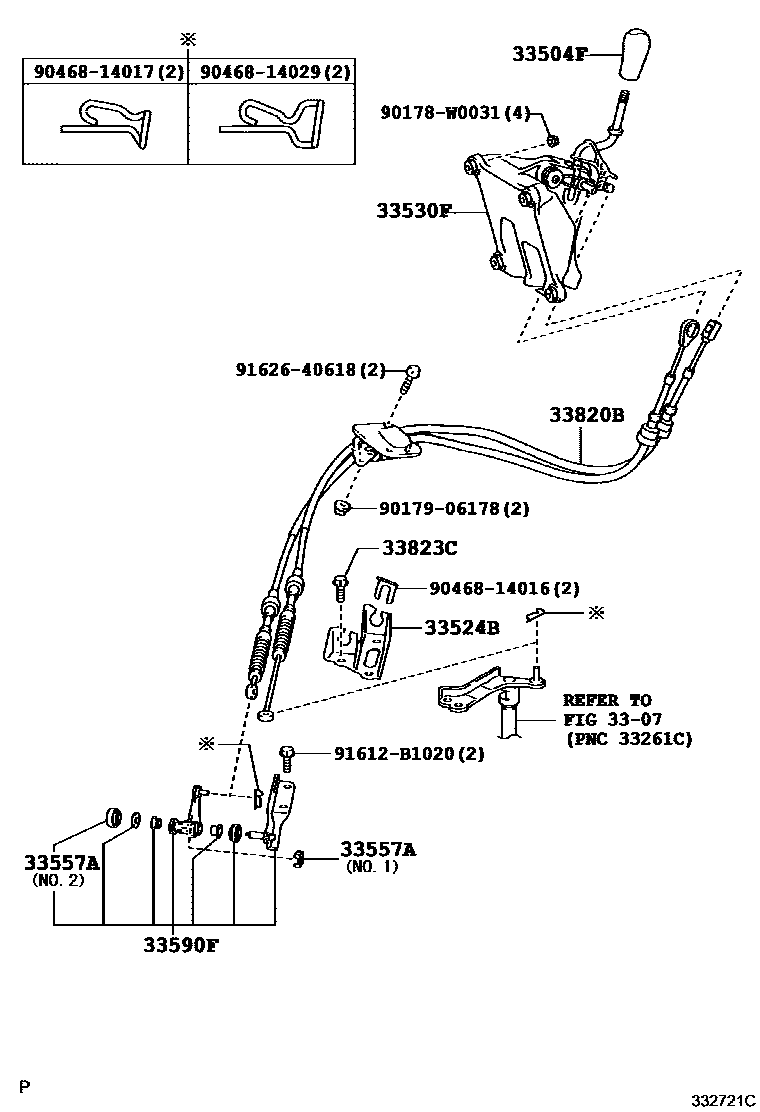

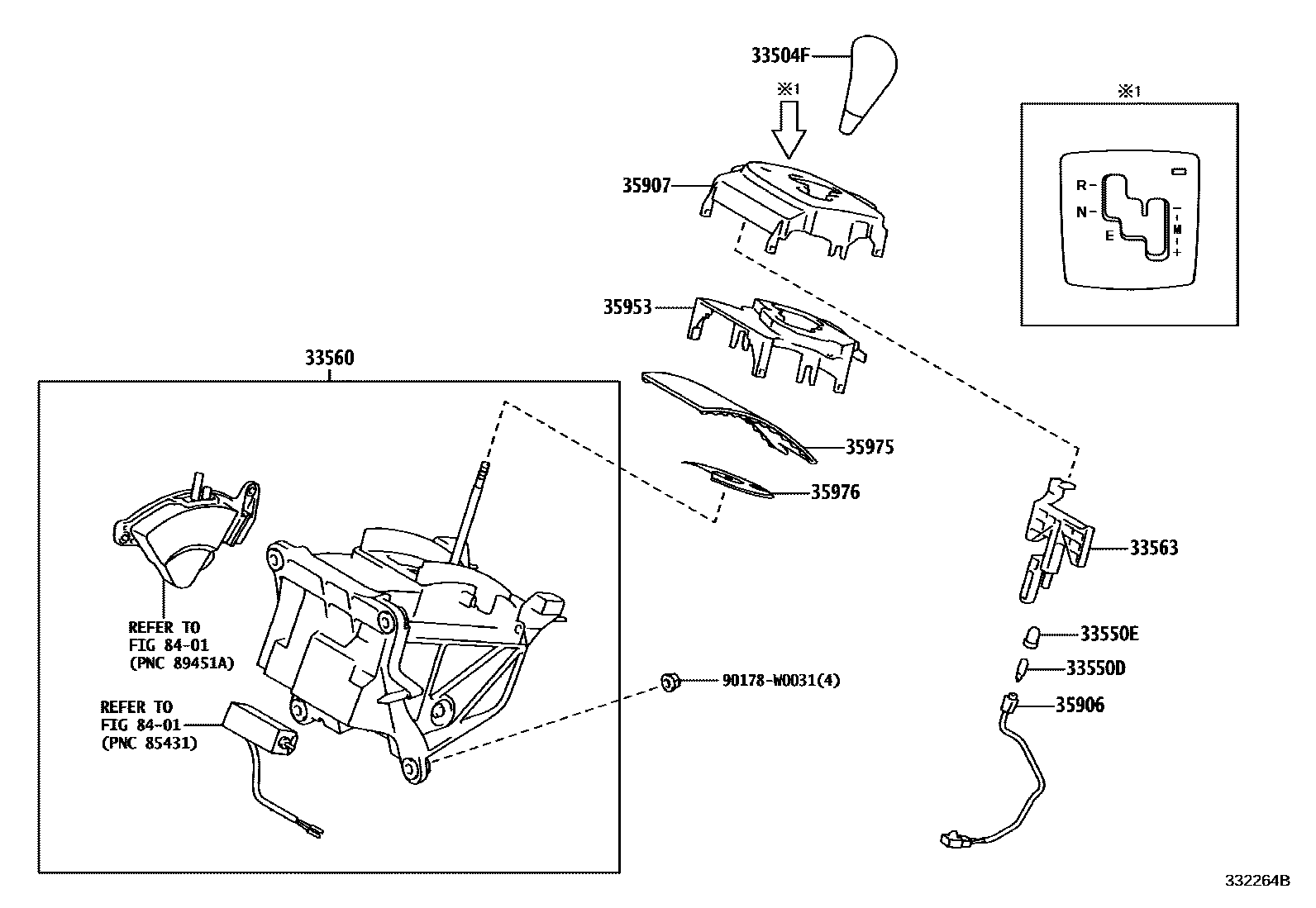

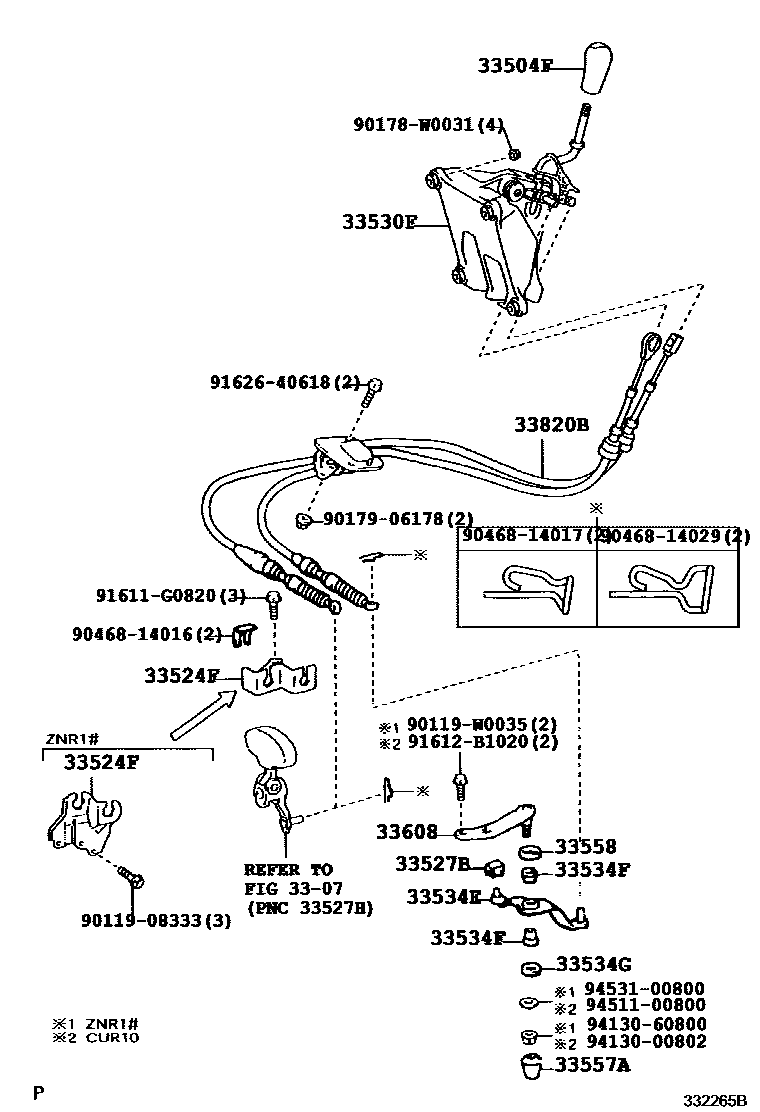

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33524B | Control cable bracket | 33524-20050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-20040 · 33524-28020 |
| 33527B | Bushing (for shift control lever) | 33557-33010 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0F010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-20090 · 33534-28090 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 90981-11040 |
| 33550E | position indicator cover | 35956-64010 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-20010 · 33557-32010 · 33557-33010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-64010 · 33560-64020 |
| 33563 | Shift lock release button | 33563-64010 · 33563-64020 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-20040 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-12031 · 33608-42010 |
| 33820B | Transmission control cable assembly | 33820-0F010 · 33820-0F011 · 33820-0F020 · 33820-0F021 · 33820-0F030 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-G0820 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-64010 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-64010 · 35907-64020 |
| 35953 | Position indicator light guide | 35953-64010 · 35953-64020 |
| 35975 | Slide cover (for position indicator light) | 35975-64010 · 35975-64040 |
| 35976 | Slide No. 2 (for position indicator light) | 35975-64020 |
