Toyota COROLLA 离合器壳和变速器壳(MTM) — Figure 3302

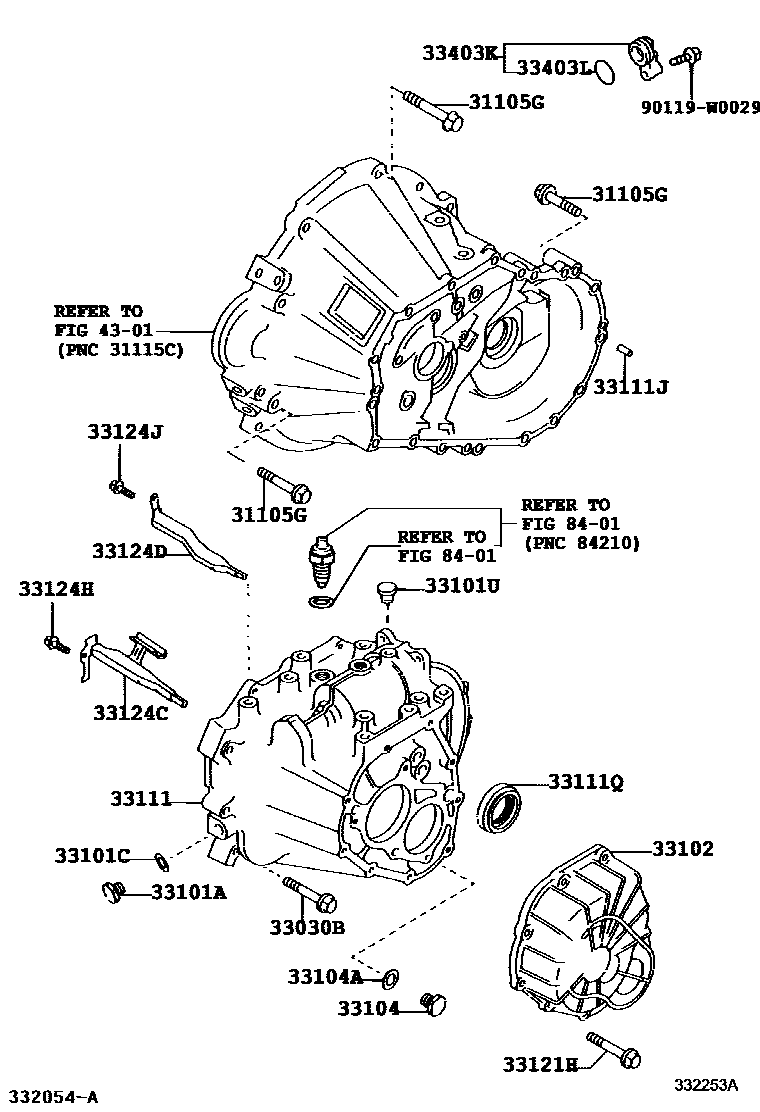

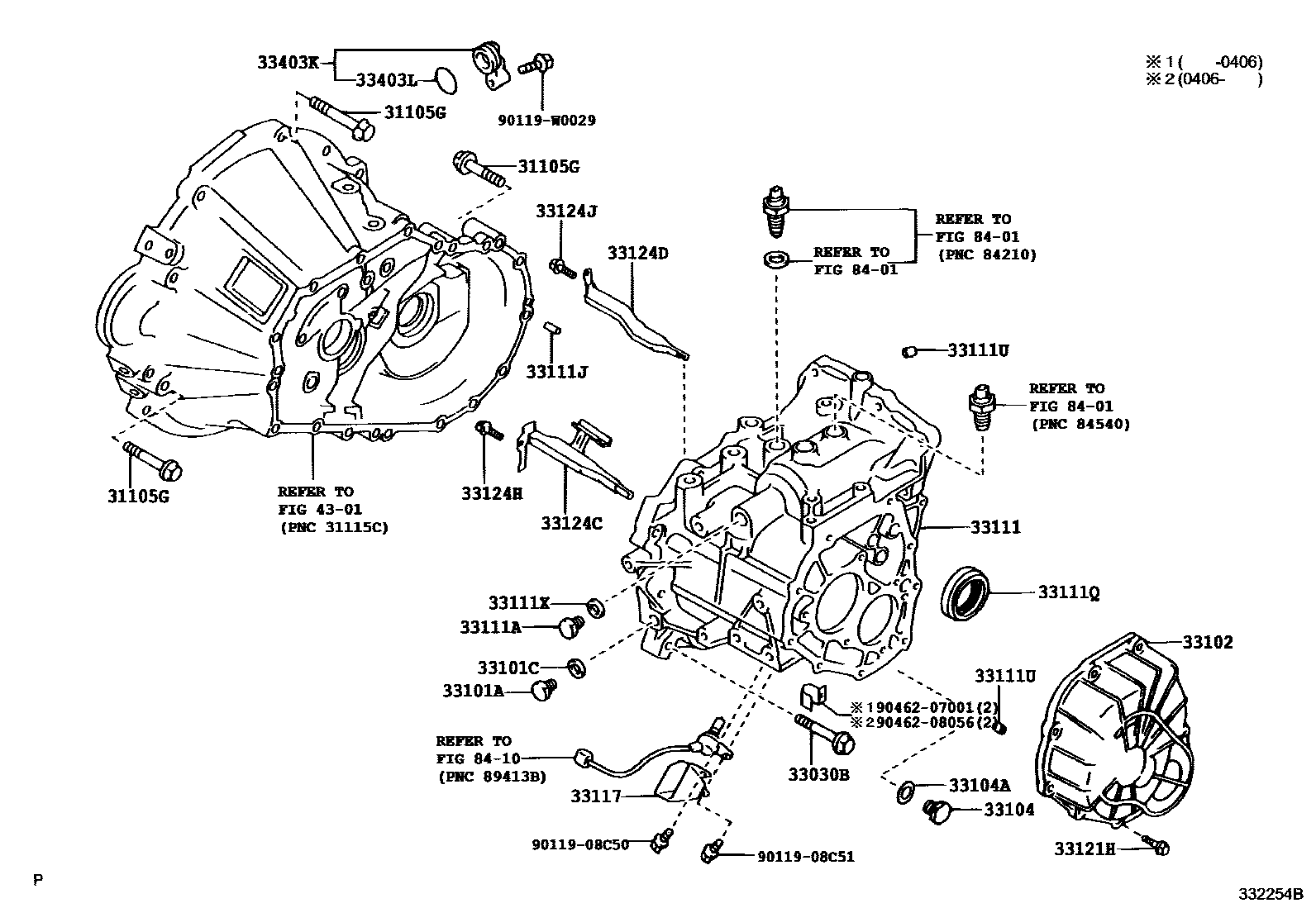

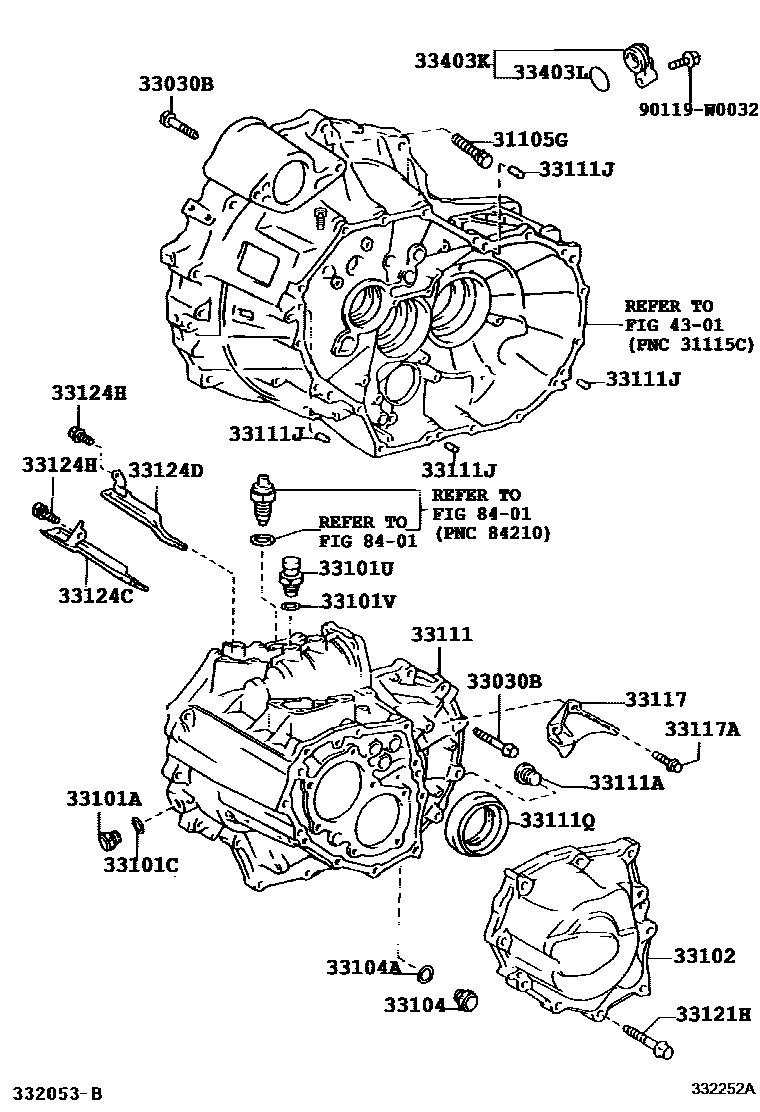

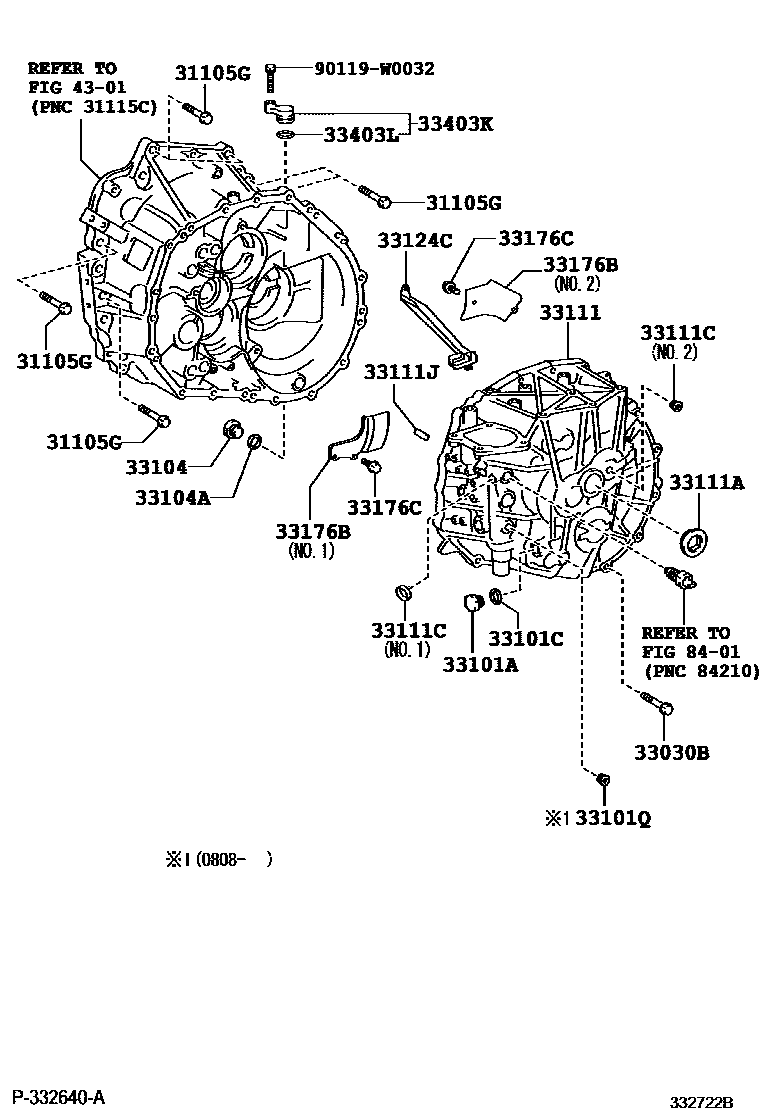

Toyota COROLLA EPC diagram 3302, 离合器壳和变速器壳(MTM), with 4 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-W0062 · 90105-W0181 · 90105-W0182 · 90119-12042 · 90119-12252 · 90119-W0049 · 90119-W0080 · 90119-W0162 · 90119-W0163 · 91512-61060 · 91512-61065 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 90105-08086 · 90105-08126 · 90105-08353 · 90105-08430 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 · 90341-18033 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 · 90430-W0001 |
| 33101Q | No. 1 screw plug (for gearbox) | 90341-18019 |
| 33101U | Breather plug (for manual transmission) | 90930-03133 · 90930-03148 |
| 33101V | Gasket (for manual transmission breather plug) | 90430-18008 |
| 33102 | Manual transmission cover sub-assembly | 33102-0D010 · 33102-12021 · 33102-12042 · 33102-12043 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18033 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 · 90430-W0001 |
| 33111 | Manual transmission housing | 33101-20090 · 33111-05010 · 33111-05020 · 33111-05021 · 33111-20190 · 33111-42050 · 33111-42060 · 33111-64010 · 33111-64011 |
| 33111A | Manual transmission plug | 90341-12004 · 90341-18006 · 90341-42002 |
| 33111C | Screw plug (for gearbox) | 90331-11006 · 90341-12004 |
| 33111J | Direct sales (for manual transmission) | 90250-08054 |
| 33111Q | Oil seal (for gearbox) | 90311-35044 · 90311-35058 · 90311-50024 |
| 33111U | Ring pin (for manual transmission) | 90253-11001 |
| 33111X | Gearbox plug gasket | 90430-18008 |
| 33117 | manual transmission protector | 33117-17020 · 33117-20020 |
| 33117A | Bolts (for manual transmission guard) | 90105-W0036 |
| 33121H | Bolt with washer (for gearbox cover) | 90119-08429 · 90119-08630 · 90119-08782 · 91611-60835 |
| 33124C | No. 1 oil collecting pipe (MTM) | 33124-20040 · 33124-20050 · 33124-28050 |
| 33124D | No. 2 oil collecting pipe (MTM) | 33124-12021 · 33124-28060 |
| 33124H | Bolt (for oil collection pipe) | 90119-08830 · 91611-G0820 |
| 33124J | Bolts with washers | 91611-G0820 |
| 33176B | Transmission oil separator (MTM) | 33176-20010 · 33176-20020 |
| 33176C | Bolt (for transmission oil separator) | 91611-B0616 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-20230 · 33403-35230 |
| 33403L | O-ring | 96711-24018 · 96711-24030 |
