Toyota COROLLA 离合器和分离叉 — Figure 3101

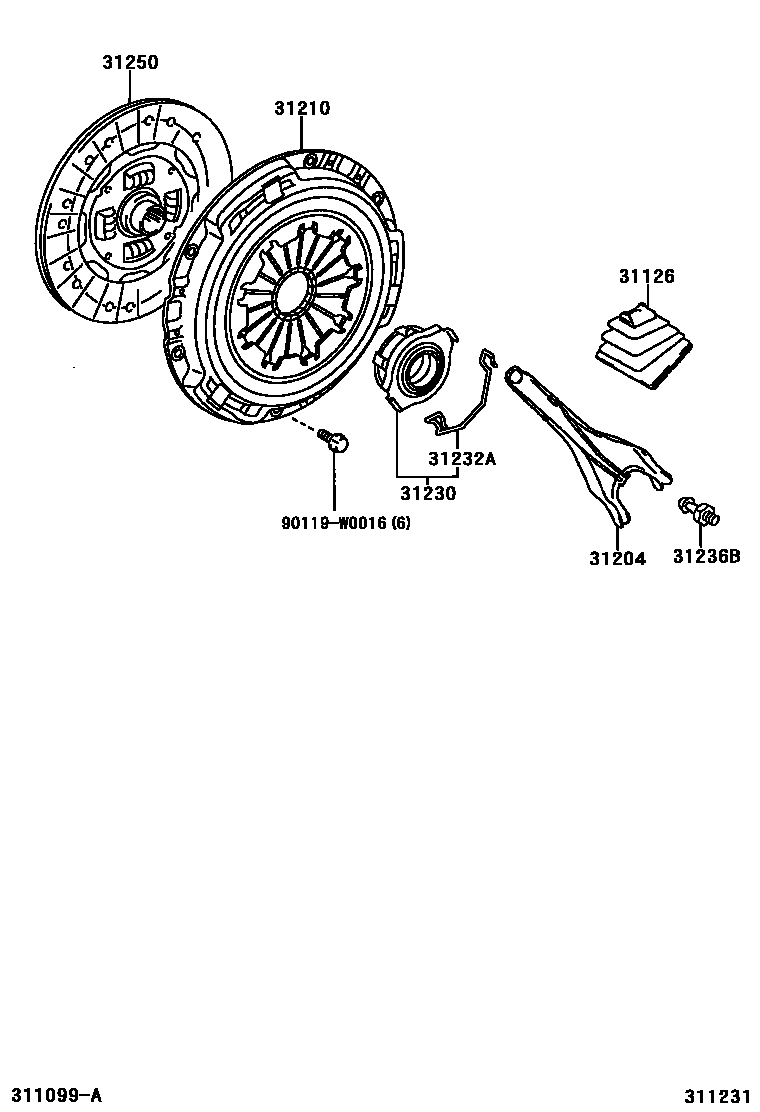

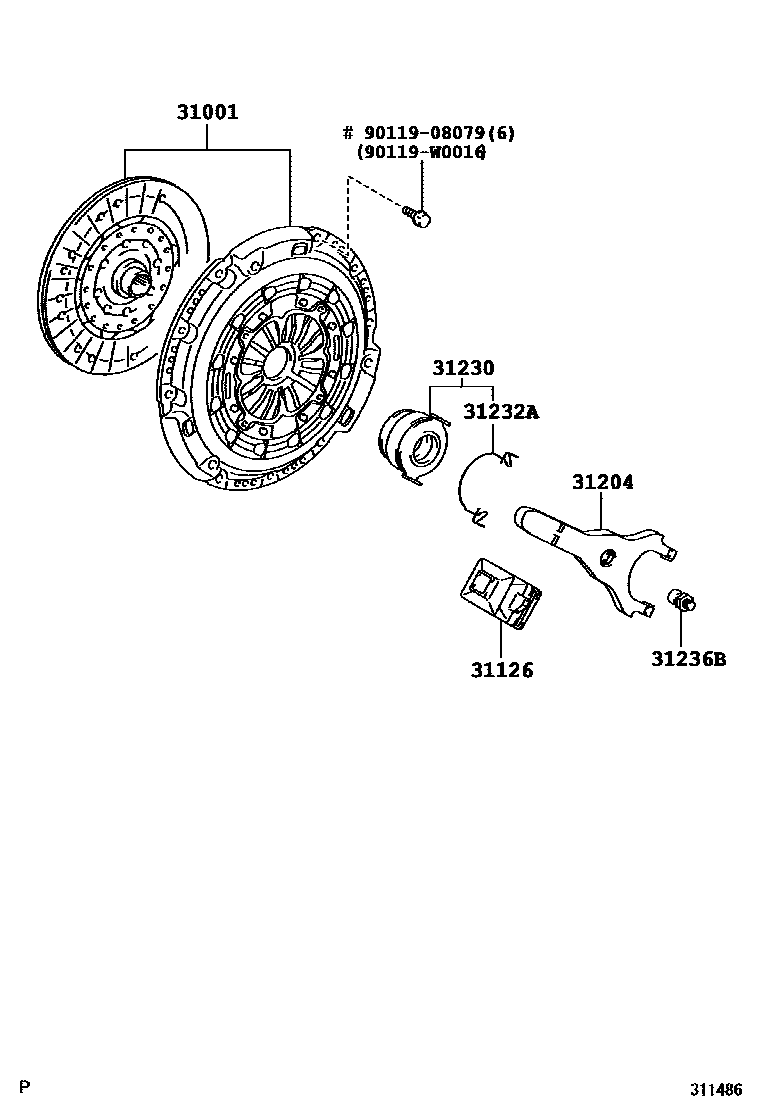

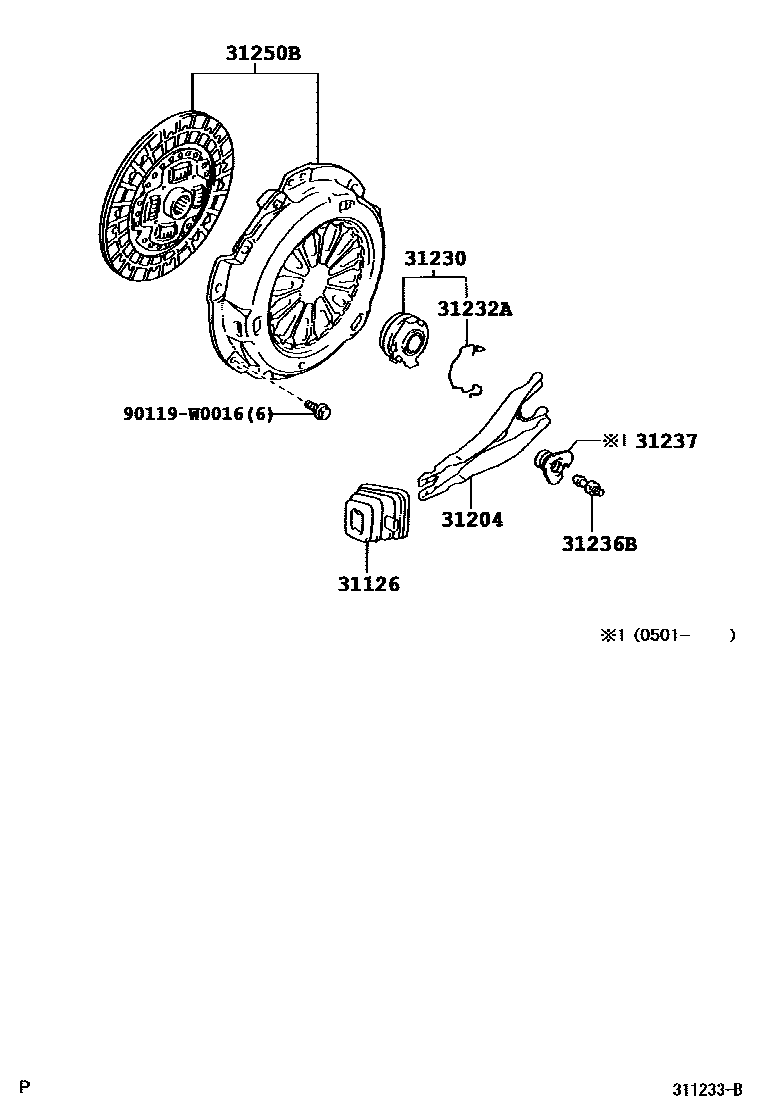

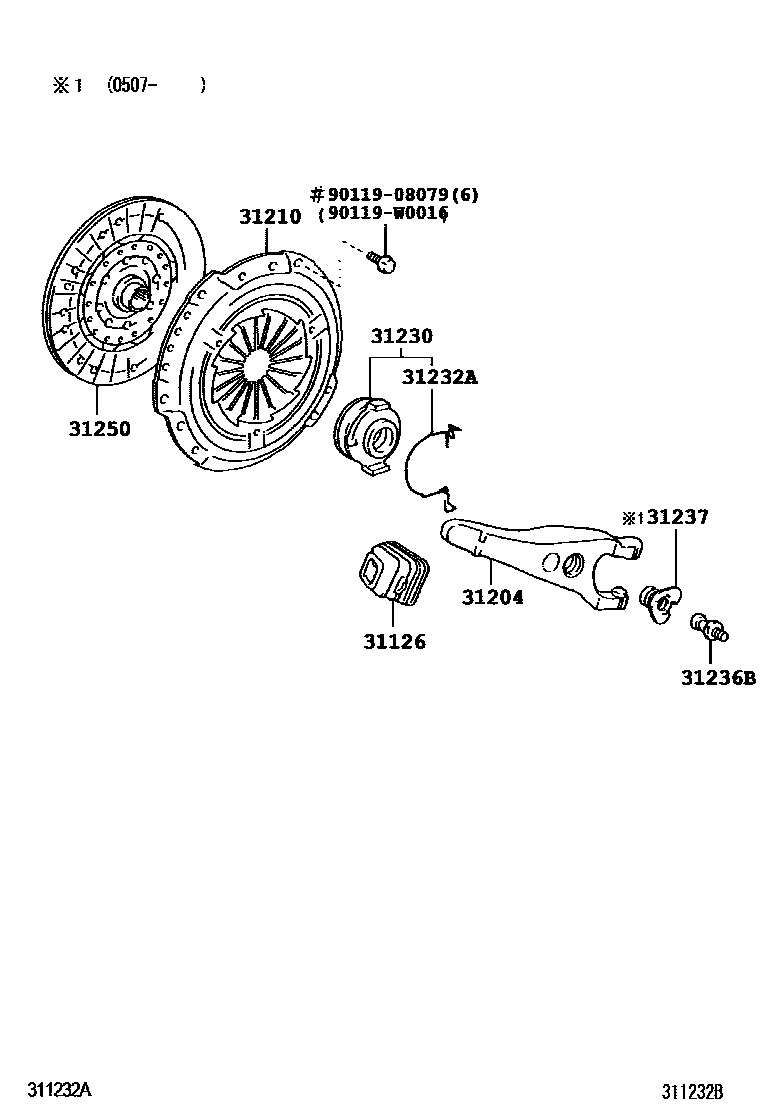

Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31001 | Clutch cover and clutch disc assembly | 31001-05030 · 31001-05040 |
| 31126 | Clutch release fork dust boot | 31126-0D010 · 31126-20080 · 31126-64010 |
| 31204 | Clutch release fork assembly | 31204-17010 · 31204-20131 · 31204-20140 · 31204-64010 |
| 31210 | Clutch cover assembly | 31210-05014 · 31210-05015 · 31210-05016 · 31210-05041 · 31210-05042 · 31210-05043 · 31210-05050 |
| 31230 | Clutch release bearing assembly | 31230-05012 · 31230-17010 · 31230-17011 · 31230-20191 · 31230-20200 |
| 31232A | Release bearing hub clip | 31232-05011 · 31232-17010 · 31232-20031 |
| 31236B | Split fork bracket | 31236-12020 · 31236-20080 |
| 31237 | Clutch release fork bracket dust cover | 31237-12010 · 31237-20010 |
| 31250 | Clutch disc assembly | 31250-05070 · 31250-05100 · 31250-05101 |
| 31250B | Adjustable clutch disc assembly | 31250-19076 · 31250-69015 · 31250-69025 · 31250-69026 · 31250-69075 |
