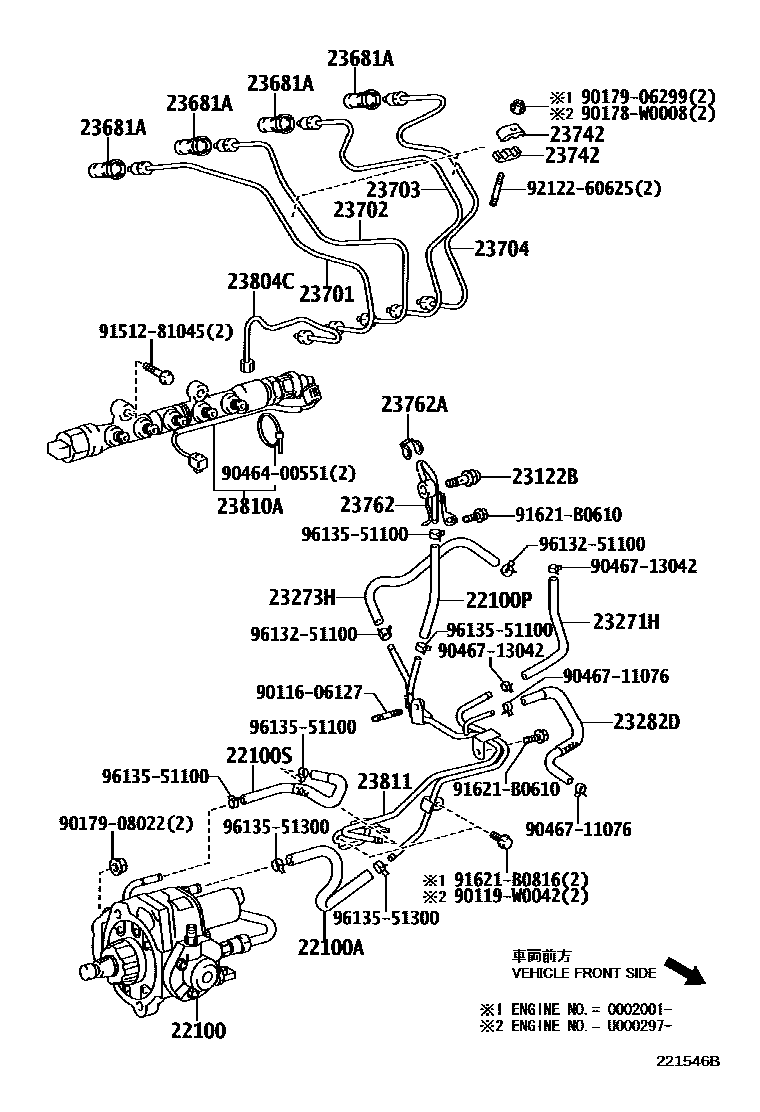

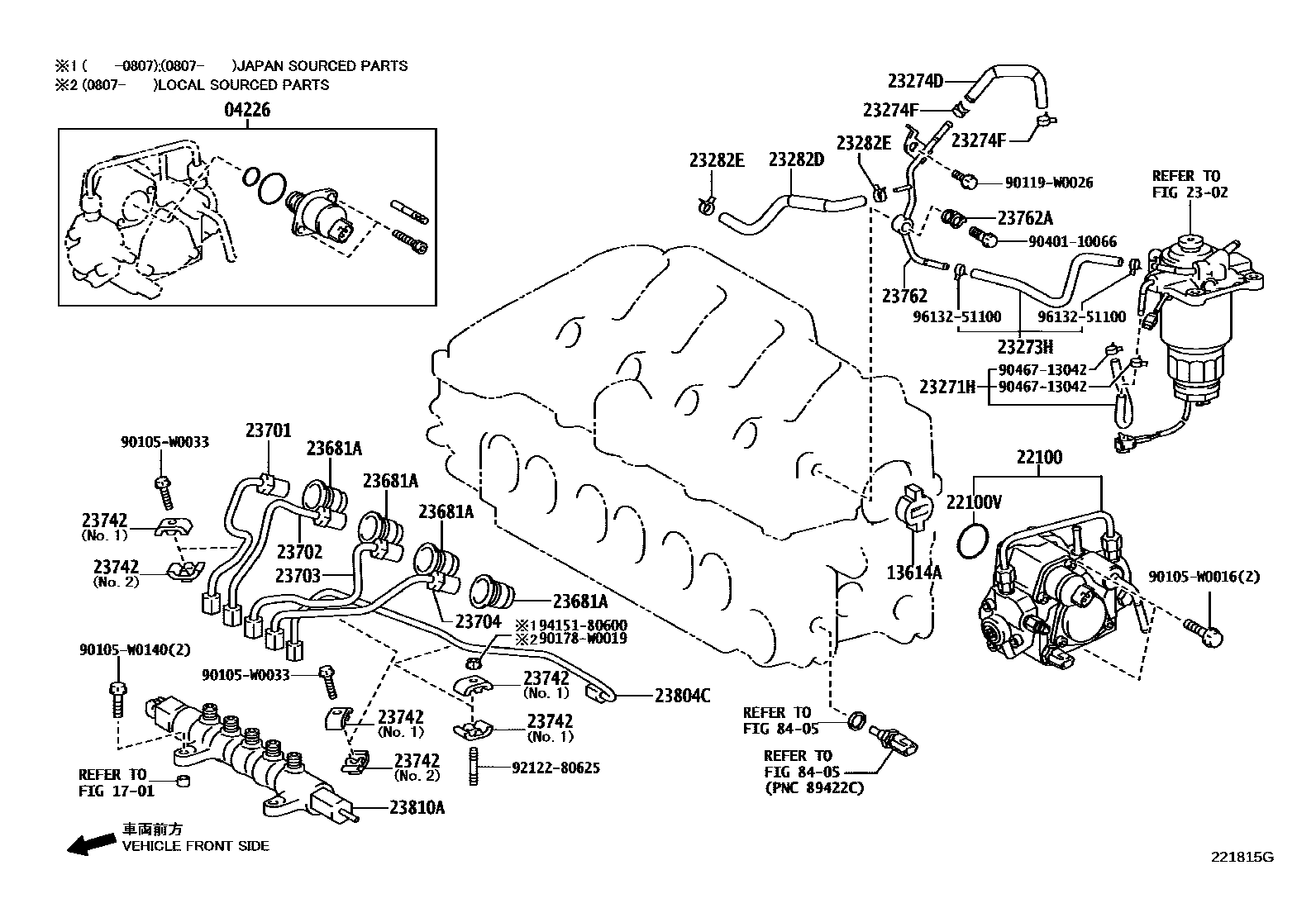

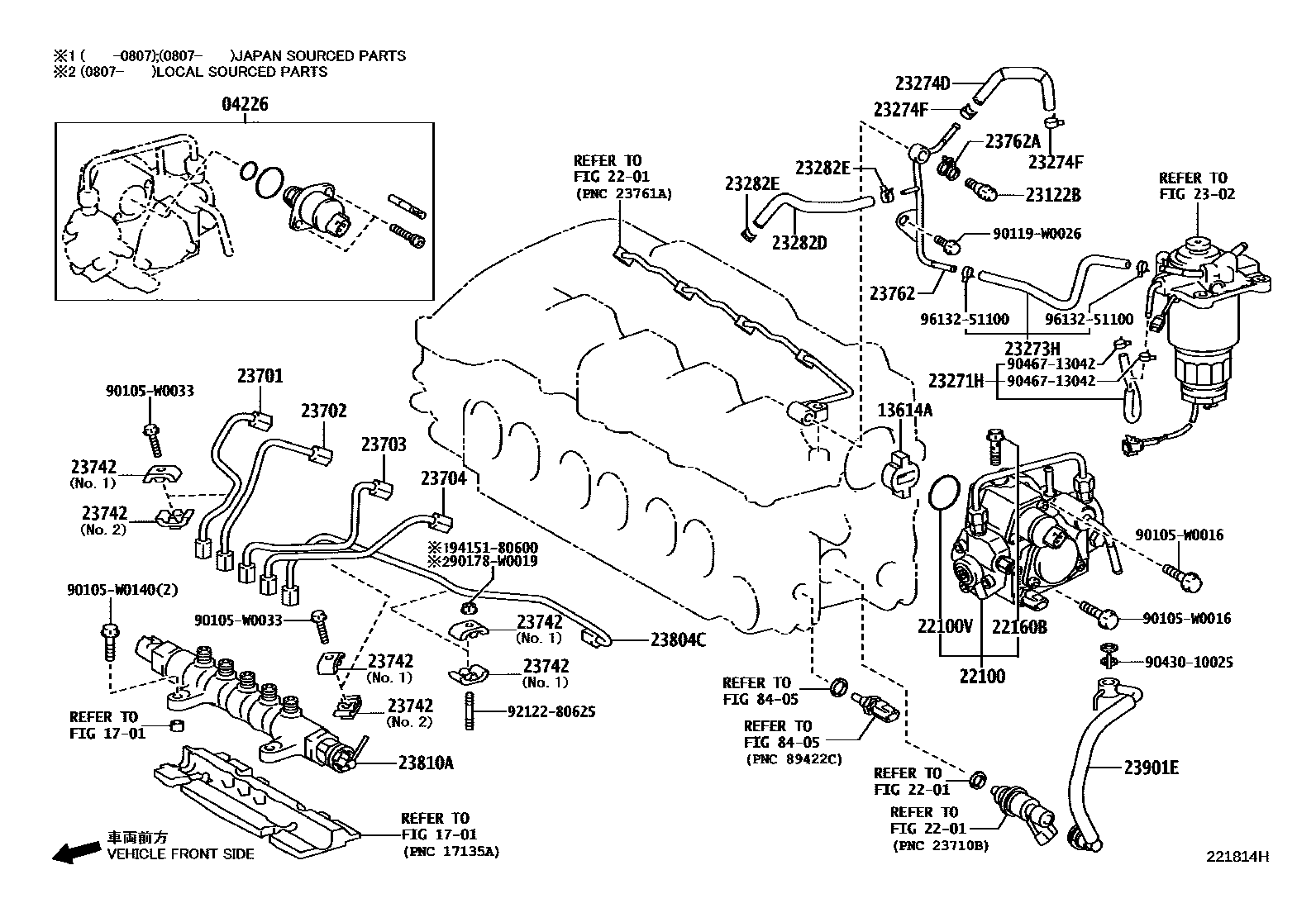

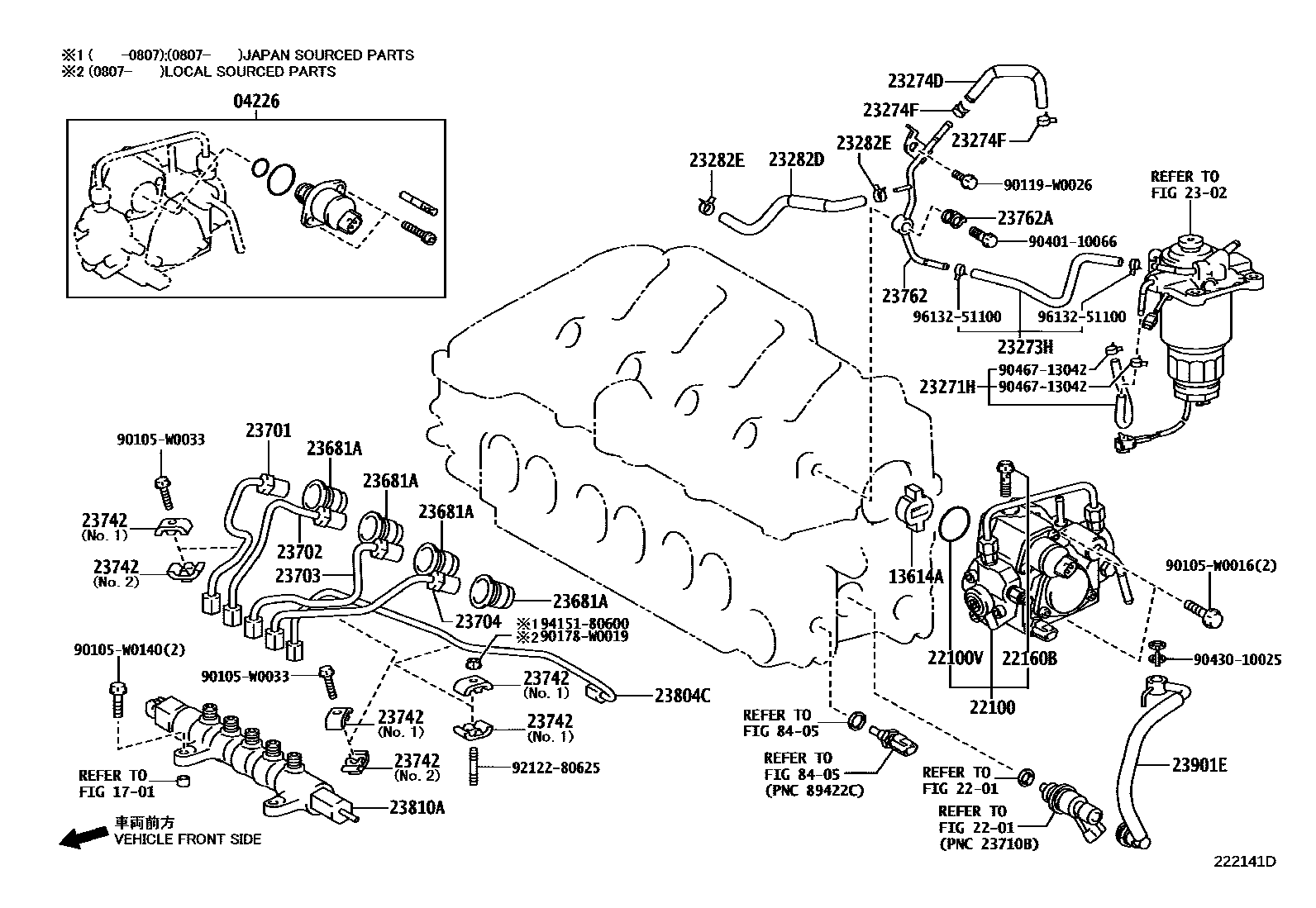

Toyota COROLLA 喷油泵总成 — Figure 2202
Toyota COROLLA EPC diagram 2202, 喷油泵总成, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-0L030 |
| 13614A | No. 1 oil supply pump active coupling | 13614-26010 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-0G010 · 22100-0R010 · 22100-0R011 · 22100-0R020 · 22100-0R021 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23273-27090 · 23273-27100 |
| 22100P | Fuel hose (for fuel line to fuel hose) | 95333-06020 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23274-27030 |
| 22100V | O-ring (for fuel injection pump) | 22193-0R020 |
| 22160B | screws | 22569-0R020 |
| 23122B | One-way valve | 23769-26010 · 23769-26020 · 23769-30010 |
| 23271H | No. 1 fuel hose | 23271-26040 · 23271-27100 |
| 23273H | No. 2 fuel hose | 23273-26020 · 23273-27070 |
| 23274D | No. 3 fuel hose | 23274-26020 |
| 23274F | Clamp (for No. 3 fuel hose) | 96135-51100 |
| 23282D | No. 4 fuel hose | 23282-26030 · 23282-26040 · 23282-27020 |
| 23282E | Clamp (for No. 4 fuel hose) | 90467-11076 |
| 23681A | Injector body seal | 23681-17010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-0R010 · 23701-0R020 · 23701-0R030 · 23701-26030 · 23701-27020 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-0R010 · 23702-0R020 · 23702-0R030 · 23702-26030 · 23702-27020 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-0R010 · 23703-0R020 · 23703-0R030 · 23703-26030 · 23703-27020 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-0R010 · 23704-0R020 · 23704-0R030 · 23704-27020 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-27010 · 23742-58020 |
| 23762 | No. 2 fuel injector overflow pipe | 23762-0R011 · 23762-0R021 · 23762-27041 |
| 23762A | No. 2 fuel injector overflow pipe gasket | 90430-10025 · 90904-30012 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-0R010 · 23804-0R020 · 23804-27020 |
| 23810A | Common rail assembly | 23810-0R010 · 23810-0R020 · 23810-27030 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-27050 |
| 23901E | Fuel pipe sub-assembly | 23901-26010 |
