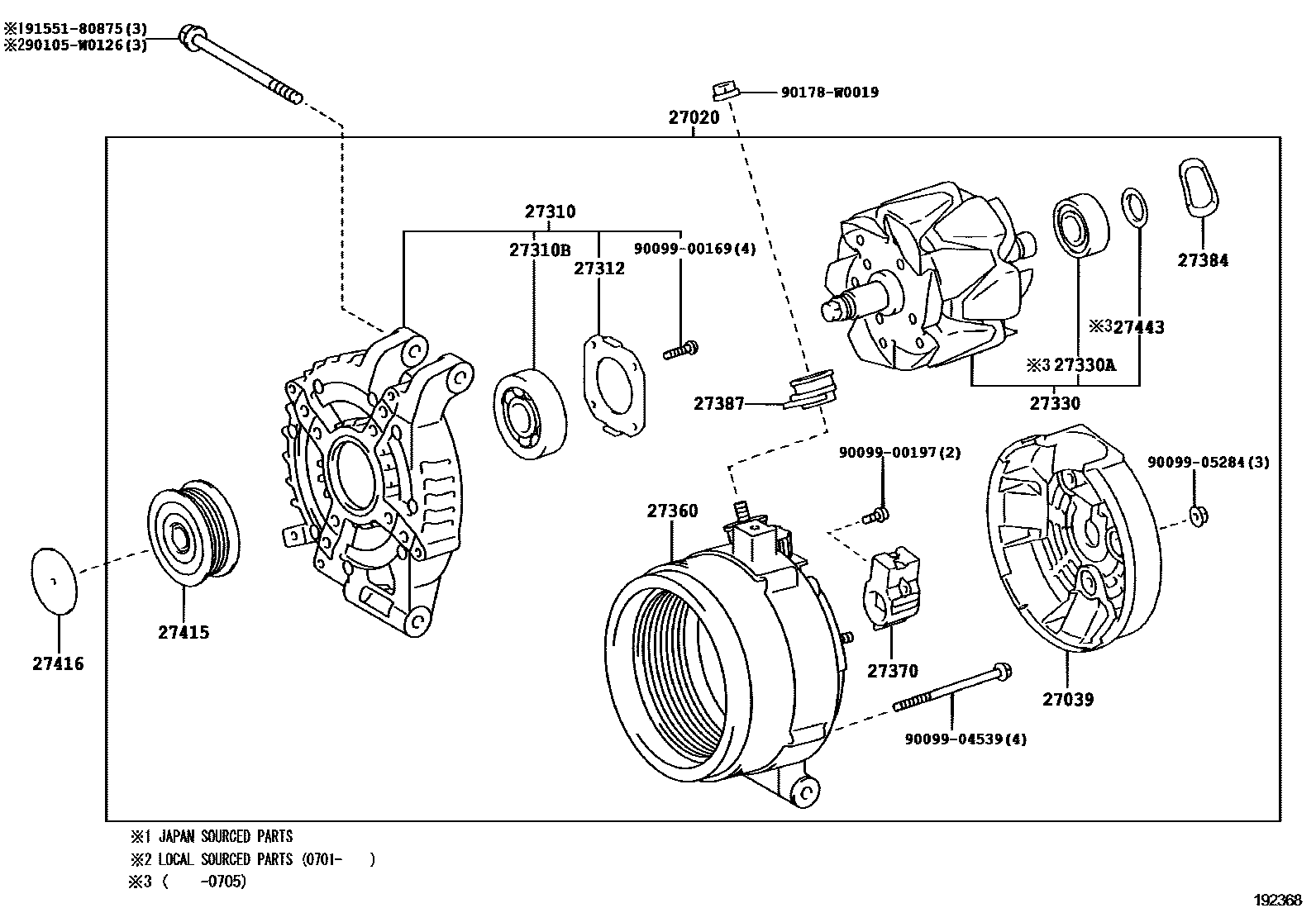

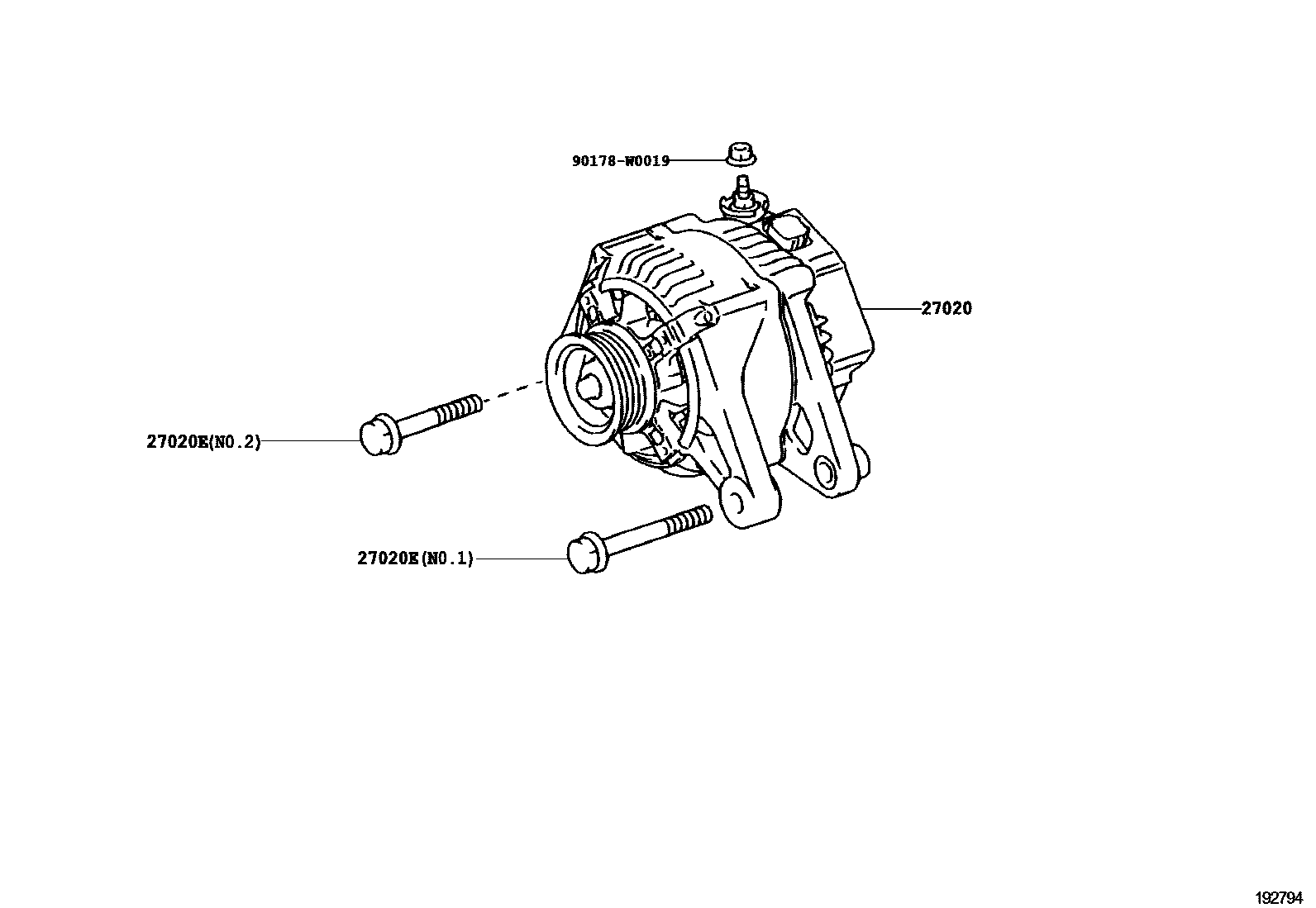

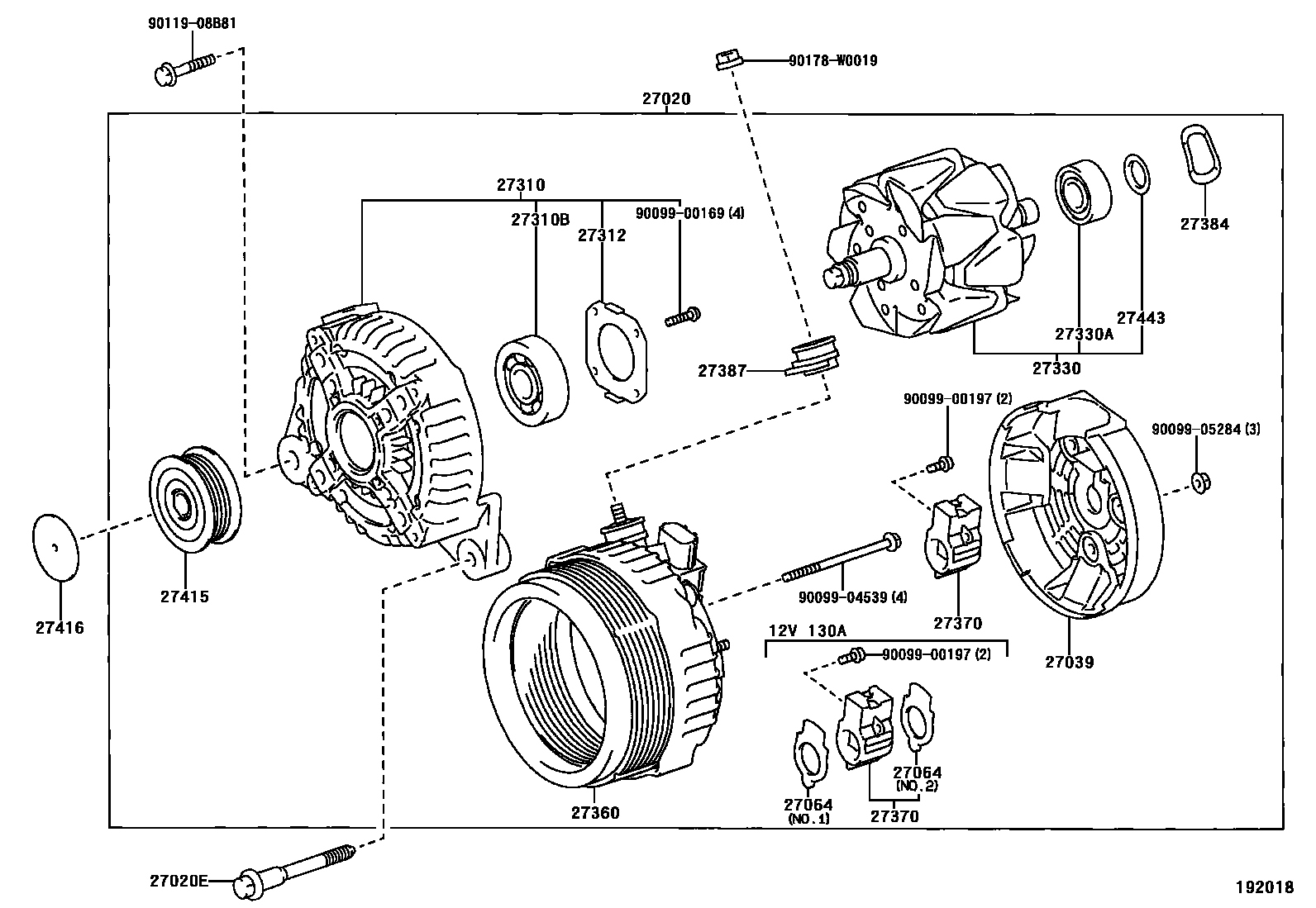

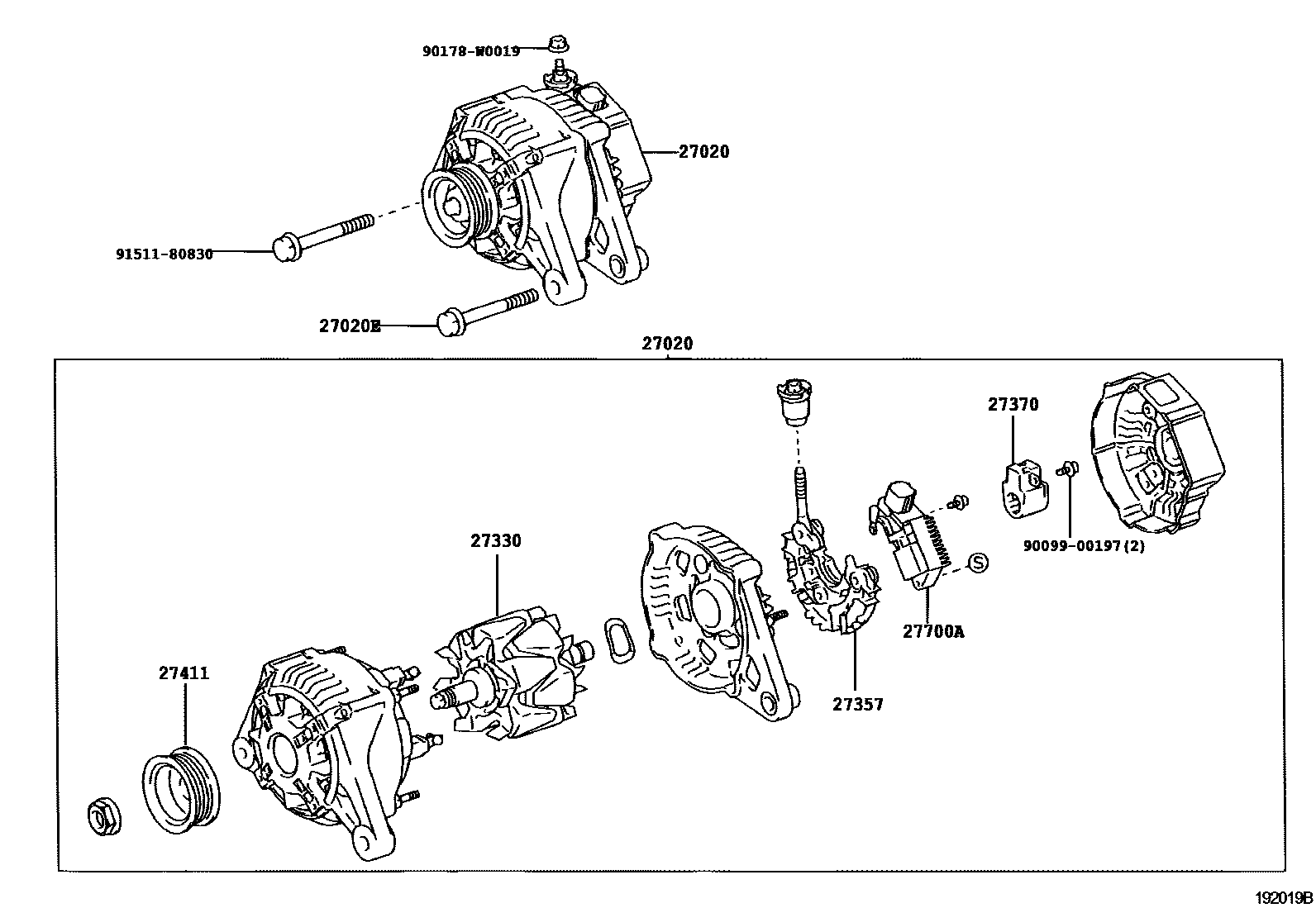

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D160 · 27060-0D170 · 27060-0D190 · 27060-0G011 · 27060-0G021 · 27060-27090 · 27060-27100 |
| 27020E | Bolts (for generator) | 90105-10075 · 90901-05004 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-27020 · 27039-27060 · 27039-27090 |
| 27064 | Generator sealing plate | 27064-20130 · 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-27050 · 27310-27090 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10223 |
| 27312 | Retainer Plate | 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-0J020 · 27330-20130 · 27330-30070 · 27330-33090 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-22050 |
| 27360 | Alternator Stator Coil Assembly | 27360-27050 · 27360-27060 · 27360-27090 · 27360-27100 |
| 27370 | Alternator Brush Holder Assembly | 27370-20130 · 27370-27060 · 27370-58460 · 27370-75060 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-20130 |
| 27411 | Alternator Pulley | 27411-0J010 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-26010 · 27415-27011 |
| 27416 | Generator pulley cover | 27416-27010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-27070 |
