Toyota COROLLA vacuum tube — Figure 1708

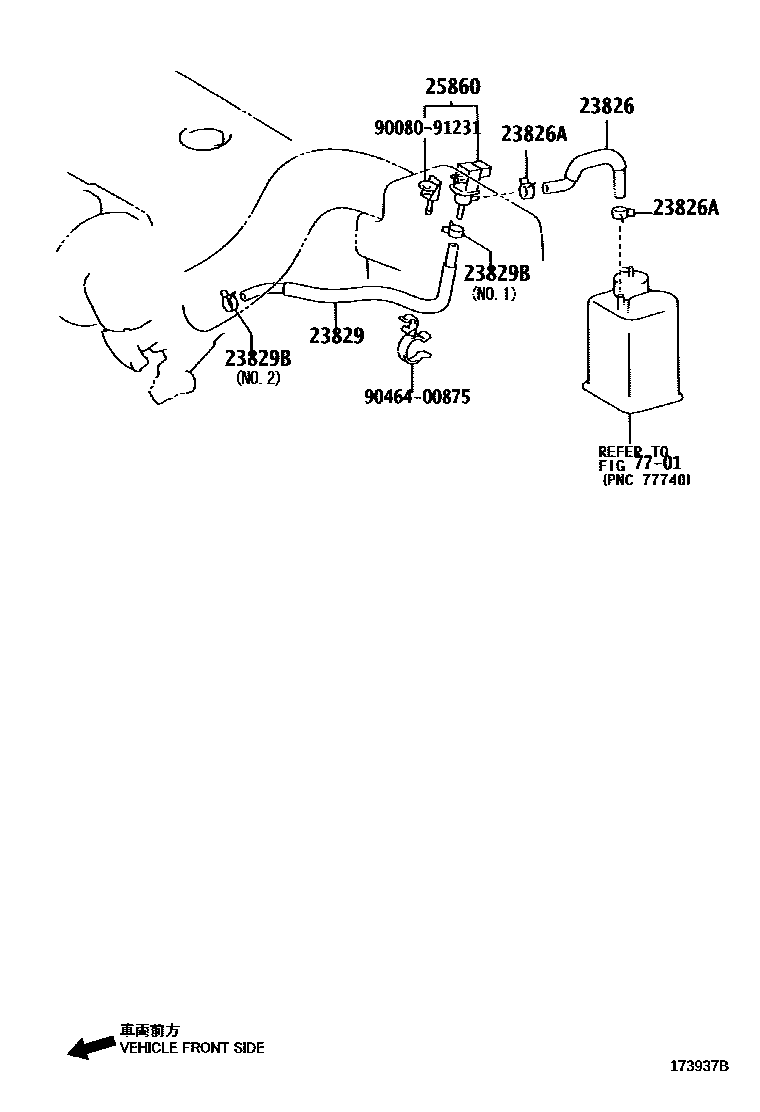

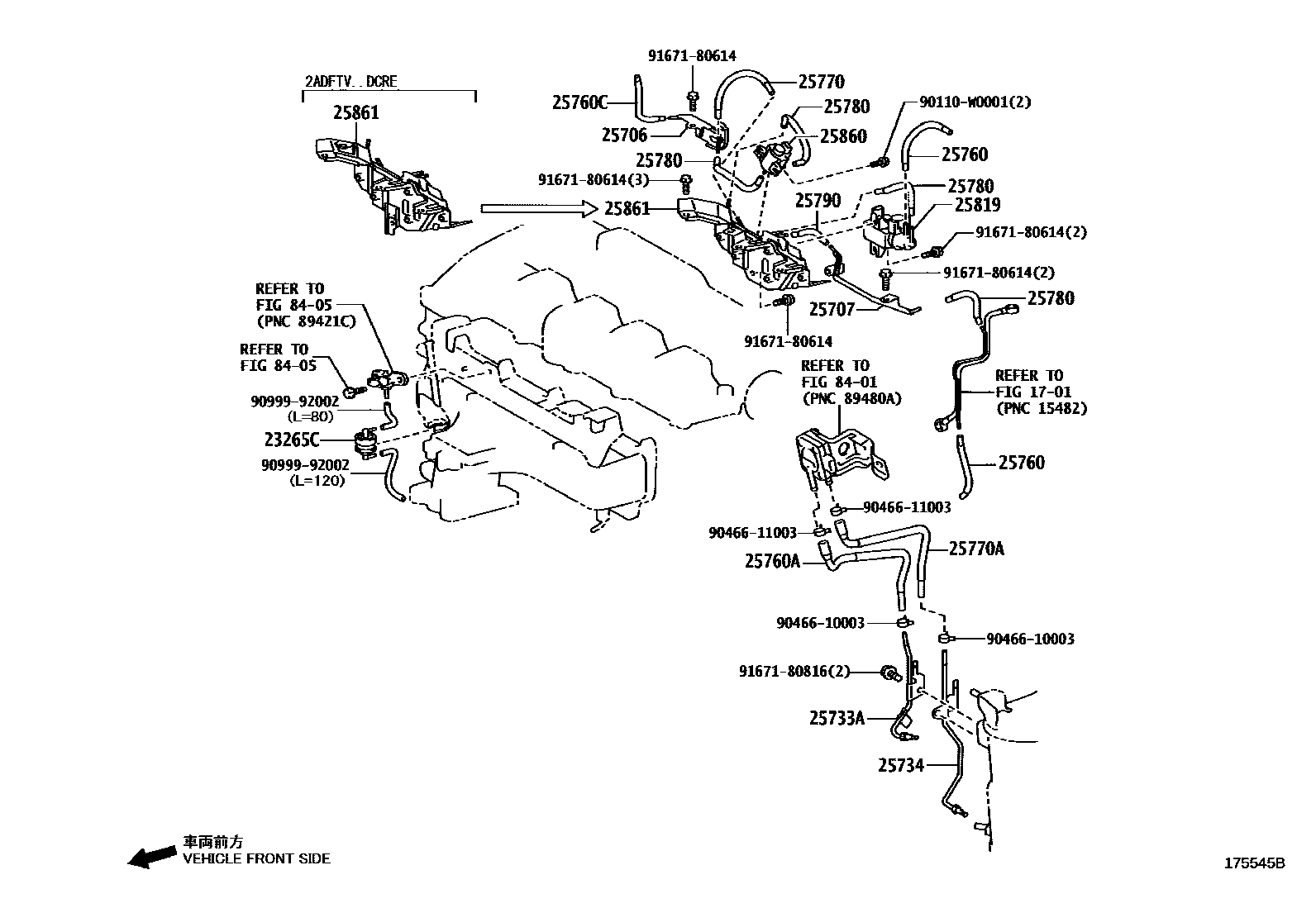

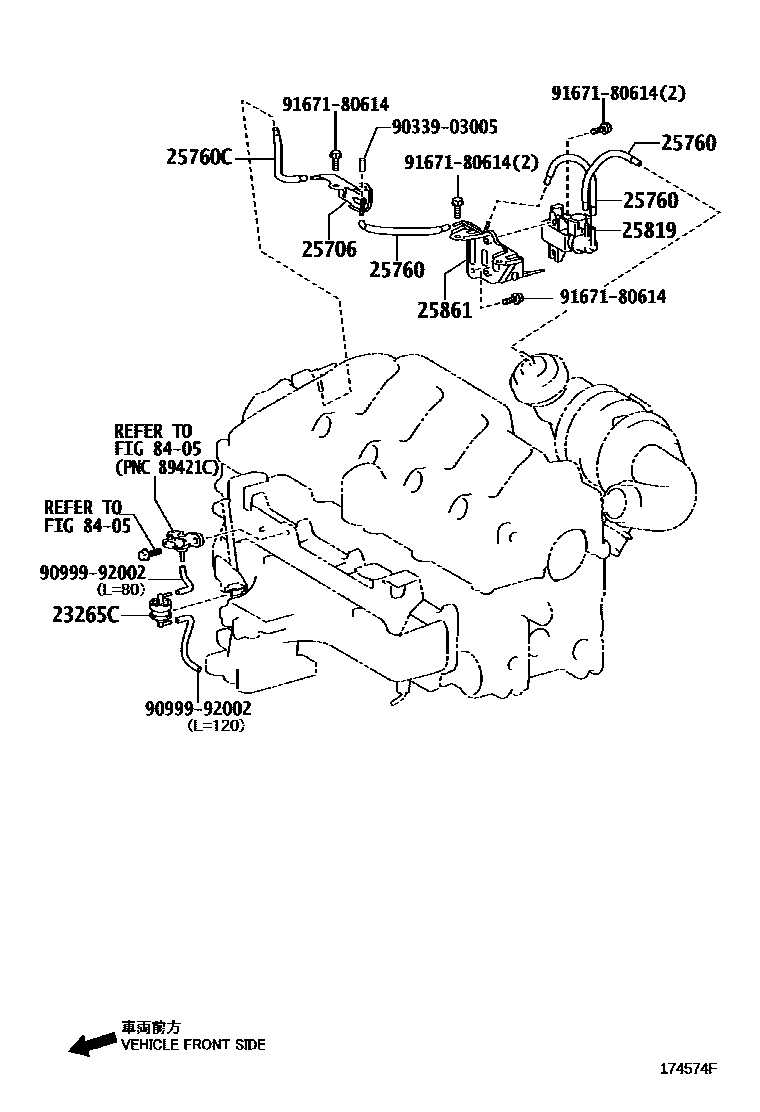

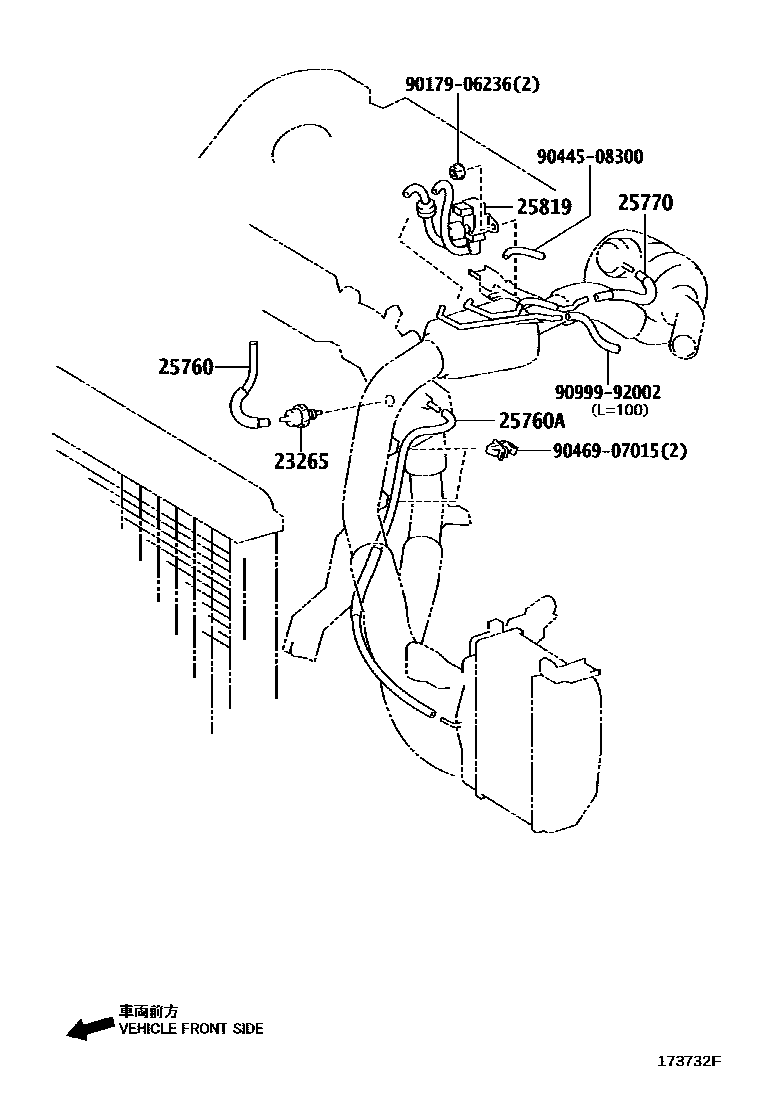

Toyota COROLLA EPC diagram 1708, vacuum tube, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23265 | No. 1 gas filter | 90917-11037 |
| 23265C | gas filter | 90917-11036 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0D060 · 23826-22110 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-0D080 · 23829-22080 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-W0005 · 96132-51300 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-26010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-26010 |
| 25733A | No. 1 vacuum tube | 25733-26010 · 25733-26011 |
| 25734 | No. 2 vacuum tube | 25734-26010 |
| 25760 | Vacuum transfer hose assembly | 25760-26020 · 25760-26021 · 25760-27090 |
| 25760A | Vacuum transfer hose assembly | 25760-26030 · 25760-27100 |
| 25760C | No. 3 vacuum transmission hose assembly | 25760-26120 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-26020 · 25770-27050 |
| 25770A | No. 2 vacuum transmission hose assembly | 25770-26030 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-26010 · 25780-26011 |
| 25790 | No. 4 vacuum transmission hose assembly | 25790-26010 · 25790-26011 |
| 25819 | Vacuum regulating valve assembly | 25819-0R010 · 25819-0R011 · 25819-27050 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0D040 · 25860-0R010 |
| 25861 | Vacuum switch valve bracket | 25861-26010 · 25861-26020 · 25861-26060 |
