Toyota COROLLA Air Cleaner — Figure 1703

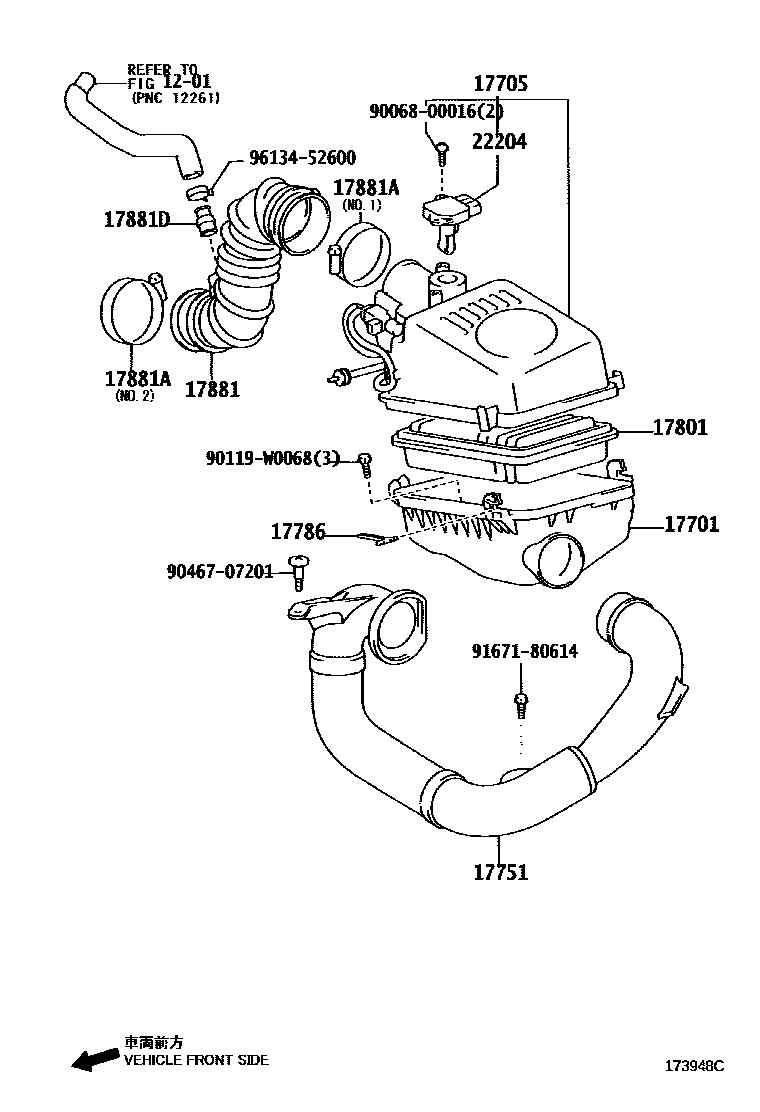

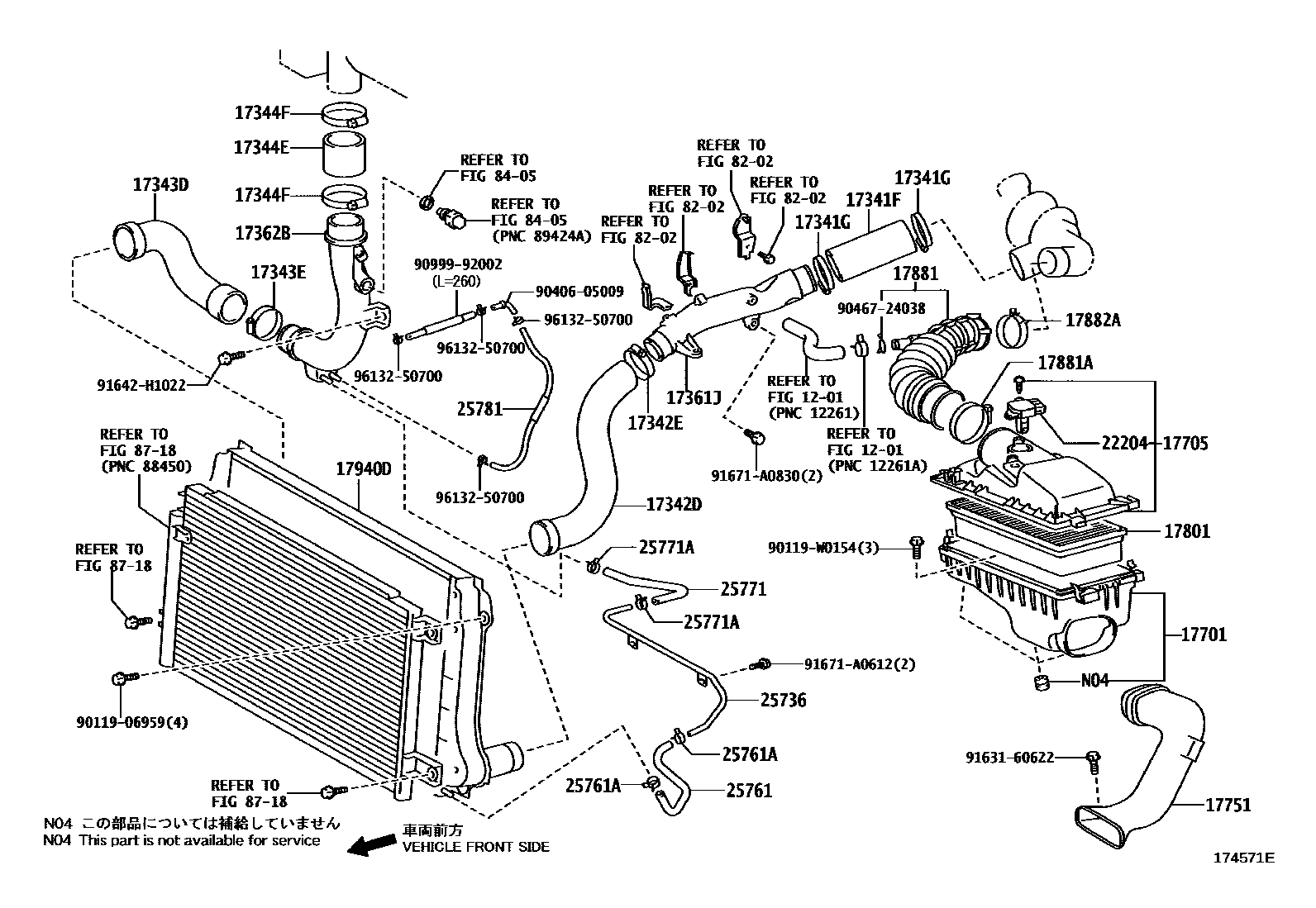

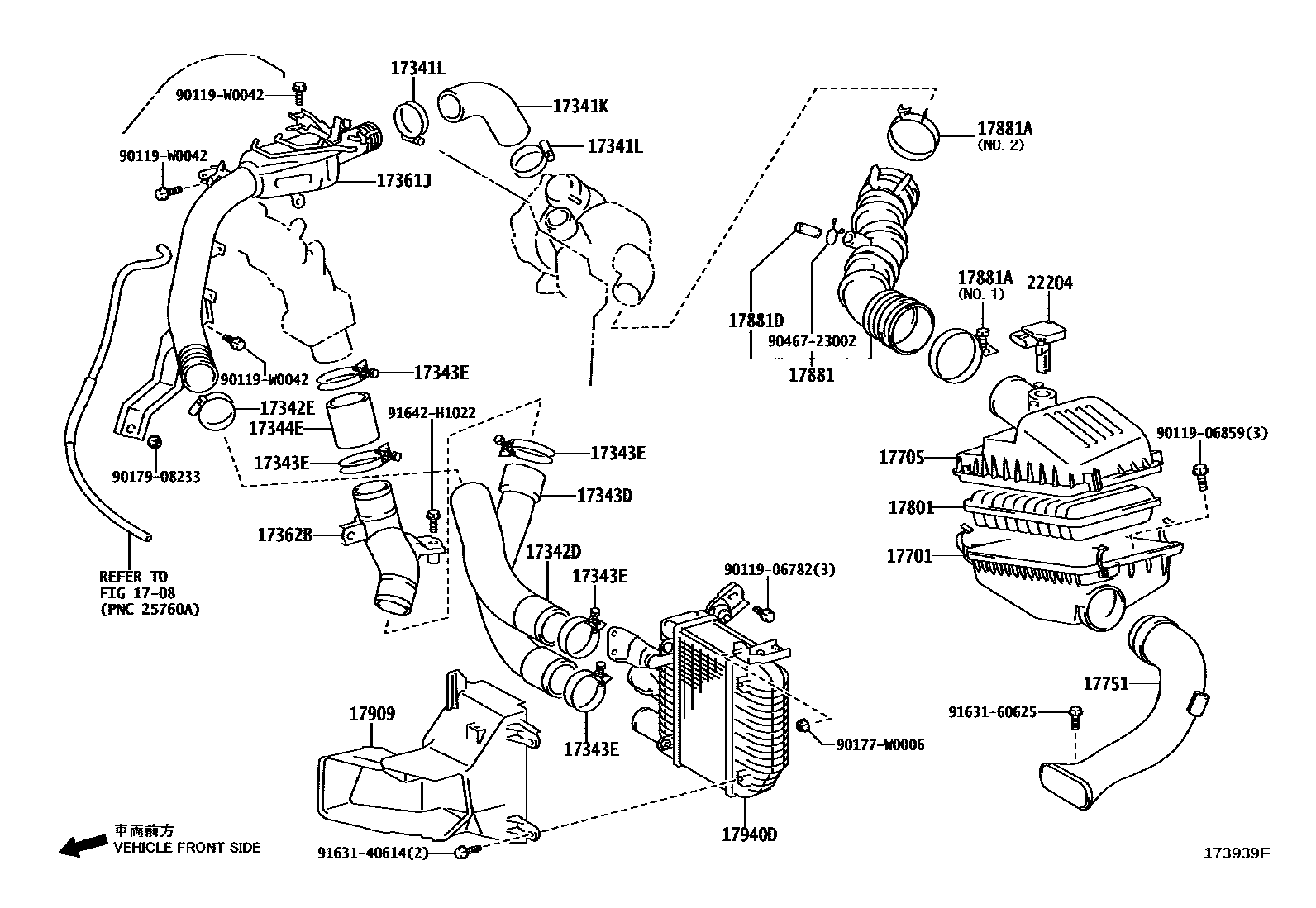

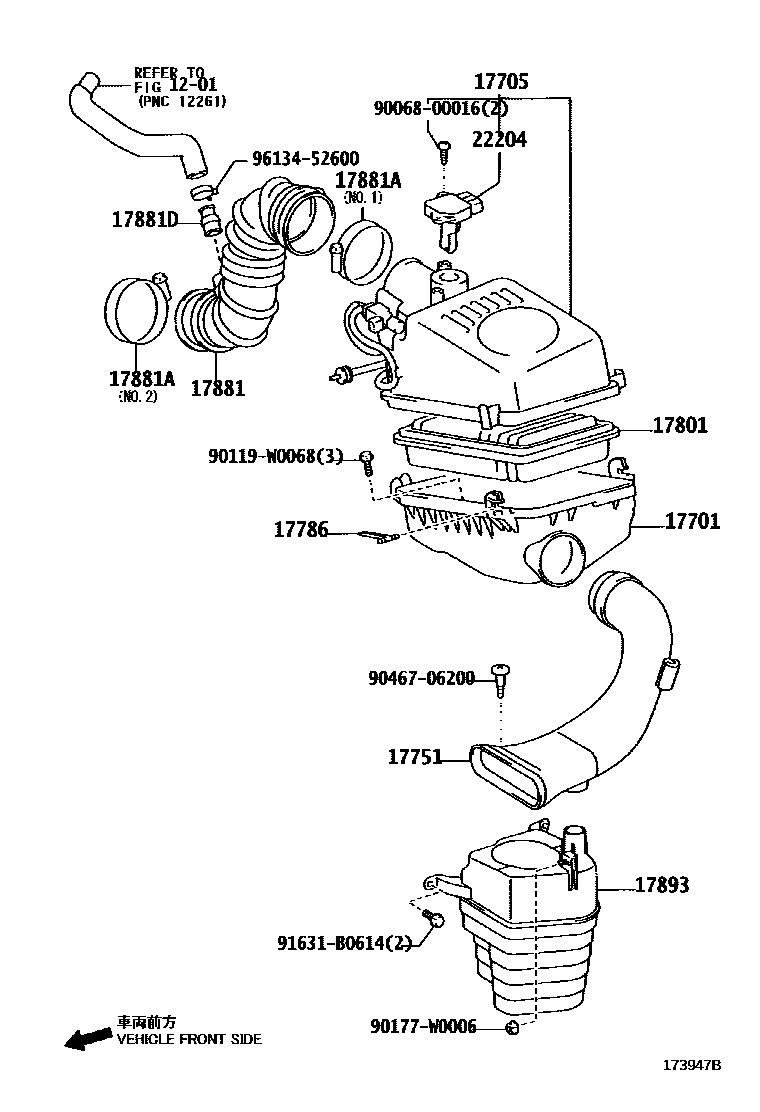

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341F | Air hose No. 1 | 17341-26080 · 17341-26081 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-65012 |
| 17341K | Air hose No. 1 (for intercooler) | 17341-27050 |
| 17341L | hose clamp | 90460-60006 |
| 17342D | Air hose No. 2 | 17342-26070 · 17342-26071 · 17342-26072 · 17342-27050 |
| 17342E | Clip or clip (for No. 2 air hose) | 90460-65012 · 90460-67008 |
| 17343D | No. 3 air hose | 17343-26021 · 17343-26022 · 17343-26023 · 17343-27030 |
| 17343E | Hose clamp (for size 3 air hose) | 90460-73011 |
| 17344E | No. 4 air hose | 17344-0G010 · 17344-0R010 |
| 17344F | Hose clamp (for size 4 air hose) | 90460-77002 |
| 17361J | Air tube No. 1 | 17361-26020 · 17361-27070 |
| 17362B | No. 2 air pipe | 17362-0R010 · 17362-0R011 · 17362-27050 |
| 17701 | Air filter housing sub-assembly | 17701-0D041 · 17701-0G010 · 17701-0R010 |
| 17705 | Air filter cover sub-assembly | 17705-0D041 · 17705-0R010 · 17705-0R011 · 17705-0R012 · 17735-0G011 |
| 17751 | No. 1 air filter air inlet | 17751-0D120 · 17751-0D130 · 17751-0G020 · 17751-0N010 · 17751-0R010 |
| 17786 | Air filter clip | 17786-0D011 |
| 17801 | Air filter element sub-assembly | 17801-0D010 · 17801-0D011 · 17801-0G010 · 17801-0R010 · 17801-22020 |
| 17881 | No. 1 air cleaner hose | 17880-0G021 · 17880-0R010 · 17881-22120 · 17881-22130 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90080-46311 · 90466-54002 · 96111-10670 · 96111-10750 · 96111-10800 · 96111-10880 |
| 17881D | Connector tube (for air cleaner hose) | 90406-16009 · 90406-28001 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-0D020 · 17893-0D021 |
| 17909 | Intercooler cold air pipe sub-assembly | 17909-0G050 |
| 17940D | Intercooler assembly | 17940-0G010 · 17940-0R010 |
| 22204 | Intake air flow meter assembly | 22204-0J010 · 22204-0N010 · 22204-27010 · 22204-30010 |
| 25736 | No. 1 vacuum transfer tube | 25736-26010 |
| 25761 | No. 1 Vacuum Transfer Hose | 25761-26010 |
| 25761A | Clamp (No. 1 vacuum transfer hose) | 96132-50700 |
| 25771 | No. 2 vacuum transfer hose | 25771-26010 |
| 25771A | Clamp (for No. 2 vacuum transfer hose) | 96132-50700 |
| 25781 | No. 3 vacuum transfer hose | 25781-26010 |
