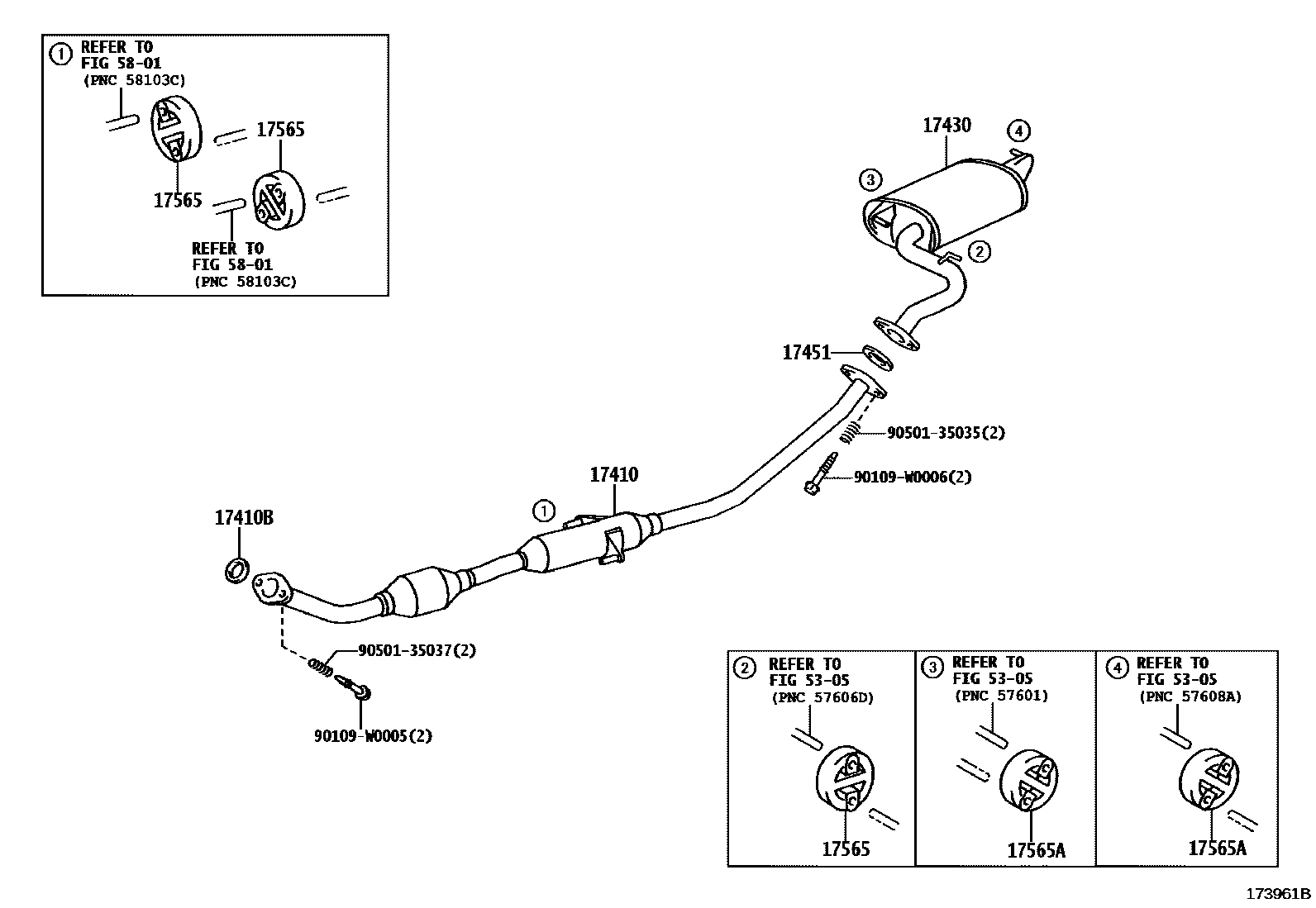

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0D290 · 17410-0G080 · 17410-0G081 · 17410-0R030 · 17410-0R040 · 17410-0R110 |
| 17410B | Exhaust pipe gasket | 17451-0D090 · 17451-0R010 |
| 17430 | Exhaust tailpipe assembly | 17430-0D320 · 17430-0D321 · 17430-0G080 · 17430-0R020 |
| 17451 | Exhaust pipe gasket | 17451-02030 · 17451-0R030 · 17451-0R031 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0D060 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D030 |
