Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 9 images and 45 PNC and OE references.

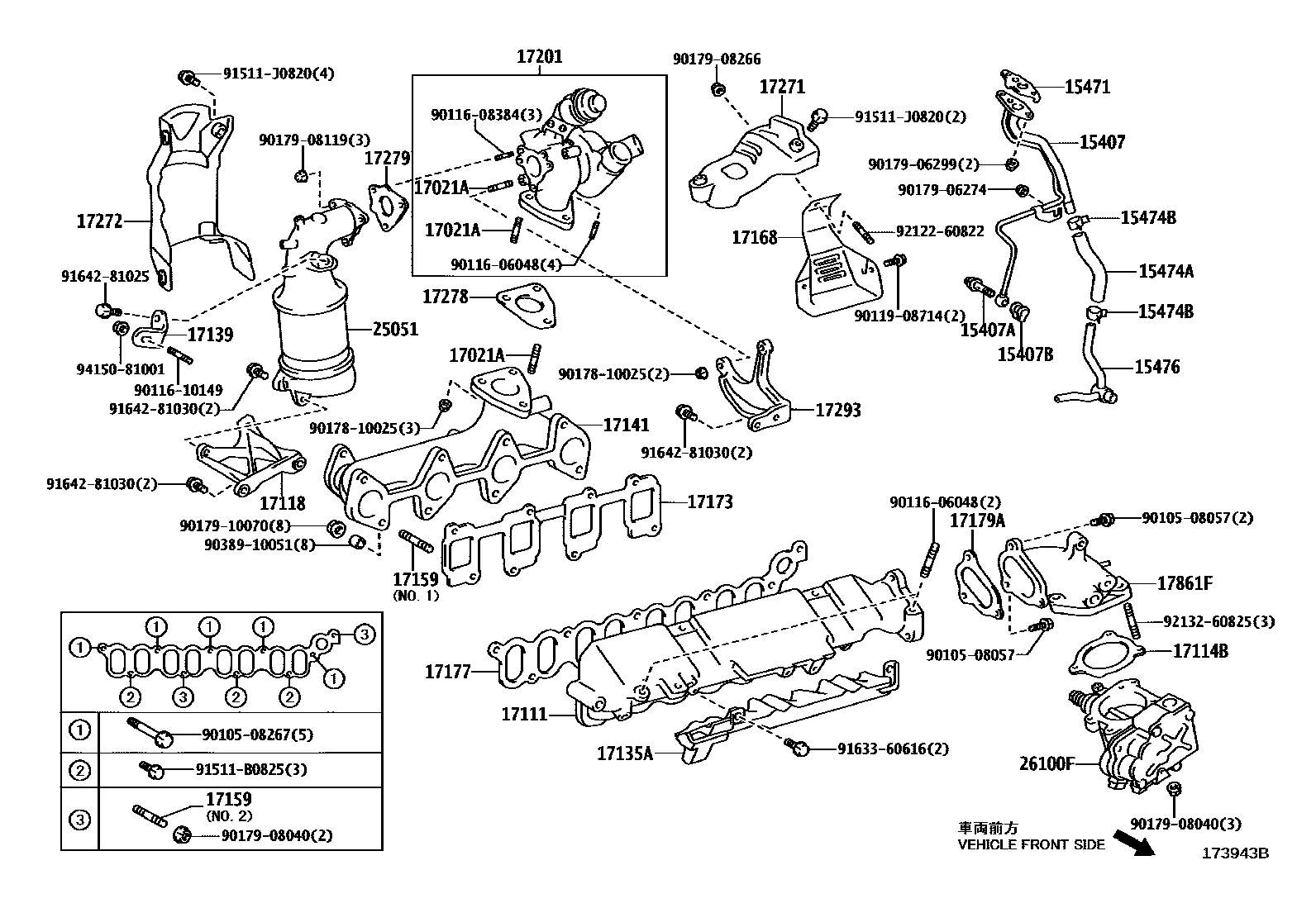

Toyota COROLLA Manifold EPC diagram — 173943B
Manifold — 173943B (200402 – 999999)

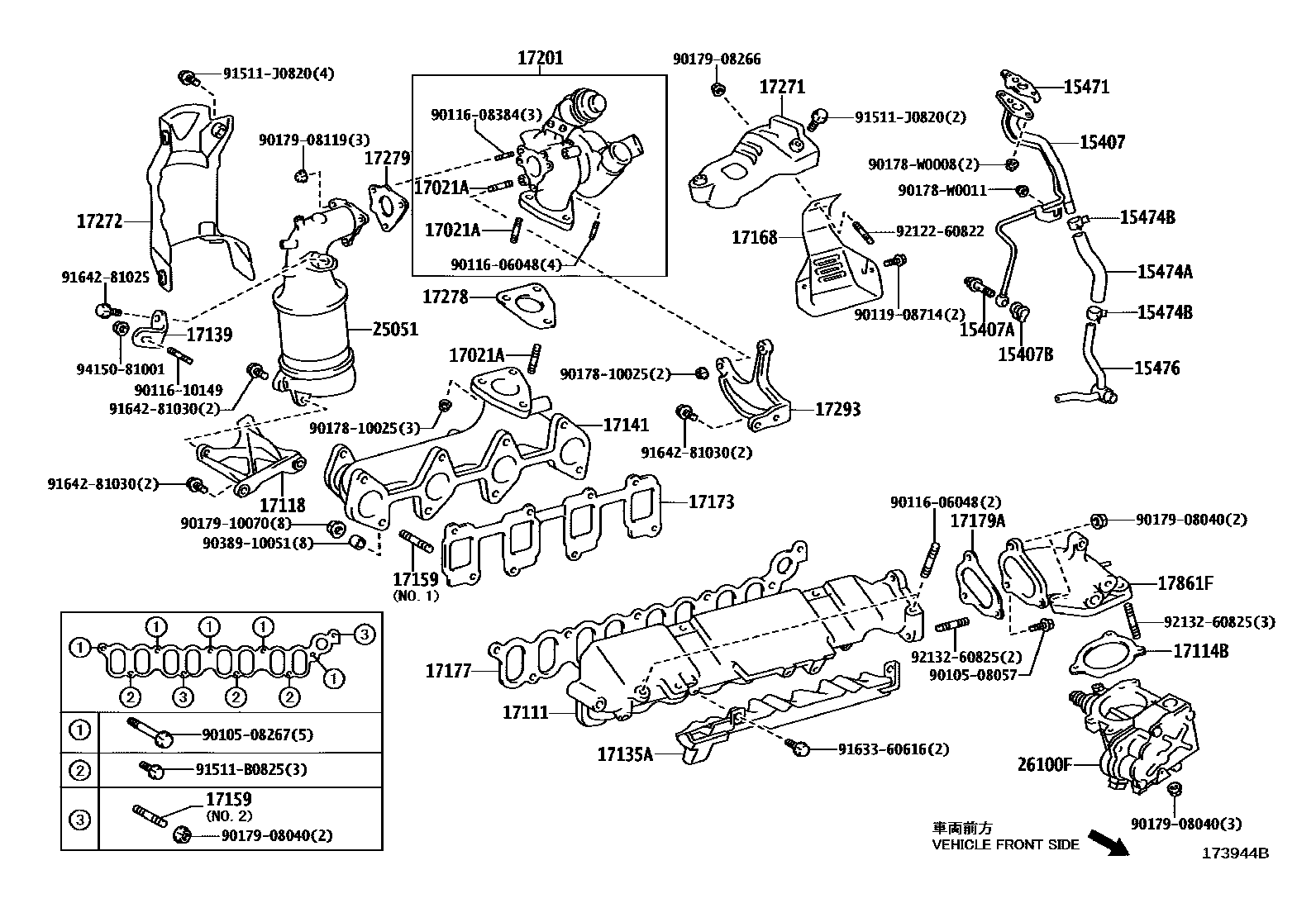

Toyota COROLLA Manifold EPC diagram — 173944B
Manifold — 173944B (200402 – 999999)

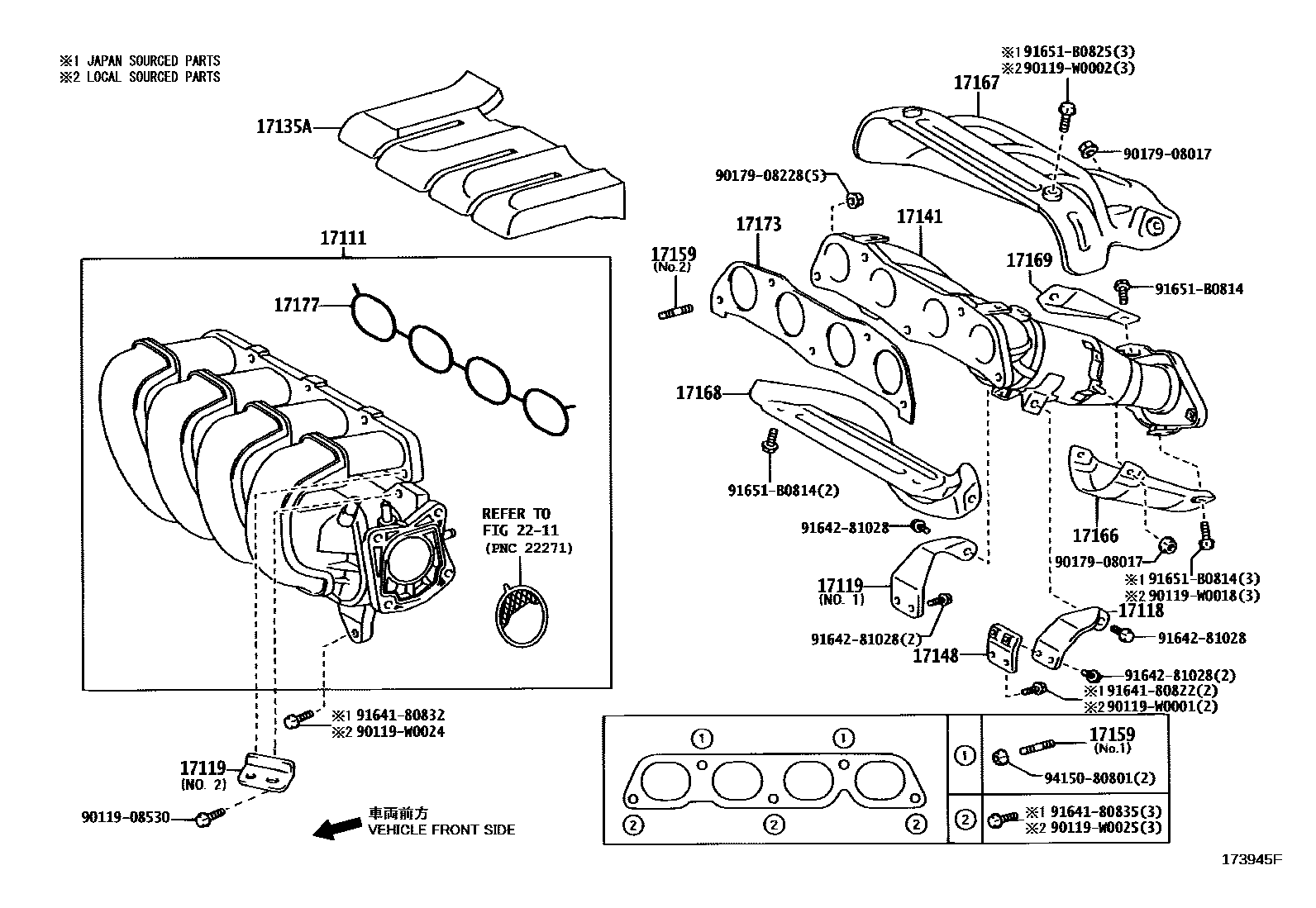

Toyota COROLLA Manifold EPC diagram — 173945F
Manifold — 173945F (200402 – 999999)

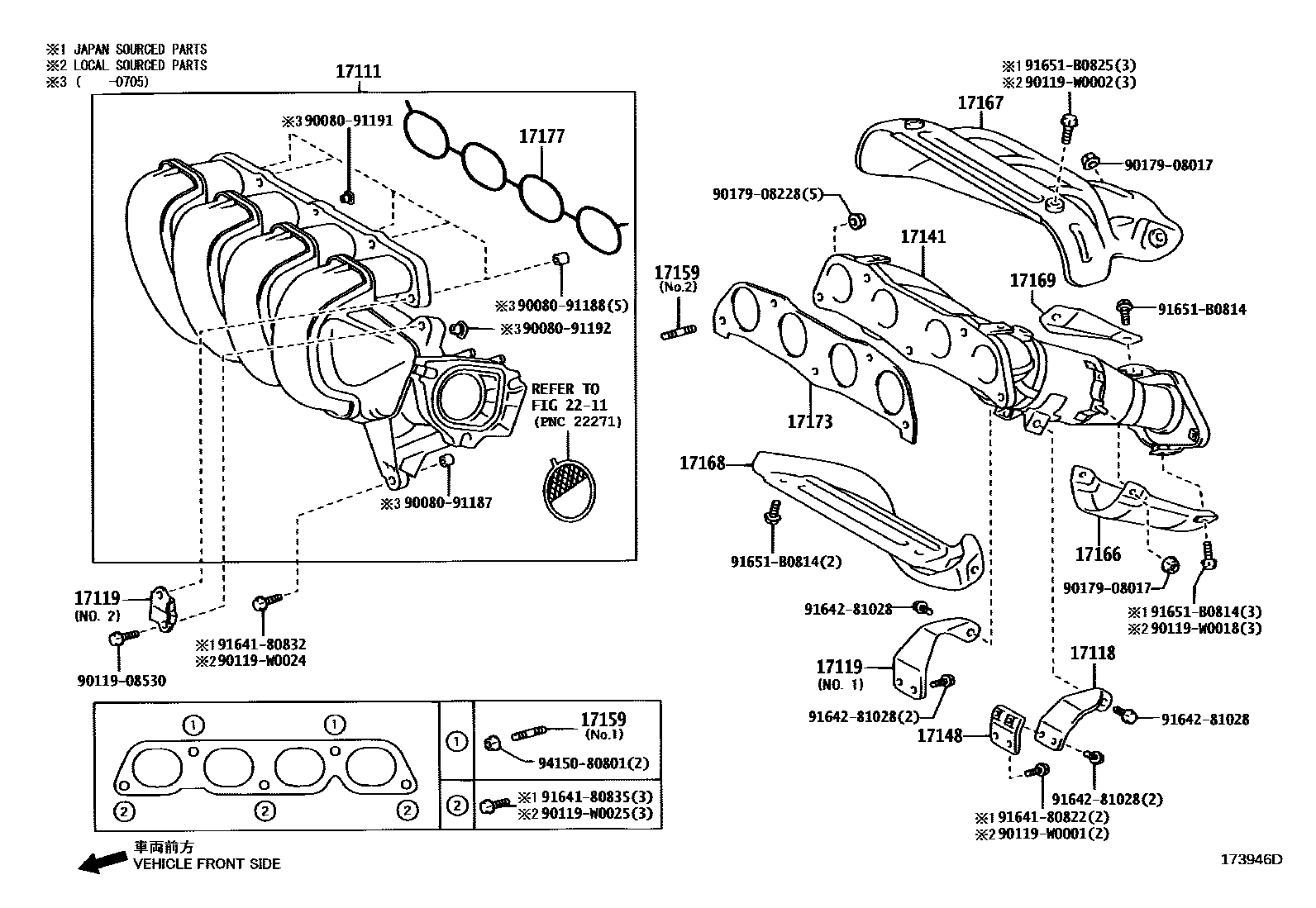

Toyota COROLLA Manifold EPC diagram — 173946D
Manifold — 173946D (200402 – 999999)

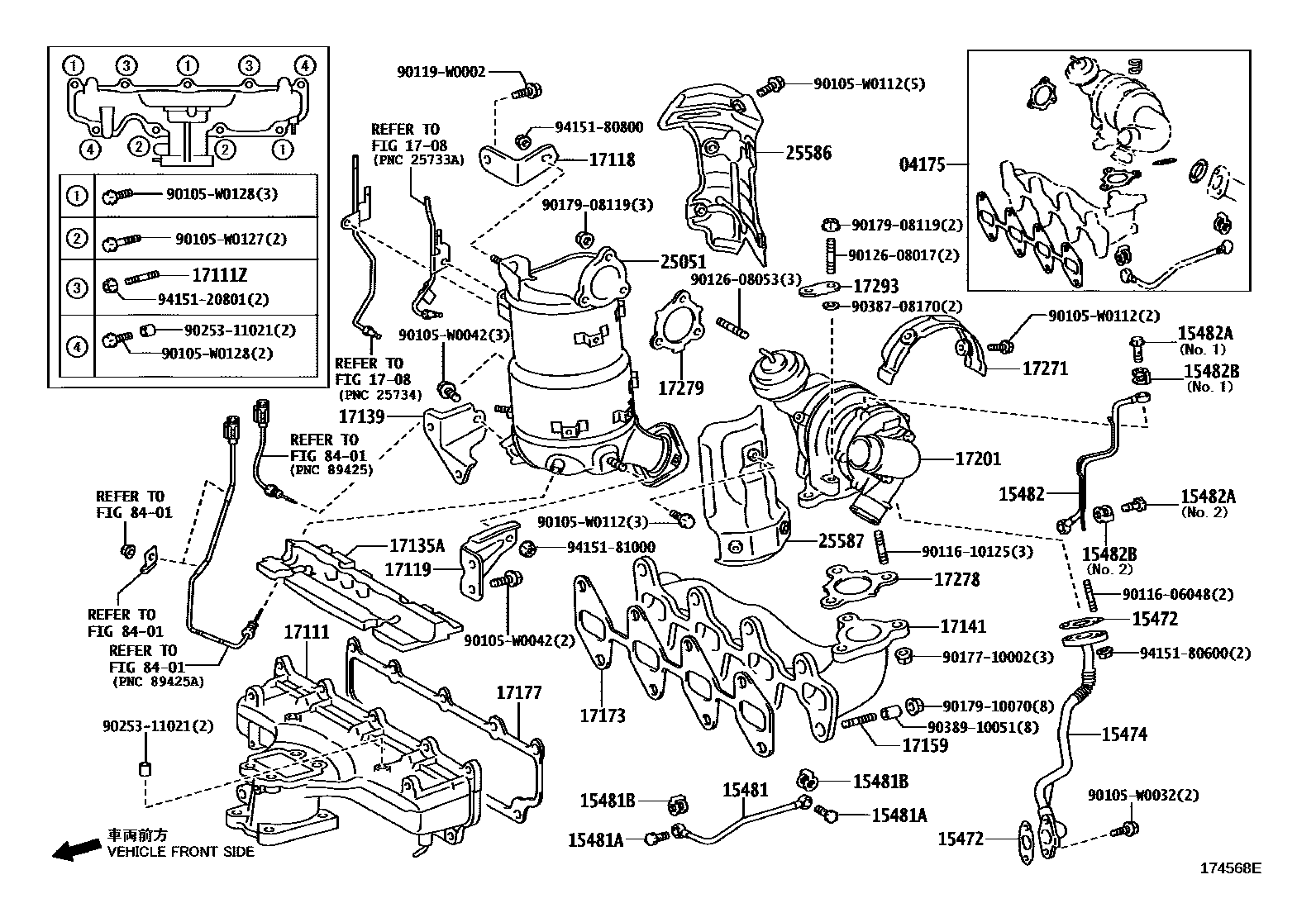

Toyota COROLLA Manifold EPC diagram — 174568E
Manifold — 174568E (200508 – 200604)

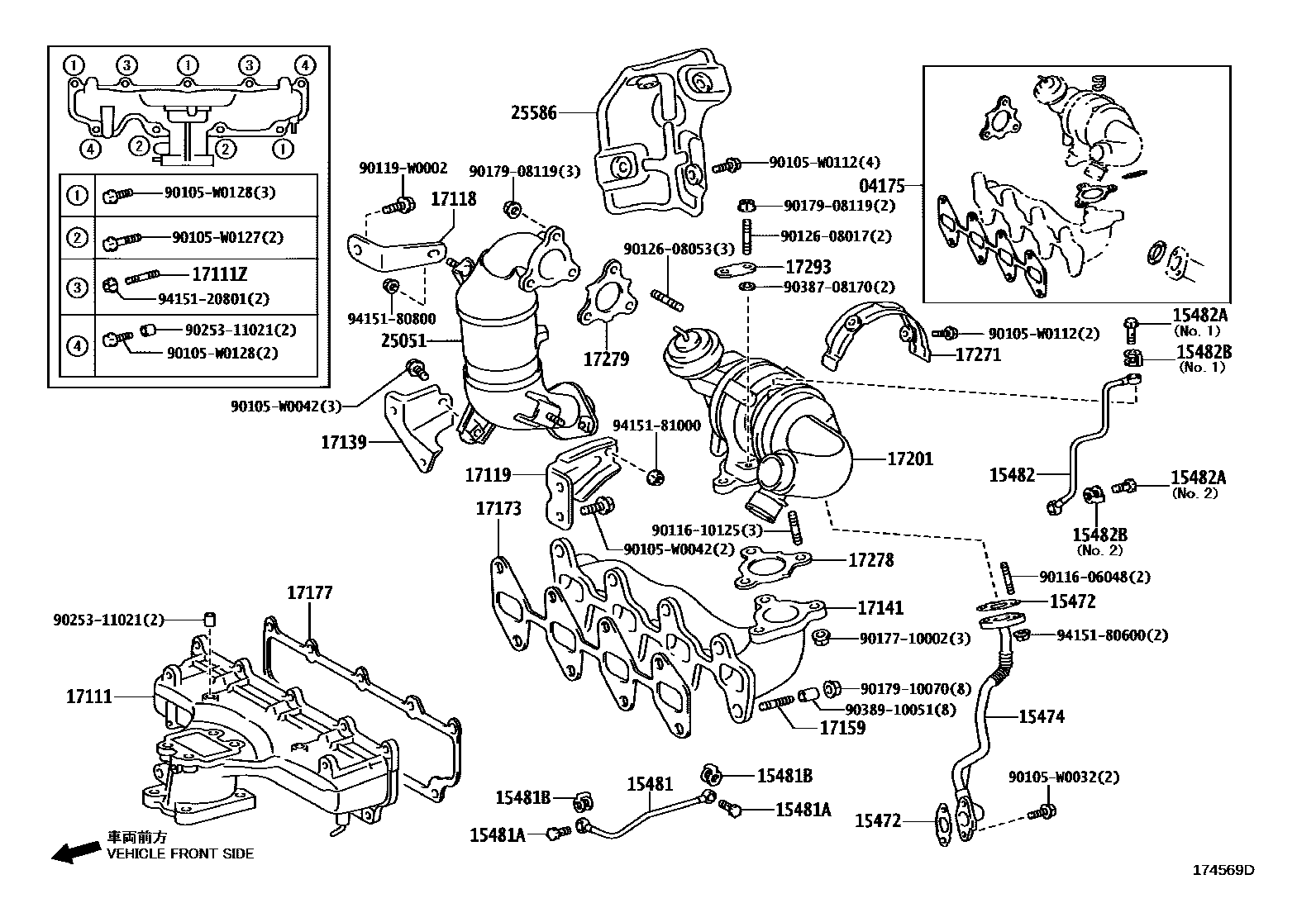

Toyota COROLLA Manifold EPC diagram — 174569D
Manifold — 174569D (200508 – 200604)

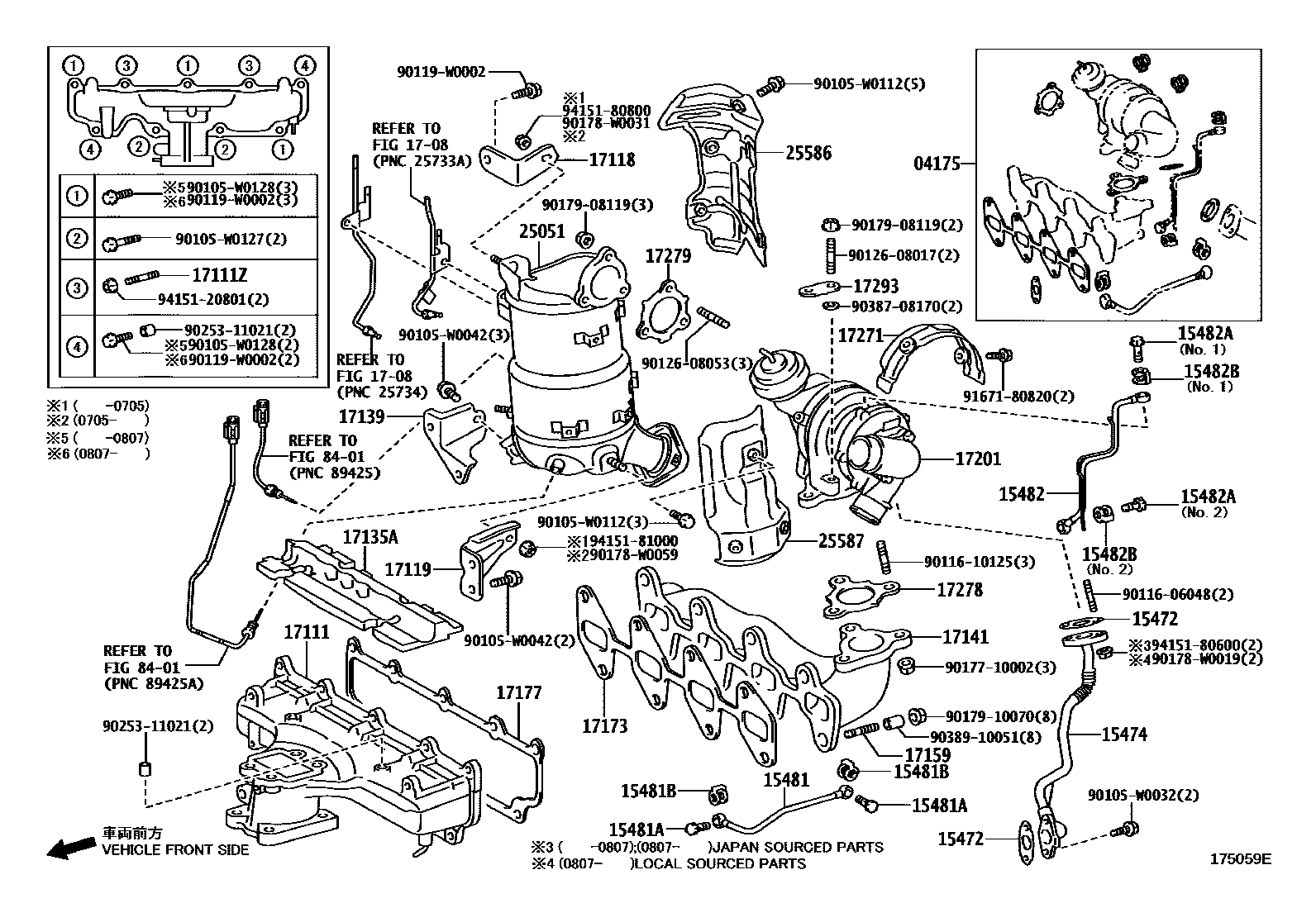

Toyota COROLLA Manifold EPC diagram — 175059E
Manifold — 175059E (200604 – 999999)

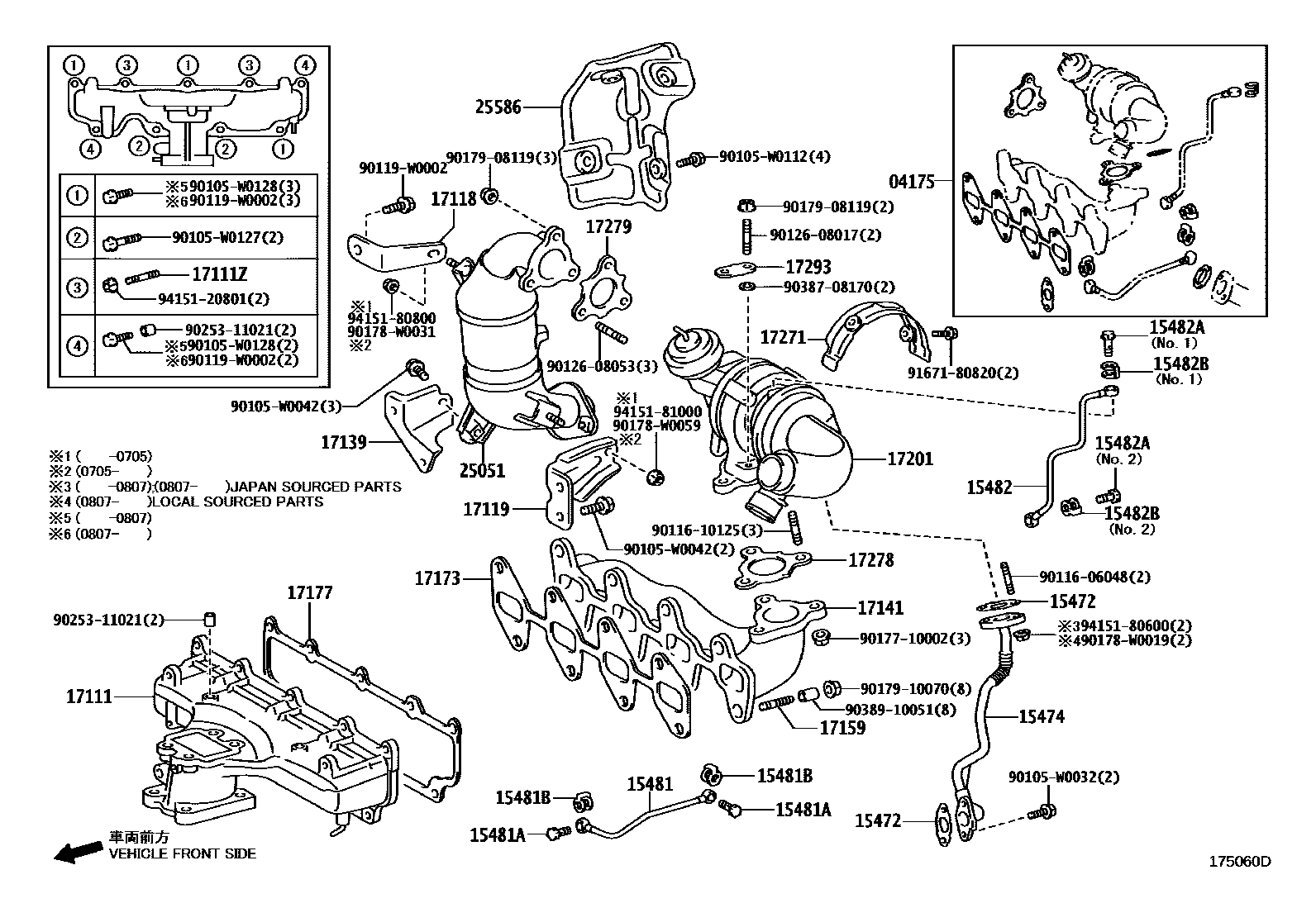

Toyota COROLLA Manifold EPC diagram — 175060D
Manifold — 175060D (200604 – 999999)

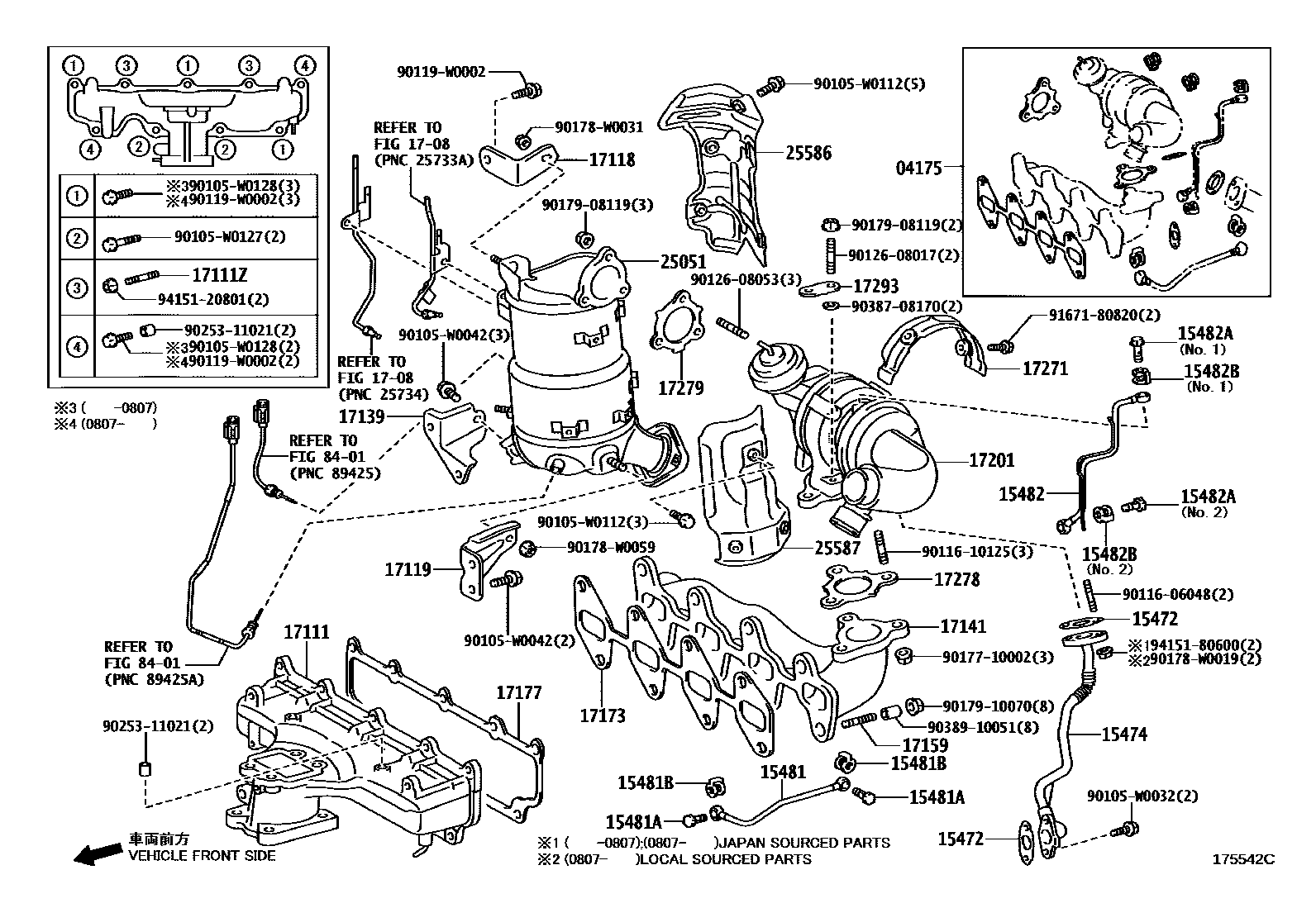

Toyota COROLLA Manifold EPC diagram — 175542C
Manifold — 175542C (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-0R050 · 04175-0R060 · 04175-0R080 · 04175-0R100
15407Turbine oil inlet pipe sub-assembly15407-27011
15407AConnector bolt (for turbine oil inlet pipe)15606-27010
15407BGasket (for turbine oil inlet pipe)15328-27010
15471Turbine oil inlet pipe gasket15471-27020
15472No. 1 turbine oil outlet pipe gasket15472-0R010
15474Turbine oil outlet pipe15474-26010
15474ATurbine oil outlet hose15491-27020
15474BClamp or clip (for turbine oil outlet hose)96134-41900
15476No. 2 turbine oil outlet pipe15476-27020
15481No. 1 turbine oil pipe15481-0R010
15481ANo. 1 joint bolt90401-12039
15481BGasket (for No. 1 joint bolt)90430-12037
15482No. 2 turbine oil pipe15482-0R010 · 15482-0R020 · 15482-26020
15482ANo. 2 joint bolt90401-10061 · 90401-12039
15482BGasket (for No. 2 joint bolt)90430-12037 · 90904-30011
17021AStud bolts (for bearing housing)90116-10148
17111Intake Manifold17101-0R010 · 17101-0R011 · 17111-27012 · 17120-0D070 · 17120-22070
17111ZStud bolts (for intake manifold to cylinder head)90116-08167
17114BIntake flange gasket26171-27010
17118Manifold stays17118-0G010 · 17118-0R010 · 17118-22090 · 17118-26030 · 17118-26060
17119No. 2 manifold stay17119-0R010 · 17119-22070 · 17119-26010 · 17139-22030 · 17139-22050
17135AIntake manifold No. 1 heat shield17135-22010 · 17135-27010 · 17853-26010
17139No. 2 manifold stay17139-0R010 · 17139-26010 · 17139-27020
17141exhaust manifold17104-0D121 · 17141-0R010 · 17141-26100 · 17141-27040
17148Exhaust manifold plate (for EGR intake)17148-22030
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08043 · 90126-10024 · 92132-60820
17166Exhaust manifold No. 4 heat shield17166-22010 · 17166-22011
17167Exhaust manifold No. 1 heat shield17167-0D052
17168Exhaust manifold No.2 insulation pad17168-0D041 · 17168-22110 · 17168-27020
17169Exhaust manifold No. 3 heat shield17169-0D010
17173Gasket (exhaust manifold to cylinder head)17173-0R010 · 17173-22010 · 17173-27010
17177No. 1 gasket (intake manifold to cylinder head)17171-0D030 · 17171-0R010 · 17171-22030 · 17177-0G010 · 17177-27010
17179ANo. 2 intake manifold gasket17179-0G010 · 17179-27010
17201Turbocharger sub-assembly17201-0G010 · 17201-0R010 · 17201-0R011 · 17201-0R020 · 17201-0R021 · 17201-0R022
17271No. 1 turbine vibration isolation pad17271-0R011 · 17271-0R020 · 17271-27060
17272No. 2 turbine vibration isolation pad17272-27060
17278Gasket (turbo to exhaust manifold)17278-0R010 · 17278-0R020 · 17278-27010
17279Turbine outlet elbow gasket17279-0R010 · 17279-27020
17293Turbocharger stay17293-0G010 · 17293-26010 · 17293-27020
17861FIntake connecting pipe17805-27010
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0R010 · 25051-0R020 · 25051-26031 · 25051-26040 · 25051-26041 · 25051-27060 · 25051-27061
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-0R010 · 25586-0R011 · 25586-0R020 · 25586-26010
25587No. 2 manifold three-way catalytic converter vibration isolation pad25587-26010 · 25587-26020
26100FAir intake baffle assembly26100-27020
