Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 4 PNC and OE references.

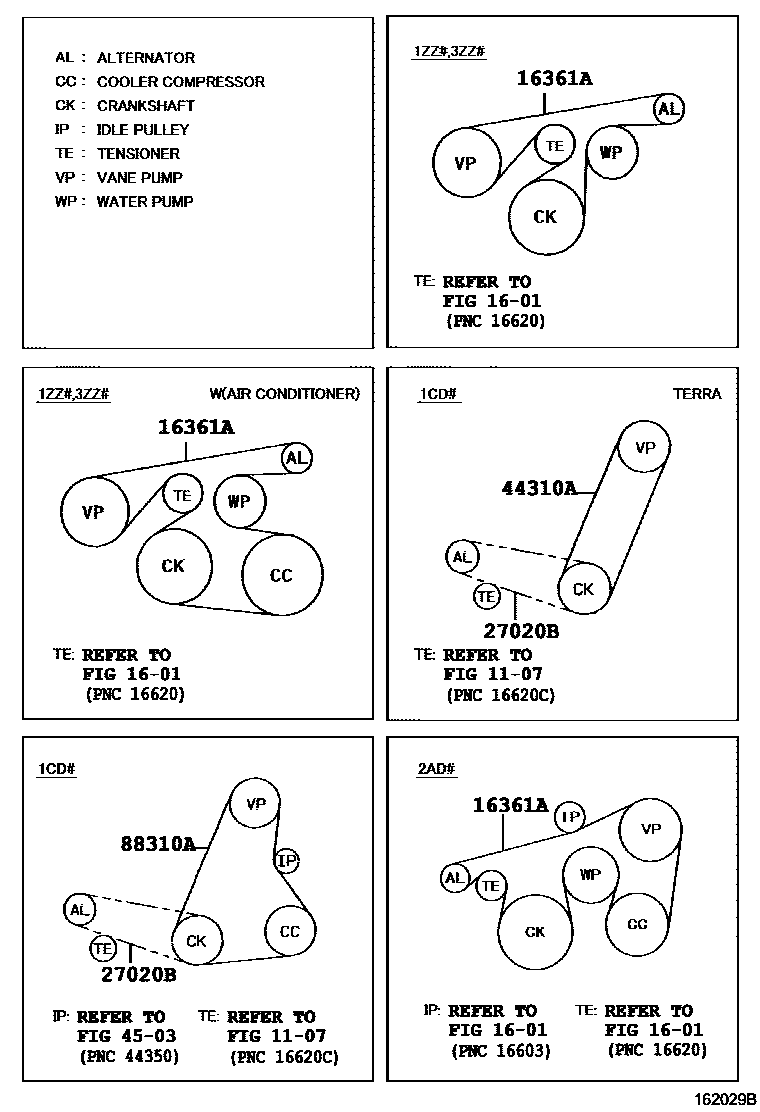

Toyota COROLLA V-Belt EPC diagram — 162029B
V-Belt — 162029B (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-W2005 · 90916-W2006 · 90916-W2010
27020BV-belt (for generator)90916-02517
44310AV-belt (for vane pump)90916-02509
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)90916-02550
