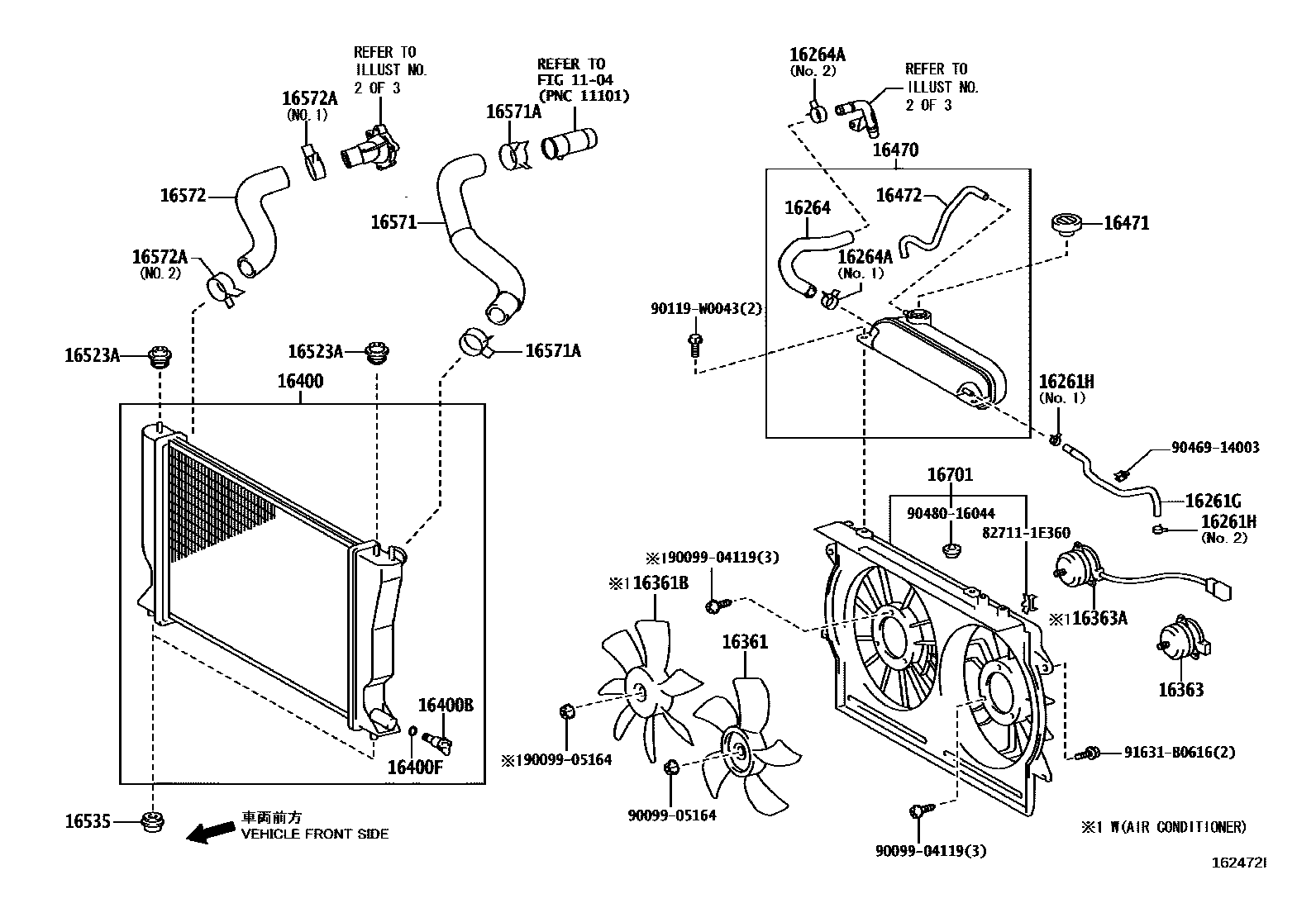

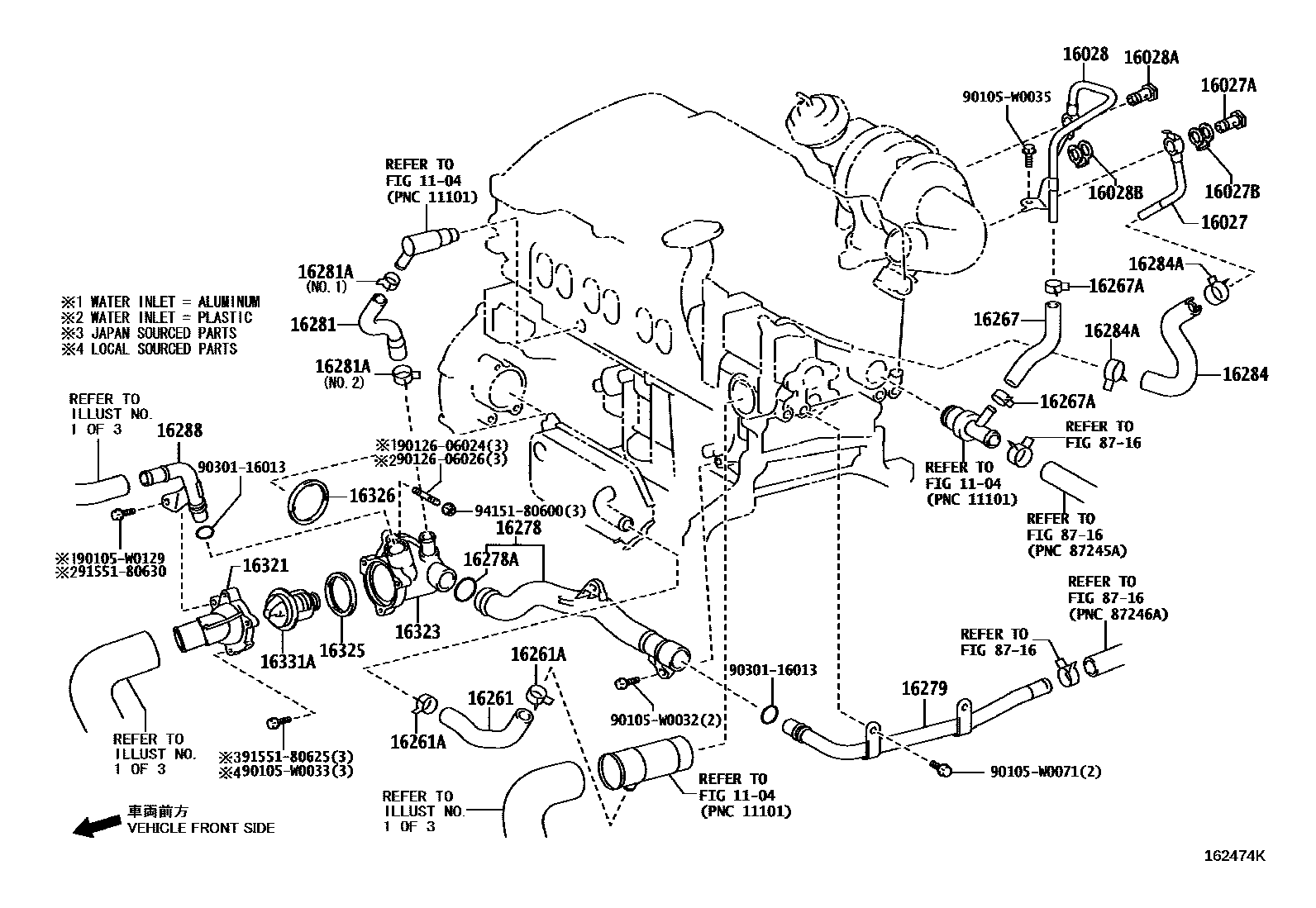

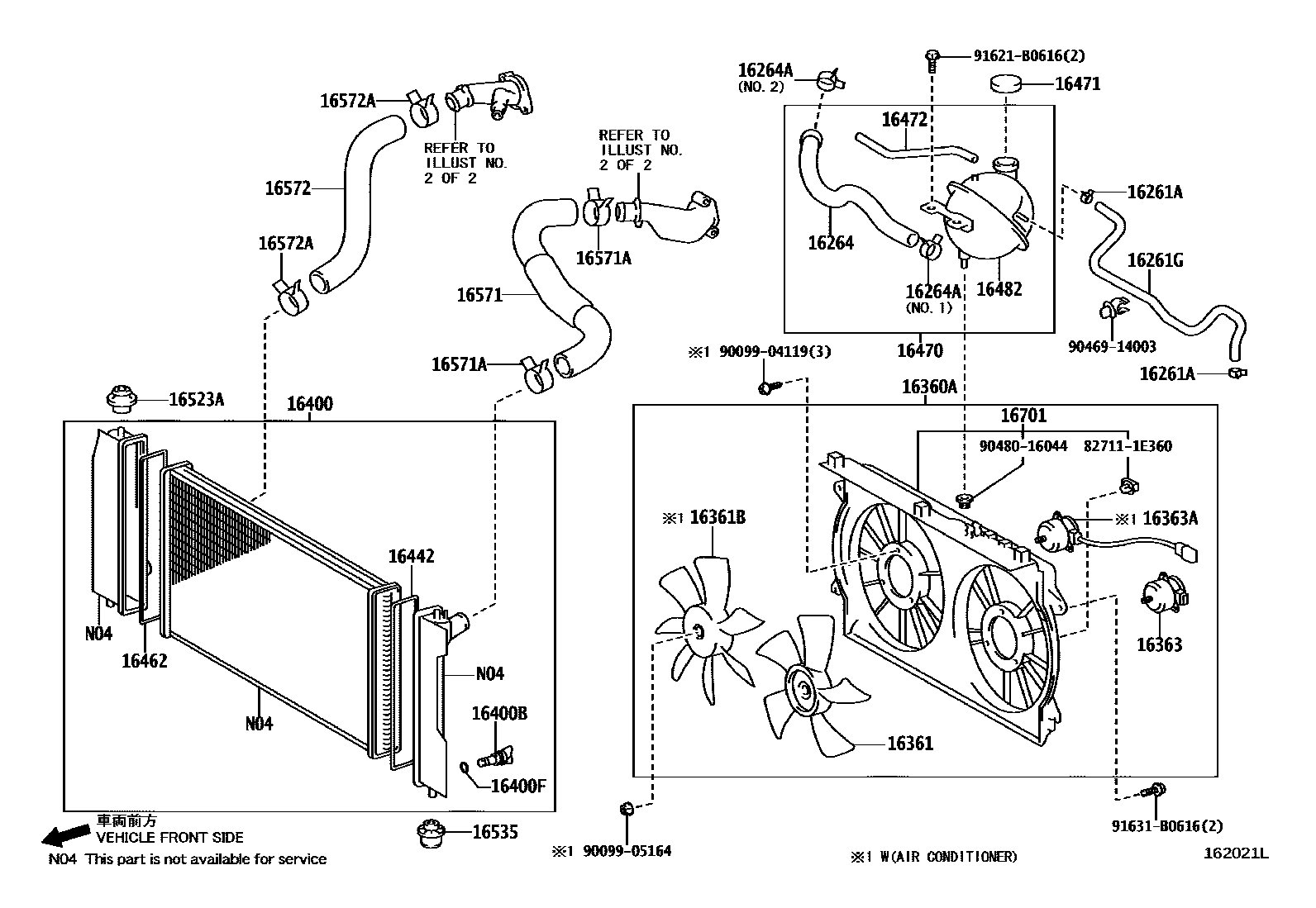

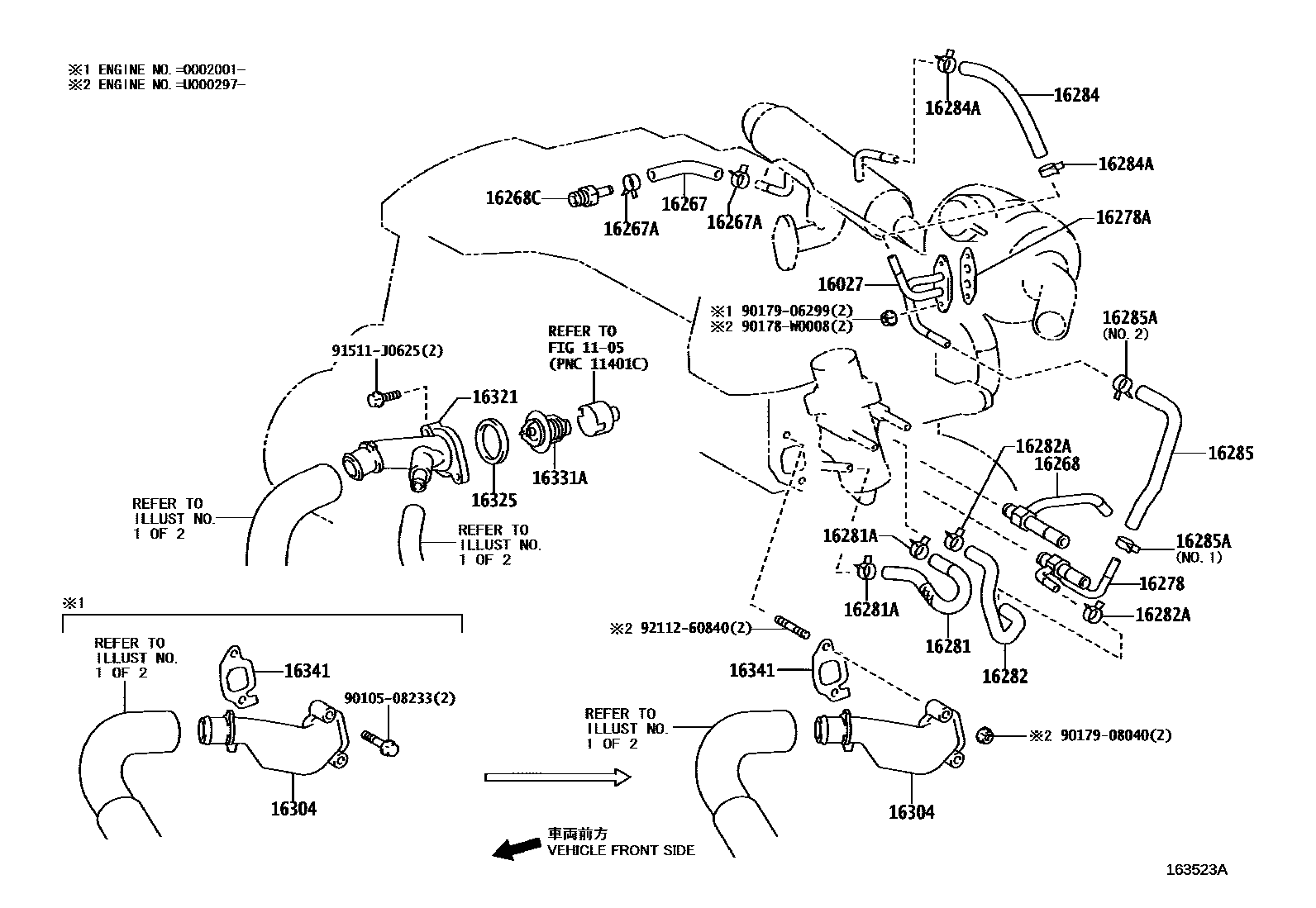

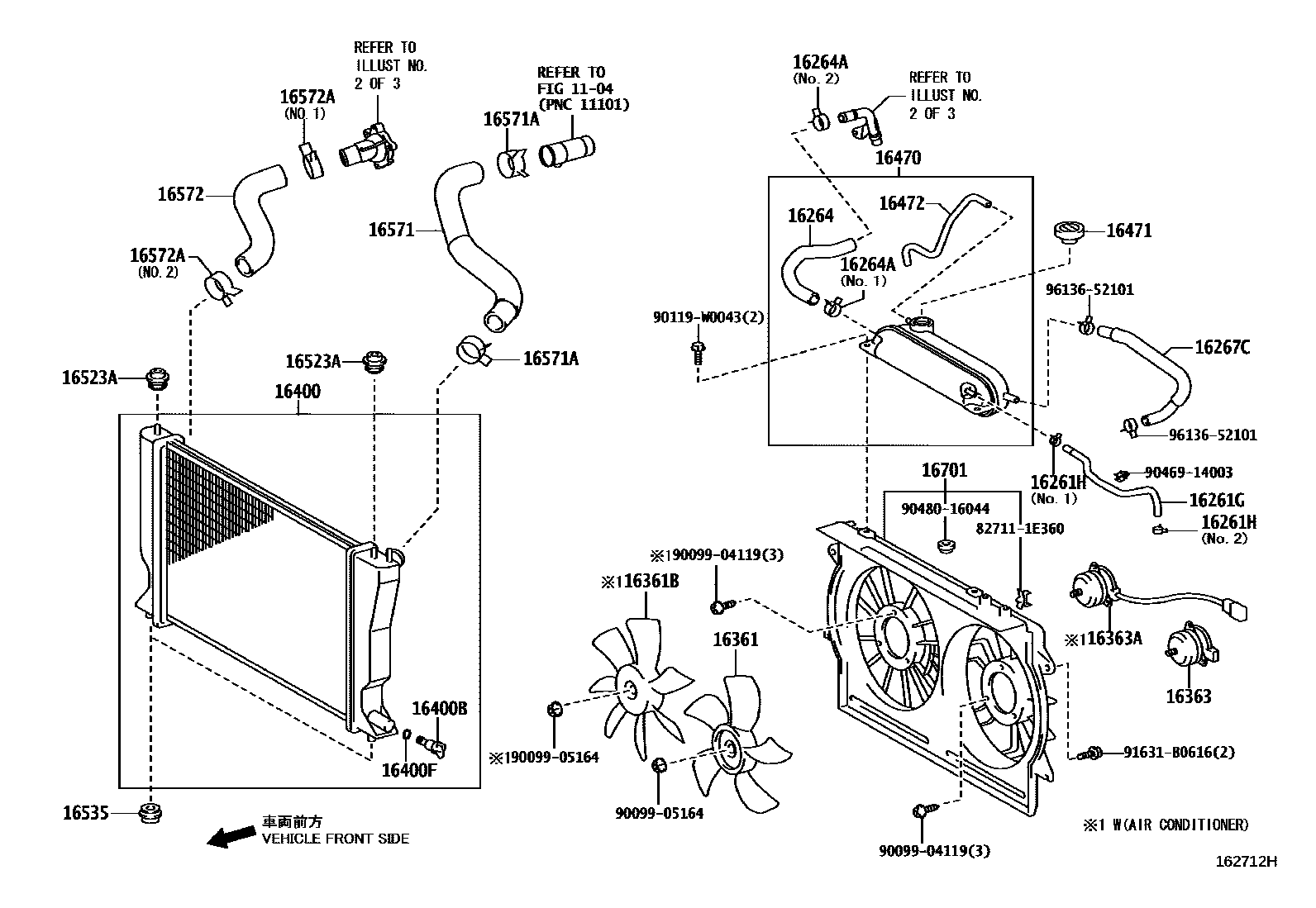

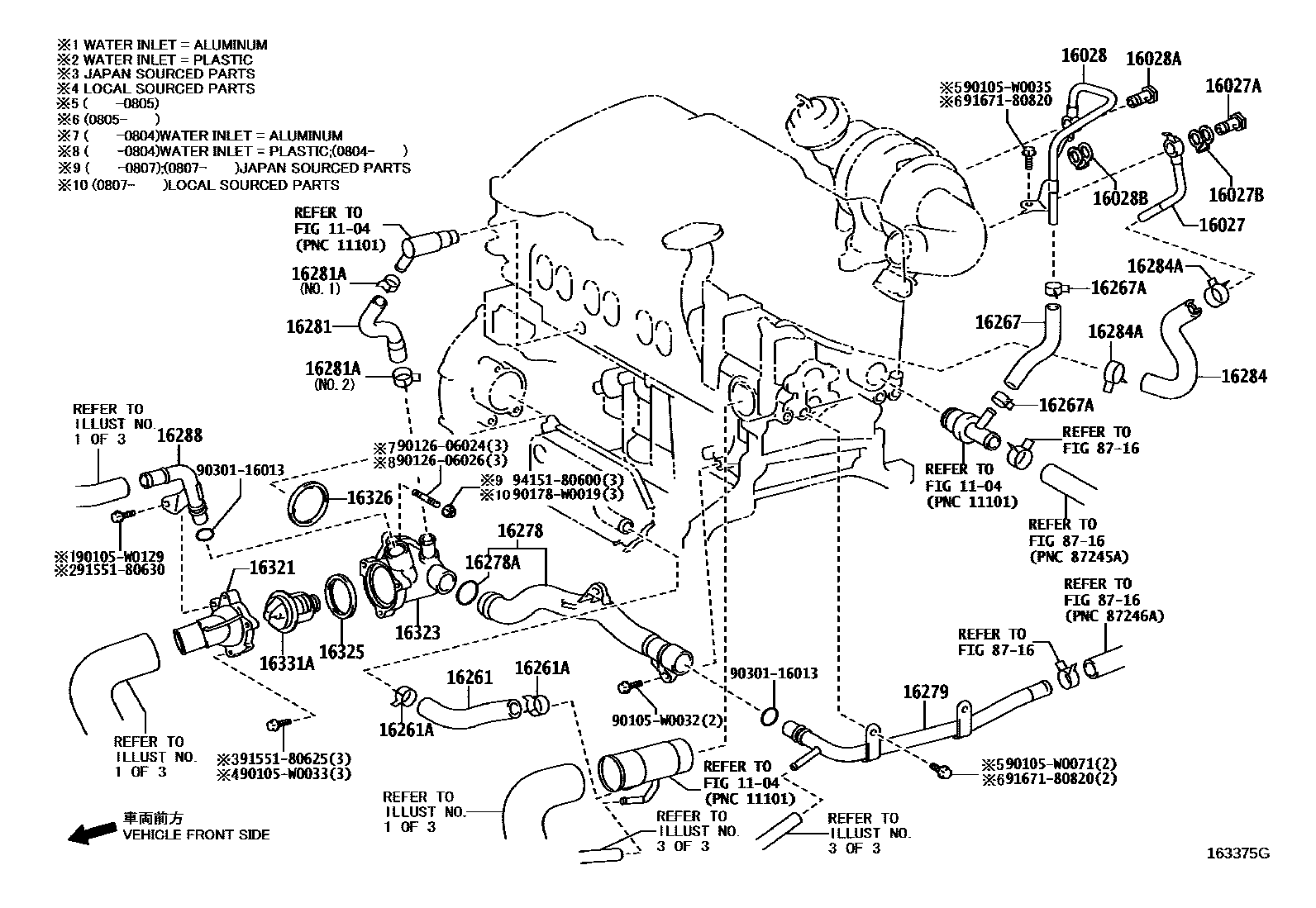

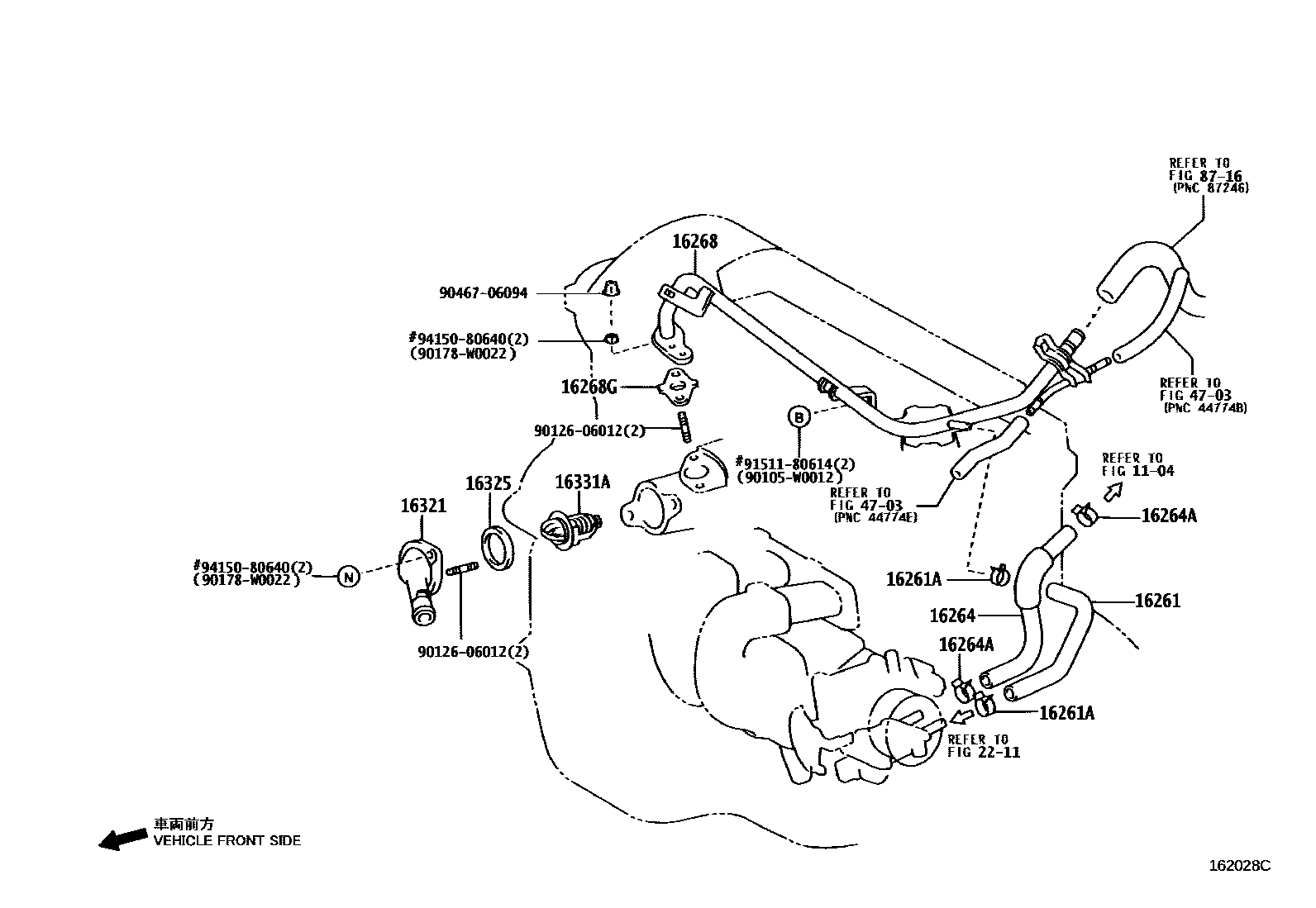

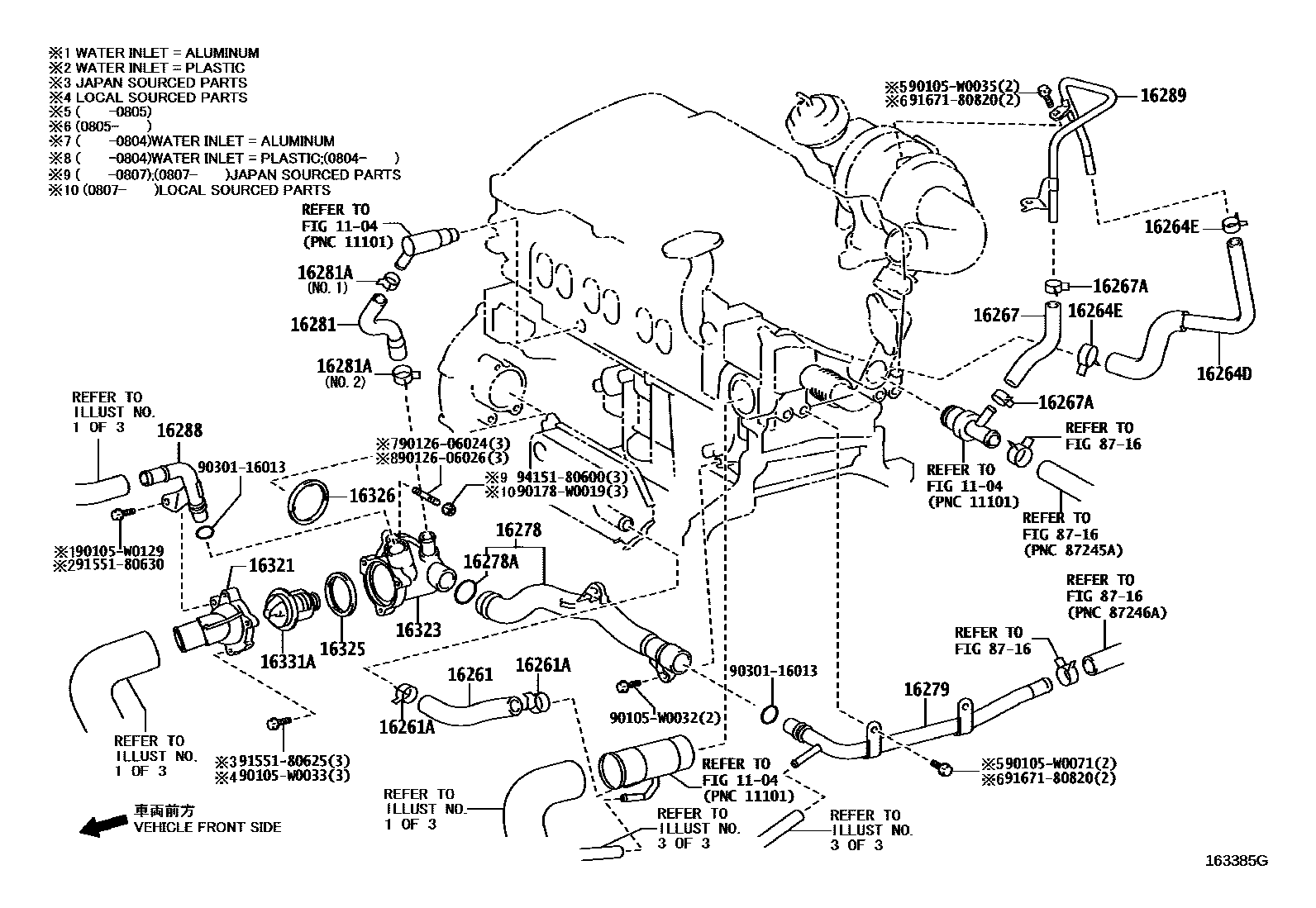

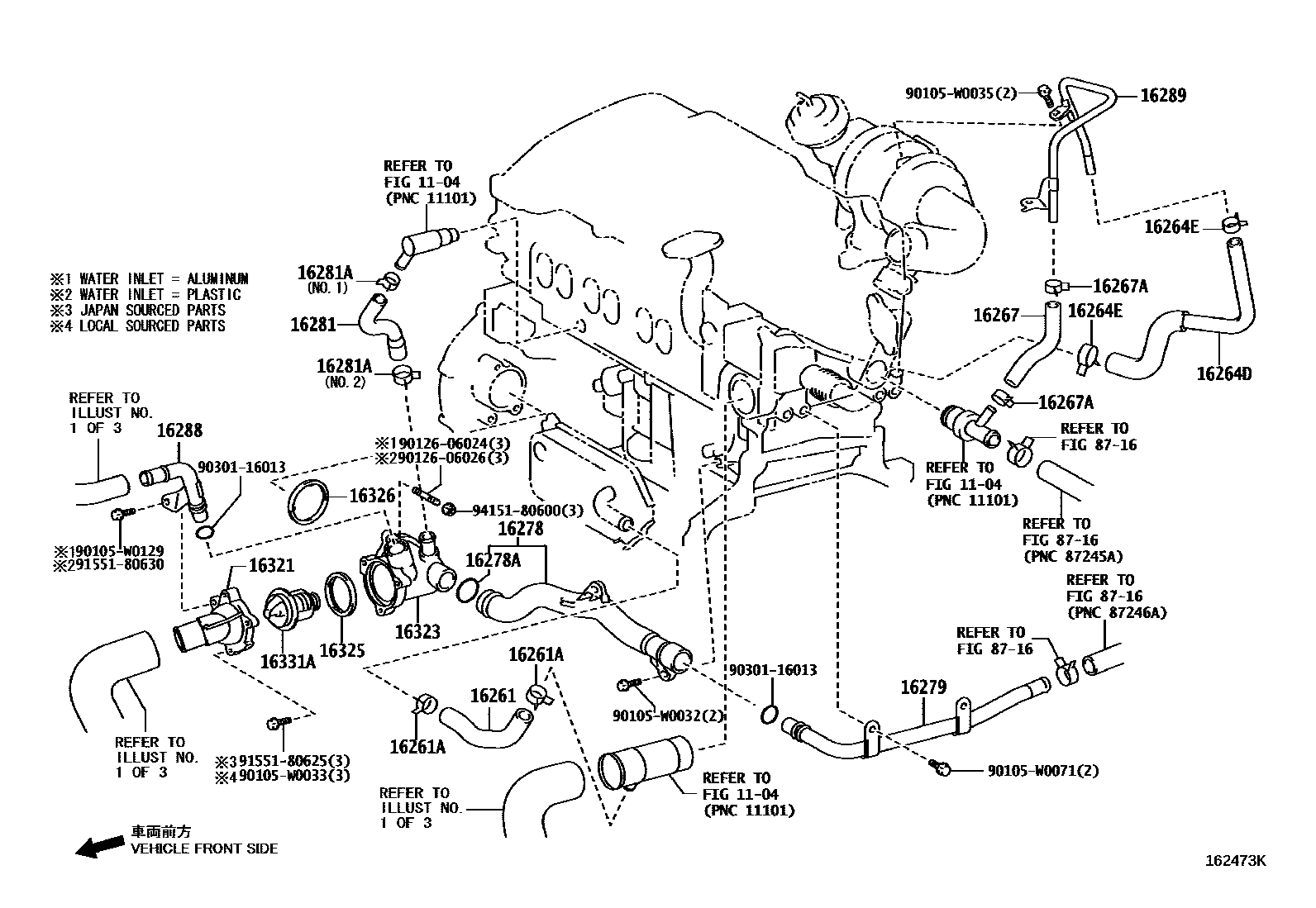

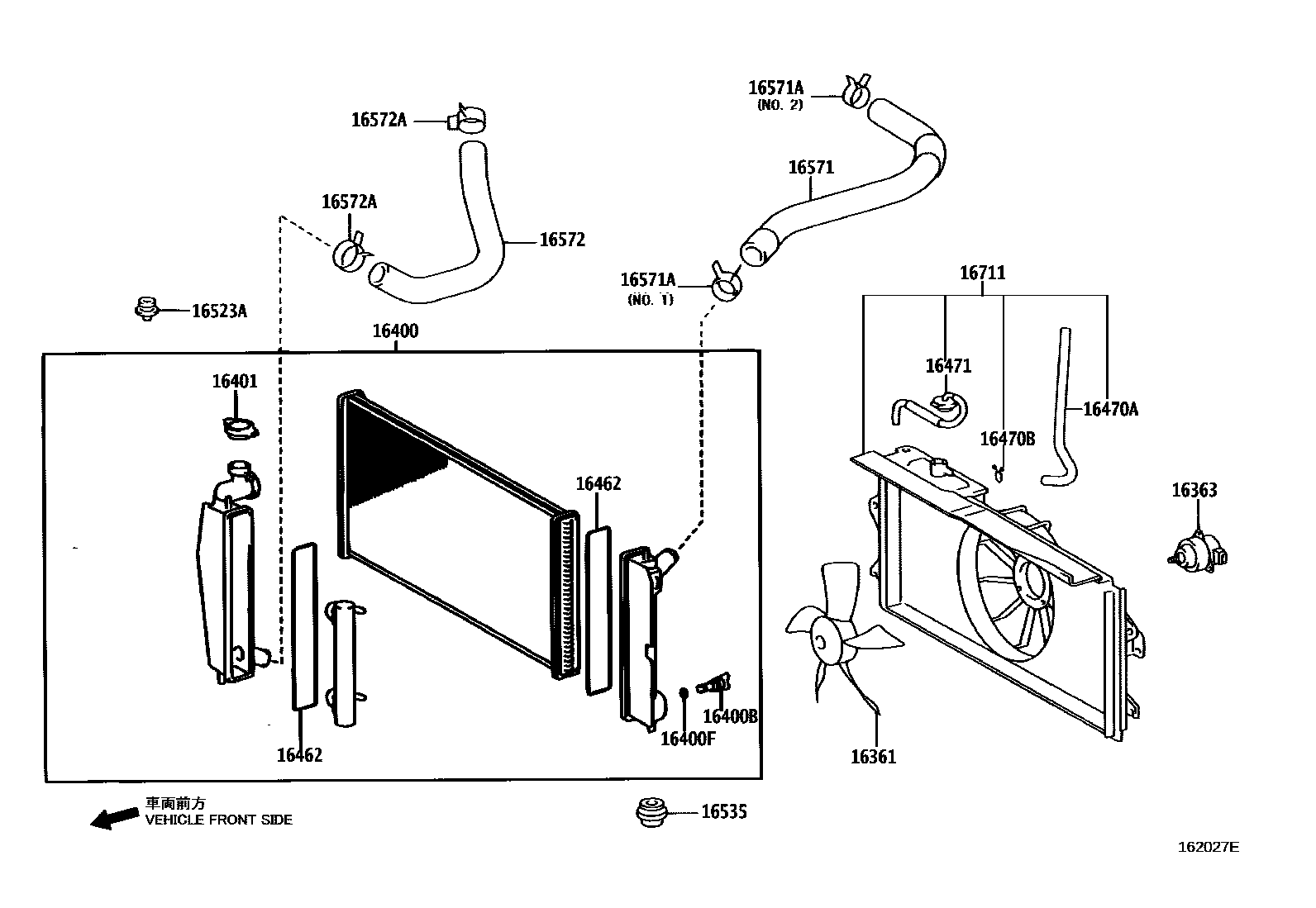

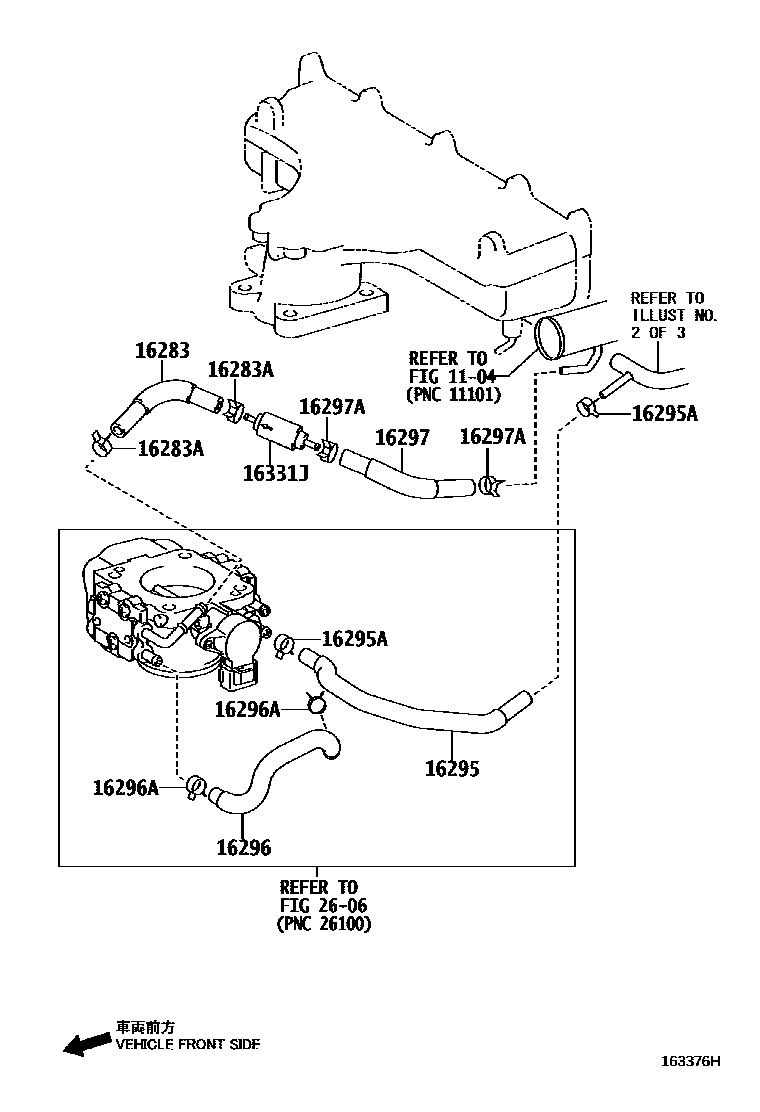

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 11 images and 74 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-26010 · 16027-27020 |
| 16027A | Joint bolts (for turbine water pipes) | 96341-11200 |
| 16027B | Liners (for turbine water pipes) | 90430-12037 |
| 16028 | No. 2 turbine water pipe sub-assembly | 16028-26010 · 16028-26011 |
| 16028A | Joint bolt (for No. 2 turbine water pipe) | 96341-11200 |
| 16028B | Gasket (for No. 2 turbine water pipe) | 90430-12037 |
| 16261 | HOSE, WATER BY-PASS | 16261-0D122 · 16261-0R020 · 16261-0R081 · 16261-22142 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-W0002 · 90466-W0003 · 90467-21006 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0R031 · 16261-0R032 · 16261-0R040 · 16261-27080 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-13003 · 96137-41501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0D121 · 16264-0D122 · 16264-0G010 · 16264-0R010 · 16264-22121 · 16264-22122 · 16264-22123 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-W0002 · 90466-W0010 · 90467-21010 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-26020 · 16264-26080 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0G020 · 16267-26020 · 16267-26021 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-15022 |
| 16267C | HOSE, WATER BY-PASS, NO.4 | 16267-0R030 · 16267-26050 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0D060 · 16268-22160 · 16268-22161 · 16268-27060 |
| 16268C | Water bypass pipe joint | 90404-53055 |
| 16268G | Gasket (for water bypass pipe) | 16258-22010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-0R010 · 16278-27060 |
| 16278A | water bypass liner | 16258-0R010 · 16347-0G010 · 16347-27020 |
| 16279 | No. 3 water bypass pipe | 16279-0R010 · 16279-0R040 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-0G010 · 16281-0R010 · 16281-0R030 · 16281-27020 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13073 · 90467-21010 · 96134-41900 · 96134-52100 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0G010 · 16282-27020 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-13073 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-26011 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 96136-41501 |
| 16284 | Turbine Water Hose No. 1 | 16284-26010 · 16284-26040 · 16284-27040 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15022 |
| 16285 | Turbine Water Hose No. 2 | 16285-0G010 · 16285-27040 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-13073 · 90467-15022 |
| 16288 | No. 4 water bypass pipe | 16288-0R010 · 16288-0R011 |
| 16289 | No. 5 water bypass pipe | 16289-26010 · 16289-26011 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-26020 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 96136-41501 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-26010 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 96136-41501 |
| 16297 | No. 9 water bypass hose | 16297-26011 |
| 16297A | Clamp (for No. 9 water bypass hose) | 96136-41501 |
| 16304 | Water outlet sub-assembly | 16304-27030 |
| 16321 | water inlet | 16321-0D030 · 16321-0R011 · 16321-26010 · 16321-27040 |
| 16323 | HOUSING, WATER INLET | 16323-0R011 · 16323-26010 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0D010 · 16325-26011 · 16325-27010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-26011 · 16326-26020 |
| 16331A | thermostat | 90916-03123 · 90916-03125 · 90916-03129 |
| 16331J | manifold thermostat | 90916-03141 |
| 16341 | GASKET, WATER OUTLET | 16341-27010 |
| 16360A | Fan assembly with motor | 16360-0G070 · 16360-0G080 |
| 16361 | Fan | 16361-0D080 · 16361-0G010 |
| 16361B | Fan No. 2 | 16361-0G020 |
| 16363 | cooling fan motor | 16363-0G050 · 16363-0H030 |
| 16363A | Cooling fan motor No. 2 | 16363-0G060 |
| 16400 | Radiator assembly | 16400-0D120 · 16400-0D210 · 16400-0G030 · 16400-0R010 · 16400-0R011 |
| 16400B | Radiator drain switch screw plug | 16417-0R010 · 23322-54010 · 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-20353 · 16401-72090 |
| 16442 | O-ring (for radiator tank) | 16462-6A300 |
| 16462 | O-ring (for radiator lower tank) | 16442-0D200 · 16462-6A300 |
| 16470 | Radiator reservoir assembly | 16480-0G020 · 16480-0R010 · 16480-0R011 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16377-21040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16405-0D040 · 16475-28120 · 16475-51010 |
| 16472 | Breather hose | 16472-0G020 · 16472-0R010 |
| 16482 | Radiator reservoir sub-assembly | 16482-0G020 |
| 16523A | Radiator bracket cushion | 16523-0D020 |
| 16535 | Radiator lower support | 16535-0D031 · 16535-0R010 · 16535-27010 |
| 16571 | Radiator water inlet hose | 16571-0G011 · 16571-0R010 · 16571-0R020 · 16571-22160 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-41005 · 90466-41008 · 90466-W0011 · 90466-W0012 |
| 16572 | Radiator outlet hose | 16572-0D110 · 16572-0D270 · 16572-0G010 · 16572-0R010 · 16572-0R020 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-41005 · 90466-41007 · 90466-41008 · 90466-W0013 |
| 16701 | Fan cover sub-assembly | 16711-0G030 · 16711-0G060 · 16711-0R010 · 16711-0R050 |
| 16711 | fan cover | 16711-0D141 |
