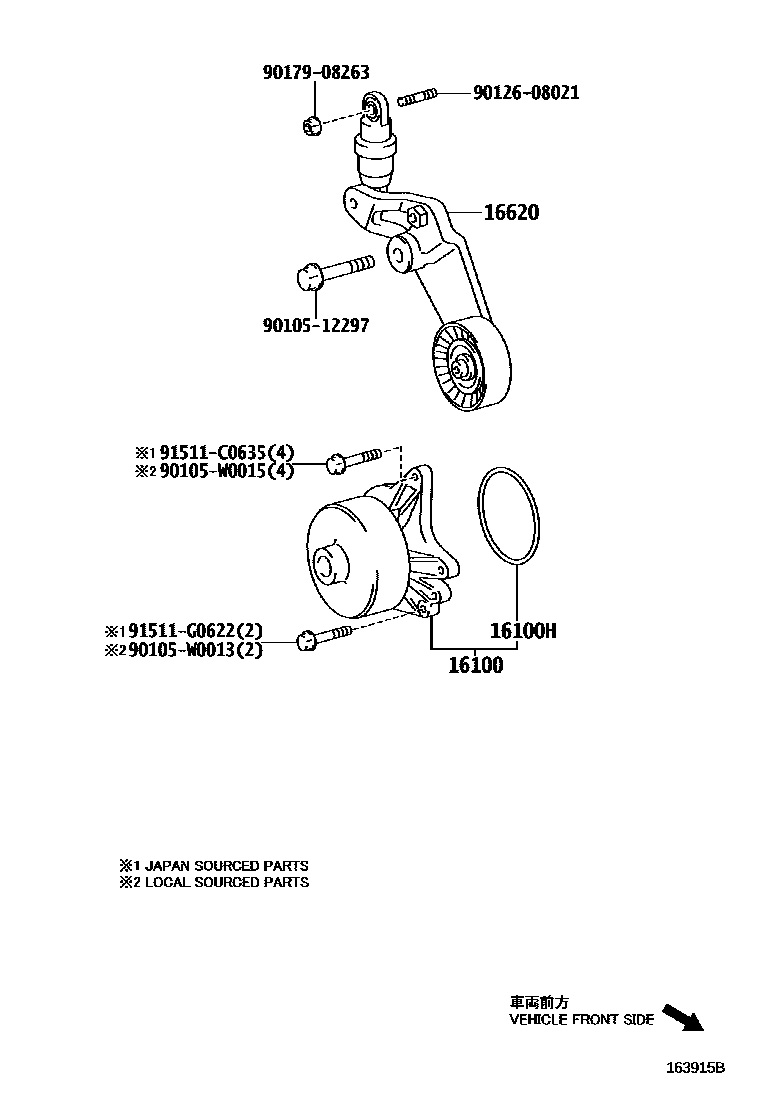

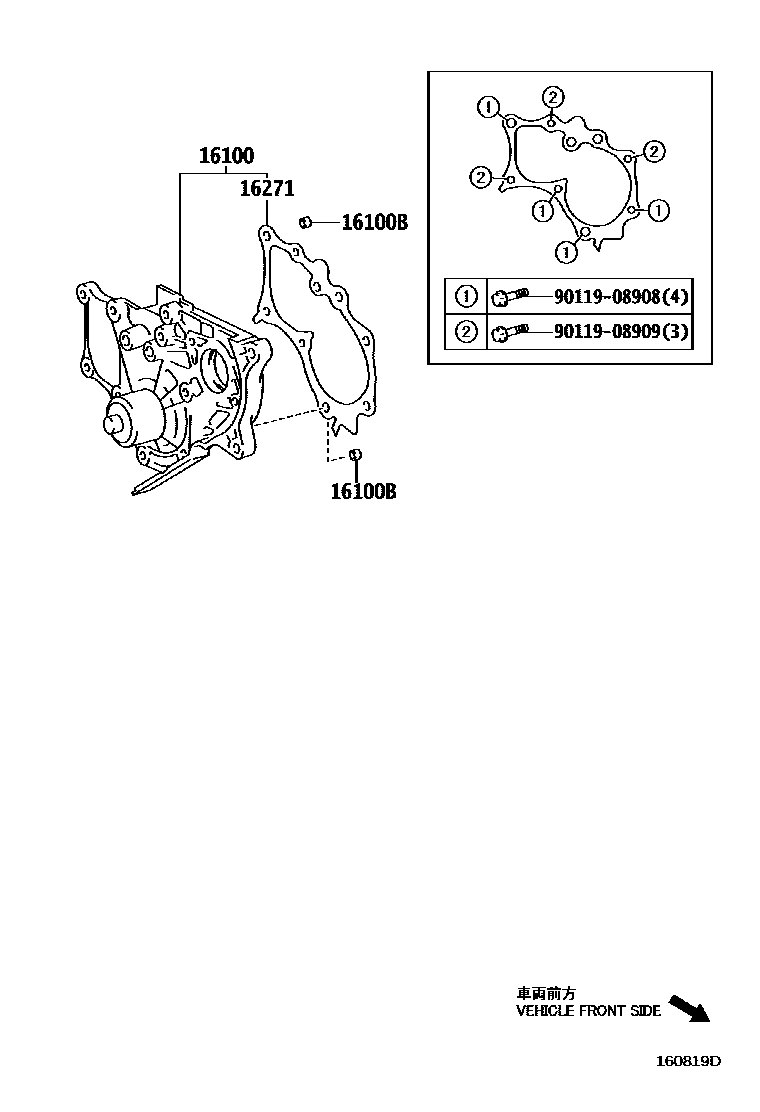

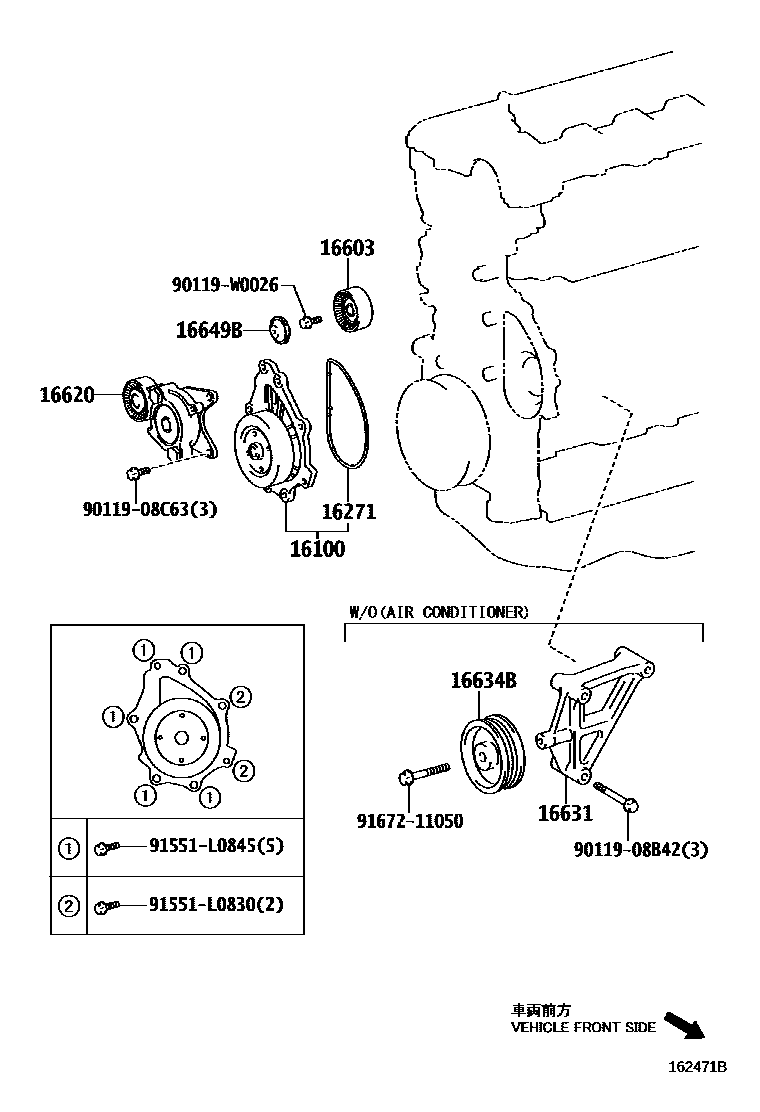

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09310 · 16100-09340 · 16100-29185 · 16100-29415 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 90301-69006 |
| 16271 | water pump gasket | 16271-26010 · 16271-27010 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-0R010 |
| 16620 | Poly V-belt tensioner assembly | 16620-0R010 · 16620-0W093 · 16620-22012 |
| 16631 | Idler gear bracket | 16631-31011 |
| 16634B | Idler gear assembly | 16634-26010 |
| 16649B | Idler cover | 16649-0R010 |
