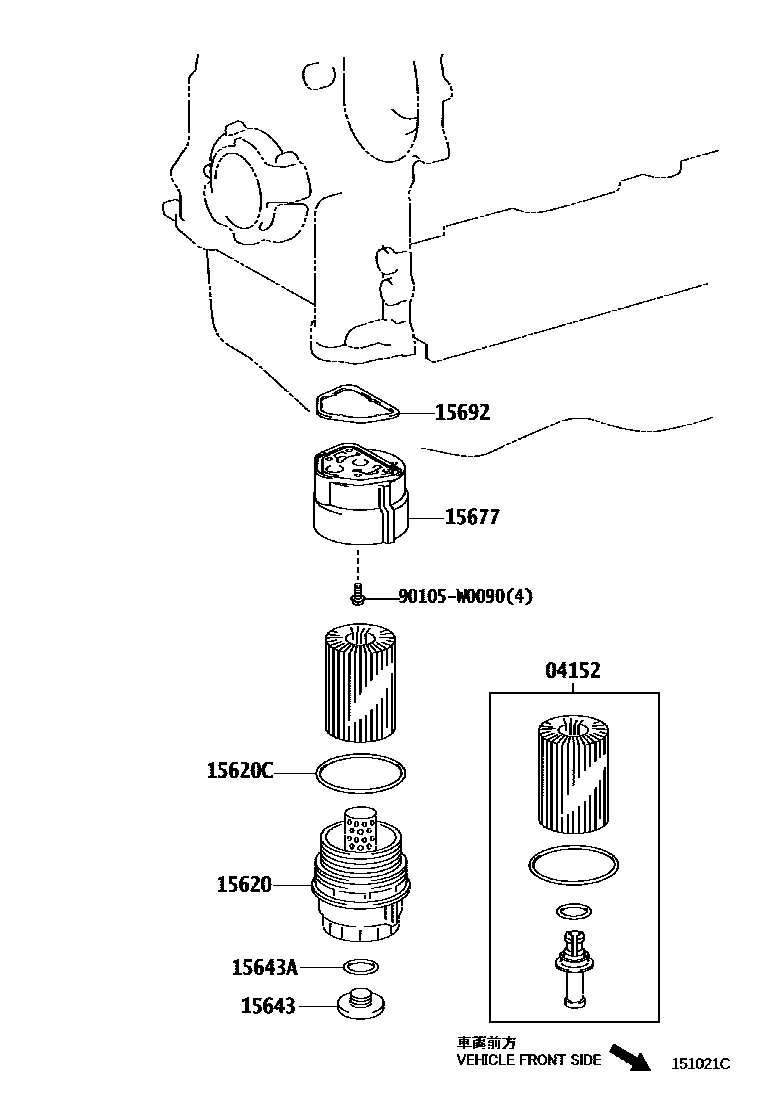

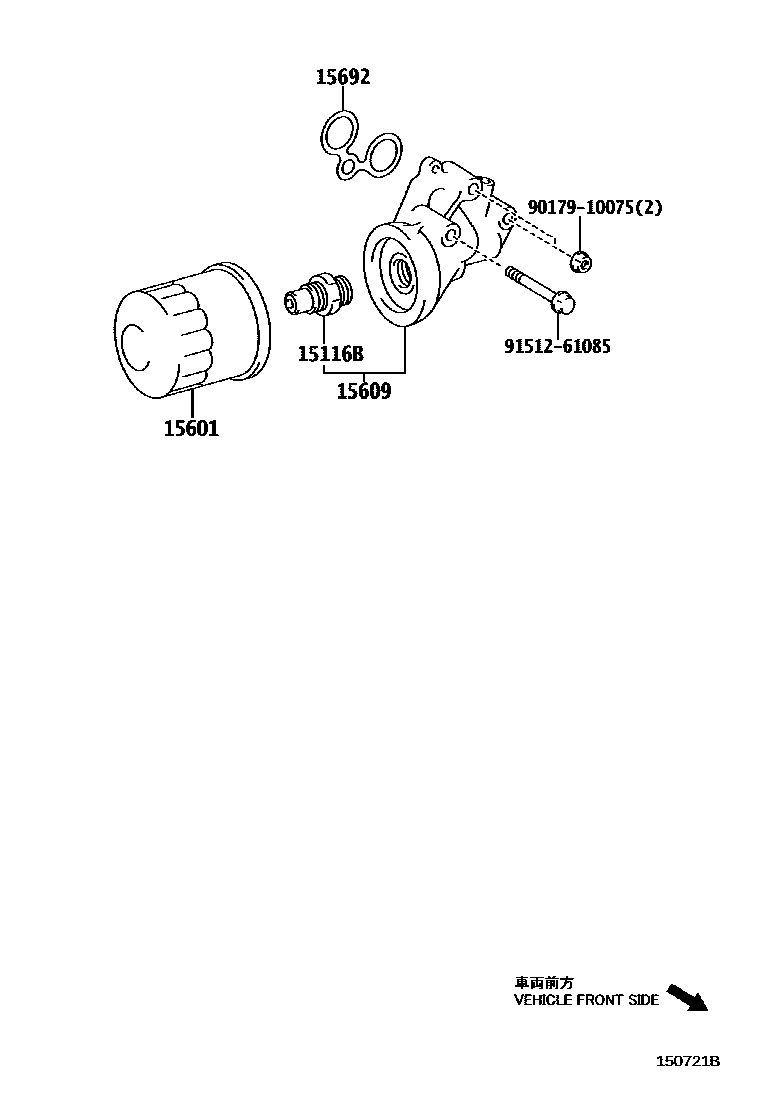

Toyota COROLLA Oil Filter — Figure 1502
Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-0R010 |
| 15116B | Oil filter fixing screw | 15116-54021 |
| 15600A | Connector (for oil filter) | 90904-04002 |
| 15601 | Oil filter sub-assembly | 90915-10003 · 90915-30003 · 90915-CA003 |
| 15609 | Oil filter bracket sub-assembly | 15609-27010 |
| 15620 | Oil filter cover assembly | 15620-0R010 · 15620-0R011 |
| 15620C | Gasket (for oil filter cover) | 90301-79005 · 90301-79006 |
| 15643 | Oil filter drain plug | 15643-0R010 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15677 | Oil filter bracket | 15677-0R010 |
| 15692 | Oil filter holder gasket | 15692-26010 · 15692-27010 |
