Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 4 images and 5 PNC and OE references.

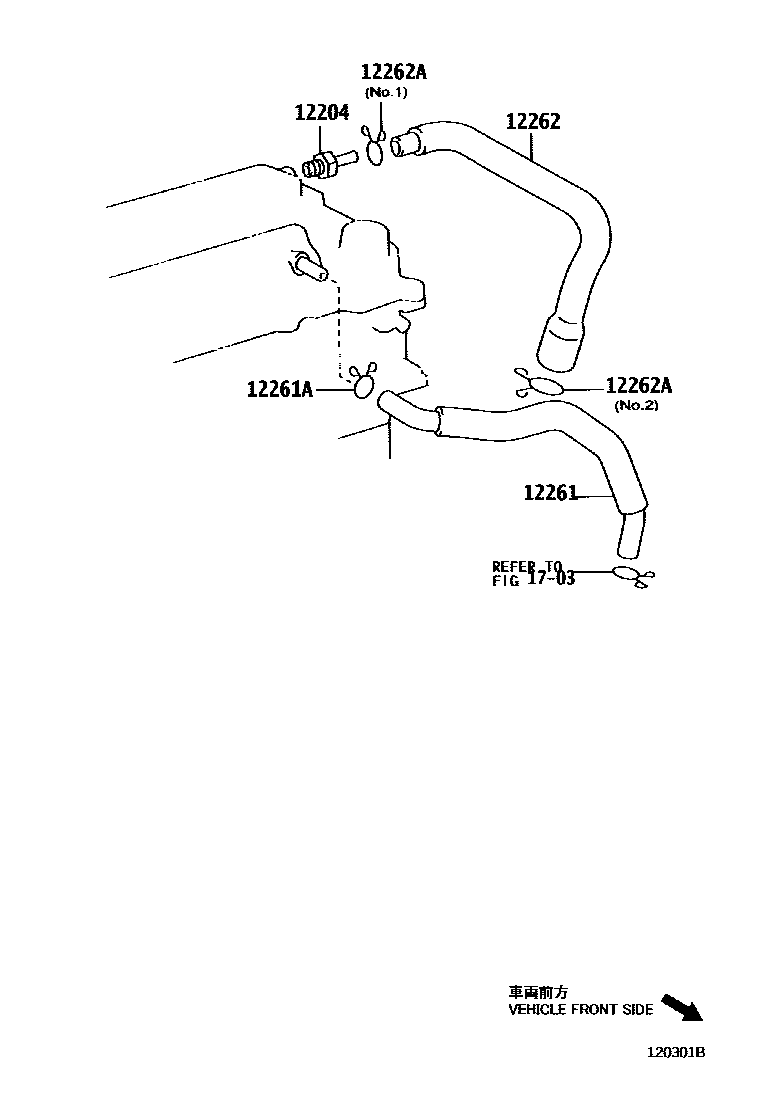

Toyota COROLLA Ventilation Hose EPC diagram — 120301B
Ventilation Hose — 120301B (200402 – 999999)

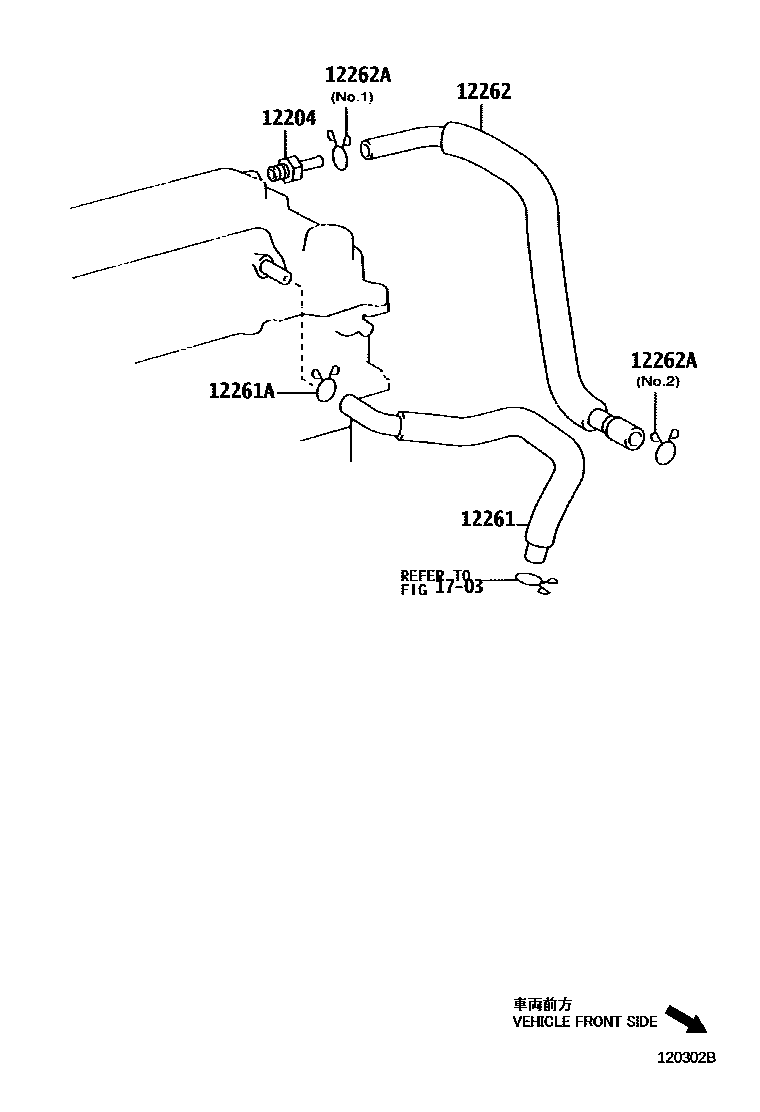

Toyota COROLLA Ventilation Hose EPC diagram — 120302B
Ventilation Hose — 120302B (200402 – 999999)

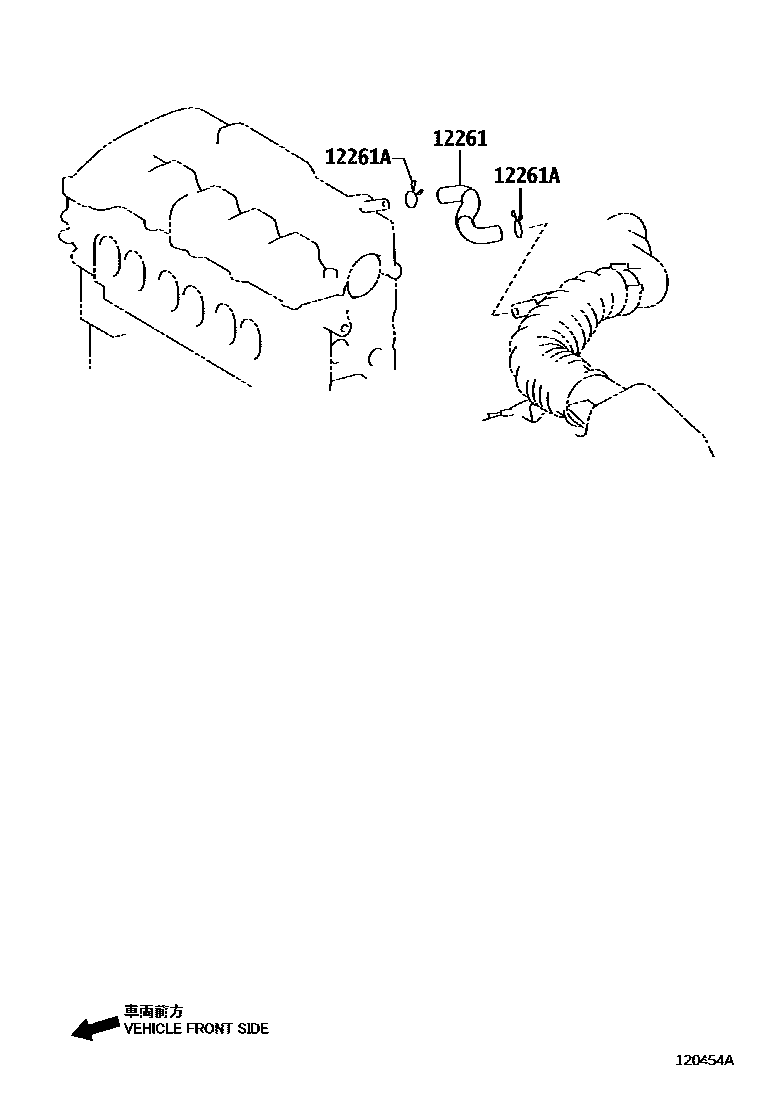

Toyota COROLLA Ventilation Hose EPC diagram — 120454A
Ventilation Hose — 120454A (200508 – 999999)

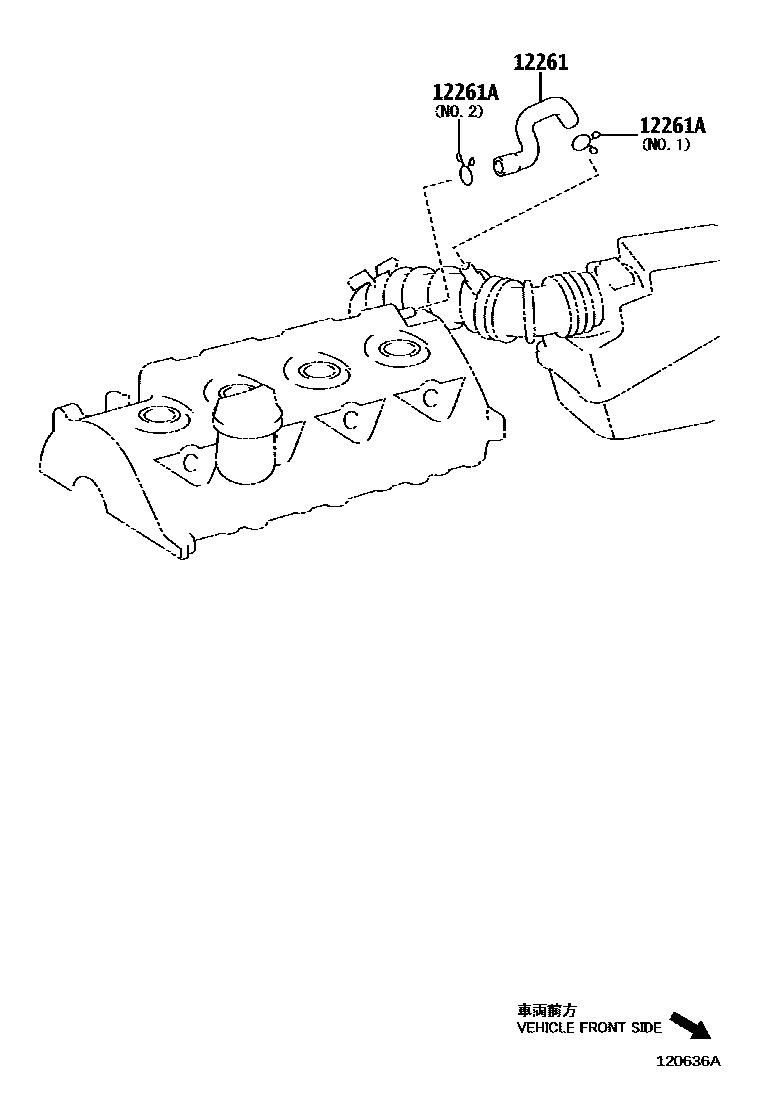

Toyota COROLLA Ventilation Hose EPC diagram — 120636A
Ventilation Hose — 120636A (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-22050 · 12204-22051
12261Ventilation Hose12261-0R010 · 12261-22070 · 12261-27060
12261AClip or clip (for vent hose)90466-23003 · 90467-21004 · 90467-21152 · 90467-23002
12262Ventilation hose No. 212262-0D100 · 12262-0D110 · 12262-22040 · 12262-22080
12262AClamp (for vent hose No. 2)90467-13103 · 90467-19003
