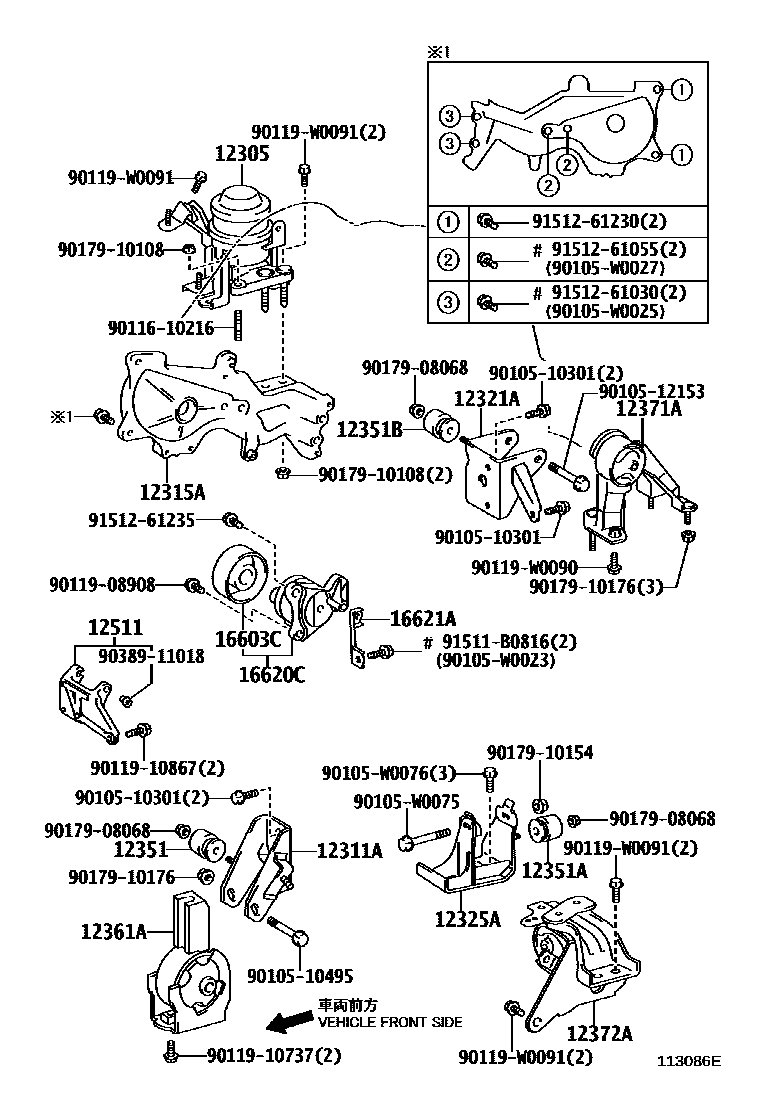

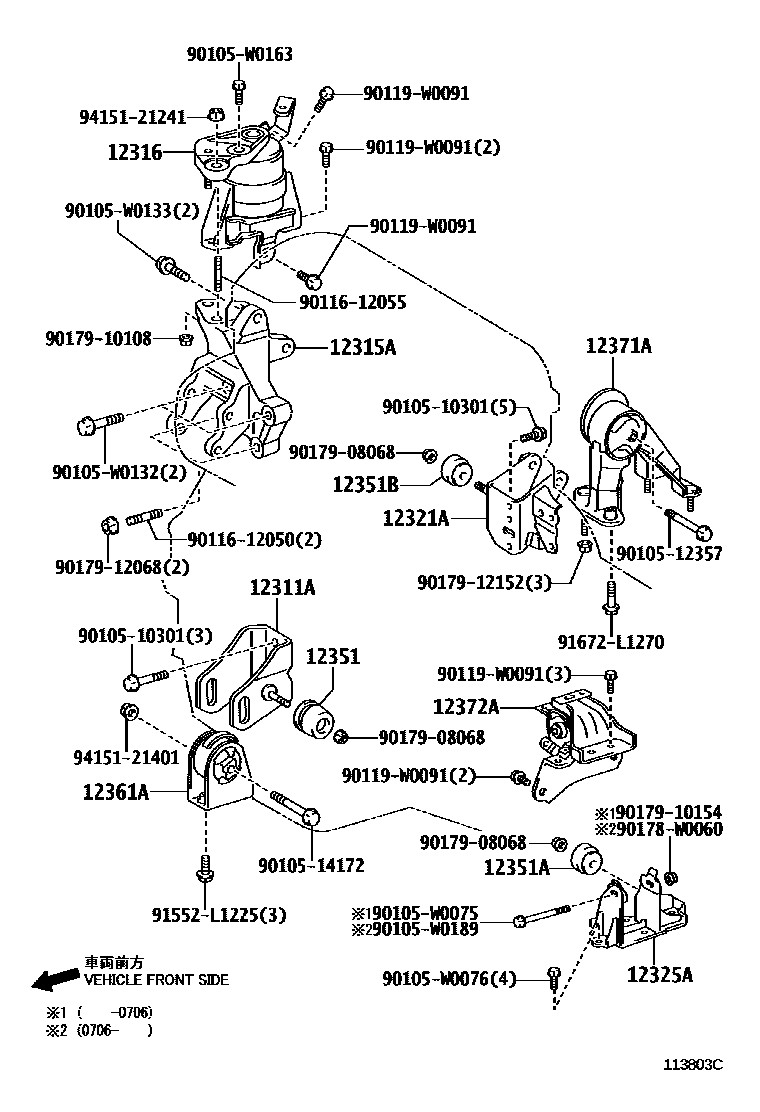

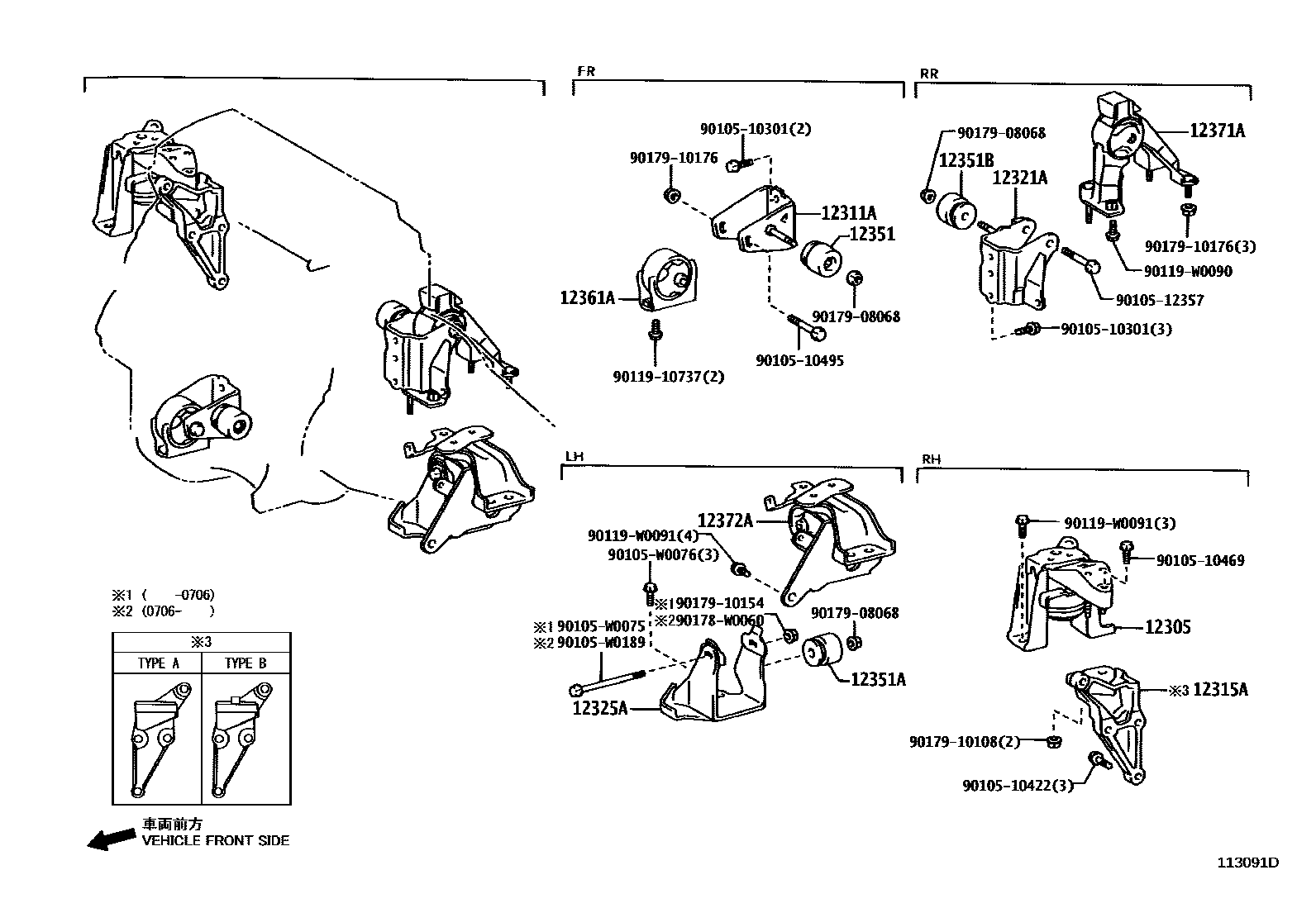

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0D051 · 12305-27060 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0D090 · 12311-0G010 · 12311-26070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0D040 · 12315-0D070 · 12315-0G010 · 12315-0R012 · 12315-22050 |
| 12316 | Engine No. 2 right side suspension bracket | 12305-0R010 · 12305-0R040 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0D140 · 12321-0D141 · 12321-0G020 · 12321-26040 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0D010 · 12325-0G010 · 12325-26010 |
| 12351 | engine mount shock absorber | 12351-0D020 |
| 12351A | Engine mount shock absorber (for vibration isolation pad) | 12351-0D030 · 12351-23010 |
| 12351B | engine mount shock absorber | 12351-0D020 · 12351-28060 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0D150 · 12361-0G020 · 12361-0R010 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0D130 · 12371-0G010 · 12371-0R030 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0D120 · 12372-0G010 · 12372-0R010 |
| 12511 | No. 1 generator bracket | 12511-0G010 · 12511-27010 |
| 16603C | Idler gear sub-assembly | 16603-27010 · 16603-27011 |
| 16620C | Poly V-belt tensioner assembly | 16620-27020 · 16620-27021 |
| 16621A | Poly V-belt tensioner bracket | 16621-0G010 · 16621-27010 |
