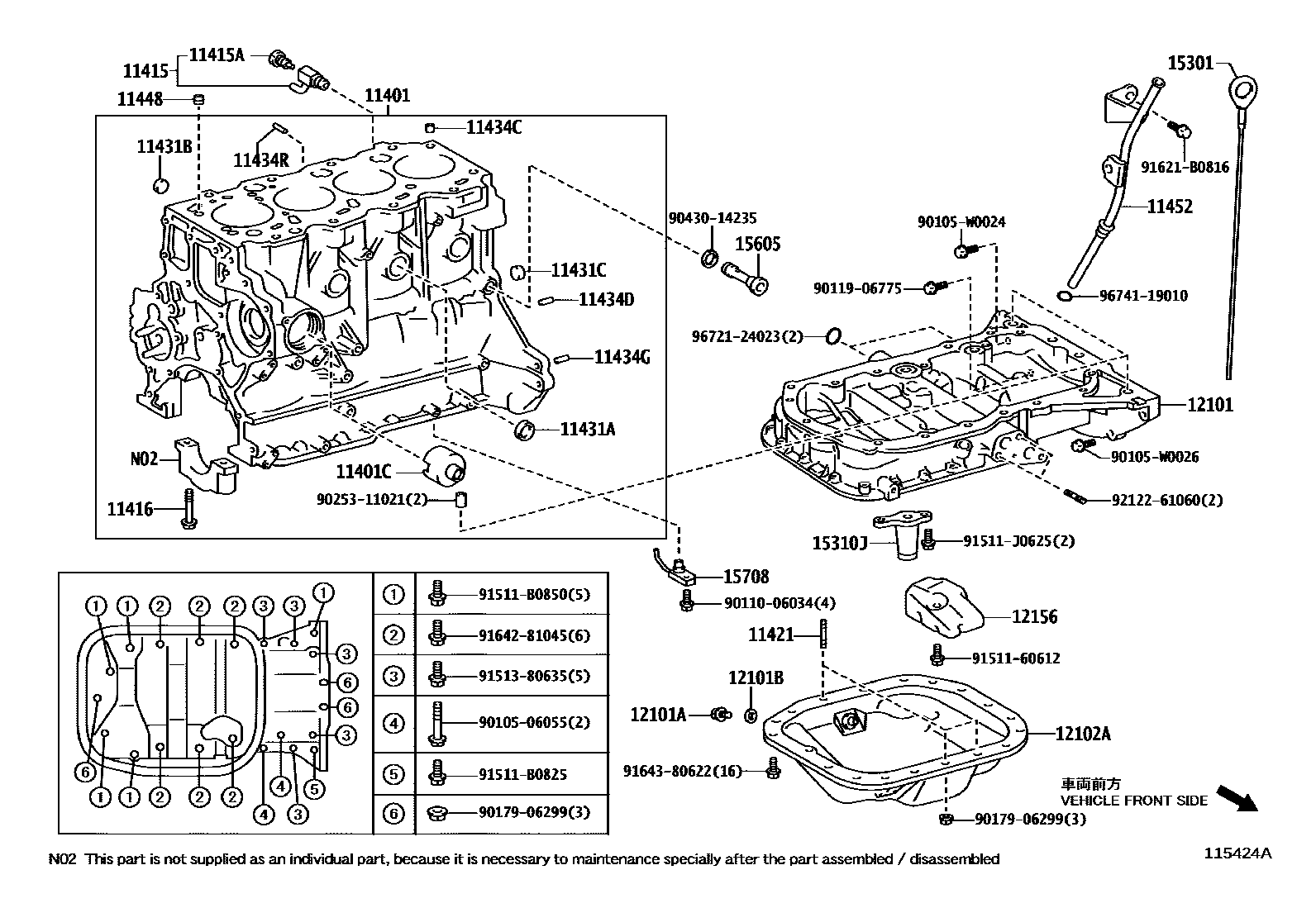

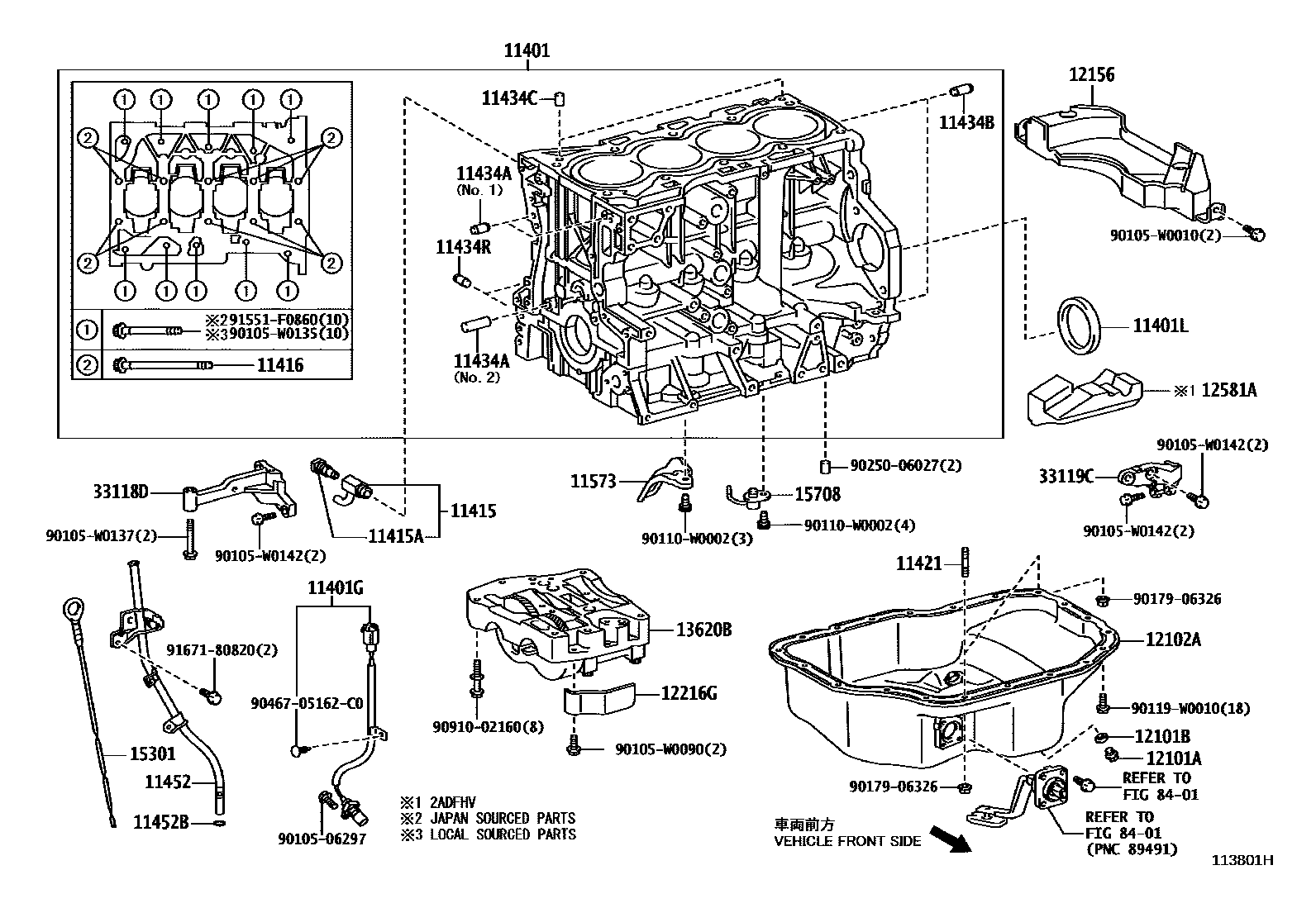

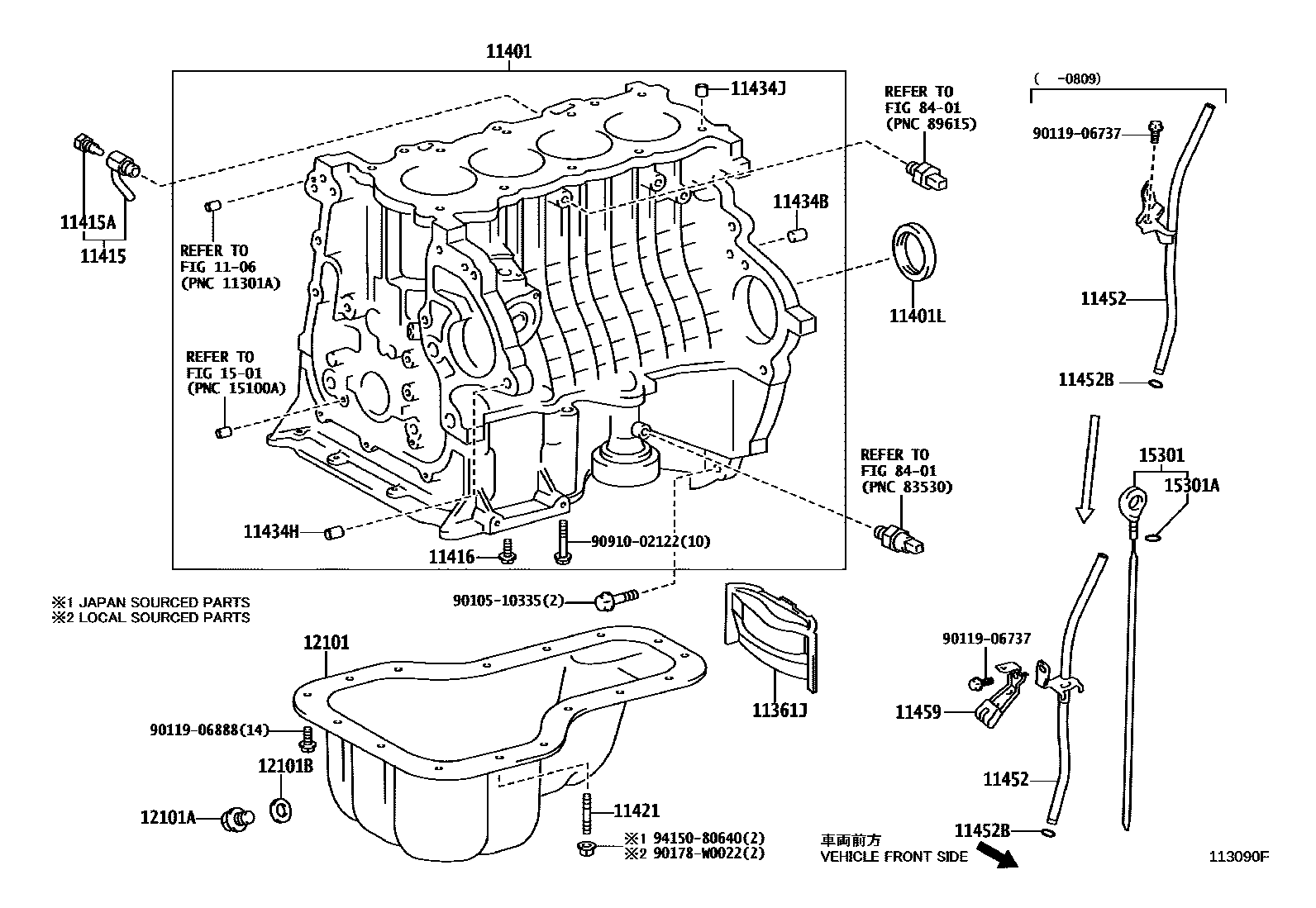

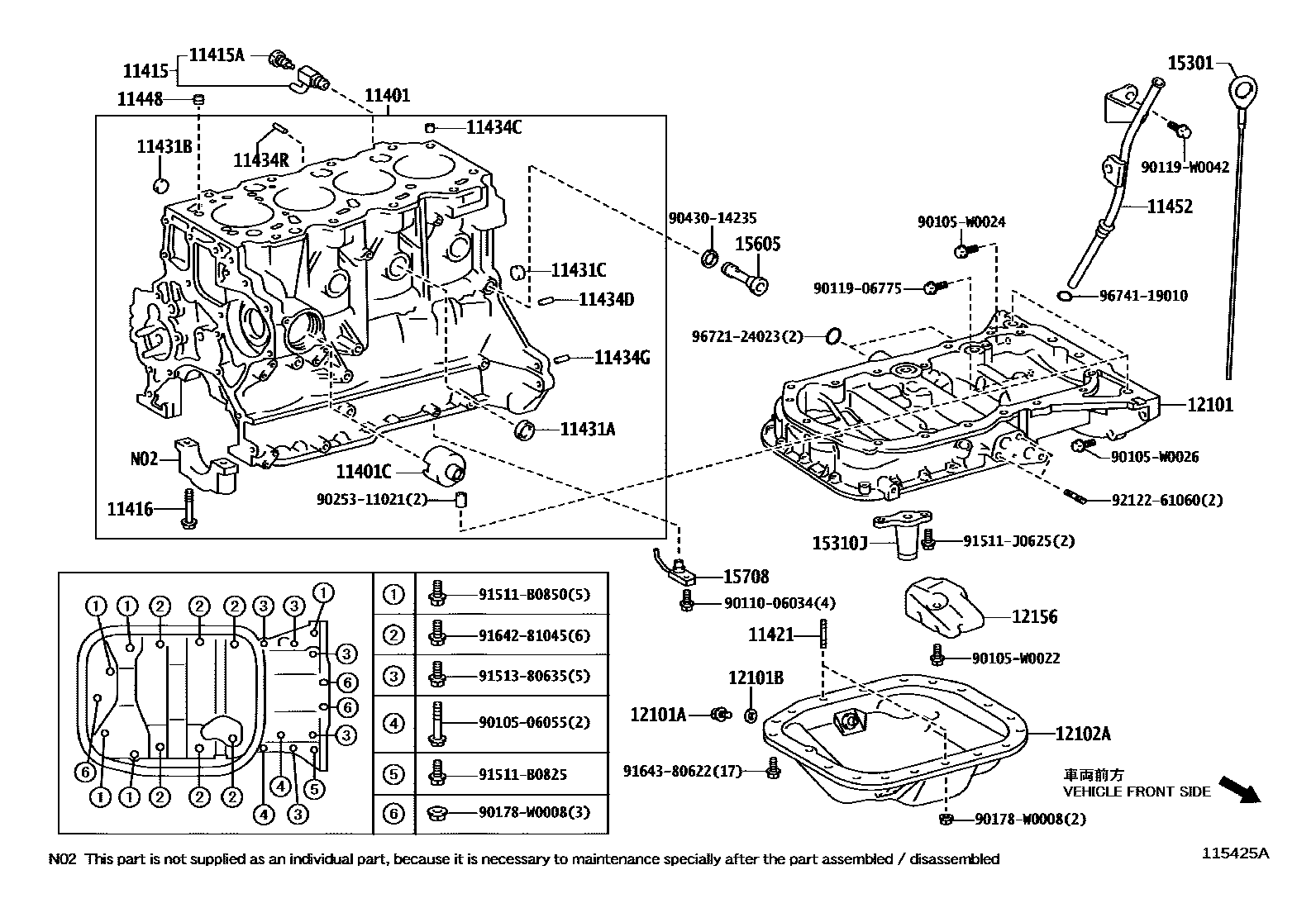

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-0D010 · 11361-22021 |
| 11401 | Cylinder block sub-assembly | 11401-29745 · 11410-09030 · 11410-09180 · 11410-09250 · 11410-09380 · 11410-09415 · 11410-29155 · 11410-29156 · 11410-29165 · 11410-29355 · 11410-29395 · 11410-29415 |
| 11401C | Flange (for water bypass pipe) | 16353-27011 |
| 11401G | crankshaft position sensor | 90919-05069 |
| 11401L | SEAL, ENGINE REAR OIL | 90080-31059 · 90311-76001 · 90311-W0006 · 90311-W0010 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09107 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02135 · 90910-02157 · 91511-K0840 |
| 11421 | Stud bolts (for oil pan) | 90116-06134 · 90116-06164 · 90126-06010 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90250-10030 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08074 · 90253-14004 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 · 90250-08120 |
| 11448 | Cylinder block oil orifice | 11448-64010 |
| 11452 | Engine oil level gauge guide | 11452-22030 · 11452-22031 · 11452-26020 · 11452-27060 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96741-19010 |
| 11459 | Oil level gauge guide bracket | 11459-22010 |
| 11573 | Oil reflector baffle | 11573-26010 |
| 12101 | Oil pan sub-assembly | 12101-0D020 · 12101-22024 · 12101-27011 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90080-43037 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0R010 · 12102-27030 |
| 12156 | Oil pan vibration isolation pad | 12156-0G010 · 12156-0R010 · 12156-27030 |
| 12216G | Oil baffle | 12216-26010 · 12216-26011 |
| 12581A | No. 1 cylinder block vibration isolation pad | 12581-26010 |
| 13620B | Engine balancer assembly | 13620-26012 · 13620-26013 · 13620-26014 · 13620-26015 · 13620-26016 · 13620-26060 |
| 15301 | Engine oil level scoring assembly | 15301-0D010 · 15301-0D011 · 15301-22030 · 15301-22050 · 15301-26020 · 15301-27040 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15310J | Oil regulator assembly | 15310-27010 |
| 15605 | Oil check valve sub-assembly | 15703-27010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0R010 · 15790-27020 |
| 33118D | Right reinforcement plate | 33118-05010 |
| 33119C | Left reinforcement plate | 33119-05010 |
