Toyota COROLLA Cylinder Head — Figure 1104

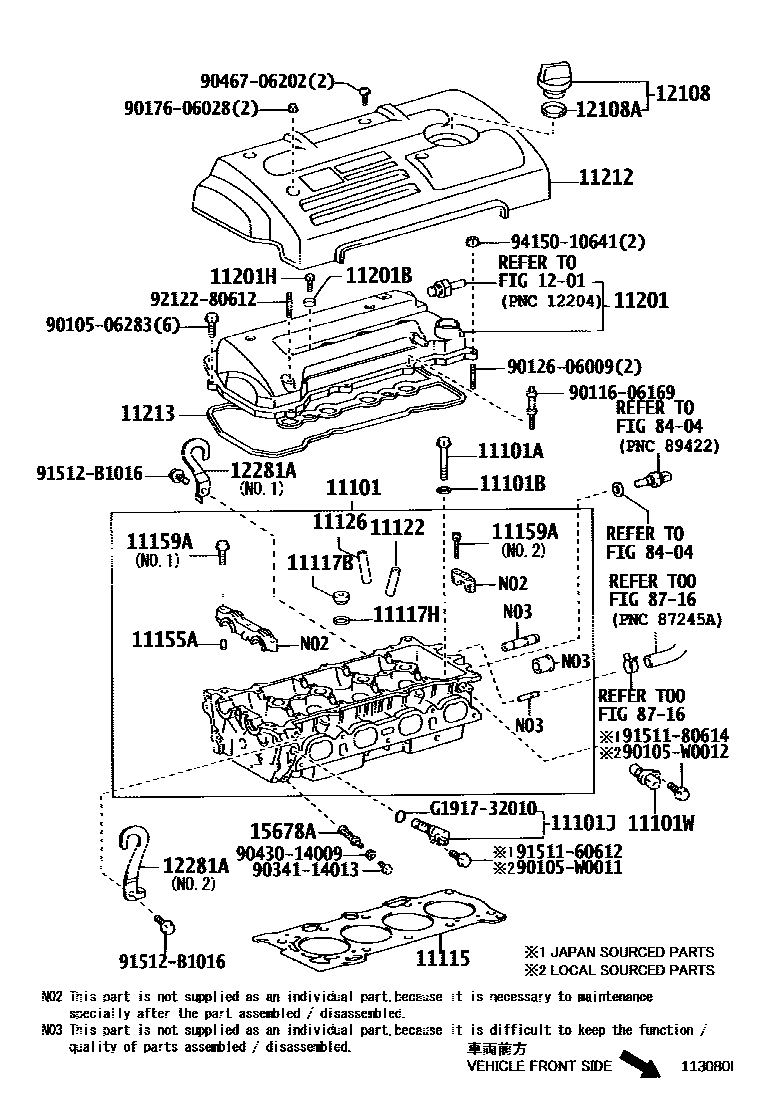

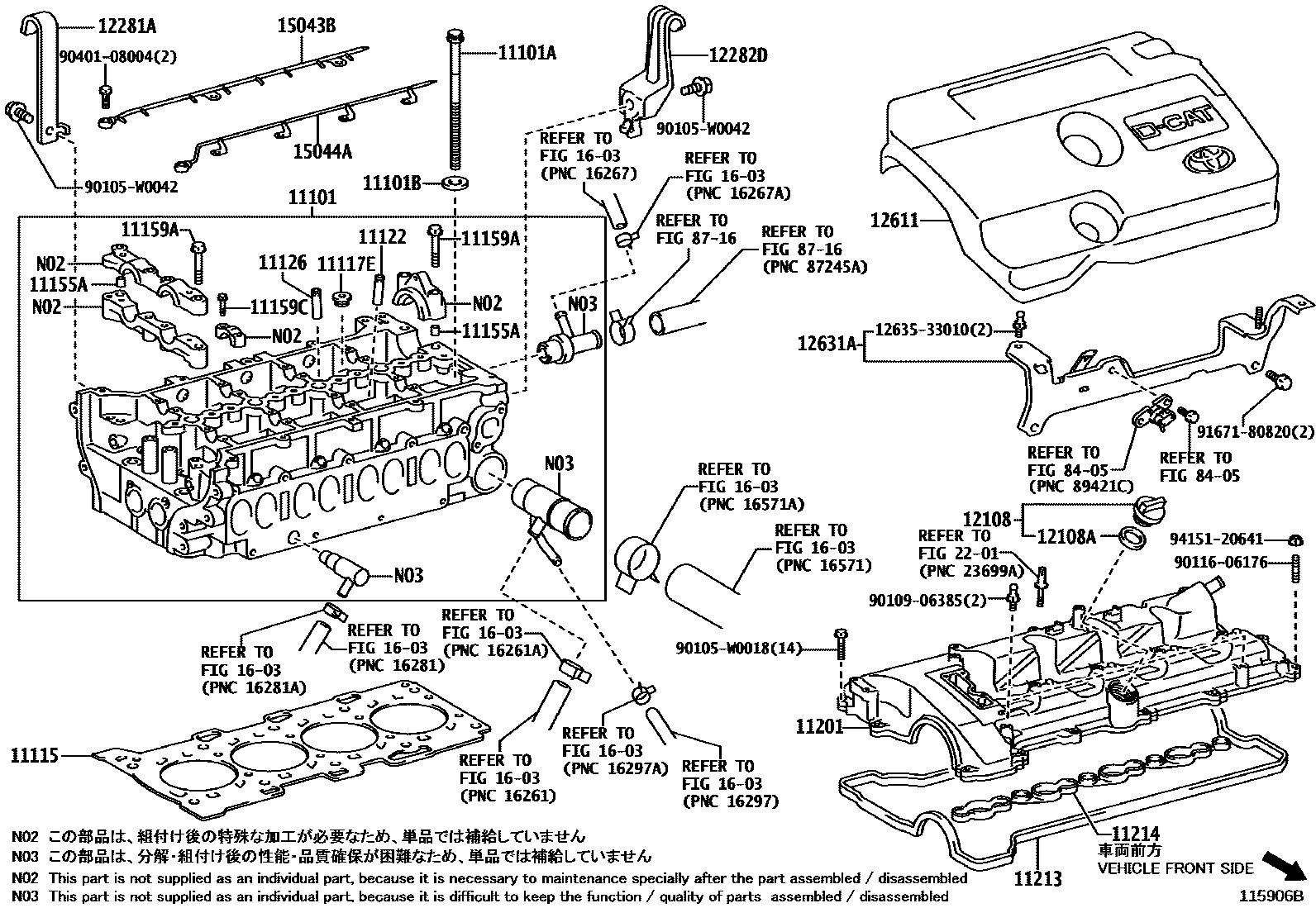

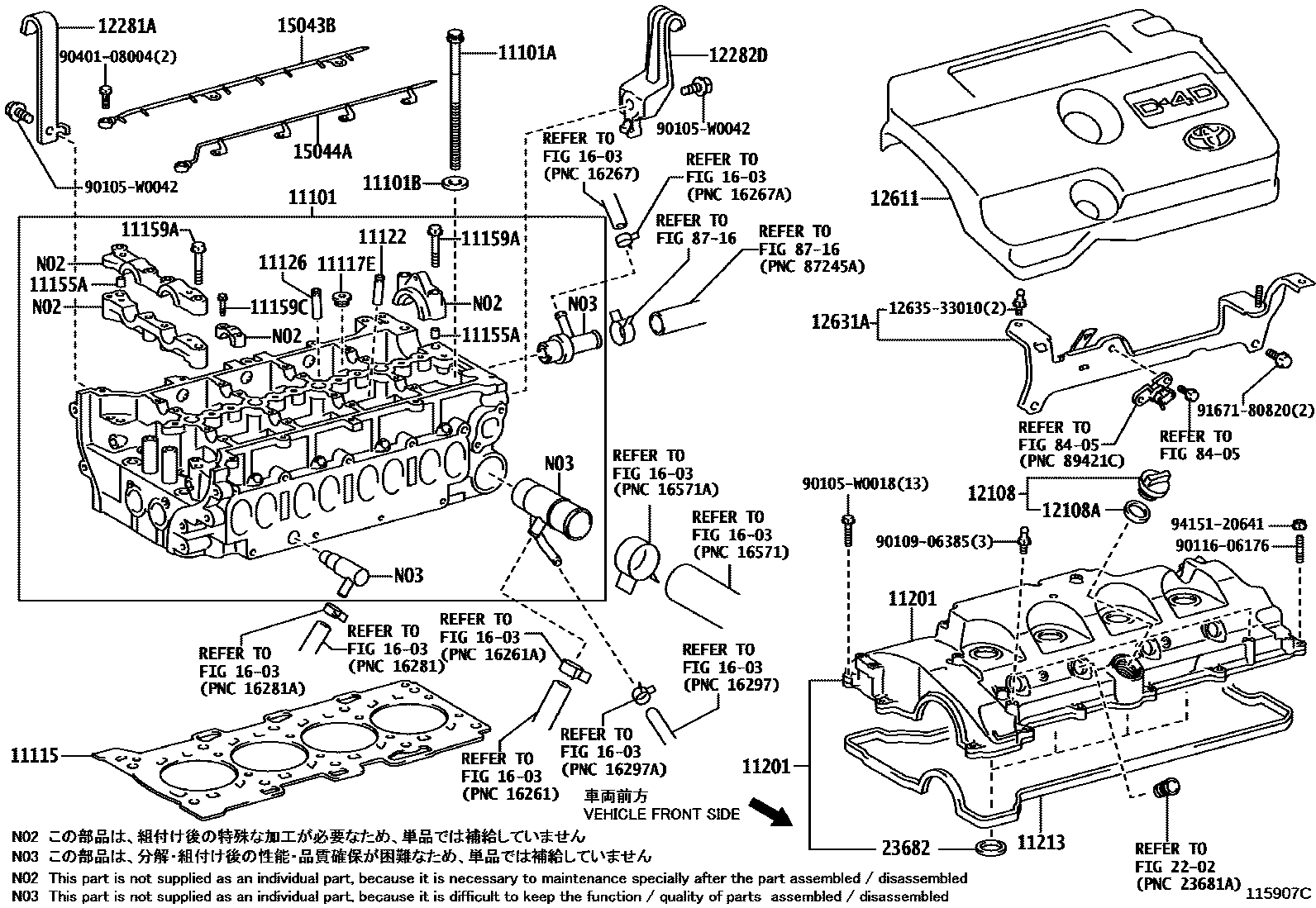

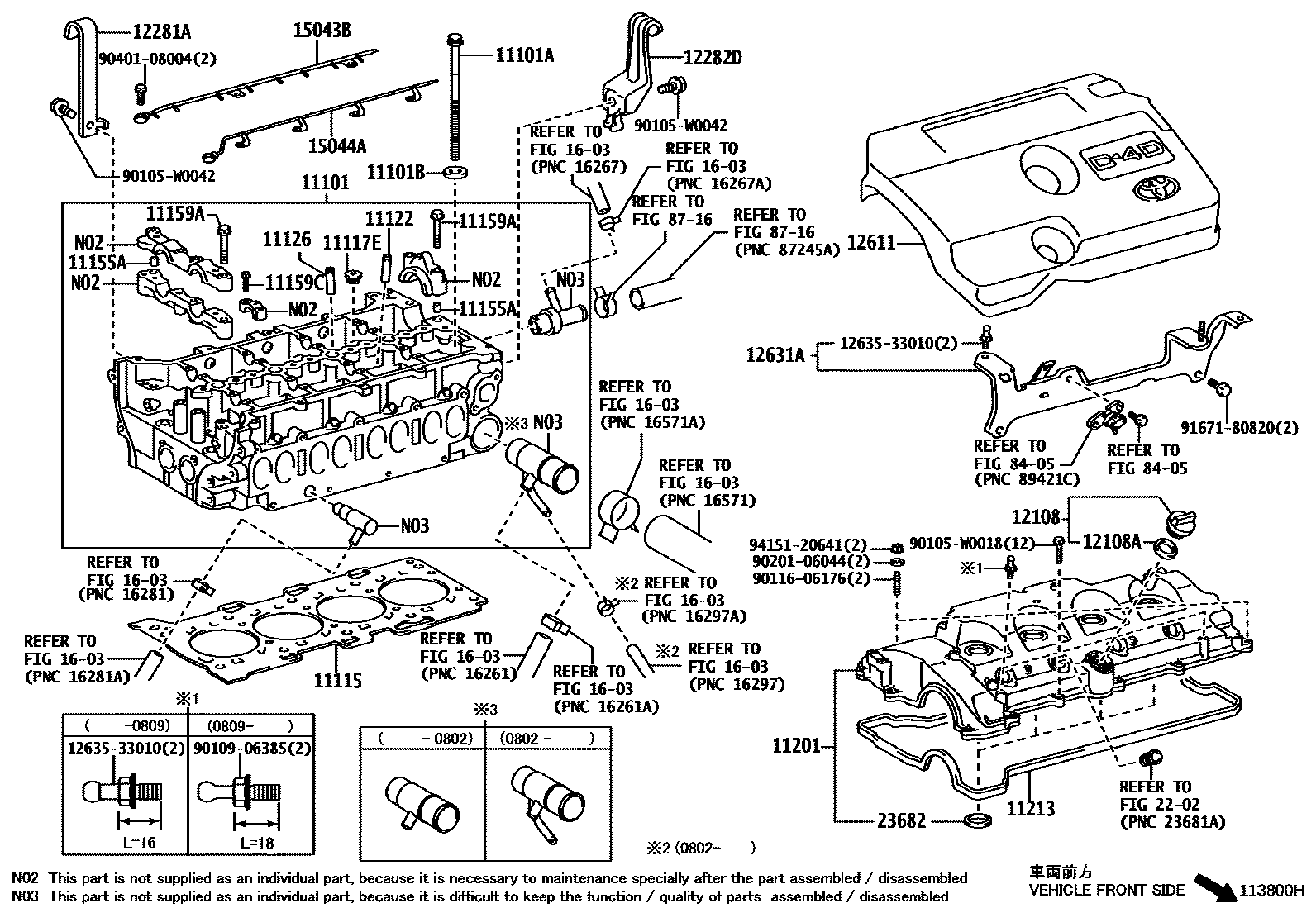

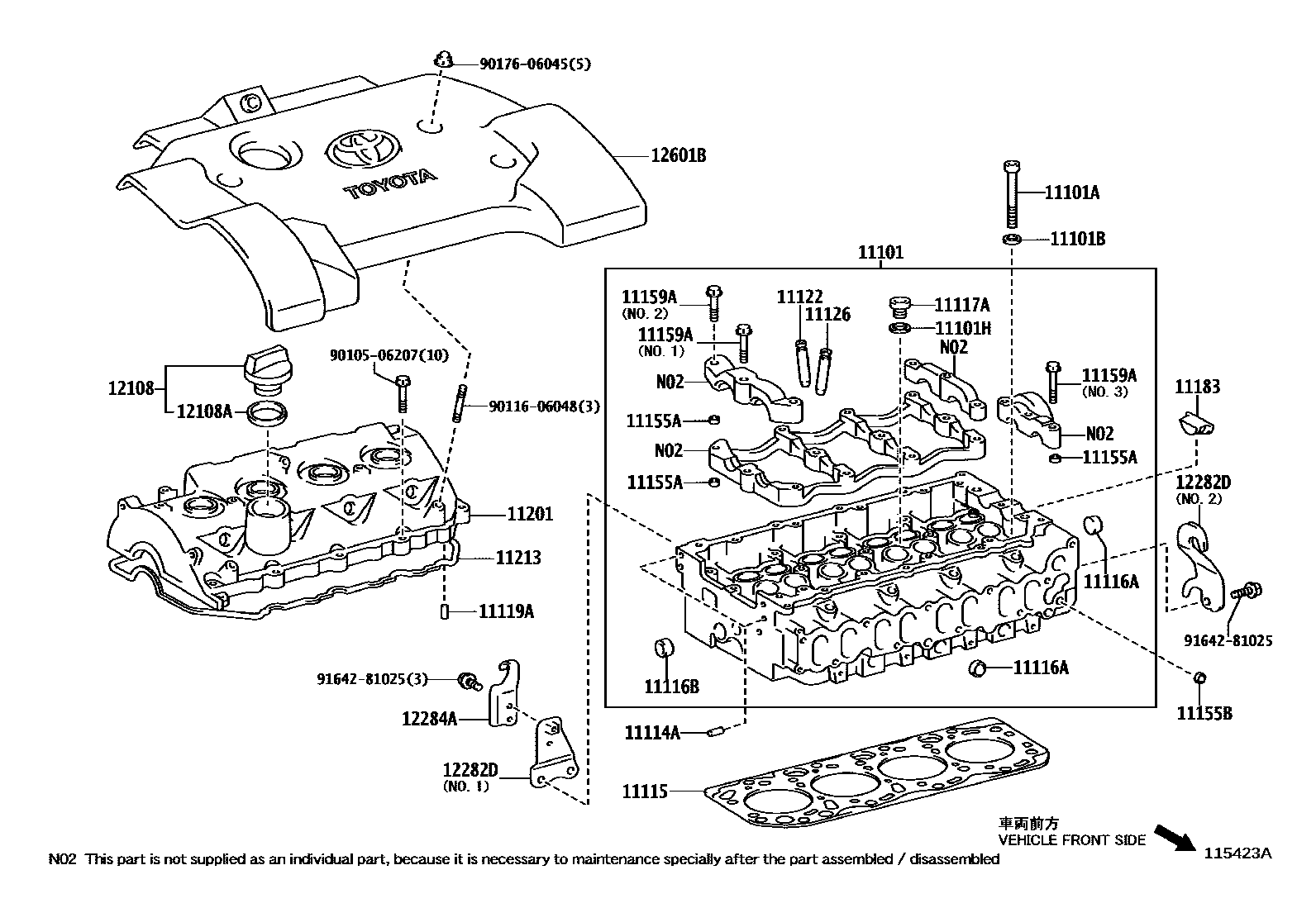

Toyota COROLLA EPC diagram 1104, Cylinder Head, with 6 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09355 · 11101-09365 · 11101-09375 · 11101-09385 · 11101-09395 · 11101-09415 · 11101-0D030 · 11101-22071 · 11101-27050 · 11101-29555 · 11101-29565 · 11101-29575 · 11101-29585 · 11101-29596 · 11101-29615 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02136 · 90910-02139 · 90910-02152 · 90910-02158 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-11016 · 90560-13023 |
| 11101H | Gasket (for cylinder head thread plug) | 90430-14008 |
| 11101J | Camshaft timing oil control valve assembly | 15330-22030 |
| 11101W | No. 1 crankshaft position sensor | 90919-05026 |
| 11114A | direct selling | 90250-06068 |
| 11115 | GASKET, CYLINDER HEAD | 11115-22050 |
| 11116A | No. 1 sealing plug | 96411-62000 |
| 11116B | No. 2 sealing plug | 96411-63000 |
| 11117A | No. 1 headed tapered thread plug | 90341-14008 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-14015 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11119A | No. 1 direct sales | 90250-06013 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-0R010 · 11122-20020 · 11122-27010 · 11123-0R010 · 11123-20020 · 11123-27010 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11122-0R010 · 11122-20020 · 11122-27010 · 11123-0R010 · 11123-20020 · 11123-27010 |
| 11155A | PIN, RING W/HEAD | 90250-06001 · 90253-11021 |
| 11155B | PIN, RING | 90253-13008 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-W0138 · 90109-06080 · 90119-08A29 · 90119-08B76 · 91511-80860 · 91511-C0835 · 91551-80860 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90105-W0139 · 91551-80630 · 91551-80632 |
| 11183 | PLUG, SEMICIRCULAR | 11183-64010 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0D020 · 11201-0R010 · 11201-0R011 · 11201-0R012 · 11201-22060 · 11201-26030 · 11201-26031 · 11201-26050 · 11201-26060 · 11201-26061 · 11201-27031 |
| 11201B | Gasket (for cylinder head cover) | 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90105-06202 |
| 11212 | No. 2 cylinder head cover | 11212-0D080 · 11212-22150 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0D030 · 11213-0G010 · 11213-0R010 · 11213-22050 · 11213-27010 |
| 11214 | No. 2 cylinder head cover gasket | 11214-26010 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0N010 · 12180-21010 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43020 · 90430-37140 |
| 12281A | Engine No. 1 hanger | 12281-15040 · 12281-22021 · 12281-26040 |
| 12282D | ENGINE HANGER, NO.2 | 12281-27050 · 12282-26010 · 12282-27060 |
| 12284A | ENGINE HANGER, NO.1 UPPER | 12284-27020 |
| 12601B | No. 1 engine hood sub-assembly | 12611-0G020 |
| 12611 | Engine hood No. 1 | 12611-0R030 · 12611-0R040 |
| 12631A | hood bracket | 12631-26010 |
| 15043B | Right camshaft oil pipe sub-assembly | 15043-0R010 |
| 15044A | Left camshaft oil pipe sub-assembly | 15044-0R010 |
| 15678A | Oil control valve filter | 15678-21010 |
| 23682 | Injector body gasket | 23682-27030 |
