Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

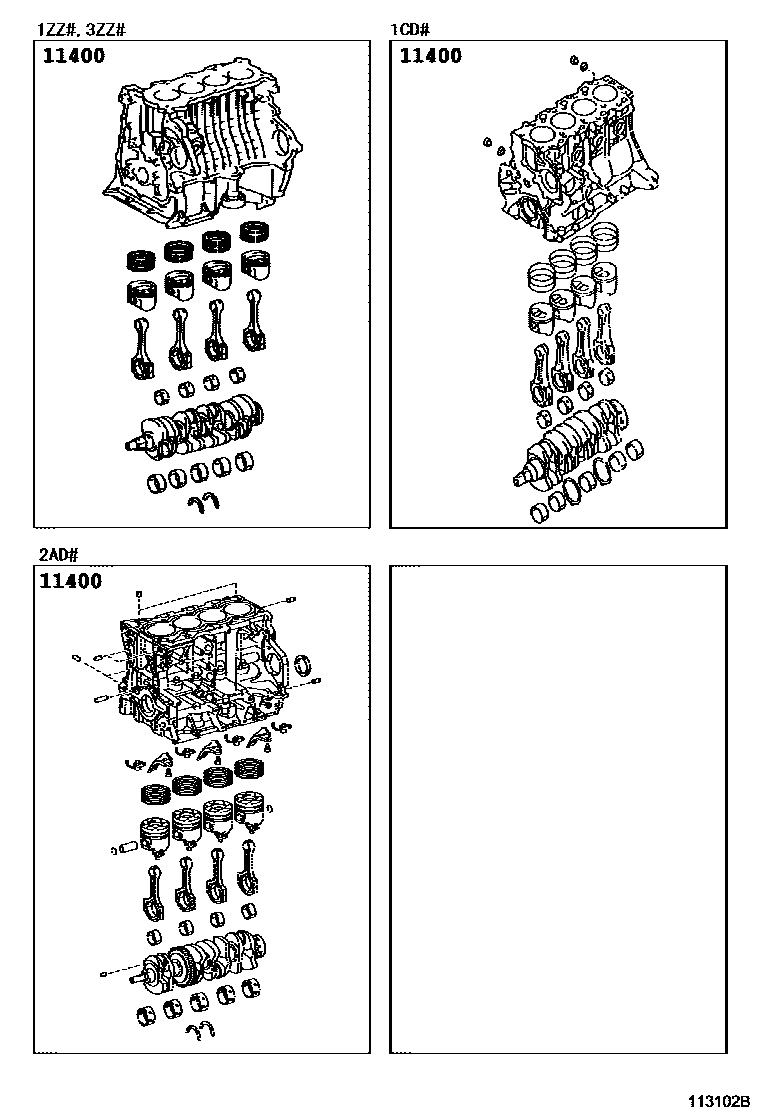

Toyota COROLLA Short Block Assembly EPC diagram — 113102B
Short Block Assembly — 113102B (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0D031 · 11400-0D032 · 11400-0D142 · 11400-0D143 · 11400-0G010 · 11400-0R010 · 11400-0R020 · 11400-0R022 · 11400-0R060 · 11400-0R070 · 11400-27200
