Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

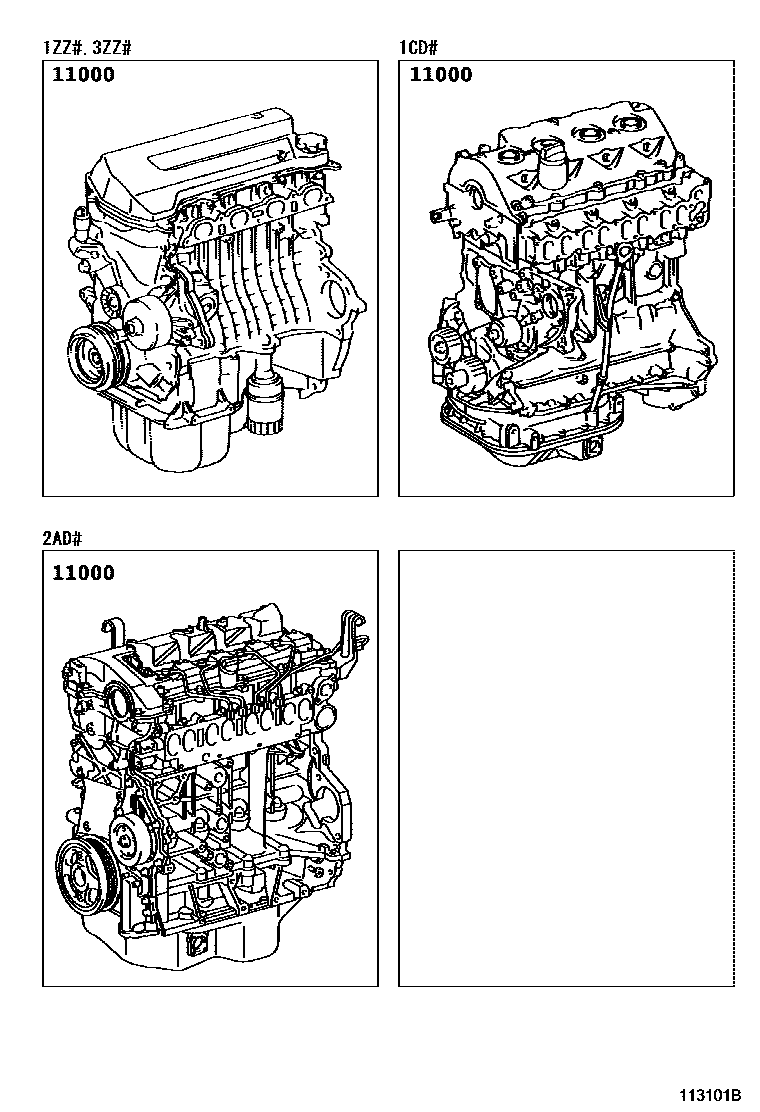

Toyota COROLLA Partial Engine Assembly EPC diagram — 113101B
Partial Engine Assembly — 113101B (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0D150 · 19000-0D191 · 19000-0G010 · 19000-0R020 · 19000-0R021 · 19000-0R023 · 19000-0R060 · 19000-0R061 · 19000-0R100 · 19000-0R101 · 19000-27280
