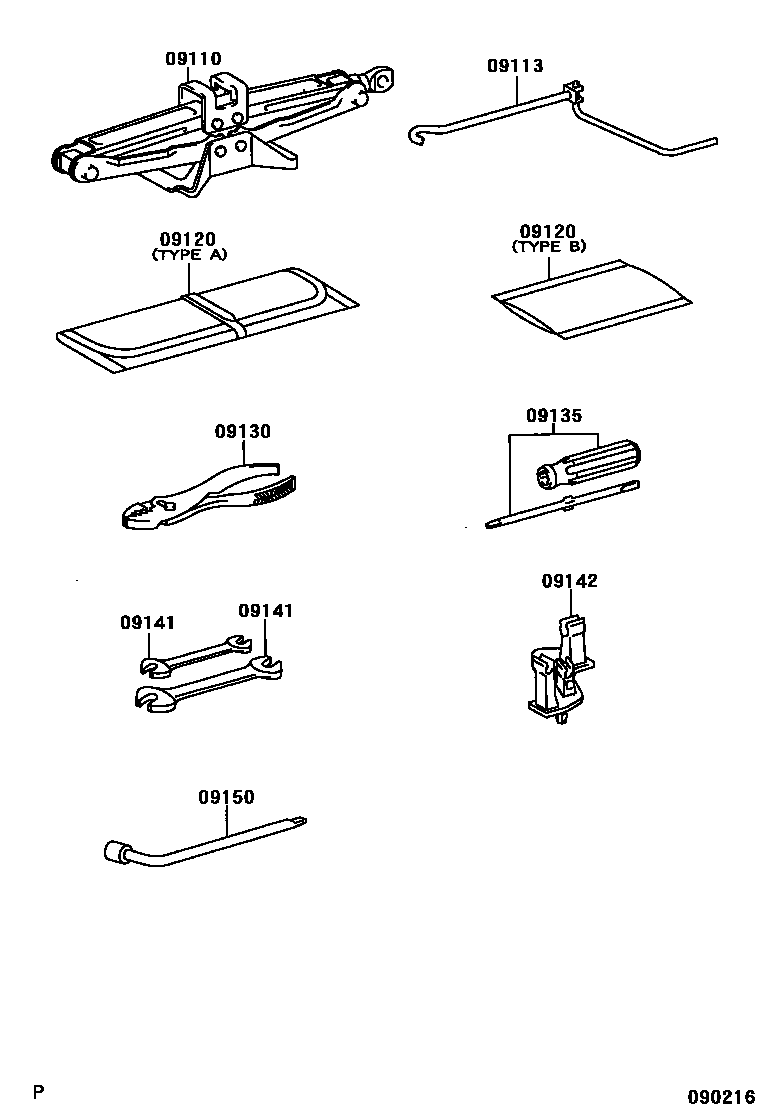

Toyota COROLLA Standard Tools — Figure 0901
Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-0F020 · 09111-50051 |
| 09113 | Jack Handle | 09113-0F010 |
| 09120 | Tool Bag | 09120-02050 · 09120-0F010 |
| 09130 | Pliers | 90080-99009 |
| 09135 | Screwdriver | 90080-99008 |
| 09141 | Wrench | 90080-99010 · 90080-99011 |
| 09142 | Jack handle clip | 09142-64010 |
| 09150 | Wheel Nut Wrench | 09150-02050 |
