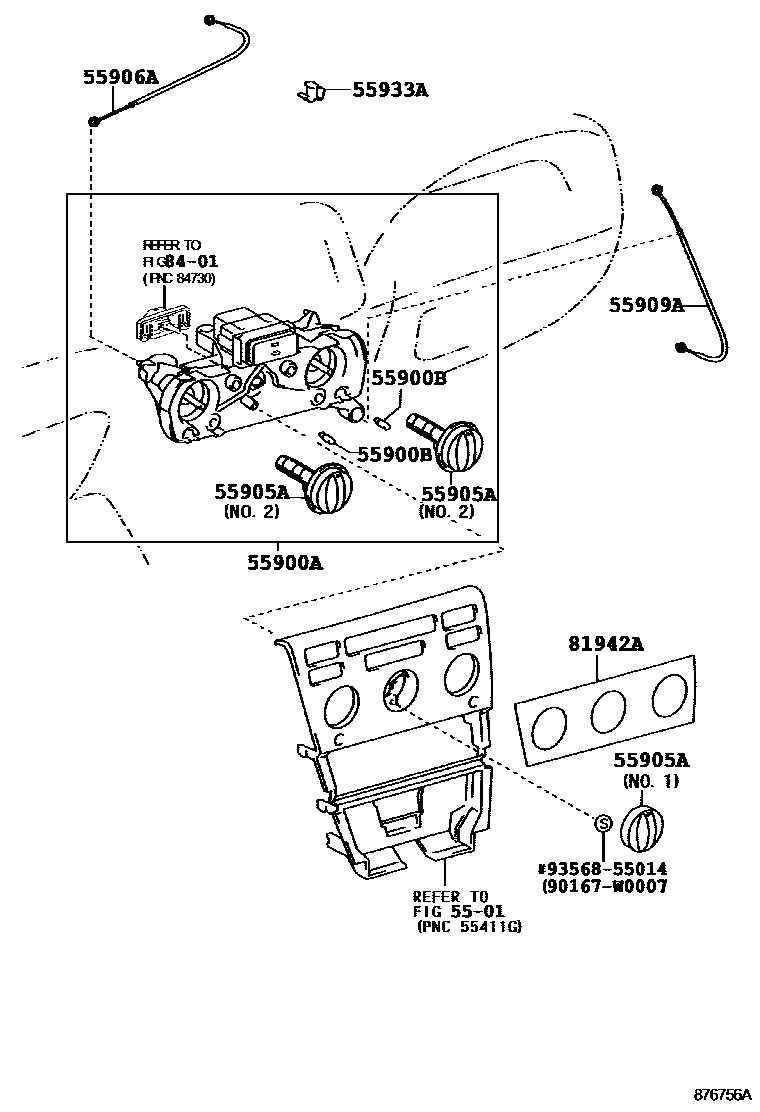

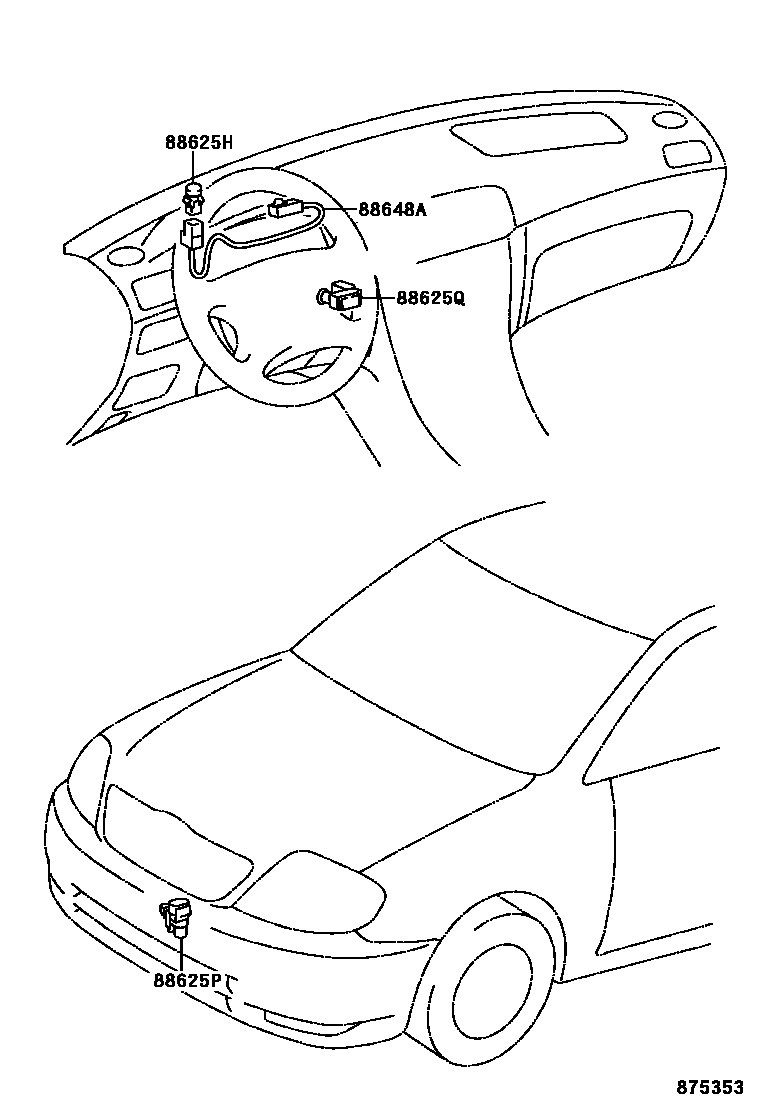

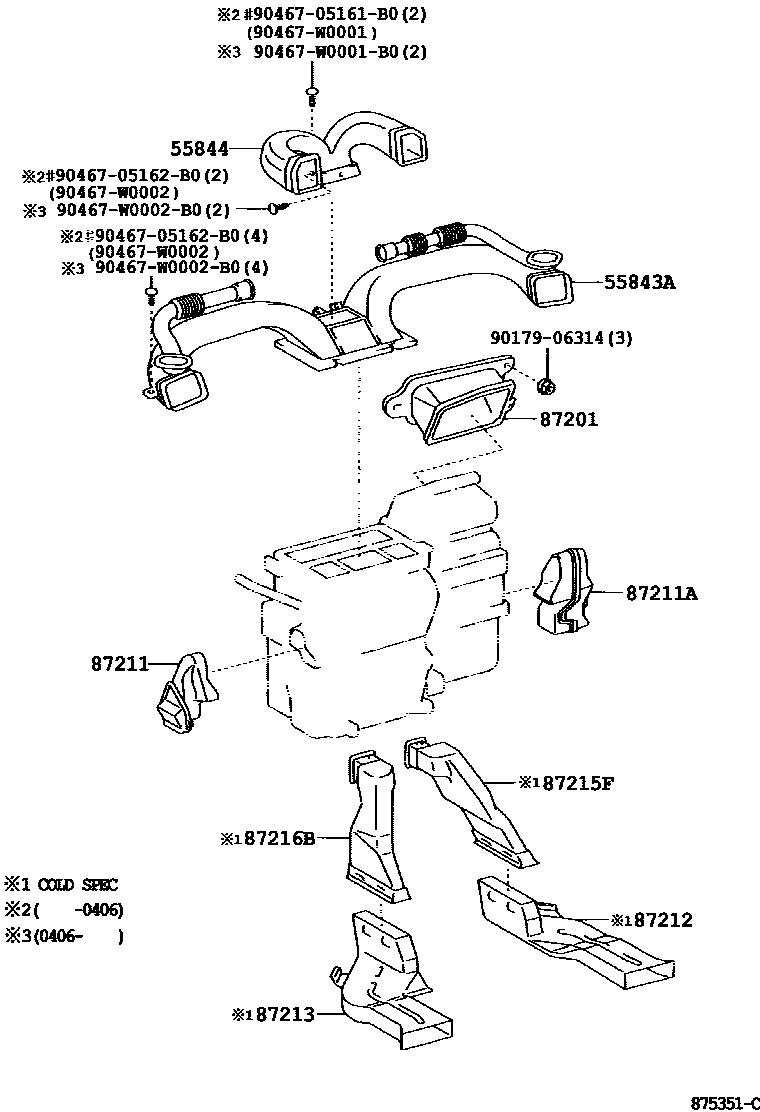

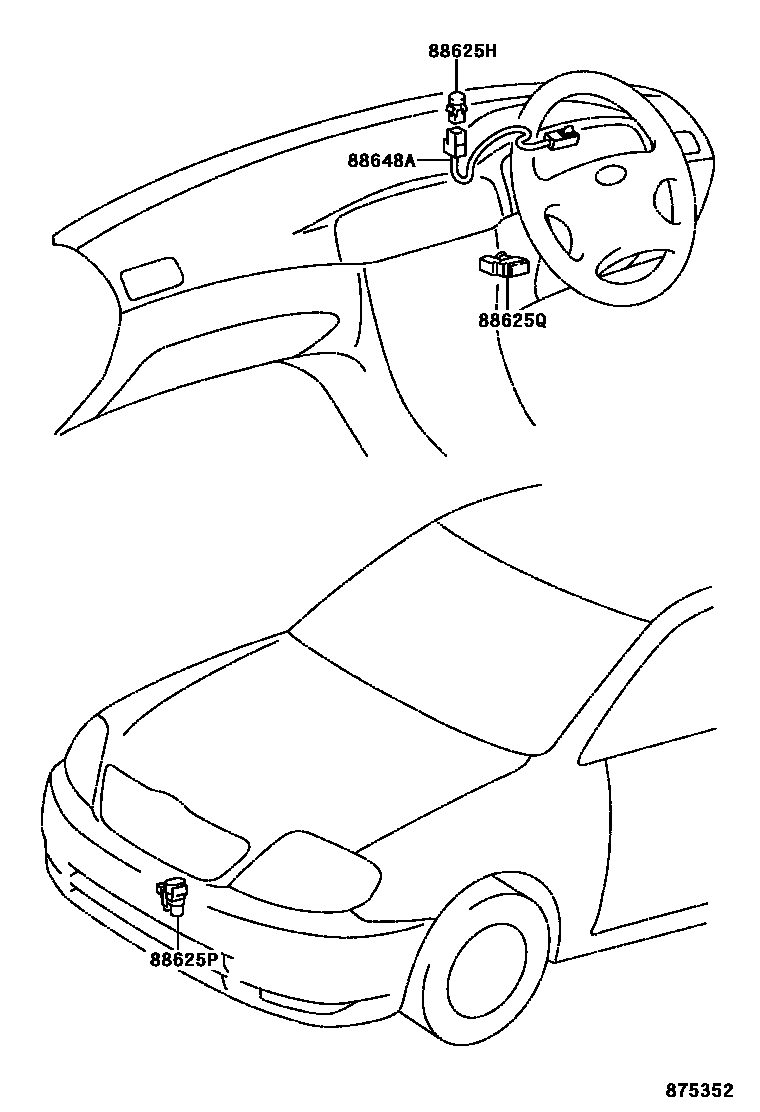

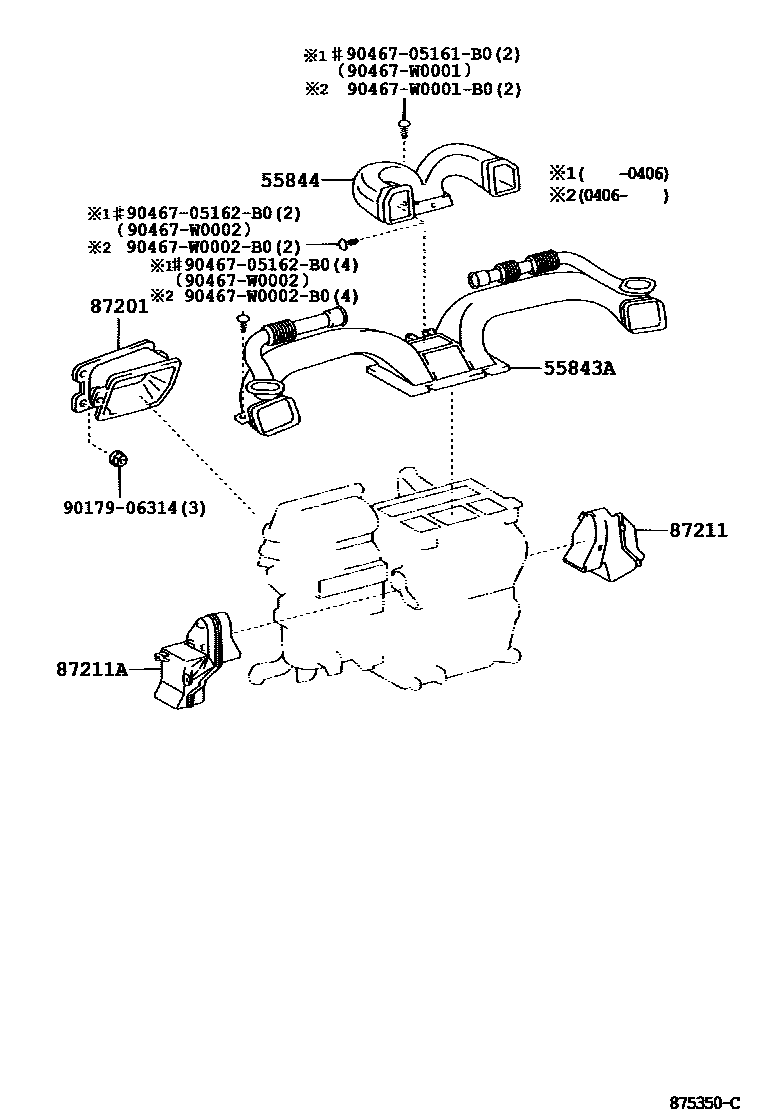

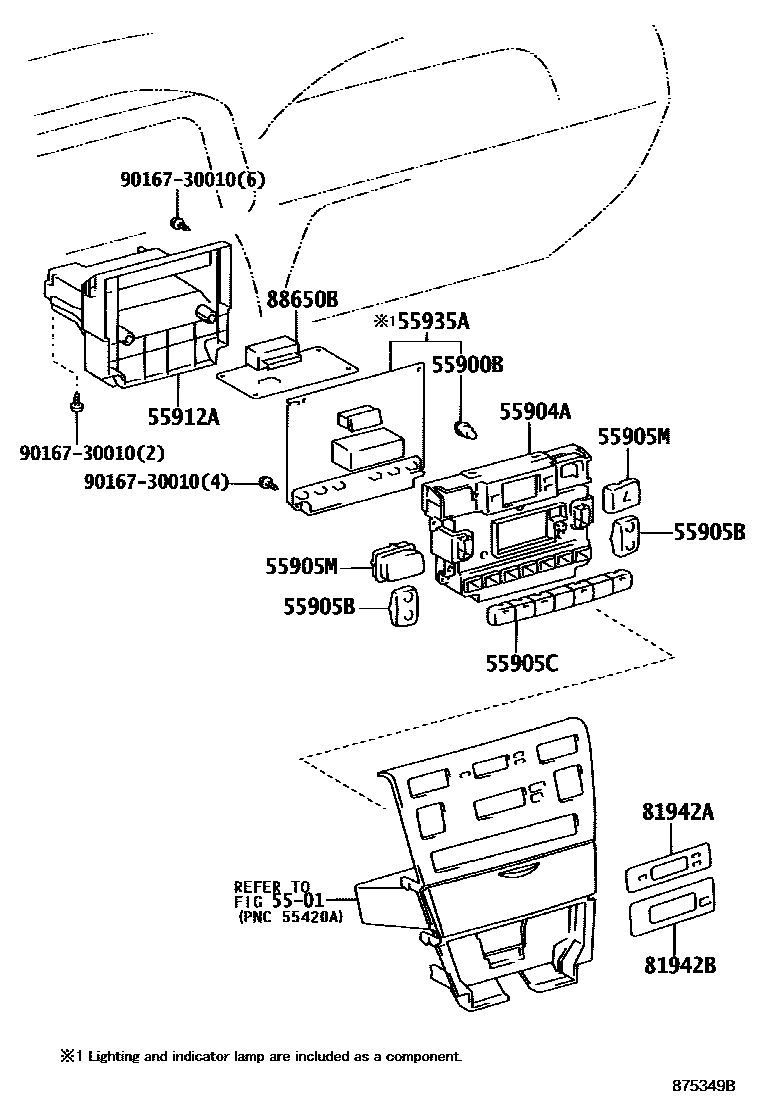

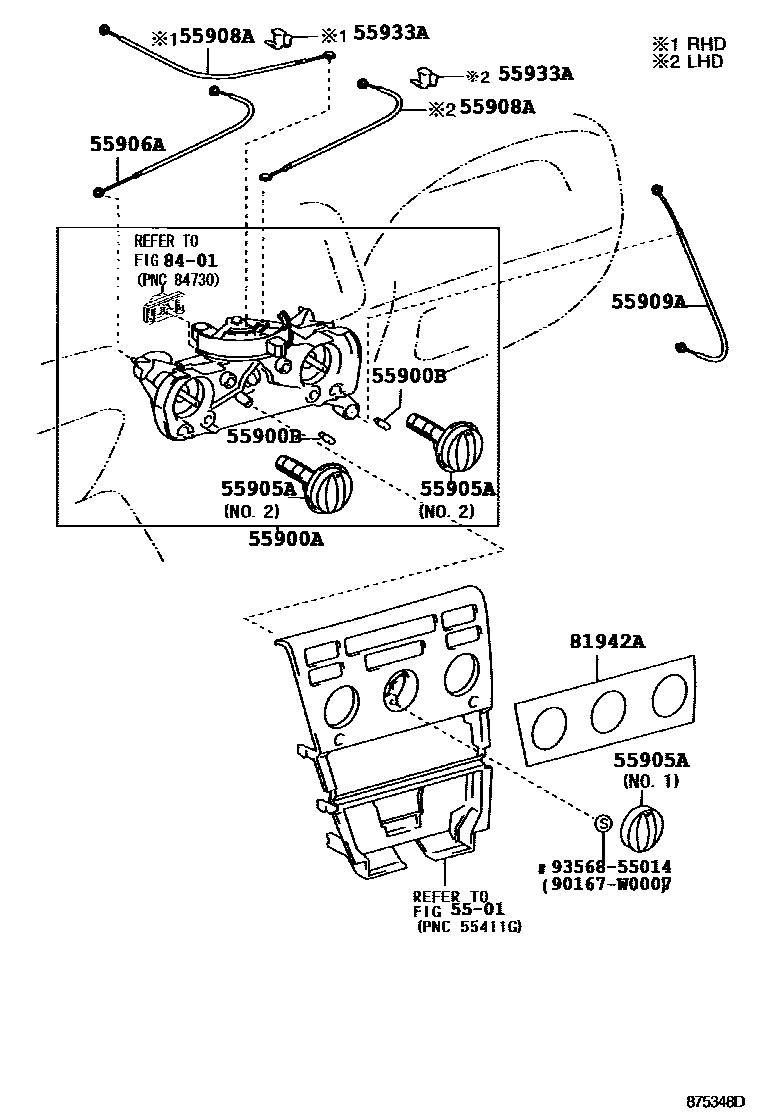

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-02090 · 55843-02100 · 55843-02110 · 55843-02120 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12460 · 55844-12470 |
| 55900A | Heater control and accessory assembly | 55900-02140 · 55900-02141 · 55900-02180 · 55900-02181 |
| 55900B | air conditioning control light bulb | 90010-05135 · 90010-05137 · 90010-05138 · 90010-05139 · 90069-98005 · 90981-WB011 |
| 55904A | Heater control housing sub-assembly | 55904-12010 |
| 55905A | Heater control button | 55905-02160 · 55905-02270 · 55905-0F030 |
| 55905B | Heater control button 2 | 55905-12670 · 55905-12680 |
| 55905C | Heater control button No. 3 | 55905-12690 |
| 55905M | Control button sub-assembly | 55905-12660 · 55905-12720 · 55905-12750 |
| 55906A | Defroster damper control cable sub-assembly | 55906-02050 · 55906-02060 · 55906-02110 · 55906-02120 |
| 55908A | Intake air valve control cable sub-assembly | 55908-02050 · 55908-02060 |
| 55909A | Air mix damper control cable sub-assembly | 55909-02050 · 55909-02080 |
| 55912A | heater control housing | 55912-13020 · 55912-13030 |
| 55933A | Heater control cable clip | 55933-0D010 |
| 55935A | Central instrument cluster module circuit | 55935-12120 · 55935-12170 |
| 81942A | Heater No. 1 control nameplate | 81942-02190 · 81942-02290 · 81942-12640 |
| 81942B | Heater No. 2 control nameplate | 81942-12650 |
| 87201 | No. 1 air duct sub-assembly | 87201-02140 · 87201-02150 · 87201-02160 · 87201-02210 · 87201-02230 · 87201-02240 |
| 87211 | No. 1 air duct | 87211-02110 · 87211-02130 · 87211-02160 |
| 87211A | Duct No. 2 | 87211-02120 · 87211-02140 · 87211-02170 · 87211-02180 · 87211-0F040 |
| 87212 | No. 1 rear air duct | 87212-02050 |
| 87213 | No. 2 rear air duct | 87213-02050 |
| 87215F | No. 3 rear air duct | 87215-12040 |
| 87216B | No. 4 rear air duct | 87216-12020 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-22131 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-02100 · 88648-02230 |
| 88650B | Air conditioning amplifier assembly | 88650-12A10 · 88650-13030 · 88650-13050 |
