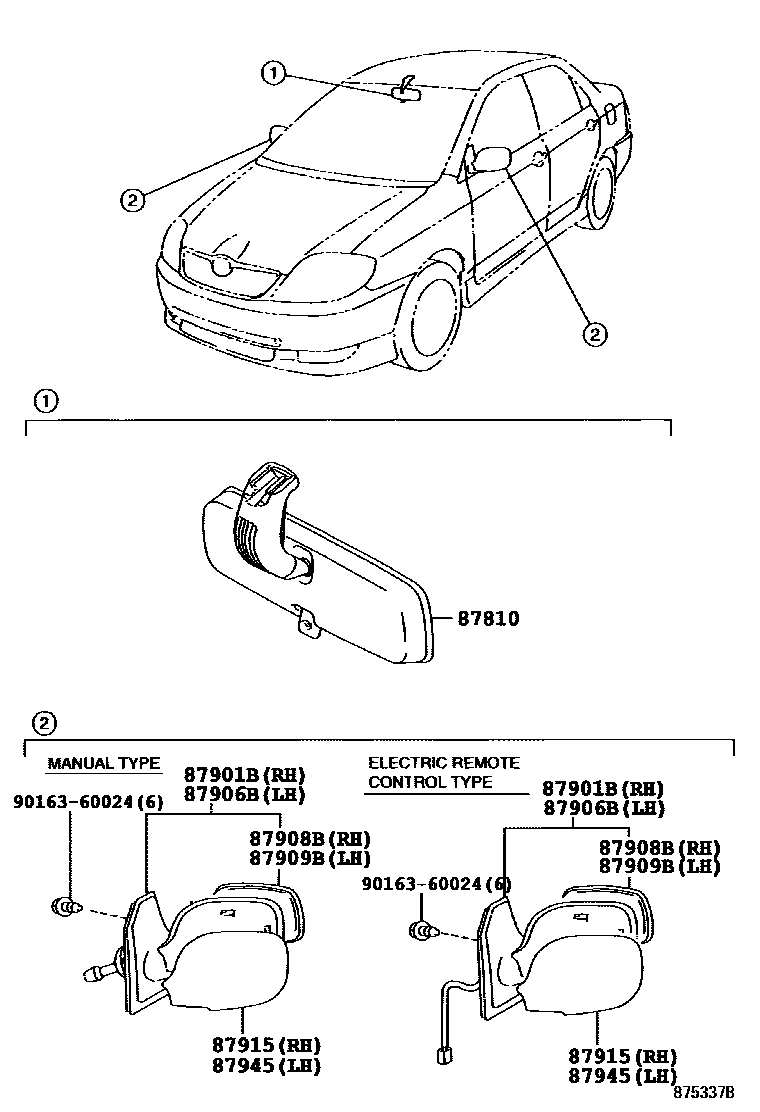

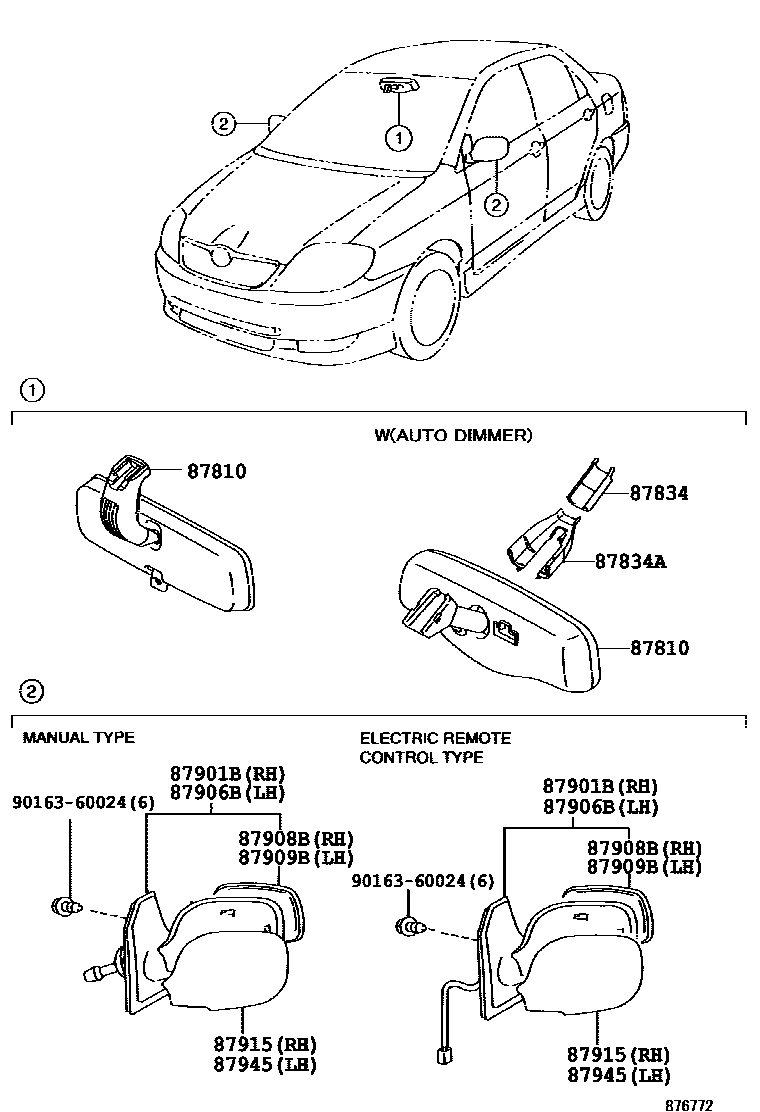

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-05020 · 87810-05021 · 87810-05040 · 87810-05041 · 87810-05042 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-02010 |
| 87834A | No. 2 interior rearview mirror stay fixing cover | 87834-05020 |
| 87901B | Right exterior rearview mirror sub-assembly | 87901-02010 · 87901-02020 · 87901-02030 · 87901-02040 · 87901-02050 · 87901-02060 · 87901-02220 · 87901-02230 · 87901-02240 · 87901-02250 |
| 87906B | Left exterior rearview mirror sub-assembly | 87906-02010 · 87906-02020 · 87906-02030 · 87906-02040 · 87906-02050 · 87906-02060 · 87906-02080 · 87906-02210 · 87906-02220 · 87906-02230 · 87906-02240 |
| 87908B | Right rearview mirror sub-assembly | 87908-02330 · 87908-02340 · 87908-02360 · 87908-02370 · 87908-02671 · 87908-02681 · 87908-02691 · 87908-02701 |
| 87909B | Left rearview mirror sub-assembly | 87909-02330 · 87909-02340 · 87909-02360 · 87909-02370 · 87909-02651 · 87909-02661 · 87909-02671 · 87909-02681 |
| 87915 | Right exterior rearview mirror cover | 87915-02905 · 87915-05010 · 87915-05900 |
| 87945 | Left exterior rearview mirror cap | 87945-02905 · 87945-05010 · 87945-05900 |
