Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 6 PNC and OE references.

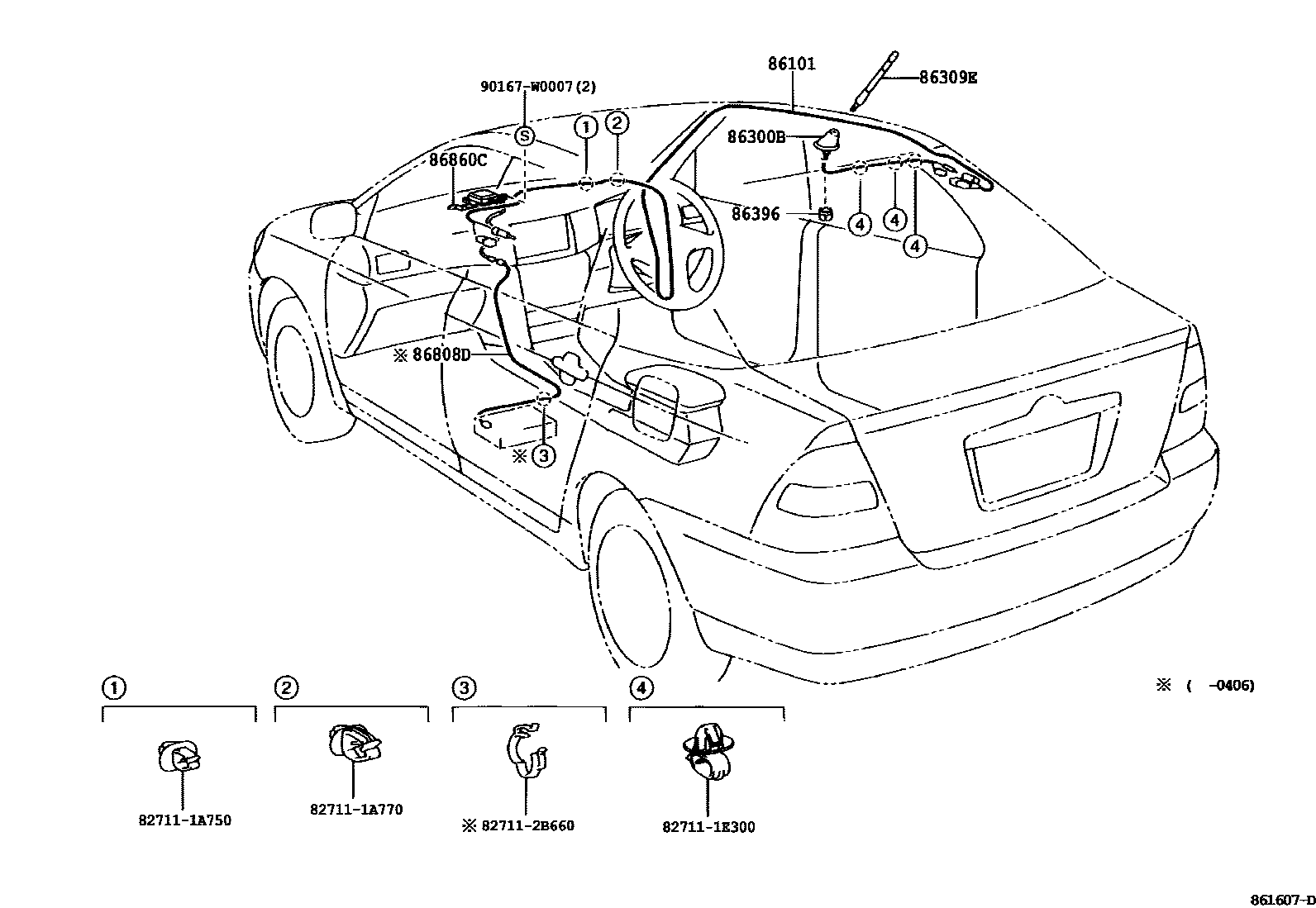

Toyota COROLLA antenna EPC diagram — 861607D
antenna — 861607D (200201 – 999999)

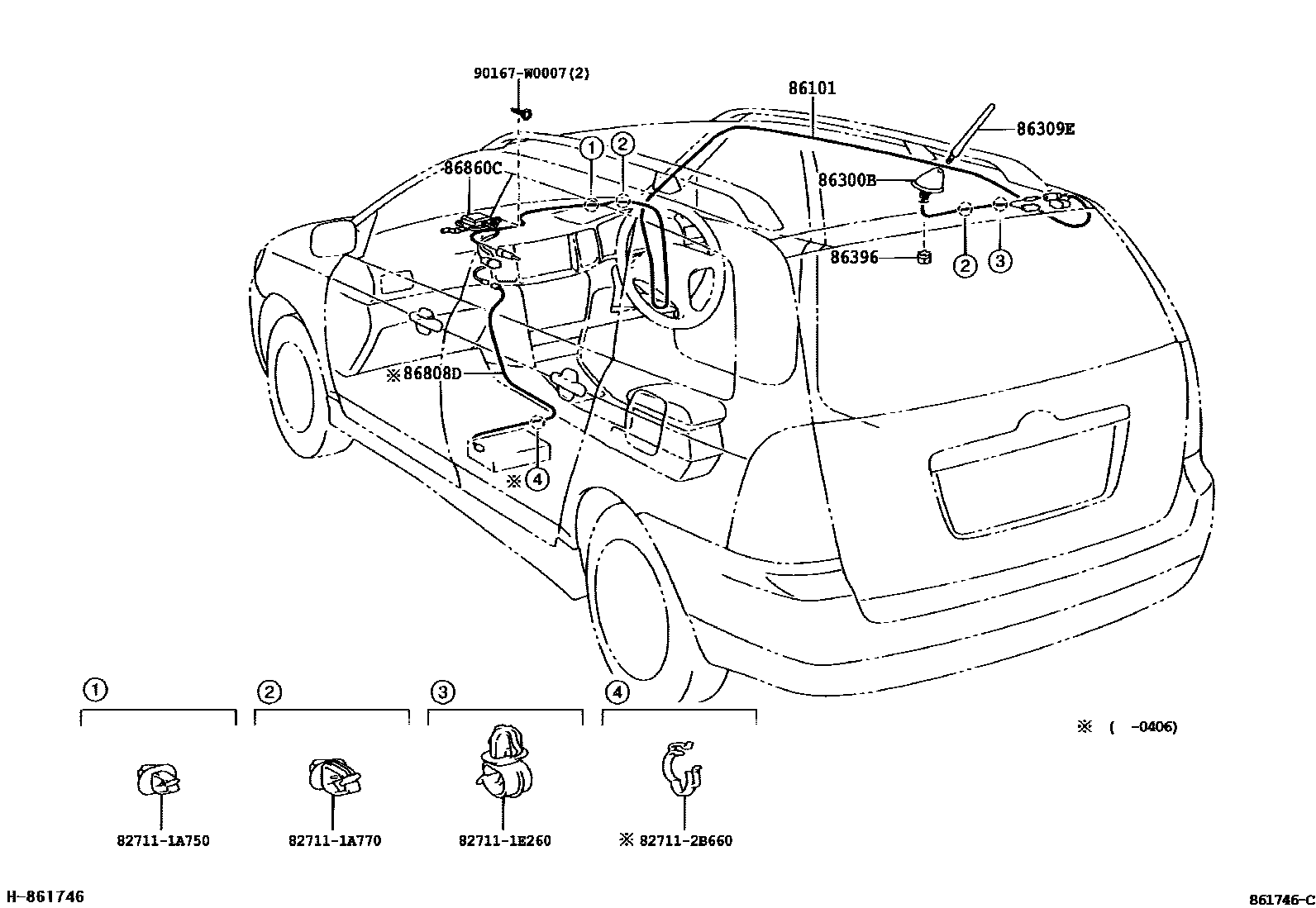

Toyota COROLLA antenna EPC diagram — 861746C
antenna — 861746C (200208 – 999999)

PNC and OE references

PNCPart nameOE numbers
86101Antenna wire sub-assembly86101-02070 · 86101-02090 · 86101-02140 · 86101-12320 · 86101-12330 · 86101-12390
86300BAmplifier antenna assembly86300-02080 · 86300-02120 · 86300-02121 · 86300-02190 · 86300-02191 · 86300-12740 · 86300-12790 · 86300-12810
86309ERoof antenna sub-assembly86309-02040 · 86309-13010
86396Antenna nut86396-02020 · 86396-12030
86808DNavigation antenna wire sub-assembly86808-13010
86860CNavigation antenna assembly86860-12030 · 86860-13030
