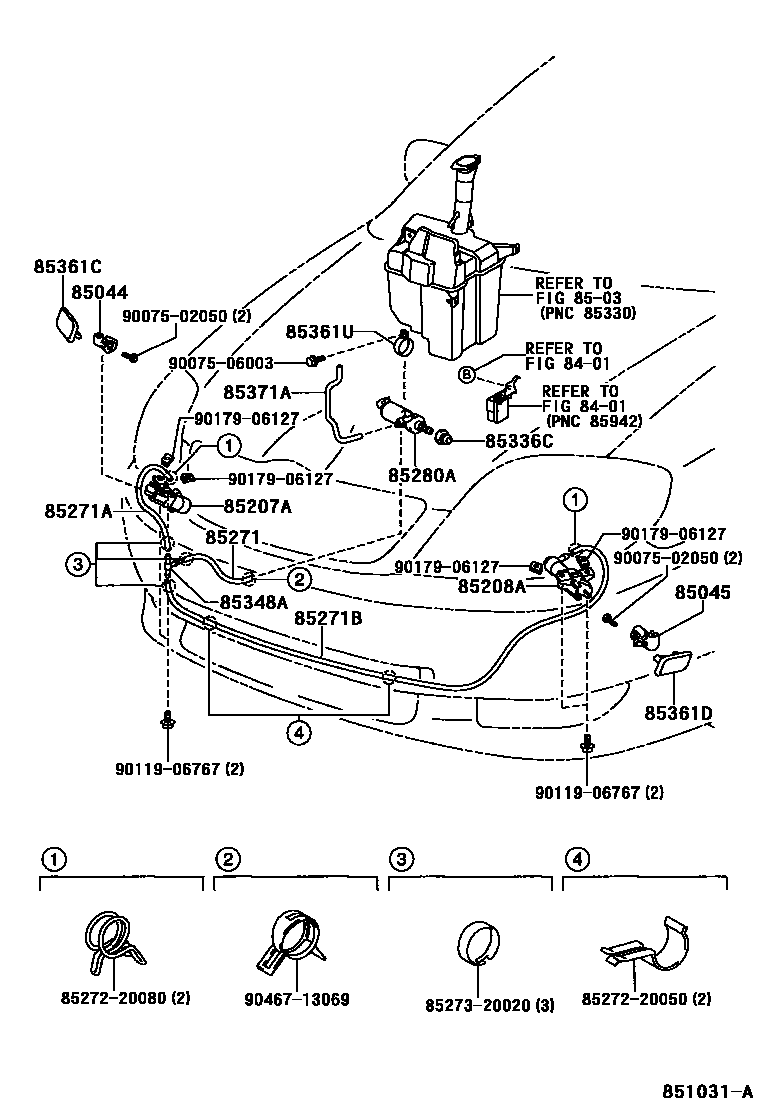

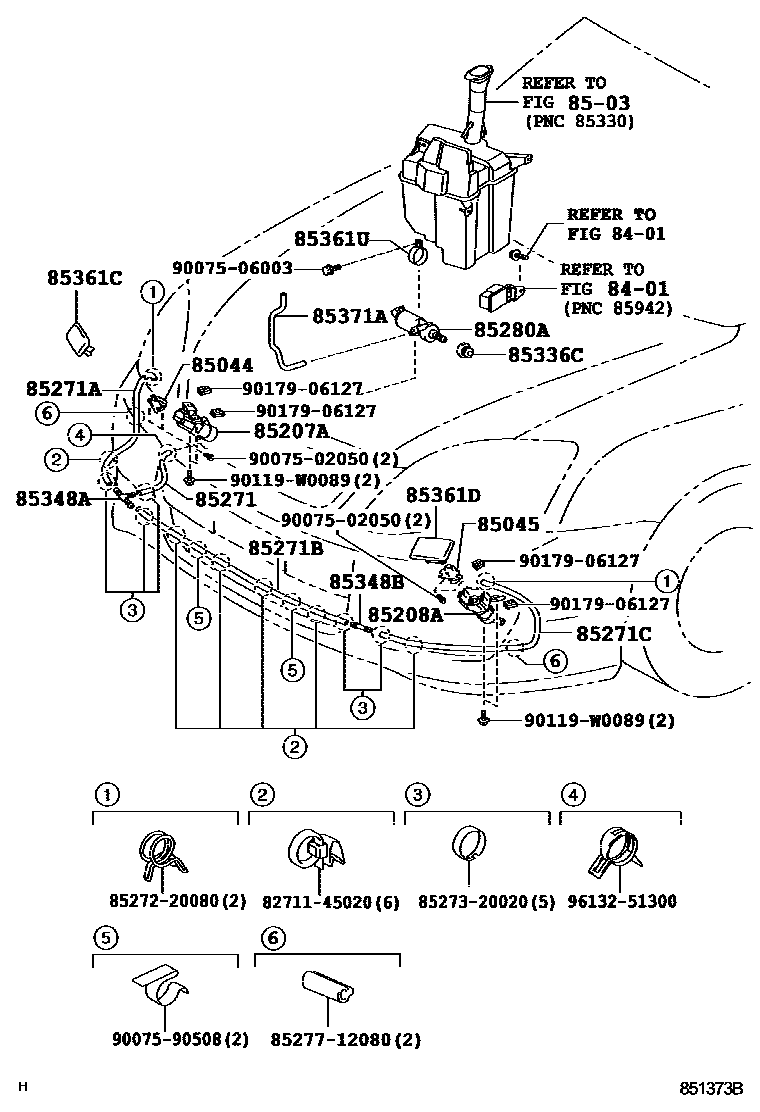

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85384-13010 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85394-13010 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-12020 · 85207-13020 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-12020 · 85208-13020 |
| 85271 | No. 1 headlight washer hose | 90075-15022 · 90075-15033 |
| 85271A | No. 2 headlight washer hose | 85343-95700 · 90075-15034 |
| 85271B | No. 3 headlight washer hose | 90075-15023 |
| 85271C | No. 4 headlight washer hose | 90075-15035 |
| 85280A | Headlight washer motor and pump assembly | 85280-20020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85348B | No. 2 headlight washer hose connector | 85379-89131 |
| 85361C | Cleaner stand | 85361-12780 · 85361-13040 |
| 85361D | No. 2 headlight washer bracket | 85362-12770 · 85362-13040 |
| 85361U | Headlight washer bracket | 85361-33020 |
| 85371A | Headlight washer hose (from motor to connector) | 90075-15016 |
