Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.

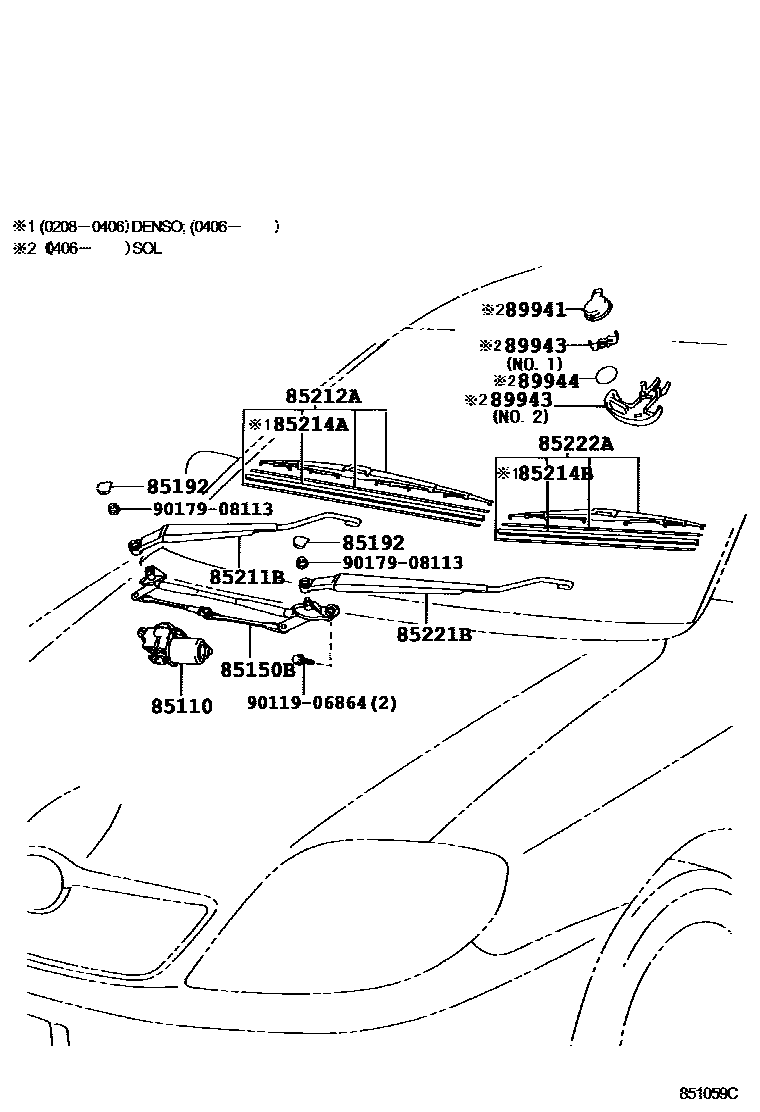

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 851059C
挡风玻璃刮水器 — 851059C (200201 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-02090 · 85110-02100 · 85110-02140 · 85110-02150
85150BWiper connecting rod assembly85150-02070 · 85150-02080 · 85150-02120 · 85150-02130
85192windshield wiper arm cover85292-02020
85211BRight front wiper arm85211-02100 · 85211-02110 · 85211-02150 · 85211-02160
85212ARight front wiper blade85212-02100 · 85212-02150 · 85212-02160 · 85212-02161 · 85222-05090
85214ARight wiper rubber strip85214-02210 · 85214-02211 · 85214-05080
85214BLeft wiper rubber strip85214-02210 · 85214-02211 · 85214-05080
85221BLeft front wiper arm85221-02110 · 85221-02120 · 85221-02160 · 85221-02170
85222ALeft front wiper blade85222-02120 · 85222-02160 · 85222-02161 · 85222-02170 · 85222-05090
89941rain sensor89941-05010
89943Rain sensor cover89943-05010 · 89943-05020
89944Rain sensor tape89944-05010
