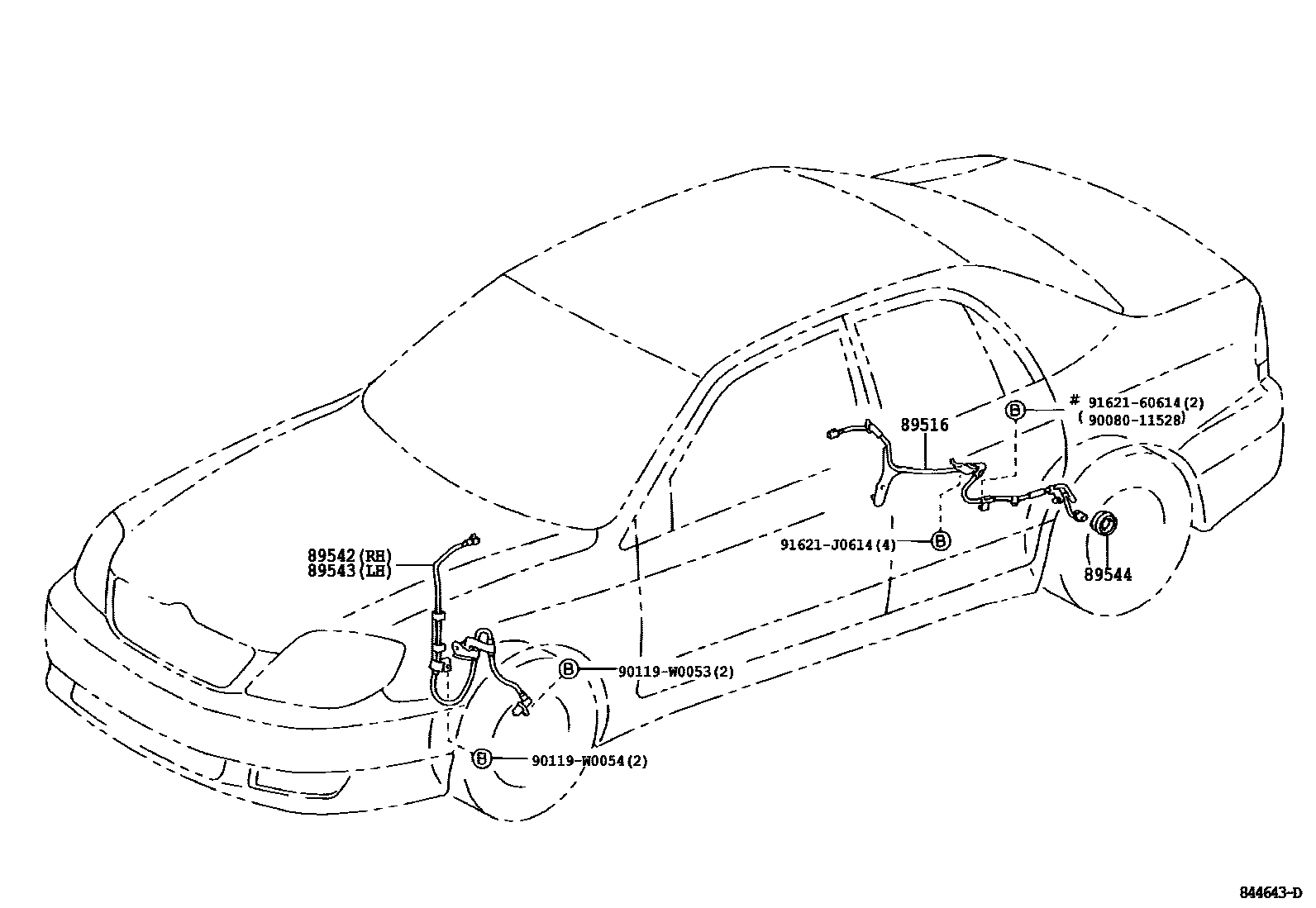

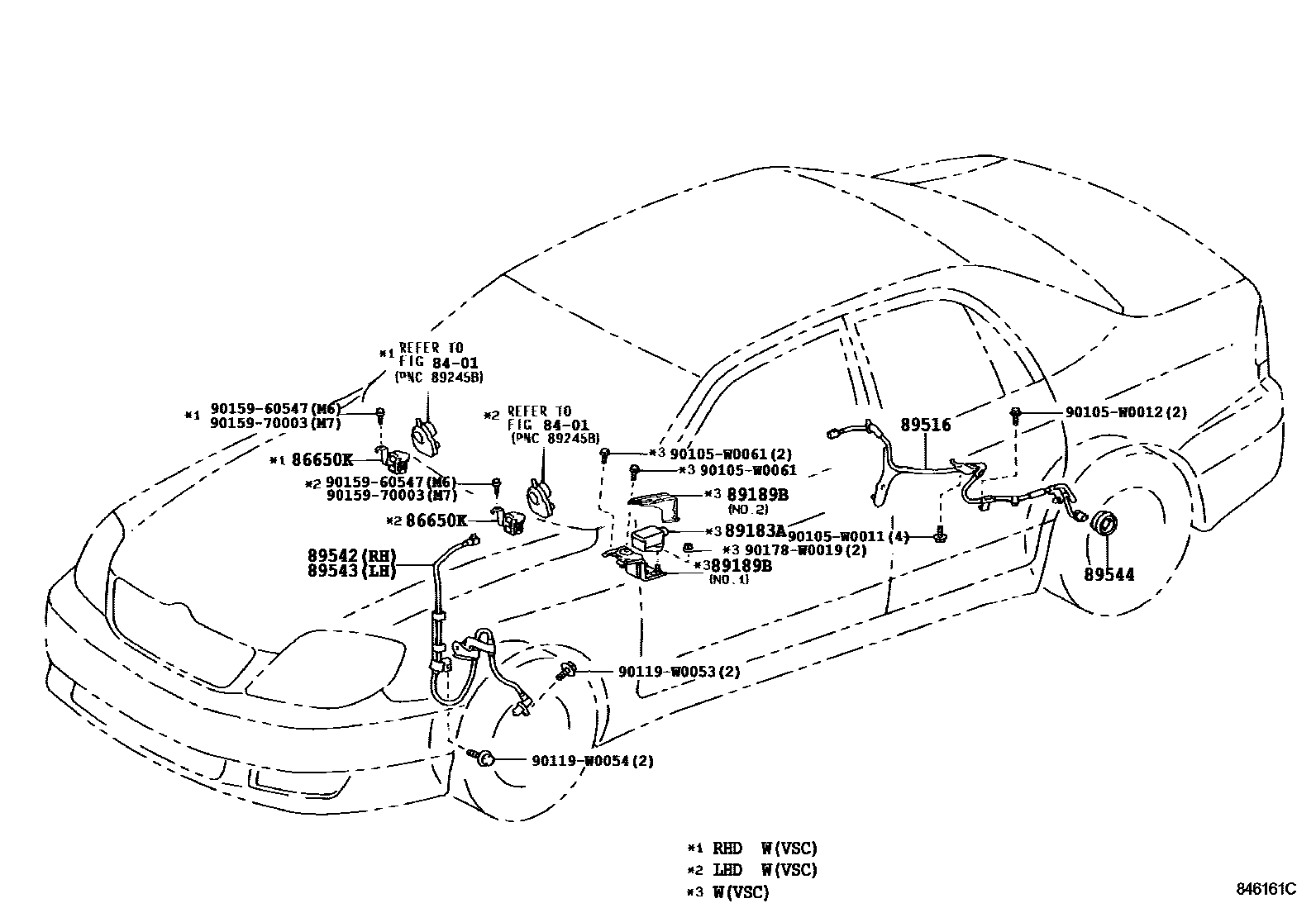

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86650K | Anti-skid control buzzer assembly | 86650-13010 |
| 89183A | Yaw rate sensor | 89183-02020 |
| 89189B | Yaw rate sensor bracket | 89189-02010 · 89189-20040 |
| 89516 | Anti-skid control sensor wiring harness | 89516-02030 · 89516-02040 |
| 89542 | Right front wheel speed sensor | 89542-02040 · 89542-12070 |
| 89543 | Left front wheel speed sensor | 89543-02040 · 89543-12070 |
| 89544 | Anti-skid control sensor | 89544-02010 |
